Rycote Full Windshield Kit 4 - for Sennheiser MKH-60/MKH 416 and AT897 Mics

ITEM #: RYC-086001 MFG #: 086001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$692.57

Our Price:

$659.59

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    086001 - Overview

    Suitable for Shotgun mics 211mm up to 280mm in length
    The Modular Windshield Kit is the professionals' choice when maximum isolation from wind and handling noise is required.
    This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.

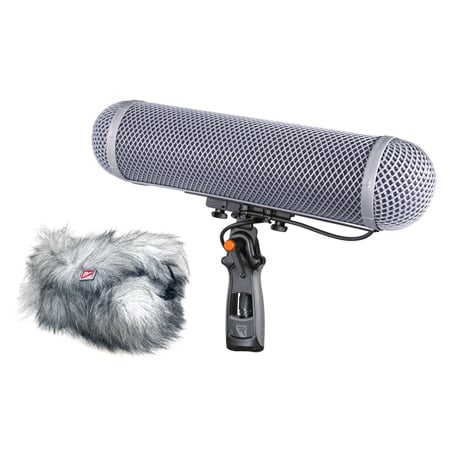

    A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.

    Modular Suspension

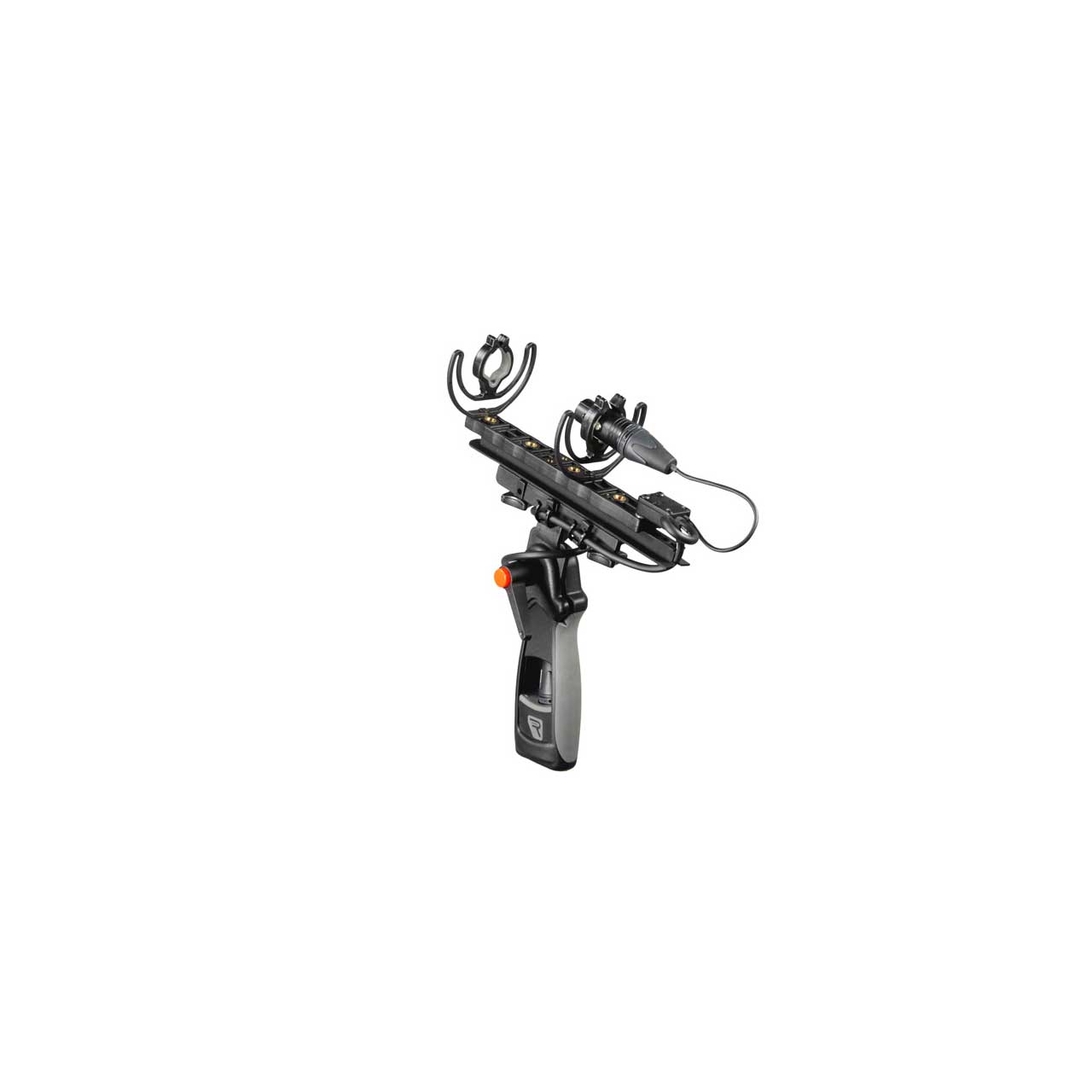

    Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.

    Windshield

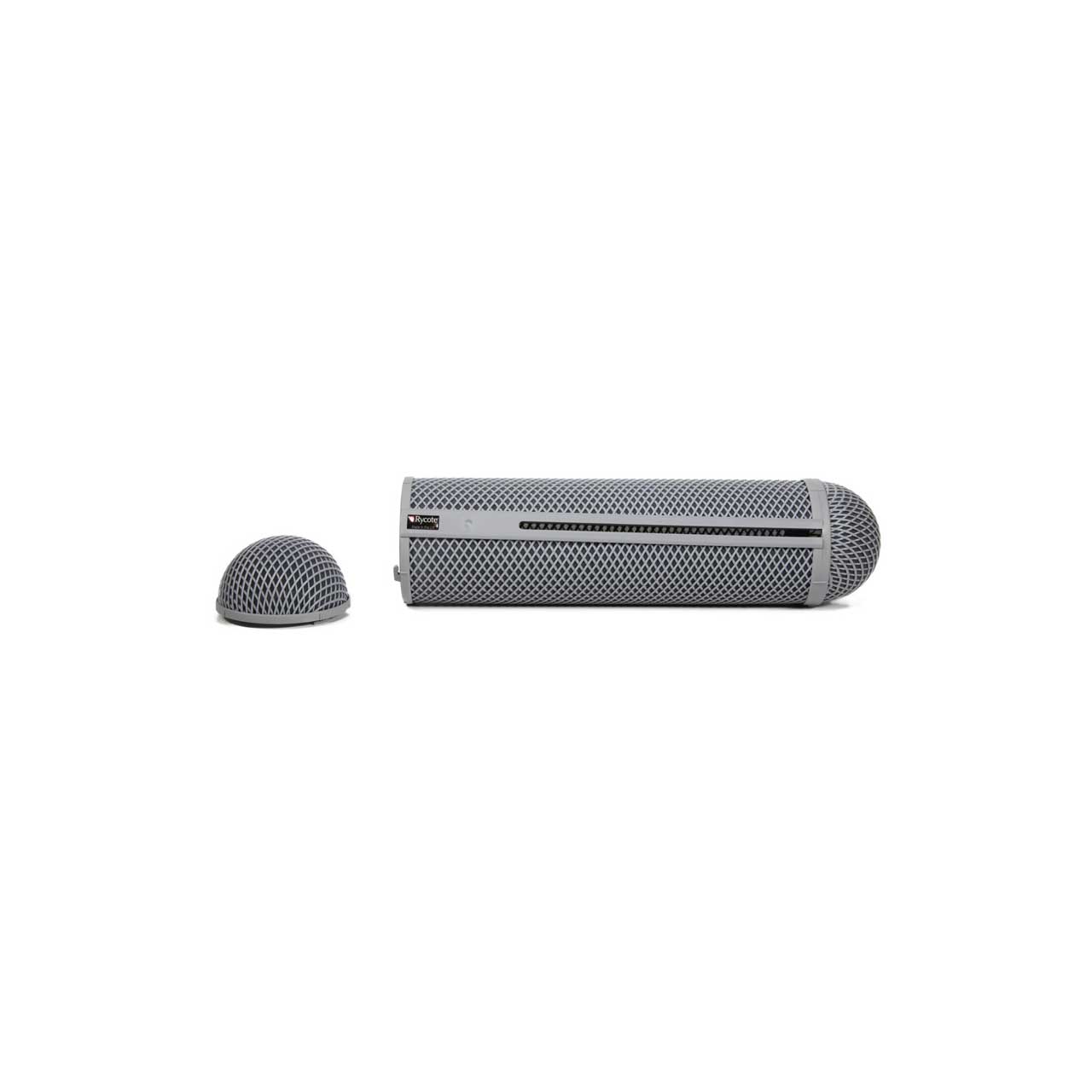

    The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

    Windjammer

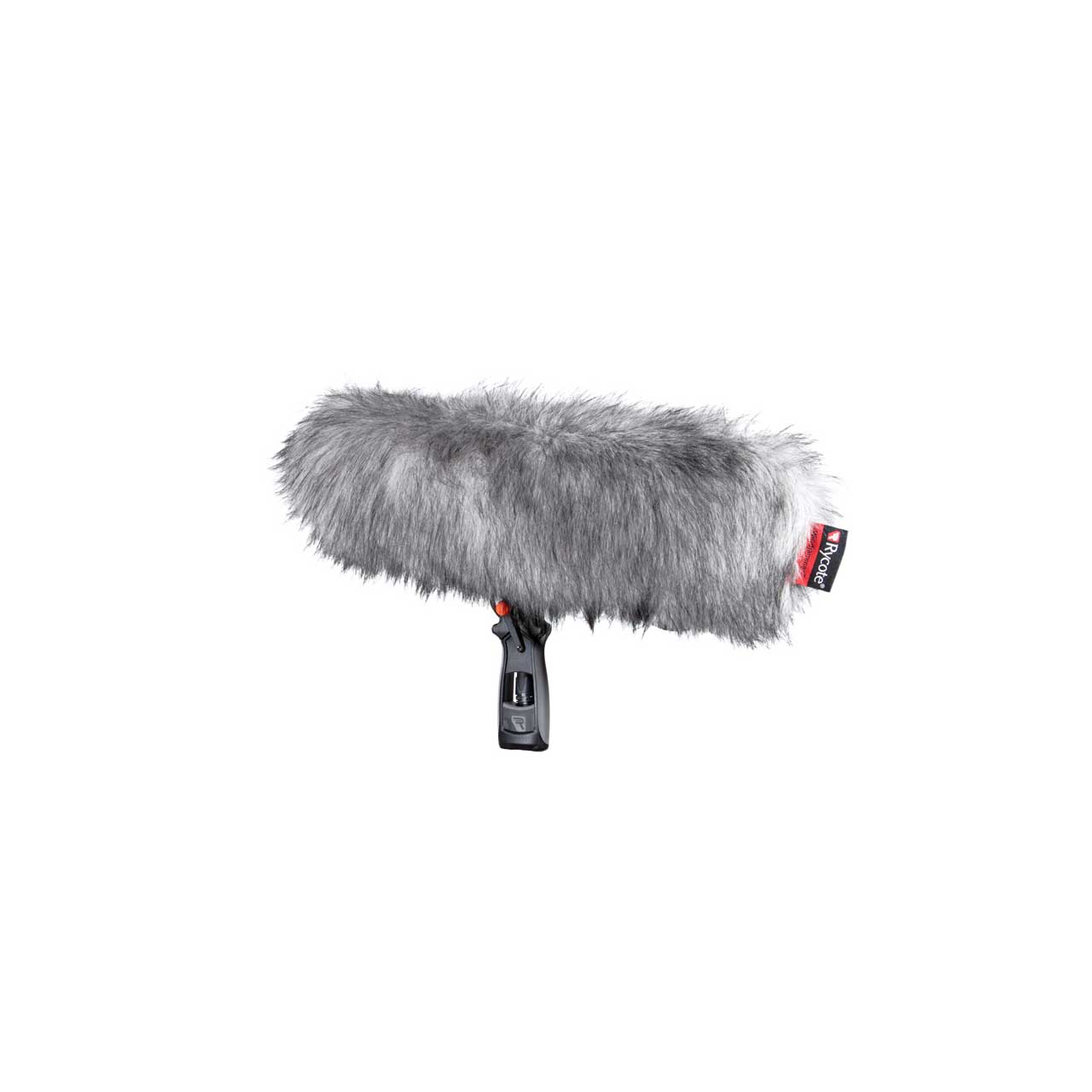

    The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.
    Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.

    Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.

    For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.

    • Specifications:

      • Windshield Body Length: 330mm
      • Total Windshield Length: 440mm (includes the End Caps)
      • Height of Windshield 100mm
      • Net Weight: 0,7kg
      • Gross Weight: 1.46
      • Windjammer Fur Length: 40mm
      • Windjammer Fur Colour: Grey
      • Microphone Connector: XLR-3F
      • Max Wind-noise Attenuation: 50 dB

      • Compatibility:
      • Audio-Technica AT 4073a (BP4073)
      • Audio-Technica AT 877
      • Audio-Technica AT 897
      • Audio-Technica ATR 55
      • Azden SG(M)-1X
      • BeyerDynamic MC 716
      • BeyerDynamic MC 726
      • BeyerDynamic MC 836
      • BeyerDynamic MCE 87vs
      • ClockAudio C850E
      • Neumann KMR 81i
      • Sanken CMS 9
      • Sanken CS 3
      • Schoeps CMIT 5U
      • Schoeps Super CMIT
      • Sennheiser MKH 416
      • Sennheiser MKH 60
      • Shure VP89S
      • Sony ECM 670
      • Sony ECM 674
      • Sony ECM 678

    • Item Includes:

      • 1 x Connbox CB1 (XLR-3F) Product Code: 016901 Suitable for mono microphones with 3-pin XLR.
      • 1 x XLR Holder MK II
      • Product Code: 048493 The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system
      • 1 x Boom Poles Adaptor Product Code: 048402
      • 1 x Pistol Grip Handle with Lever Product Code: 048401
      • 1 x Windjammer WJ 4 Product Code: 021504 Suitable for use with the Windshield 4
      • 1 x Windshield WS 4 Product Code: 010604 Suitable for mic lengths 246mm up to 280mm in length,
      • 1 x Suspension Medium (XLR-3F) 68 Duo Product Code: 040146 Suitable for shotgun microphones in a WS 4 or WS 295
      • 2x Duo-Lyre 68 (19/34)
      • 2x Single Lyre 72 (19/25)
      • Brush
      • Hex head key

    • GTIN:

      5060223651118
