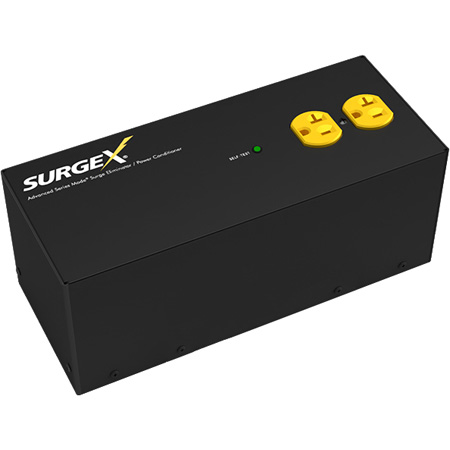

SurgeX SA20 Surge Eliminator & Power Conditioner 20 Amps at 120 Volts

Name: SurgeX SA20 Surge Eliminator & Power Conditioner 20 Amps at 120 Volts
Brand: SurgeX
SKU: SA-20

ITEM #: SA-20 MFG #: SA-20

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SA-20

SurgeX SA-20 STANDALONE Power Surge Protector & Conditioner - 20A/120V x 2Our Price: $649.00
Tripp Lite PDU1215 15A Rackmount Power Conditioner with 12 Rear Outlets (1-Front)Our Price: $114.00
Dataprobe iBoot-PDU8A-N15 Eight Outlet 15A Fanless Switched PDUOur Price: $539.00
Middle Atlantic Select PDU with Racklink - 2 OutletsOur Price: $315.00

Overview

Reviews

Attachments

Required Accessories

Recommended Accessories

SA-20 - Overview

The SA20 is specifically designed to upgrade and improve surge protection for audio, video, broadcast, computer and all sensitive electronic equipment.

When fitted with the optional mounting brackets these standalone units easily mount where you need them. The SA-20 is rated for 20 amps and has two industrial grade grounded AC receptacles. The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering for a comprehensive power conditioning solution.

SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances.

*1.2 x 50 æs pulse, industry standard combination wave surge, as per IEEE C62.41

Shown with optional mounting bracket (SX-SAB)

Features:
- Magnetic shielding steel enclosure
- 9' grounded 3-wire #12 line cord
- 2 grounded AC receptacles
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- Self-test circuit with visual indicator
- 10-year warranty
- Made in U.S.A.
Specifications:
- Load Rating: 20 amps @ 120 volts
- Power Requirement (no load): 10 watts
- Surge Let-Through Voltage (6000-volt surge): 0 volts
- UL 1449 Adjunct Classification Test Results:
- 1000 surges, 6000 volts, 3000 amps, B3 pulse;
- Measured suppressed voltage: 170 volts; no failures
- Federal Guidelines: Grade A, Class 1, Mode 1 (CID A-A-55818)
- EMI/RFI Filter, Normal Mode (50-ohm load):
- 40 dB @ 100 kHz; 50 dB @ 300 kHz;
- 50 dB @ 3 MHz; 50 dB @ 30 MHz
- EMI/RFI Filter, Common Mode (50-ohm load):
- 18 dB @ 300 kHz; 30 dB @ 1 MHz;
- 50 dB @ 5 MHz; 50 dB @ 20 MHz
- Maximum Applied Surge Voltage: 6000 volts.*
- Maximum Applied Surge Current:
- Unlimited, due to current limiting.*
- Maximum Applied Surge Energy:
- Unlimited, due to current limiting.*
- Endurance (C62.41-1991 Category B3 pulses):
- 1 kV>500,000; 3 kV>10,000; 6 kV>1000.
- Dimensions: 4.0" H x 10.2" W x 4.2" D (10.2 x 25.9 x 10.7 cm)
- Weight: 8.5 lbs (3.8 kg)
- Temperature Range: 5§ to 35§ C
- Humidity Range: 5% to 95% R.H., non-condensing
- Agency Listings: ETL and cETL (UL 1449, 2nd edition;
- CSA C22.2 No.8-M1986, R2000)
GTIN:
0859971002540
