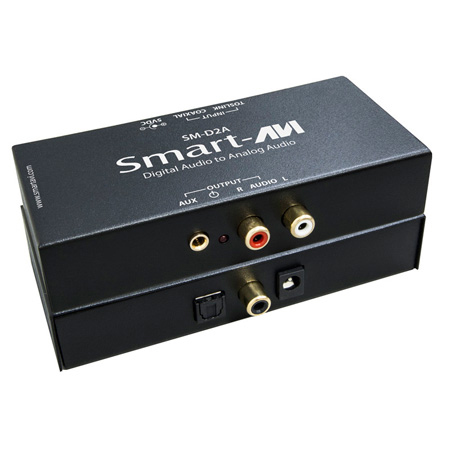

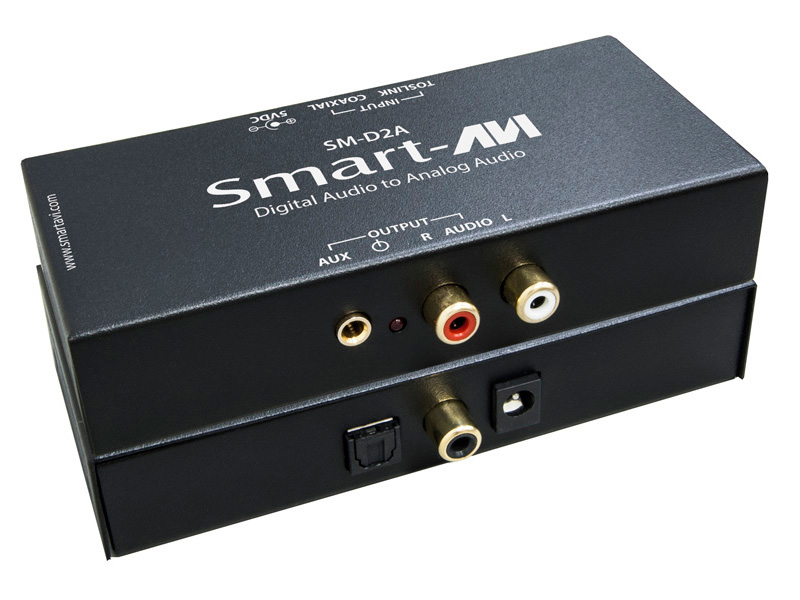

Smart-AVI SM-D2A-S Digital to Analog Audio Converter

ITEM #: SAVI-SM-D2A-S MFG #: SM-D2A-S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SAVI-SM-D2A-S

SM-D2A-S - Overview

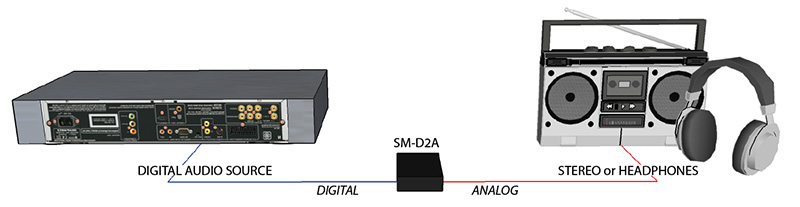

The SM-D2A Digital to Analog Audio Converter allows you to convert your digital audio sources into more conventional analog audio. It converts Coaxial or Toslink digital audio with 2 possible outputs, right/left RCA and 3.5mm stereo audio. This allows you to connect your digital audio devices to a stereo receiver with RCA inputs or headphones.

  • Features:

    • Convert Coaxial or Toslink digital audio signals to analog R/L audio with auxiliary 3.5mm jack
    • Supports sampling rates at 32, 44.1, 48 and 96 KHz
    • Supports dual-channel 24-bit S/PDIF
    • Digital conversion with no noise
    • Simple to install and easy to operate
    • Low power consumption


  • Specifications:

    • SPDIF DIGITAL AUDIO INPUT
    • Signal Type DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Sampling Rate 32, 44.1, 48 and 96 KHz
    • Input Interface (1) TOSLink Optical (1) COAX (RCA)
    • ANALOG AUDIO OUTPUT
    • Frequency Response 20 Hz to 20 KHz
    • Impedance 600 ohm
    • Nominal Level 0-1.0 V
    • Common Mode Rejection at 60dB
    • Output Interface Right/Left RCA (Female), 3.5mm Stereo (Female)
    • OTHER
    • Power External 100-240 VAC/5VDC2A @10W
    • Dimensions 5 in W x 1 in H x 2.75 in D
    • Weight 0.5 lbs
    • Operating Temp. 0-55 °C (32-131°F)
    • Storage Temp. -20-85 °C (-4-185 °F)
    • Humidity Up to 95%


  • Item Includes:

    • [SM-D2A, (PS5VDC2A)]


  • GTIN:

    0813280019583
