Sennheiser MEB104B Speechline Install Boundary Mic - Cardioid Black

ITEM #: SENN-MEB104B MFG #: MEB104B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$229.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MEB104B - Overview

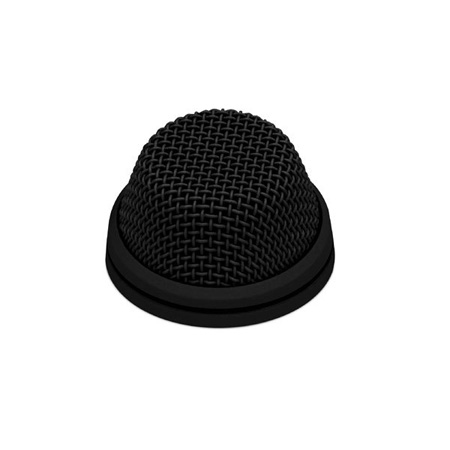

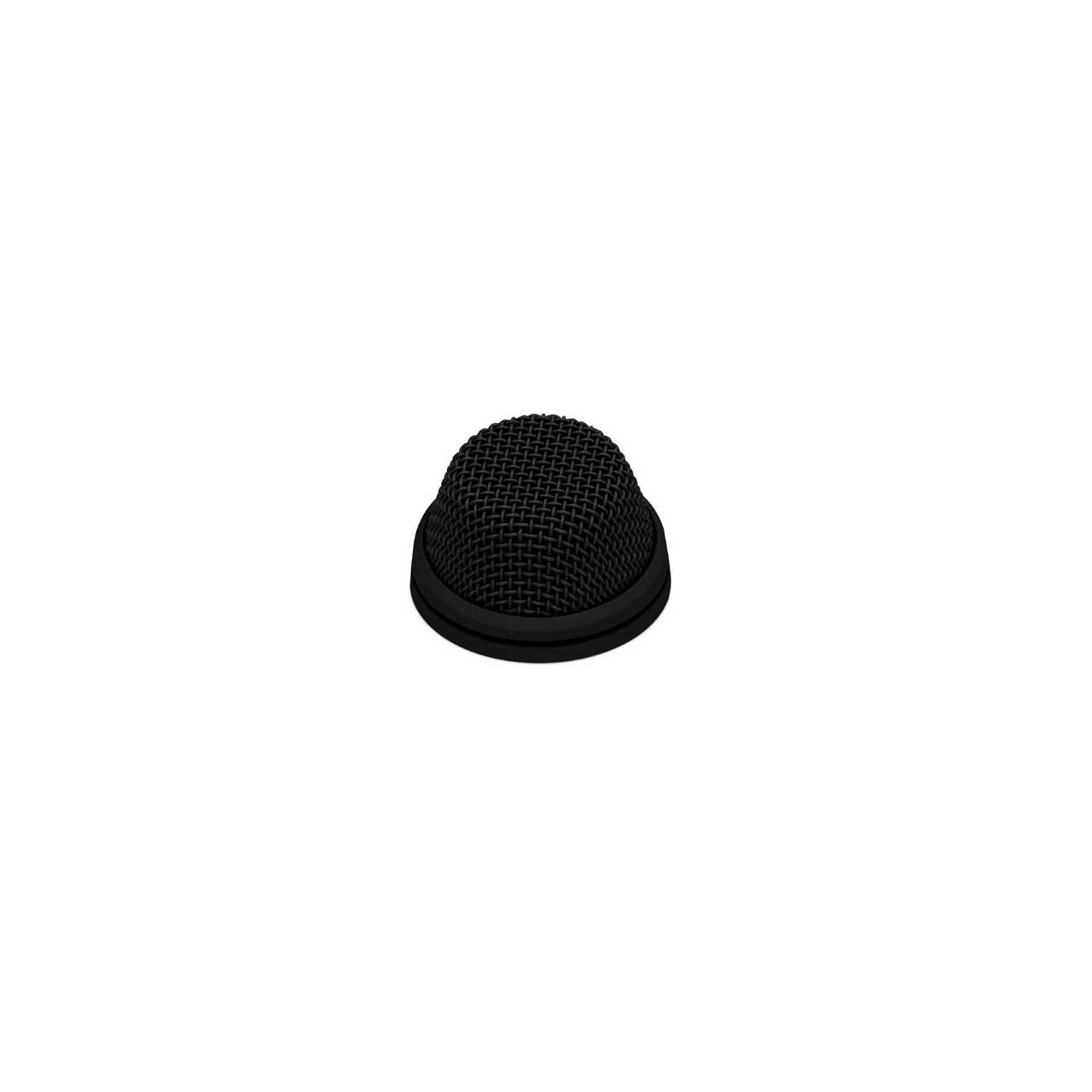

    The Sennheiser MEB 104 B is a boundary installation wired microphones for simple installation in tables or ceiling elements. With its compact, discreet design, this model will fit perfectly into any environment. The microphone capsule with cardioid pickup pattern guarantees optimum speech intelligibility, and its robust housing provides the perfect protection. The model is available in black and white color. Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 104 (cardioid) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.

    • Specifications:

      • Connector: XLR-3 Pin

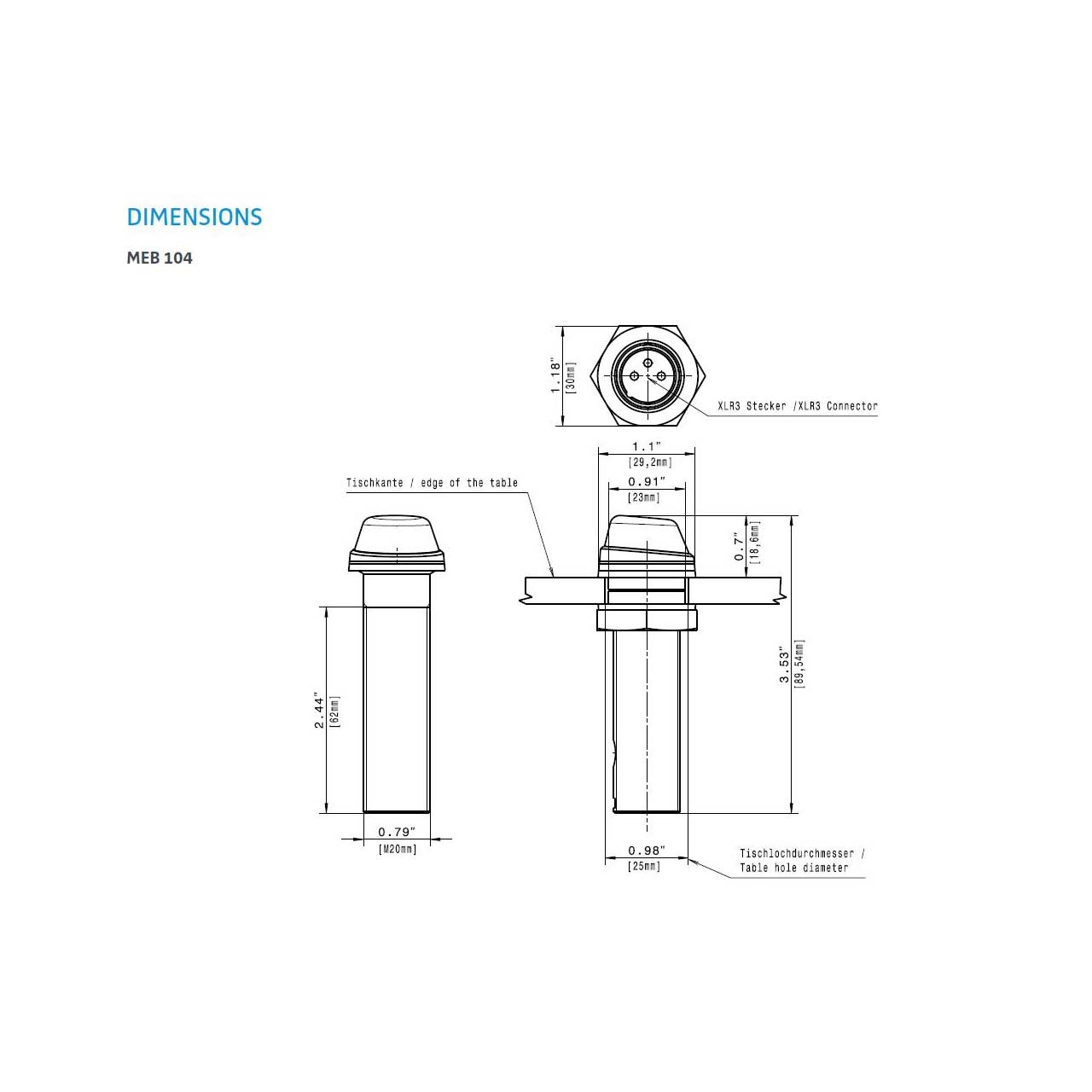

      • Dimensions: Height 3.54 in (0.75 in above surface), Diameter: 1.12 in
      • Frequency response: 40 Hz - 20 kHz
      • Max. sound pressure level: 125 dB
      • Transducer principle: pre-polarized condenser microphone
      • Weight: 2.12 oz
      • Pick-up pattern: cardioid
      • Nominal impedance: 200Ω
      • Phantom powering: P 24 - P 48
      • Operating temperature: 32°to 104° F
      • Equivalent noise level: 28 dB (A)
      • Equivalent noise level weighted as per CCIR: 468-3 38 dB (CCIR)
      • Acoustics: Boundary Layer Microphone
      • Dynamic range: 97 dB (A)
      • Sensitivity: 14 mV/Pa
      • Thread: M 20

    • Item Includes:

      • MEB 104
      • Mounting hardware
      • Quick guide

    • GTIN:

      0615104230224
