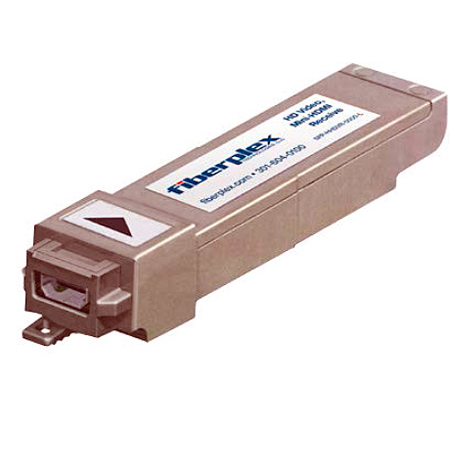

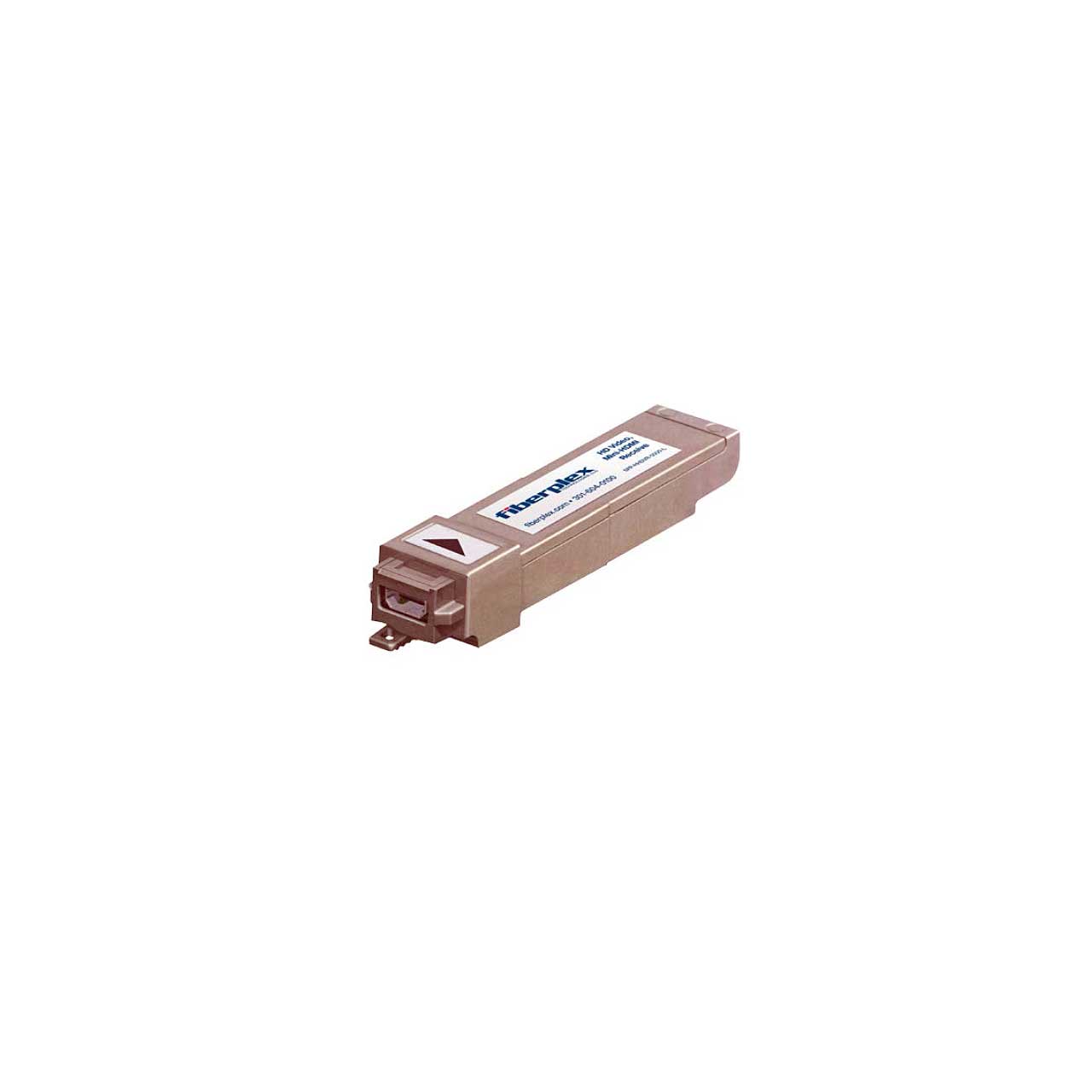

Fiberplex SFP-HHDVR-0000-M HDMI 1.4 HD Video Receiver SFP Module

Item #: SFP-HHDVR-0000-M   •   MFG #: SFP-HHDVR-0000-M




Share!





Required Accessories

    Show More

The SFP-HHDVR-0000-M is an electrical SFP receiver module designed to convert HDMI/DVI to an SDI signal output without scaling artifacts. The SFP-HHDVR-0000-L could support HDCP, by programming a key inside. Up to 8 channel of audio is supported and de-embedded from the HDMI signal.
The SFP-HHDVR-0000-M provides module identification information, configuration and diagnostic monitoring through a 2 wire serial interface. It is also a hotpluggable solution for field system upgrade and maintenance.
The SFP-HHDVR-0000-M is interchangeable with other MSA optical video SFP, coaxial SFP and SFP converter improving product flexibility. Ganged cages, belly-to-belly and superposed cages mounting are supported. The module provides reduced development risk and cost.


Flexibility: Build a totally optimized system by mixing electrical SDI, NTSC/PAL converter, HDMI/DVI and optical video SFP.
Cost:Design cost effective system.
Modularity: Allow hot scalability and replacement of critical components wherever possible.
Density: Highest density ever achieved for SDI to HDMI/DVI and HDMI/DVI to SDI converters.
Interchangeable: Fully compatible with existing MSA video optical SFP, SDI SFP and SFP converters.
Hot-Pluggable: Swap without affecting system behavior.
Advanced Packaging:Support ganged cages, belly-to-belly and superposed cages mounting.

Typical Applications:
Multi-channel/multi-media transport with WDM-16
Cost effective SDI monitoring solution
Processing cards
SDI switchers
Video routers
Broadcast cameras

Green: The SFP-HHDVR-0000-L is Pb-free and ROHS compliant


  • Features

    • SMPTE 424M, 292M and 259M compliant.
    • Supported format: 25/625, 720p/1080i (50/59.94/60Hz), 1080p (23.98/24/15/29.97/30/50/59.94/60Hz).
    • HDMI/DVI Input: 24 bit (3x8 bits).
    • RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4.
    • BW = 150Mhz.
    • RGB Range (Full/SMPTE).
    • Up to 8 channel audio de-embedding (PCM).
    • HDMI 1.4 Type D connector.
    • HDMI Type D plug with retention.
    • HDCP supported.
    • Control via serial interface including: Voltage & Temperature Monitoring.
    • HDMI/DVI interface configuration.
    • EDID reading, Audio mapping.
    • Module Information.

  • Specifications

    • Low Power Consumption Single Supply +3.3V
    • 58.5mm x 13.4mm x 8.6mm SFPPackage
    • Operating temperature: 0°C to 70°C
