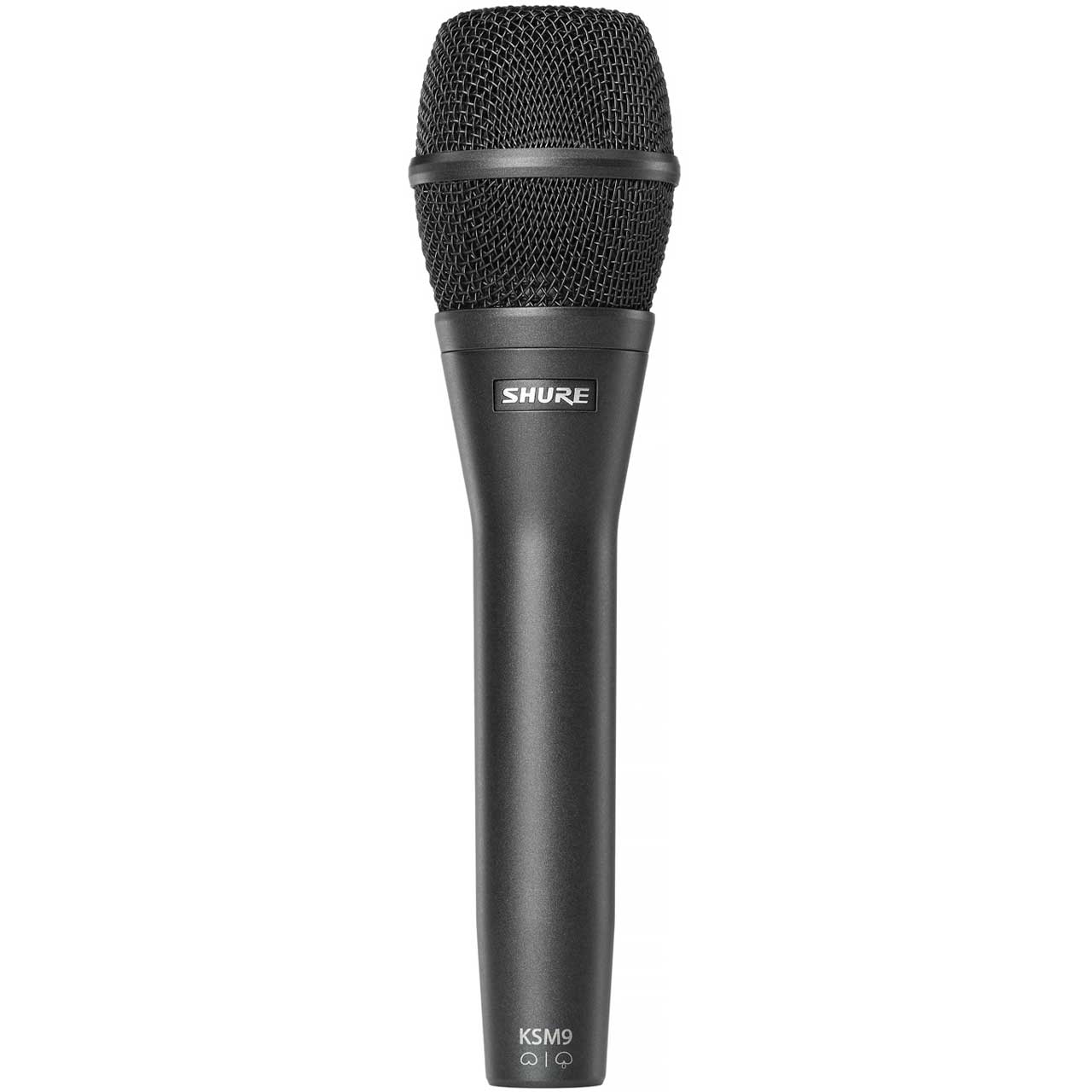

Shure KSM9 Vocal Microphone (Charcoal Grey)

KSM9/CG - Overview

Vocal Microphone (Charcoal Grey)

• Features:

  • Dual gold layered, low-mass Mylar diaphragm design
  • Switchable polar patterns (supercardioid and cardioid)
  • Advanced suspension shock mount
  • Premium electronic components including Class A transformerless preamplifier circuitry
  • Gold-plated internal and external connectors, including XLR Output Durable aluminum housing
  • Champagne or charcoal grey finish
  • Full-range frequency response (50Hz to 20kHz)
  • Aluminum carrying case


• Specifications:

  • Cartridge Type
  • Condenser (Electret Biased)
  • Frequency Response - 50 to 20,000 Hz
  • Output Impedance - 150 ohms (actual)
  • Phantom Power - 48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
  • Current Drain - 5.2 mA typical at 48 Vdc
  • Common Mode Rejection - >60 dB, 50 Hz to 20 kHz
  • Polarity - Positive pressure on front diaphragm produces positive voltage on output pin 2 relative to pin 3
    Directional Polar Patterns:
  • Cardioid
  • upercardioid
  • Sensitivity (typical; at 1000 Hz; 1 Pa = 94 dB SPL) -51 dBV/Pa
  • Self-noise (typical, equivalent SPL; A-weighted, IEC 651) 22 dB
    Maximum SPL @ 1000 Hz:
  • 2500 ohm load: 152 dB
  • 1000 ohm load: 152 dB
    Output Clipping Level*:
  • 2500 ohm load: 6.7 dBV
  • 1000 ohm load: 6.0 dBV
    Dynamic Range:
  • 2500 ohm load: 130 dB
  • 1000 ohm load: 130 dB
    Signal to Noise ratio:
  • 72 dB
    Dimensions and Weight:
  • 49 mm (1 15/16 in.) maximum body diameter, 191 mm (7.5 in.) long; 300 grams (10.6 oz).
  • *100 Hz to 20 kHz;THD < 1%.
  • **S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted


• Item Includes:

  • 1x - AK9C Zipped Carrying Case for KSM9
  • 1x - A25E Stand Adapter
  • 1x - 95A2050 5/8" to 3/8" Thread Adapter


• GTIN:

  0042406130103
