Shure UABIAST-US In-line Adapter - Supplies 12V DC Bias Power Over Coaxial BNC Cable

ITEM #: SH-UABIAST-US MFG #: UABIAST-US

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$125.00

Our Price:

$73.95

Availability: In Stock
iAvailability Description Popup


    UABIAST-US - Overview

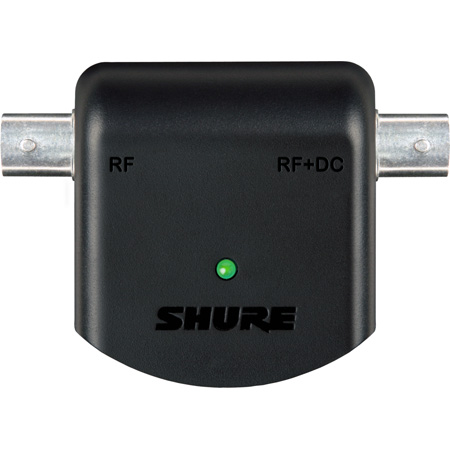

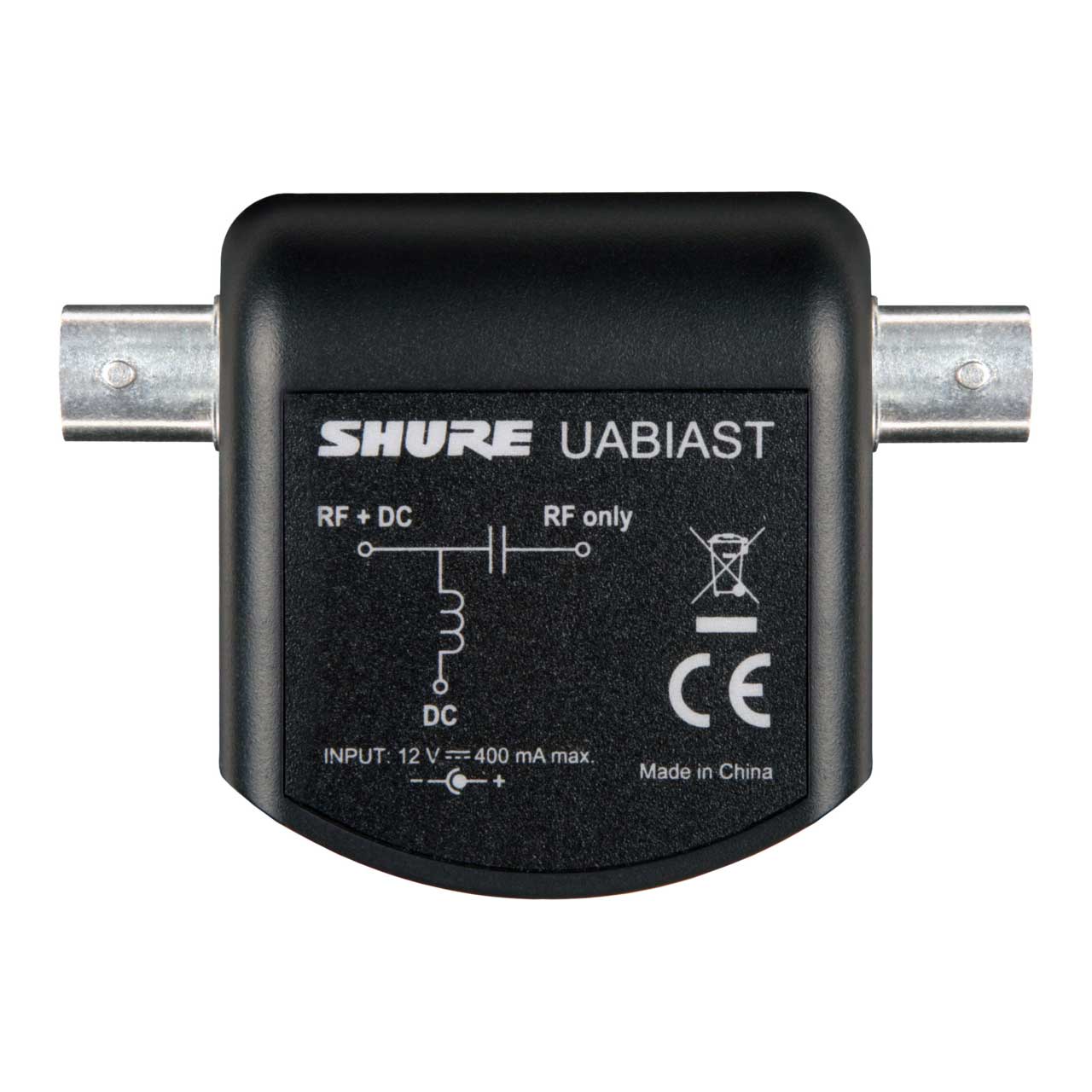

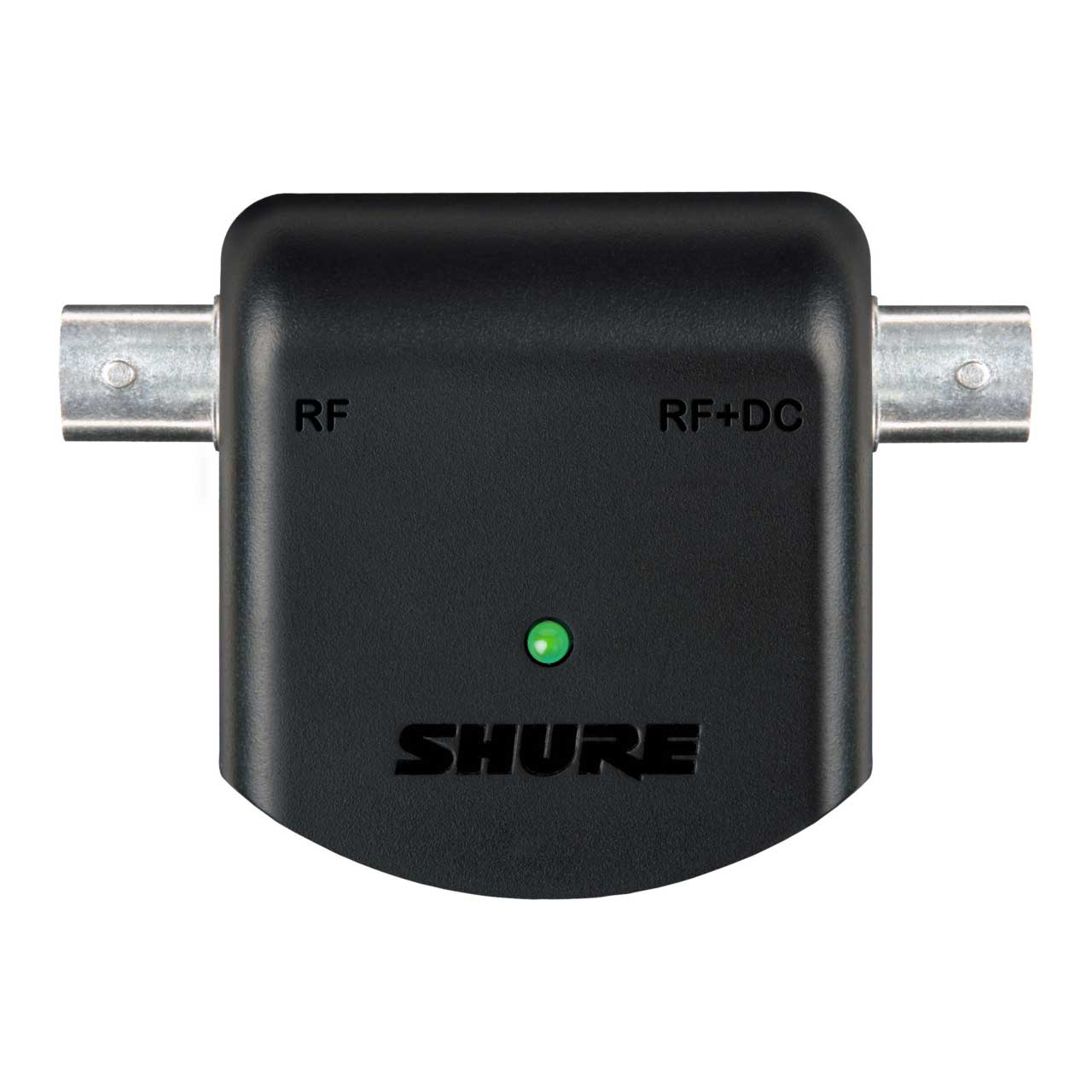

    The Shure UABIAST is an in-line adapter that supplies 12V DC bias power over BNC coaxial cable. Compatible with the UA874 active antenna and the UA830 in-line antenna amplifier, the UABIAST allows those accessories to be used with Shure wireless systems that do not supply power from their BNC antenna inputs and are used without an antenna distribution amplifier.

    One UABIAST supplies power to any combination of up to three connected accessories for extended cable runs and antenna placement options.

    • Features:

      • Powers any combination of up to 3 connected compatible devices
      • Passes through RF signal between antenna and receiver
      • LED power indicator when power is present
      • Includes power supply

    • Specifications:

      • Frequency Range: 100-2000 MHz
      • Maximum Input Power: 12.4 V DC, 400 mA, +3 dB+10 dB
      • Insertion Loss:<1 dB
      • Connector Type: BNC, Female
      • Impedance: 50 Ohms
      • Bias Voltage: 12 V DC
      • Dimensions: 25 x 67 x 49 mm (H x W x D)
      • Net Weight 49 g (1.73 oz.).
      • Operating Temperature Range:- 7°C (45°F) to 38°C (100°F)

    • GTIN:

      0042406326766


    UABIAST-US - Required Accessories
