Sony UWP-D16/42 Bodypack-Lav Mic & Plug-on ENG pkg CH42

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Sony UWP-D16/42 Bodypack-Lav Mic & Plug-on ENG pkg CH42

    Manufacturer: Sony Pro Audio

    Item #: SNY-UWPD1642   •   MFG #: UWPD16/42



    List Price:$1,029.99
    Our Price:$799.99

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!

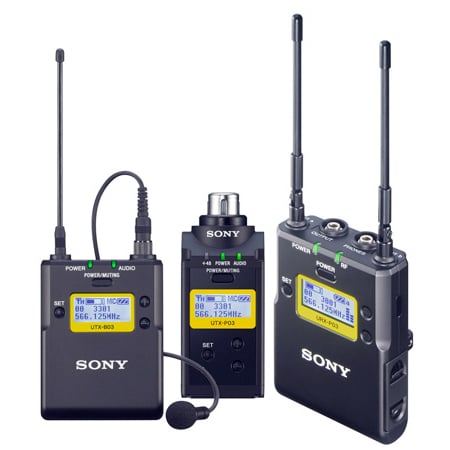

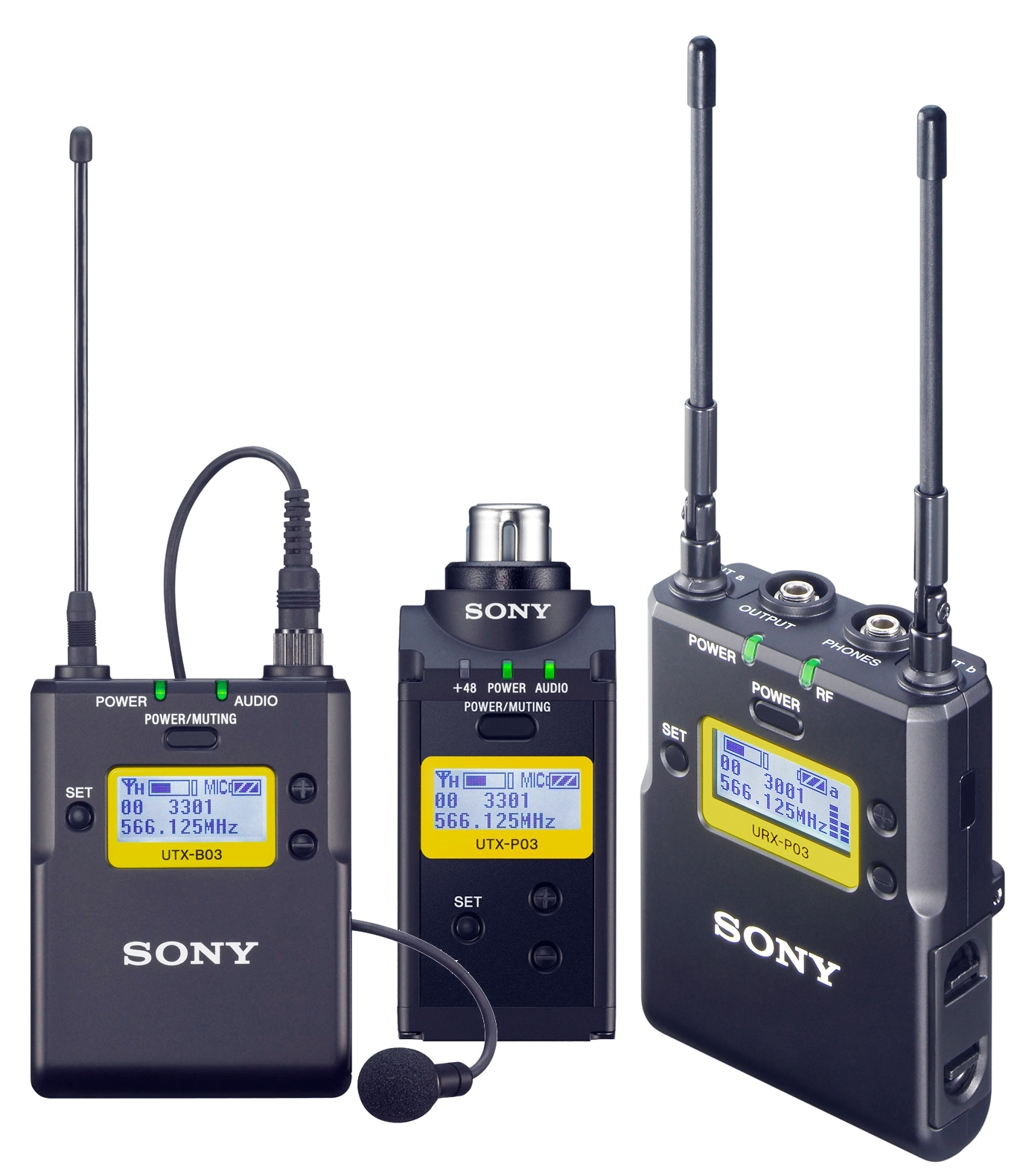

      The 638 to 698 MHz version of the Sony UWP-D16 Integrated Digital Plug-on & Lavalier Combo Wireless Microphone System features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between transmitter and receiver, Mic/Line switchable inputs on both the bodypack and plug-on transmitter, +48V phantom power from the plug-on transmitter, a true diversity receiver, PLL-synthesized tuning, an output gain control on the receiver for optimizing the audio input level to a camera/camcorder, and digital companding circuitry. The package is suitable for a wide range of wireless applications such as ENG, documentary work, talk shows, conferences, and more.

      The system is referred to as integrated digital because the transmitters and receivers utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.

      The camera-mountable receiver features true-diversity technology which stabilizes reception and minimizes RF interference by using dual antenna input/reception circuits and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

      A stereo mini-jack output with monitor volume control is featured and both stereo mini and stereo XLR cables are provided for optimizing the audio input into a camera or camcorder. The unit also includes a headphone monitor output for use with cameras and camcorders that don't have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

      For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver's compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.

      The improved plug-on and bodypack transmitters feature mic- and line-level switches for standard wired microphone- or line-level sources. The plug-on transmitter also features selectable +48V of phantom power for connection to a condenser microphone. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long distance transmission.

      The transmitters can operate for up to 8 hours on two AA-size alkaline batteries, be powered or recharged via USB micro B connections, and feature comprehensive LCD displays.

      The system comes with an omnidirectional lavalier microphone, a windscreen for the microphone, a microphone holder clip, two belt clips, a shoe-mount adapter, a 3-pin mini to mini stereo cable, and a 3-pin mini to XLR cable. Optional accessories such as a microphone holder, battery case, and soft case for the receiver are sold separately


      • Specifications

        • Microphone
        • Frequency Response 40 to 20,000 Hz
        • Directivity Omnidirectional
        • Capsule Condenser
        • Sensitivity -43.0 dB ±3.0 dB (1 kHz/Pa)
        • Dynamic Range 86 dB or more
        • Maximum Input 120 dB SPL
        • Microphone Head Size 0.27 x 0.77" (6.8 x 19.5 mm)
        • Power Requirements 5 VDC
        • Cable Length 3.9' (1.2 m)
        • Weight Not specified by the manufacturer

        • System
        • Type of System Camera mountable UHF synthesized wireless plug-in system
        • RF Carrier Frequency Range 638 to 698 MHz
        • RF Bandwidth 60 MHz
        • Approx. Working Range Not specified by manufacturer

        • Receiver
        • Type of Receiver Camera mountable, space diversity, crystal-controlled PLL synthesizer
        • Reception Type True diversity
        • Antenna Type 1/4 wave length wire
        • Frequency Response 23 to 18,000 Hz (typical)
        • Signal to Noise Ratio 96 dB (max deviation, A-weighted)
        • Distortion 0.9% or less (-60 dBV, 1 kHz input)
        • Audio Delay Approximately 0.35 msec
        • Type of Outputs 3.5 mm (1/8") mini-jack, unbalanced
        • Analog Output Levels -60 dBV (at ± 5 kHz deviation)
        • Adjustment Range -12 dB to +12 dB (in 3 dB steps)
        • Headphone Monitoring 3.5 mm (1/8") stereo mini-jack, unbalanced with variable level
        • Headphone Output Level 5 mW (at 16 O load)
        • Pilot Tone 32 kHz / 32.382 kHz / 32.768 kHz
        • Display LCD
        • Power Requirements 3.0 VDC (with two AA-size alkaline (LR6) batteries)
        • 5.0 VDC (via USB micro-B)
        • Battery Type/Approx. Life Approximately 6 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C)
        • Operating Temperature 32 to 122°F (0 to 50°C)
        • Storage Temperature -4 to 131°F (-20 to +55°C)
        • Mounting Options Camera / Belt / Mic Stand Mountable
        • Dimensions 2.50 x 3.25 x 0.94" (63.0 x 82.0 x 23.8 mm)
        • Weight 6.2 oz (176 g) including batteries

        • Transmitter
        • Type of Transmitter Crystal-controlled PLL synthesizer plug-on transmitter
        • Antenna Type Integral
        • Emission F3E
        • RF Power 30 mW / 5 mW
        • Type of Microphone Not Applicable
        • Type of Input Connector Mic/Line switchable - 3-pin XLR female
        • Phantom Power +48 V
        • Reference Input Level Mic: -60 dBV (at 0 dB attenuator level)
        • Line: +4 dBu
        • Adjustment Range Mic input: 0 to 21 dB (in 3 dB steps)
        • Frequency Response 23 to 18,000 Hz (typical)
        • Signal to Noise Ratio 96 dB (max deviation, A-weighted)
        • Audio Delay Approximately 0.35 msec
        • Pilot Tone 32 kHz / 32.382 kHz / 32.768 kHz
        • Interchangeable Mic Heads Standard XLR Type Microphones
        • Display LCD
        • Power Requirements 3.0 VDC (with two AA-size alkaline LR6 batteries)
        • 5.0 VDC (via USB micro-B)
        • Battery Type/Approx. Life Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
        • Operating Temperature 32 to 122°F (0 to 50°C)
        • Storage Temperature -4 to 131°F (-20 to 55°C)
        • Dimensions (W x H x D) 1.65 x 1.65 x 4.02" (42 x 42 x 102 mm)
        • Weight Approximately 6.9 oz (197 g) including batteries
