StarTech ST122PROA 2 Port High-Res VGA Video and Audio Splitter/DA

ITEM #: ST-AVGA-1X2P MFG #: ST122PROA

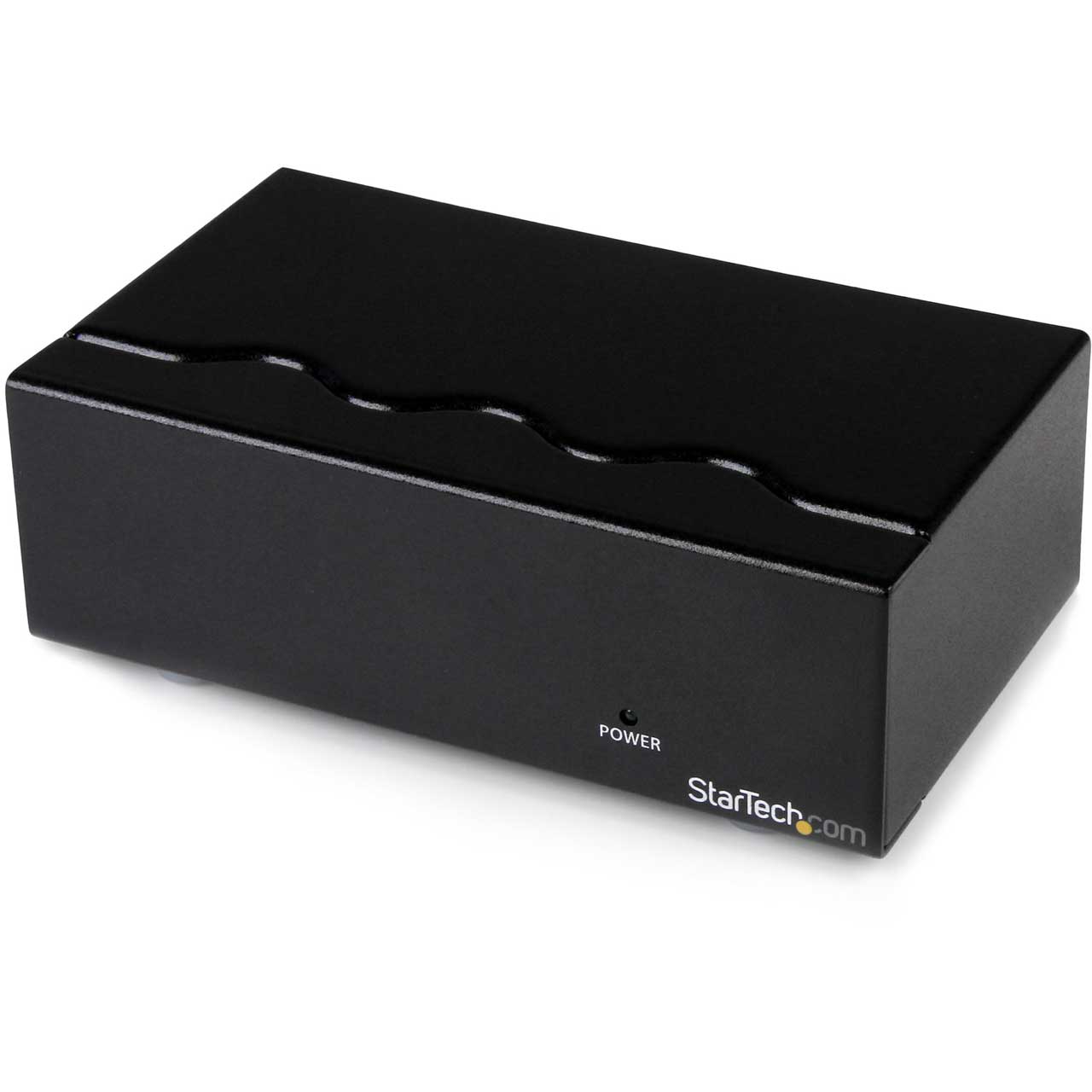

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ST-AVGA-1X2P

ST122PROA - Overview

This high resolution StarTech ST122PROA VGA splitter offers a practical solution for high-res multi-screen presentations, allowing a VGA video signal as well as the corresponding audio to be broadcast from a computer to up to two sets of VGA monitors and speakers simultaneously.

The VGA splitter is ideal for classrooms, tradeshows, in-store displays or any application where high quality video and audio is required, supporting displays with up to 400 MHz of video bandwidth and high resolution applications up to 2048 x 1536.

To help ensure high quality VGA video even at longer distances, the high resolution VGA splitter features a built-in booster circuit that allows monitors to be located up to 210ft away from the host system.

Designed for simplicity and convenience, the VGA splitter offers easy plug and play installation; a completely hardware-based solution, the VGA splitter requires no software operation, saving both time and hassle.

Backed by our 2-year warranty and free lifetime technical support, this 2-port high-resolution VGA splitter lets you get the most out of your video content with quality construction you can depend on.

Applications
In-store product merchandising
Information booths/kiosks
Trade-shows
Lecture halls and classrooms
Airports, bus terminals and train stations

  • Features:

    • Compatible with VGA, SVGA and Multisync monitors
    • 400 MHz bandwidth provides brilliant 2048 x 1536 resolution
    • DDC, DDC2 & DDC2B compatible (on Video Out port 1)
    • Includes DC 7.5V power adapter
    • Daisy chainable for almost unlimited expansion
    • Uses standard monitor extension cables (StarTech.com coaxial VGA cables recommended for best picture quality)

  • Specifications:

    • Connector(s)
    • 1 - Connector A: VGA (15 pin, High Density D-Sub), 3.5 mm Mini-Jack (3 Position)
    • 2 - Connector B: 3.5 mm Mini-Jack (3 Position), VGA (15 pin, High Density D-Sub)

      Hardware
    • Ports: 2
    • AV Input: VGA
    • AV Output: VGA
    • Audio: Yes

      Packaging Information
    • Package Height: 2.6 in [67.0 mm]
    • Package Length: 6.2 in [15.7 cm]
    • Shipping (Package) Weight: 25.2 oz [715.0 g]
    • Package Width: 9.6 in [24.4 cm]

      Performance
    • Maximum Analog Resolutions: 2048x1536 @ 60Hz
    • Bandwidth: 400MHz

      Physical Characteristics
    • Weight of Product: 15.8 oz [447.0 g]
    • Color: Gray
    • Product Length: 5.1 in [13.0 cm]
    • Product Width: 3.0 in [75.0 mm]
    • Product Height: 2.8 in [7.2 cm]

      Power
    • Power Source: AC Adapter Included
    • Input Voltage: 100 - 240 AC
    • Output Voltage: 12V DC
    • Output Current: 0.6A
    • Power Consumption (In Watts): 7.2

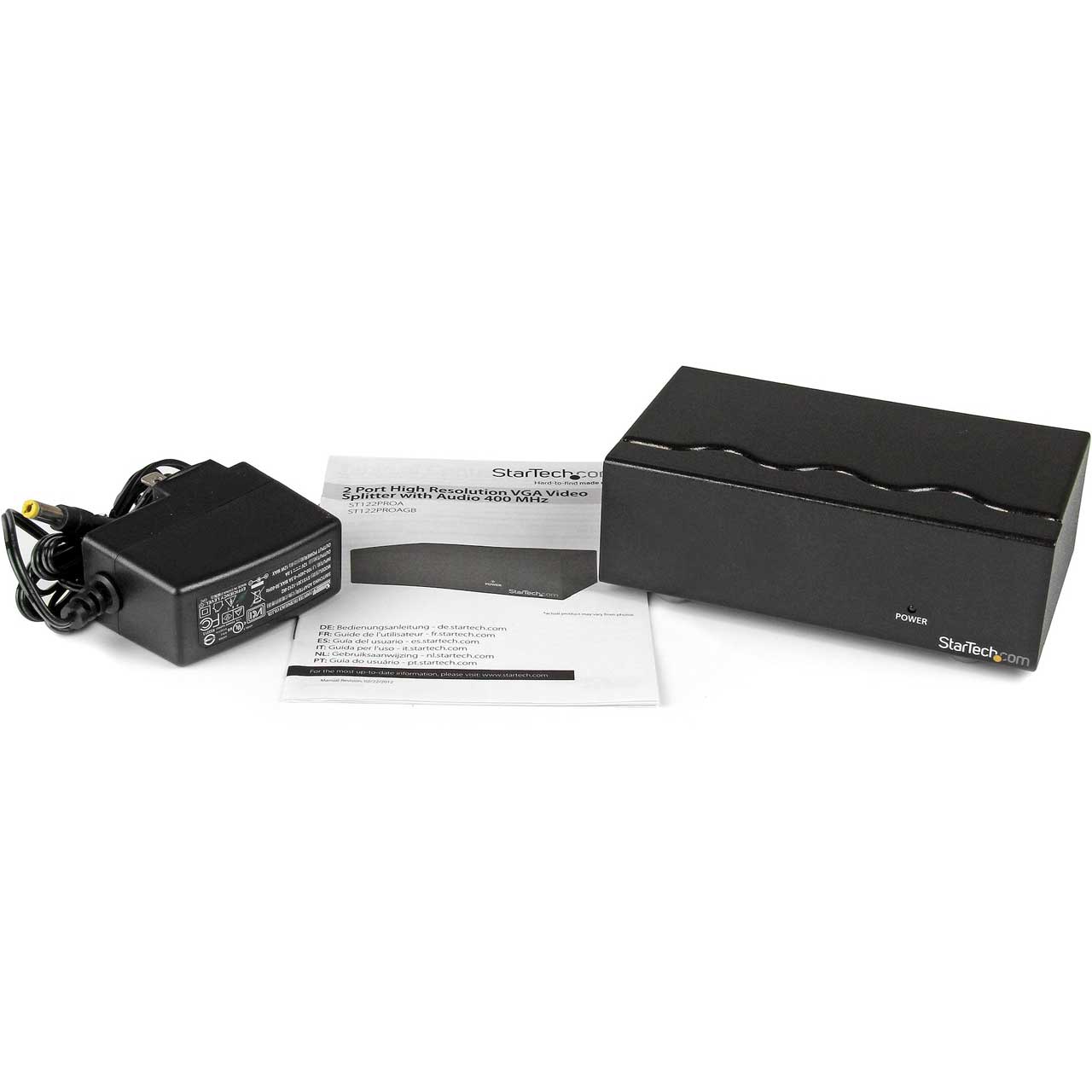

  • Item Includes:

    • 1x 2 Port VGA Splitter
    • 1x Power Adapter
    • 1x Instruction Manual

  • GTIN:

    0065030805209
