StarTech ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC 40 km

ITEM #: ST-ET91000SM402 MFG #: ET91000SM402

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$436.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ET91000SM402 - Overview

    The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles).

    A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

    For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

    • Features:

      • Rugged steel casing for added durability in harsh environments
      • Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
      • Cost-effective way to extend/bridge networks using fiber cabling
      • Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
      • Maximum Fiber Cable length of 40 km
      • Supports full or half-duplex operation
      • Quick and simple installation, easy to use

    • Specifications:

      • PoE: No
      • WDM: No
      • Connector(s): Local Unit Connectors 1 - Fiber Optic SC Duplex Female;1 - RJ-45 Female
      • Maximum Data Transfer Rate: 2000 Mbps (full duplex mode)
      • Max Transfer Distance: 40 km (24.8 mi)
      • Fiber Type: Single Mode
      • Wavelength: 1310nm
      • Fiber Operating Mode: Half/Full-Duplex
      • Auto MDIX: Yes
      • MTBF: 65,000 Hours
      • Color: Black
      • Enclosure Type: Steel
      • Product Length: 6.3 in [160 mm]
      • Product Width: 3.7 in [95 mm]
      • Product Height: 0.8 in [20 mm]
      • Product Weight: 21.2 oz [600 g]
      • Power Source: AC Adapter Included
      • Input Voltage: 115 ~ 230 AC
      • Output Voltage: 12 DC
      • Output Current: 1A
      • Center Tip: Polarity Positive
      • Plug Type: M
      • Power Consumption: < 4W
      • Operating Temperature: 0°C to 60°C (32°F to 140°F)
      • Storage Temperature: -10°C to 70°C (14°F to 158°F)
      • Humidity: 10~90% RH
      • Shipping (Package) Weight: 1.5 lb [0.7 kg]

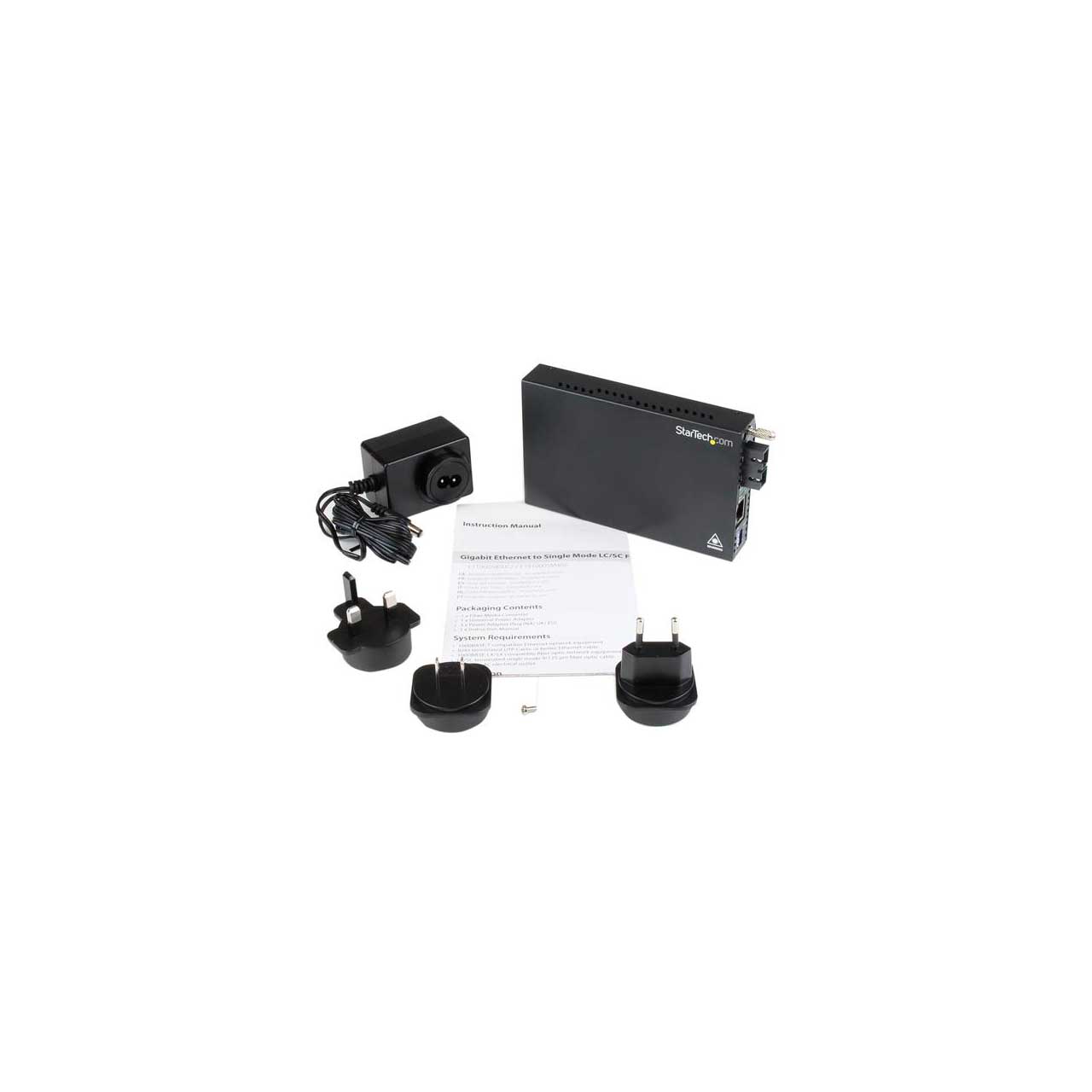

    • Item Includes:

      • 1 - Fiber Media Converter
      • 1 - Universal Power Adapter (NA/UK/EU)
      • 1 - Instruction Manual

    • Warranty:

      • 2

    • GTIN:

      0065030846219
