StarTech ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter

ITEM #: ST-ICUSB422IS MFG #: ICUSB422IS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$148.99

Our Price:

$148.05

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ICUSB422IS - Overview

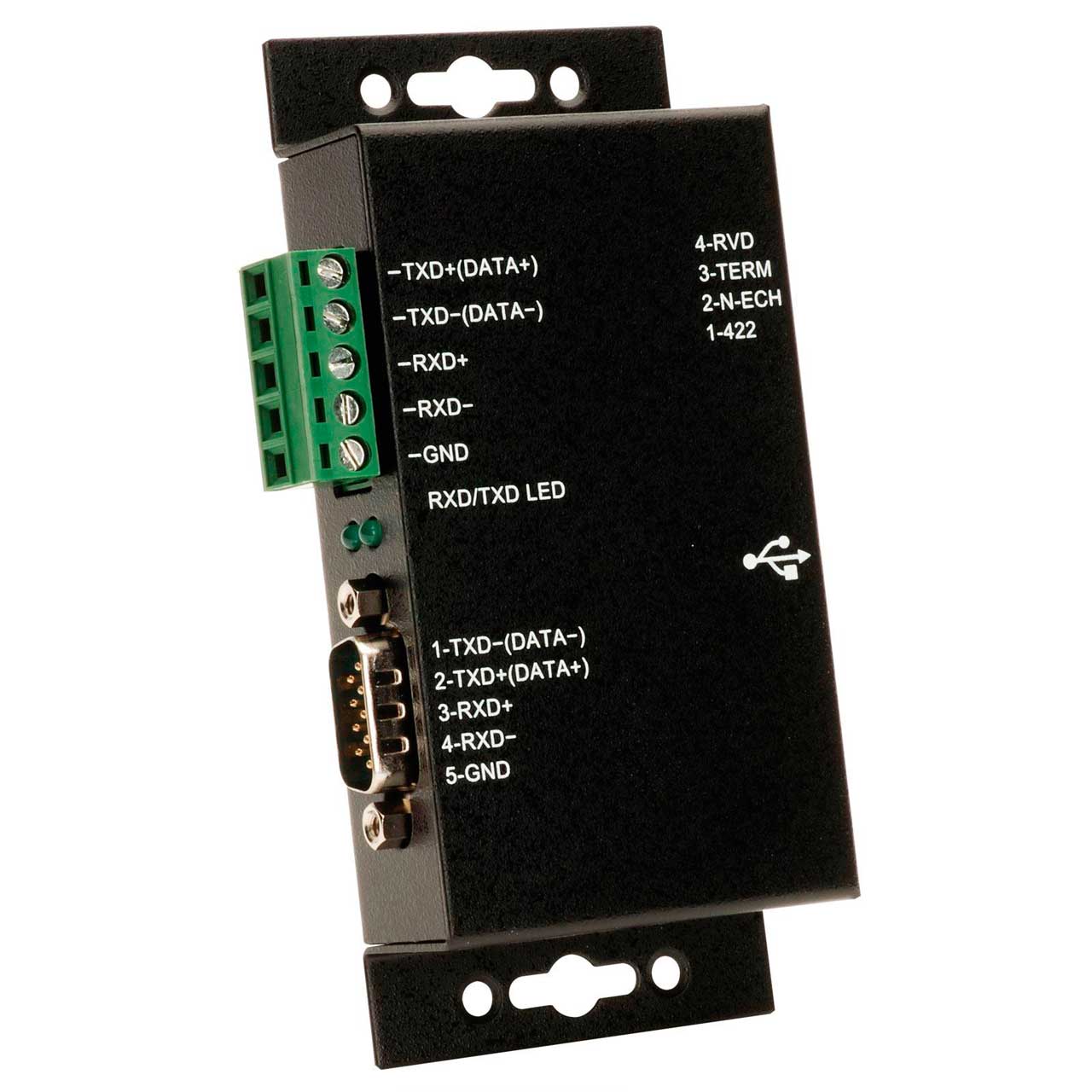

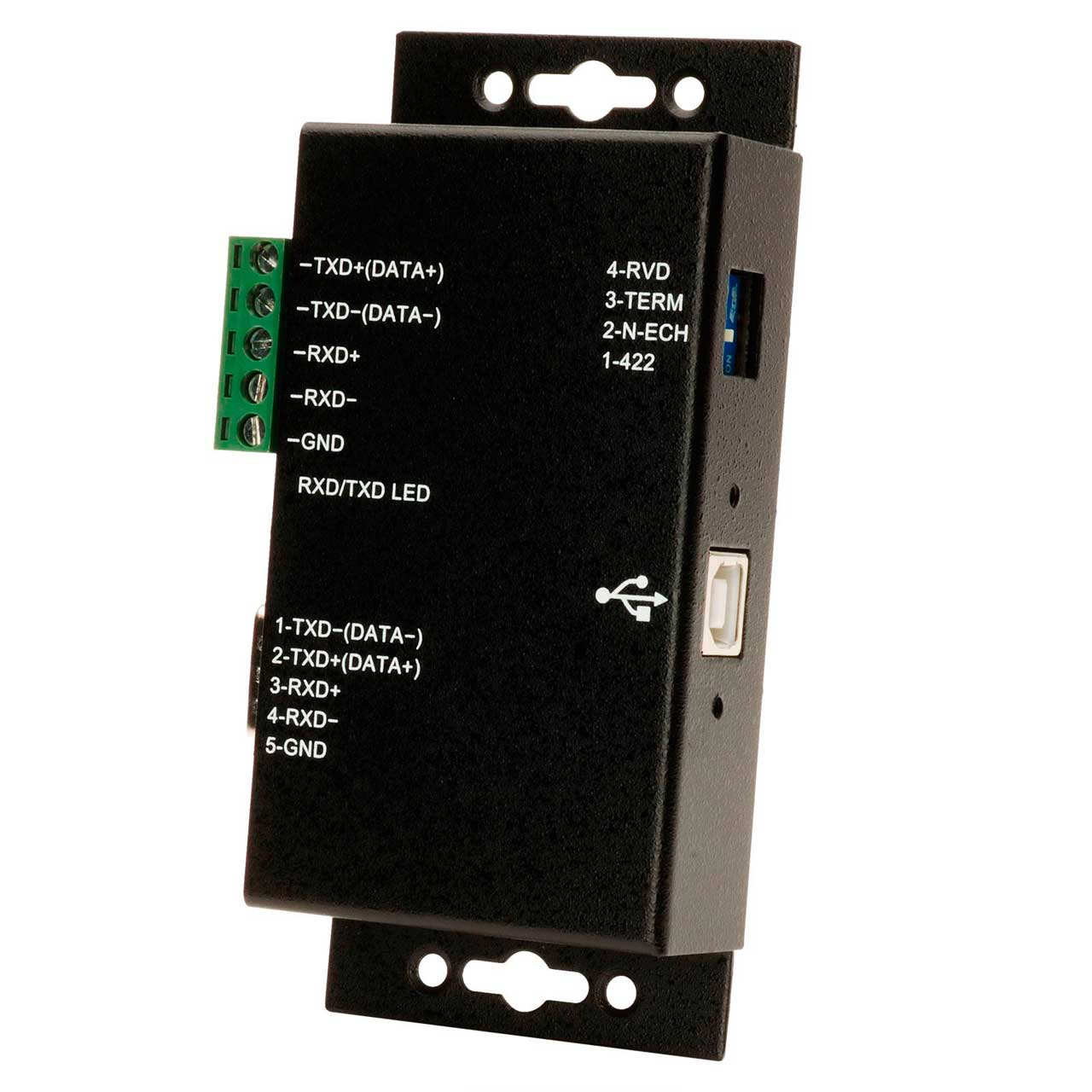

    The StarTech ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter with Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.

    The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.

    The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.

    Backed by a StarTech 2-year warranty and free lifetime technical support.

    Applications:
    POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
    Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
    Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
    Hospitality/Restaurant (credit card/debit card reader, serial printers)
    Hospital (monitoring equipment, nurses' stations)
    Security (UPS control, access key panels, video cameras, card readers)

    • Features:

      • Supports RS-485 and RS-422 serial interfaces via DB9 or Terminal Block connections for versatile connection options
      • Circuit isolation provides electrical protection for sensitive, and often expensive industrial equipment
      • Rugged, USB Bus powered enclosure requiring no external power adapter for simple integration into harsh industrial environments

    • Specifications:

      • Compatibility
      • Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
      • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
      • macOS 10.6 to 10.15, 11.0, 12.0
      • Linux Kernel 3.0.x - 5.4.x (LTS Versions Only)

        Connector(s)
      • 1 - Connector Type(s): USB B (4 pin)
      • 1 - External Ports: DB-9 (9 pin, D-Sub), Terminal Block (5 Wire)

        Environmental
      • Operating Temperature: 0°C to 55°C (32°F to 131°F)
      • Storage Temperature: -20°C to 85°C (-4°F to 185°F)
      • Humidity: 5~95% RH

        Hardware
      • Ports: 1
      • Interface: Serial
      • Bus Type: USB 2.0
      • Port Style: External Hub
      • Chipset ID: FTDI - FT232RL

        Packaging Information
      • Package Length: 9.1 in [23 cm]
      • Package Width: 1.8 in [45 mm]
      • Package Height: 6.3 in [16 cm]
      • Shipping (Package) Weight: 0.9 lb [0.4 kg]

        Performance
      • Serial Protocol: RS-422/485
      • Max Baud Rate: 921.6 Kbps
      • Data Bits: 7, 8
      • FIFO: 256 Byte Receive/128 Byte Transmit
      • Parity: Even, Odd, Mark, Space, None
      • Stop Bits: 1, 2
      • Isolation: 2500 Vrms
      • Surge Protection: 500W

        Physical Characteristics
      • Color: Black
      • Material: Steel
      • Cable Length: 6.0 ft [1.8 m]
      • Product Length: 4.6 in [11.8 cm]
      • Product Width: 2.5 in [64 mm]
      • Product Height: 0.9 in [2.3 cm]
      • Weight of Product: 6.4 oz [180 g]

        Power
      • Power Source: USB-Powered
      • Input Voltage: 5 DC
      • Input Current: 200mA

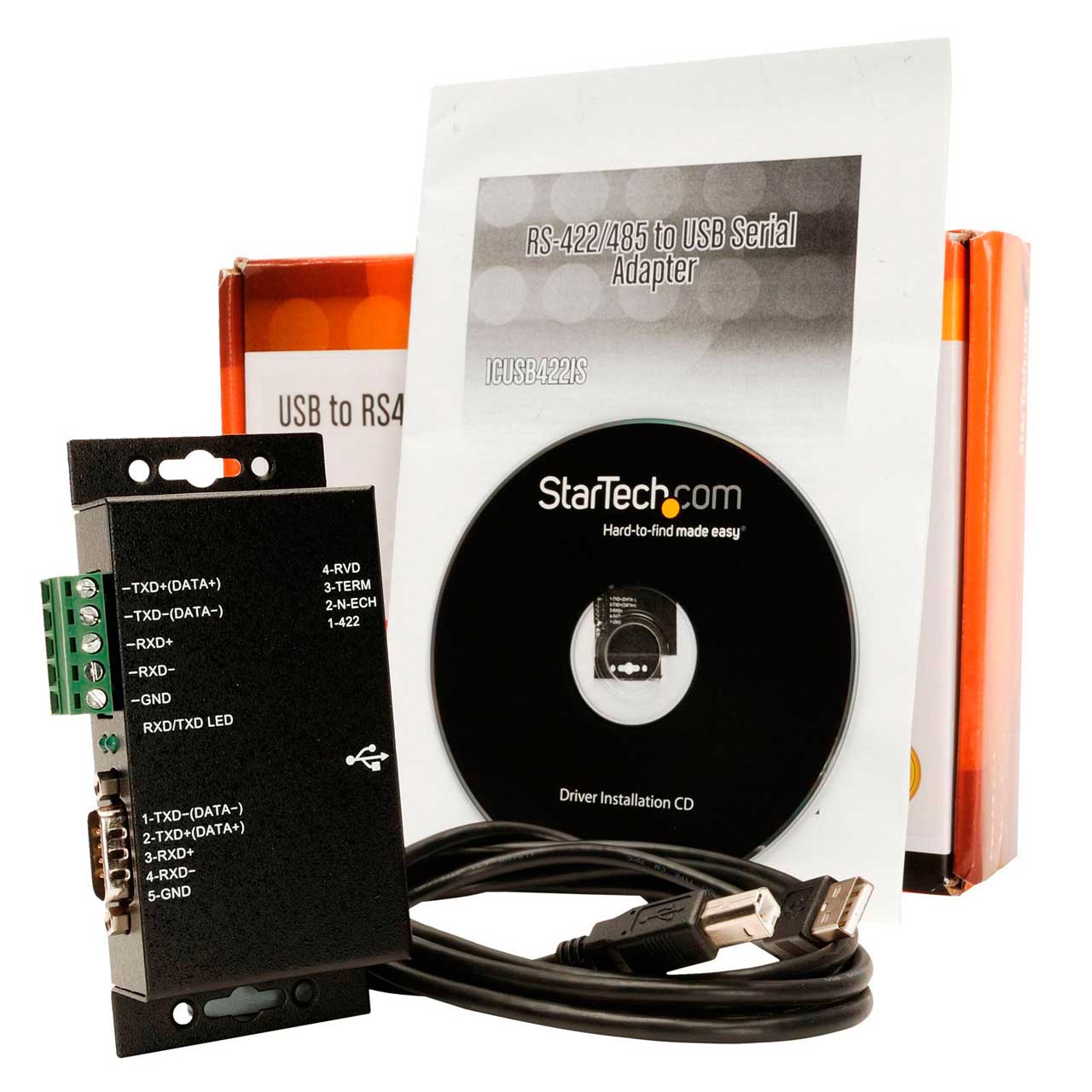

    • Item Includes:

      • USB to RS422/485 Converter
      • 6ft USB A to B Cable
      • Driver CD
      • User Manual

    • GTIN:

      0065030830683
