RDL ST-LCR3 Logic Controlled Relay - Dual Alternate Pulse

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL ST-LCR3 Logic Controlled Relay - Dual Alternate Pulse

    Manufacturer: Radio Design Labs

    Item #: ST-LCR3   •   MFG #: ST-LCR3



    List Price:$166.98
    Our Price:$121.49

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      Required Accessories

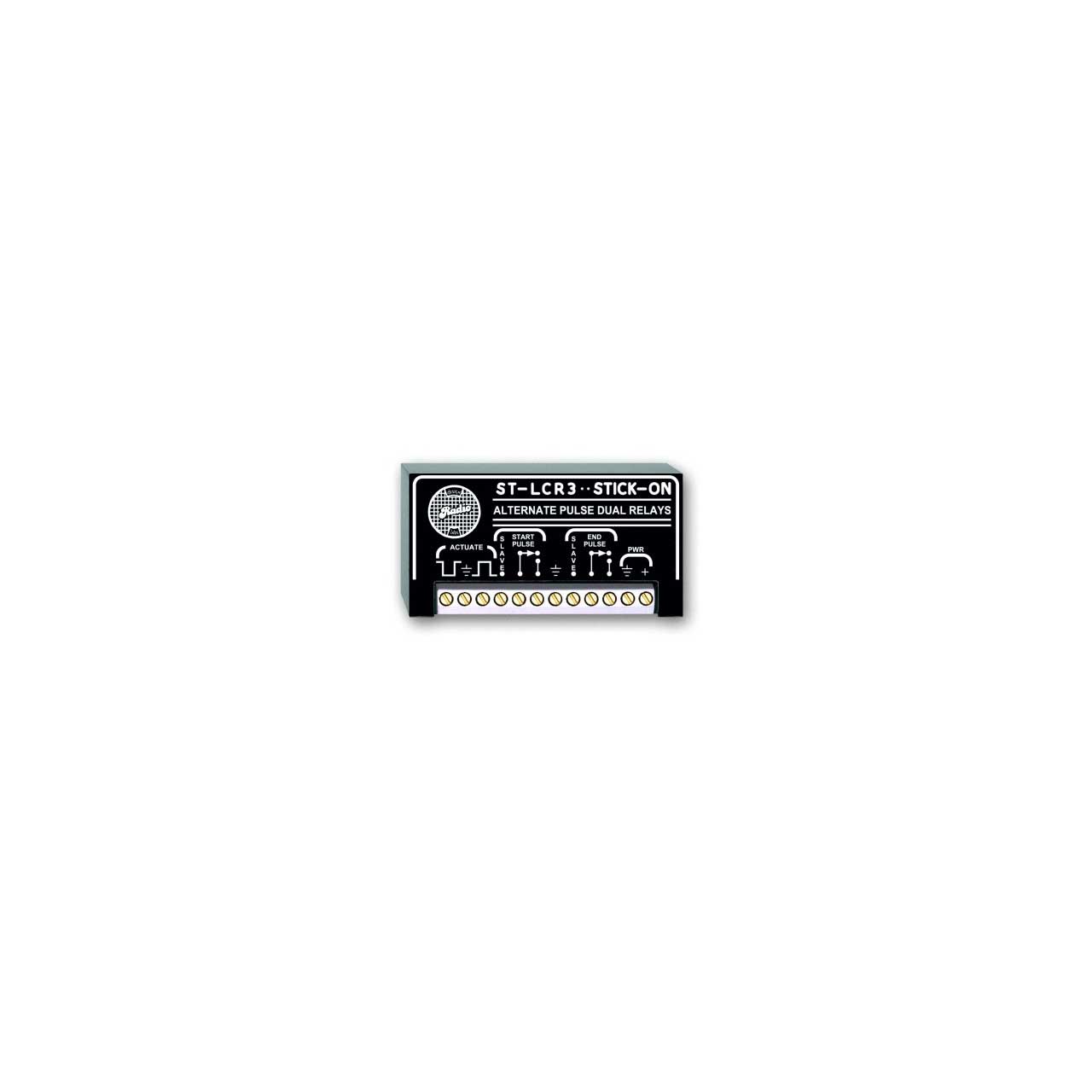

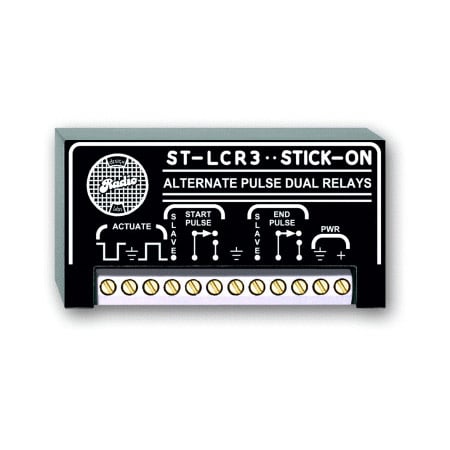

      The ST-LCR3 is ideally suited to applications where momentary pulses are needed from a single control signal. The module provides a momentary pulse when a logic signal at its input first becomes active. A separate momentary pulse is provided when the logic signal at the module input becomes inactive.

      Two logic inputs are available on the ST-LCR3. Either of these inputs may be used. Terminal 1 is internally pulled high to +5 Vdc. This input becomes active when an external closure or open-collector pulls the terminal to ground. The external switching device does not need to pull the terminal high, however the terminal may be pulled high with any voltage from +3.3 Vdc to +24 Vdc without any risk of damage to the ST-LCR3 input. Terminal 3 is internally pulled to ground. This input becomes active when an external closure or logic device applies a positive voltage from +3.3 Vdc to + 24 Vdc.

      When the input being used first becomes active the START PULSE output from the module is triggered. When the input first becomes inactive (after first being active) the END PULSE output from the module is triggered. Both the start and end pulses have a nominal duration of 250 ms.

      Each pulse output provides both an open-collector SLAVE terminal and relay contacts. The SLAVE terminal may be used to control other RDL modules and a variety of other equipment. The relay contacts may be used to control modules or equipment that do not operate from open-collector control.

      Required Power Supply RDL PS24V Sold Separately


      • Features

        • Pulse at the Start of a Logic Signal
        • Pulse at the End of a Logic Signal
        • Relay Contact and Open-Collector Pulse
        • Active High or Active Low Inputs
        • Input Control Voltage From 3.3 to 24 Vdc
        • Control from Switch, Pushbutton, or Logic Circuits
