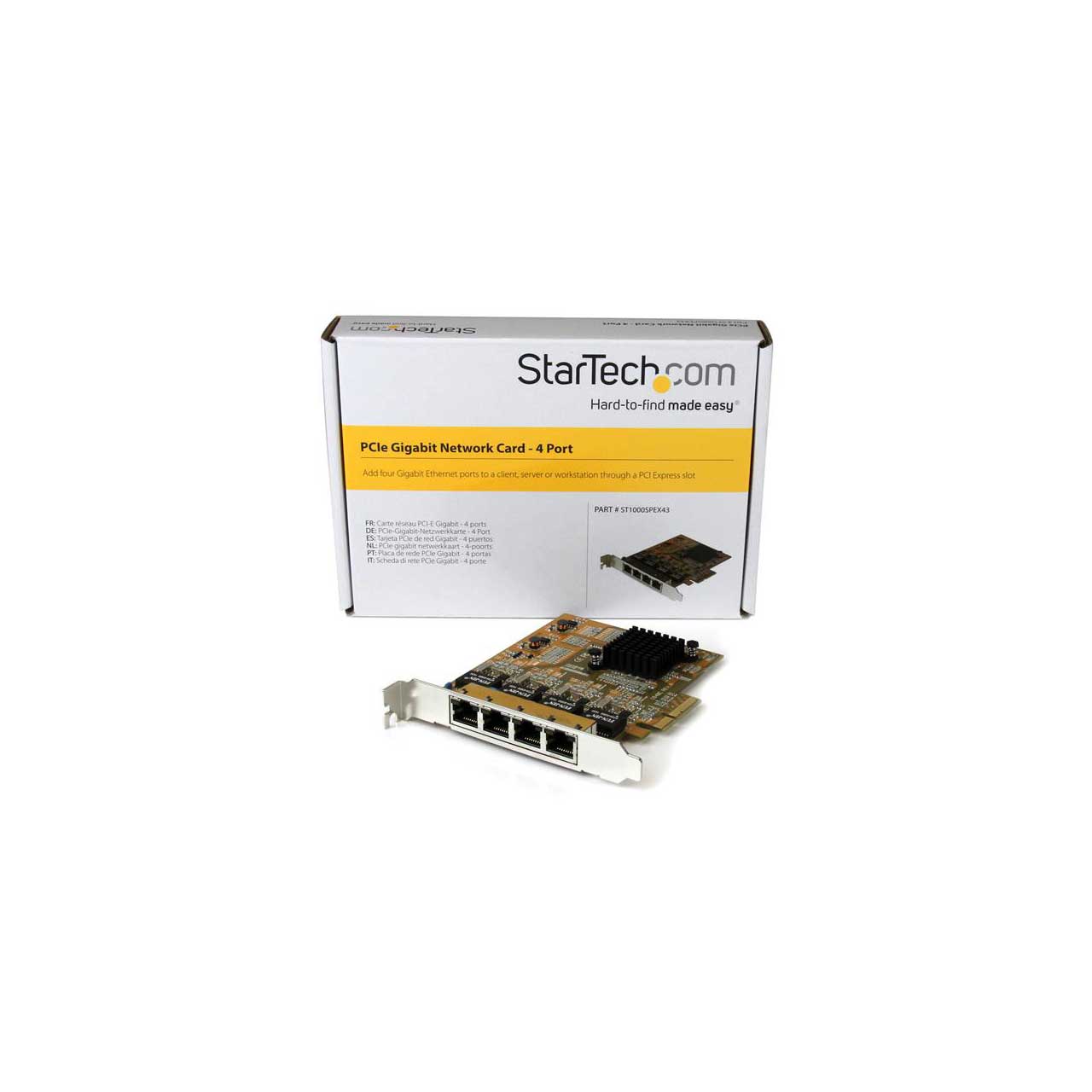

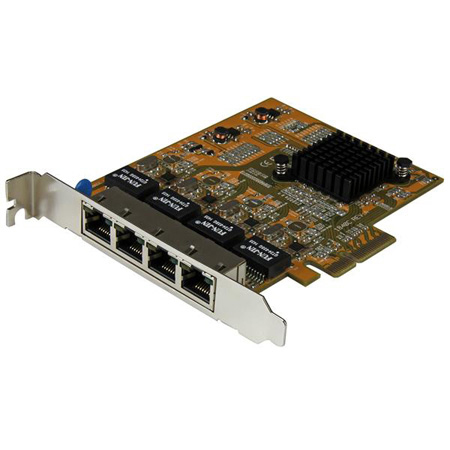

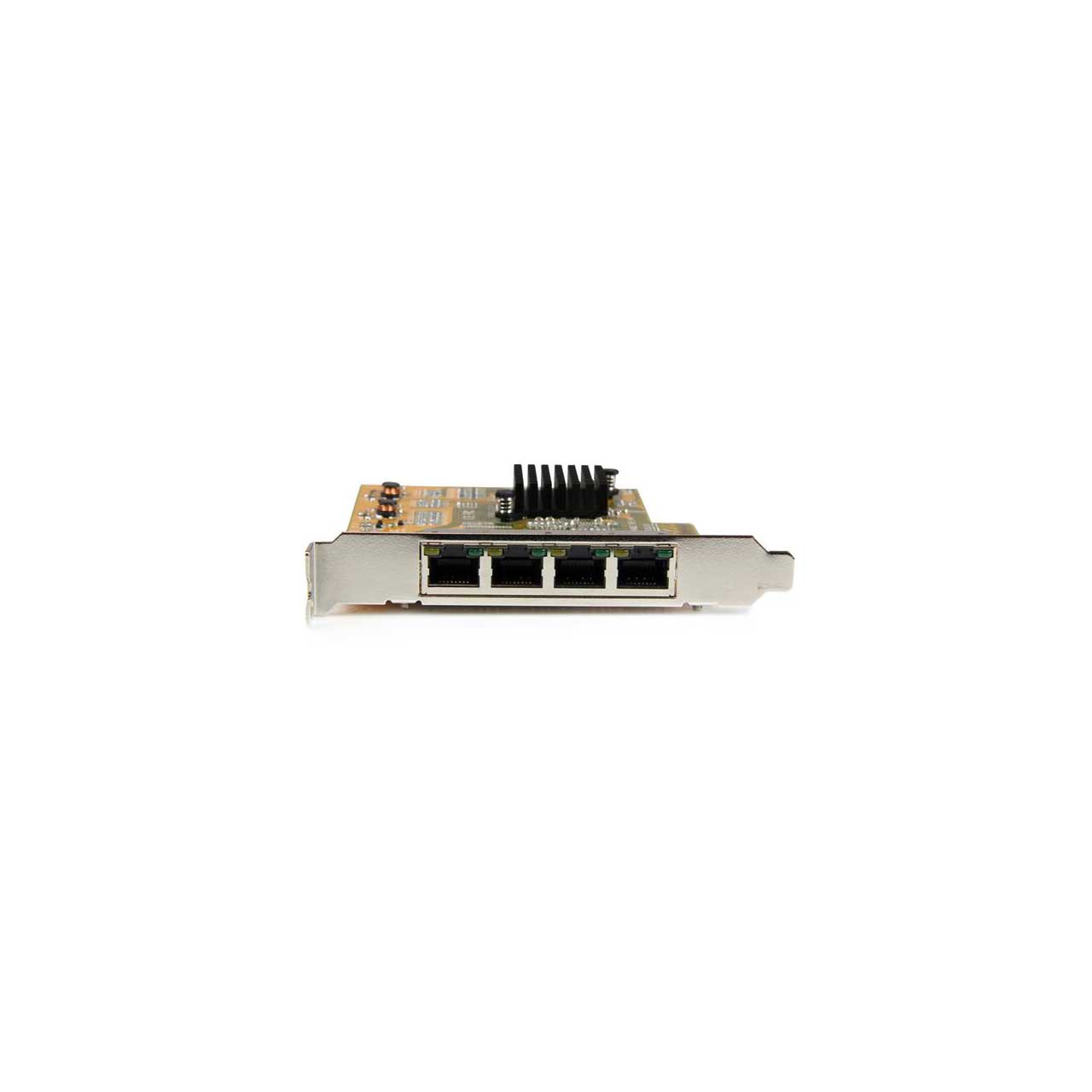

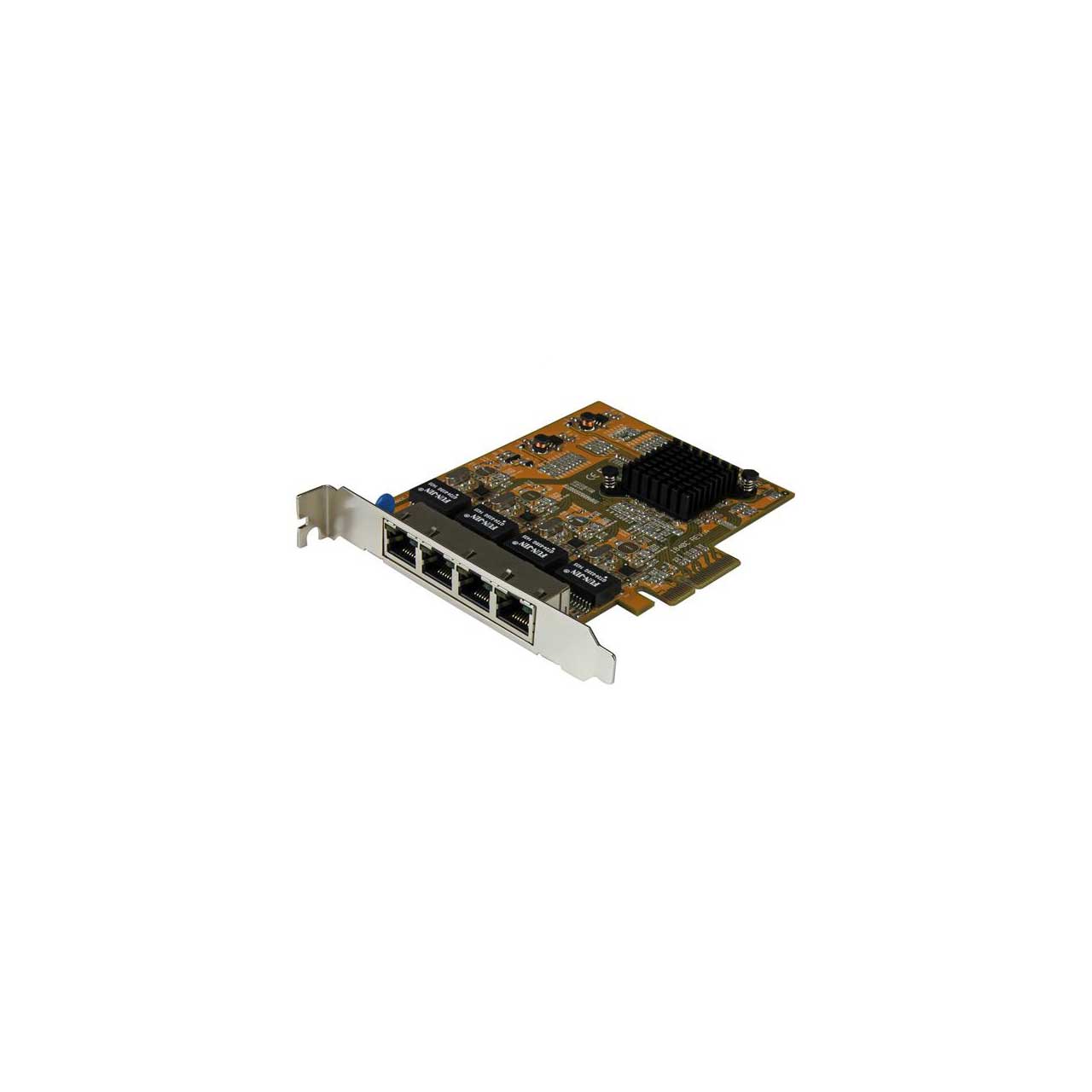

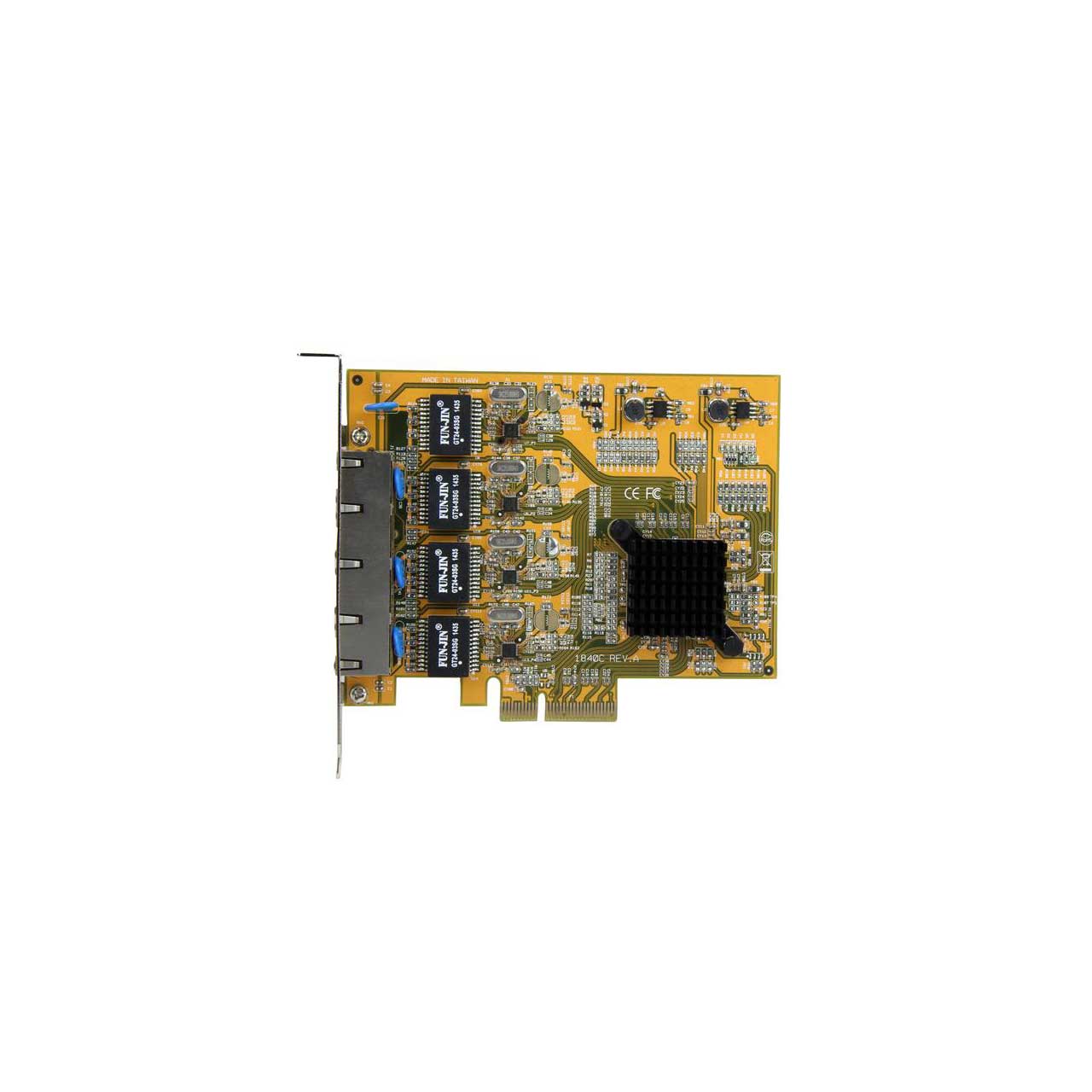

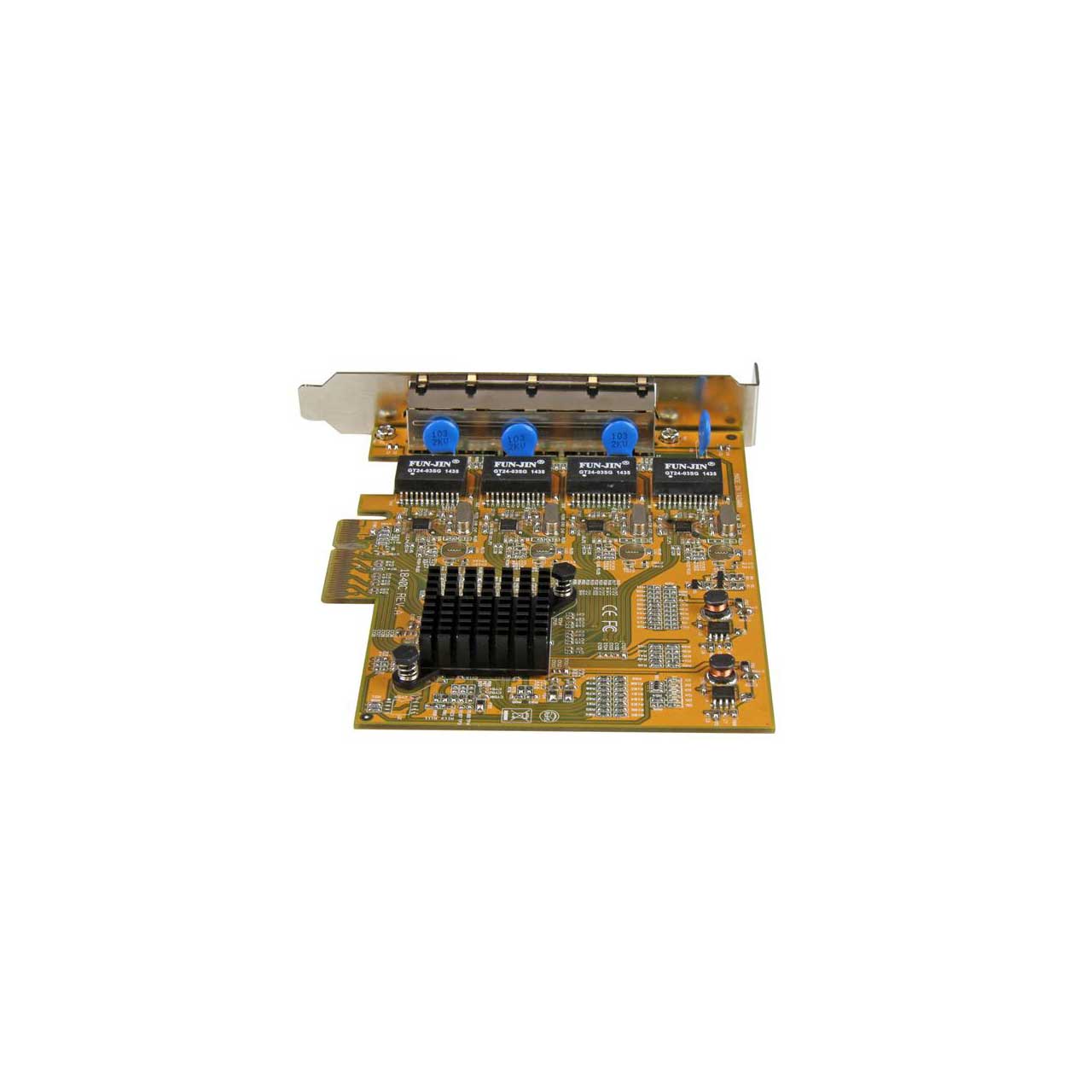

StarTech ST1000SPEX43 Quad-Port PCIe Gigabit Network Interface Card

ITEM #: ST-ST1000SPEX43 MFG #: ST1000SPEX43

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$190.99

Our Price:

$174.99

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    ST1000SPEX43 - Overview

    Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.

    Reliable connectivity to multiple networks
    This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.

    A versatile and cost-effective solution
    This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).

    The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.

    • Features:

      • Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
      • Realtek RTL8111G chipset for reliable performance
      • Supports full-duplex flow control
      • Wake-on-LAN and remote wake-up support
      • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab networks
      • Supports autonegotiation with next-page capacity
      • Crossover detection and auto-correction (Auto-MDIX)
      • Up to 9K jumbo frame support
      • Support for IEEE 802.1Q VLAN tagging and IEEE 802.1P layer 2 priority encoding
      • Microsoft NDIS5 checksum offload (IP, TCP, UDP) and large send offload support

    • Specifications:

      • Connector Type(s): PCI Express x4 Male
      • External Ports: RJ-45 Female
      • Humidity: 5% ~ 95% RH
      • Operating Temperature: 0°C to 55°C (32°F to 131°F)
      • Storage Temperature: -40°C to 75°C (-40°F to 167°F)
      • Bus Type: PCI Express
      • Card Type: Standard Profile
      • Chipset ID: Realtek RTL8111G
      • Industry Standards: Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
      • Interface: RJ45 (Gigabit Ethernet)
      • Ports: 4
      • LED Indicators: Activity
      • LED Indicators: Link
      • Shipping (Package) Weight: 180 g [6.4 oz]
      • Auto MDIX: Yes
      • Compatible Networks: 10/100/1000 Mbps
      • Full Duplex Support: Yes
      • Jumbo Frame Support: 9K max.
      • Maximum Data Transfer Rate: 2000Mbps (Full Duplex)
      • Color: Yellow
      • Product Height: 18 mm [0.7 in]
      • Product Length: 138 mm [5.4 in]
      • Product Weight: 100 g [3.5 oz]
      • Product Width: 120 mm [4.7 in]
      • OS Compatibility: Windows® 10 (32/64), 8, 8.1 , 7, Vista, XP, 2000, ME, 98SE
      • Windows Server® 2012, 2003 (32/64)
      • Linux Kernel 2.4.x and up
      • System and Cable Requirements: Available PCI Express x4 or higher (x8, x16) slot
      • Included in Package: PCIe Gigabit network card - 4 port

    • Item Includes:

      • PCIe Gigabit network card - 4 port

    • GTIN:

      0065030862448
