StarTech SV1631DUSBUK 16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables

ITEM #: ST-SV1631DUSBUK MFG #: SV1631DUSBUK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ST-SV1631DUSBUK

SV1631DUSBUK - Overview

The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 16-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.

  • Features:

    • For simple setup, the KVM cables to connect all 16 ports to servers and PCs are included in the box
    • Maximum compatibility with USB keyboard and mouse combos, and wireless setups; this unique KVM extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
    • Rugged rack mountable metal chassis allows for versatility and durability in almost any environment

  • Specifications:

    • Hardware
    • Audio No
    • Cables Included Yes
    • Daisy-Chain Yes
    • KVM Ports 16
    • Multi-Monitor No
    • PC Interface USB
    • PC Video Type VGA
    • Rack-Mountable Yes

    • Connectors
    • Console Interface(s) 1 - VGA (15 pin; High Density D-Sub) Female
    • 2 - USB A (4 pin) Female
    • Host Connectors 16 - VGA (15 pin; High Density D-Sub) Female

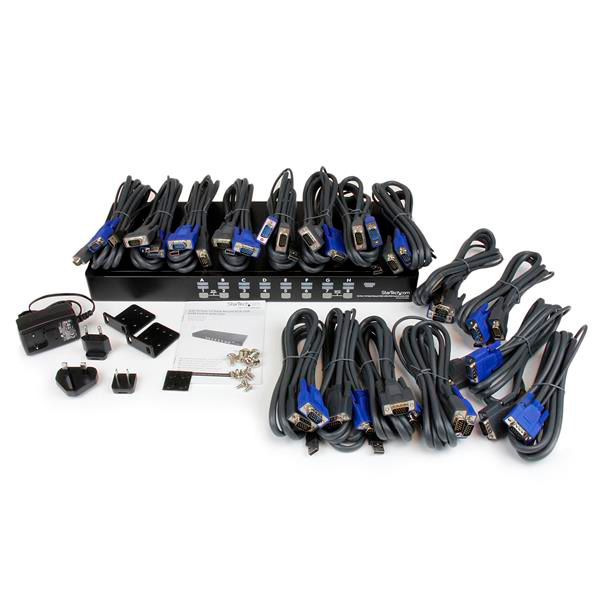

  • Item Includes:

    • 1 - 16 Port USB KVM Switch
    • 2 - Mounting Brackets

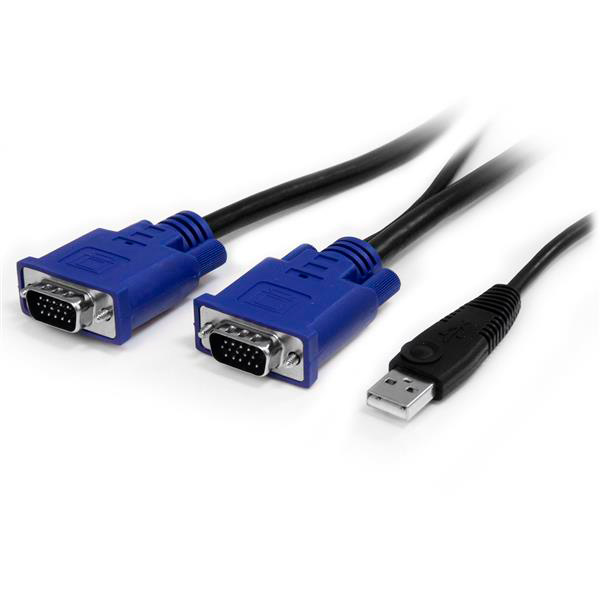

    • 16 - 6ft 2-in-1 USB VGA KVM cables
    • 1 - Bag of Screws
    • 1 - Pack Rubber Feet
    • 1 - Power Adapter
    • 1 - User Manual

  • Warranty:

    • 3 Years

  • GTIN:

    0065030840828
