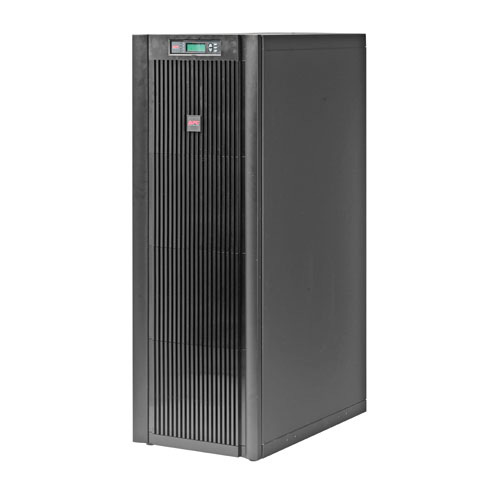

APC SUVTP20KF4B4S Smart-UPS VT 20kVA 208V w/4 Batt. Mod.; Start-Up 5X8; Internal Maint Bypass; Parallel Capability

ITEM #: SUVTP20KF4B4S MFG #: SUVTP20KF4B4S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SUVTP20KF4B4S

SUVTP20KF4B4S - Overview

APC Smart-UPS VT,16 kW /20 kVA,Input 208V 3PH /Output 120V, 208V, 208V 3PH, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model

  • Features:

    • Parallel-capacity capable
    • Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
    • Parallel-redundant capable
    • Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy
    • Dual mains input
    • Increases availability by allowing the UPS to be connected to two separate power sources.
    • Scalable runtime
    • Allows additional run time to be quickly added as needed.
    • Hot-swappable batteries
    • Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
    • Generator compatible
    • Ensures clean, uninterrupted power to protected equipment when generator power is used.
    • Automatic internal bypass
    • Supplies utility power to the connected loads in the event of a UPS power overload or fault.
    • Battery modules connected in parallel
    • Delivers higher availability through redundant batteries.

  • Specifications:

    • Output
    • Output Power Capacity 16 kW / 20 kVA
    • Max Configurable Power 16 kW / 20 kVA
    • Nominal Output Voltage 120V, 208V, 208V 3PH
    • Output Voltage Note Configurable for 208 and 220V - 3 Phase
    • Efficiency at Full Load 93.8%
    • Output Voltage Distortion Less than 5% at full load
    • Output Frequency (sync to mains) 57 - 63 Hz for 60 Hz nominal
    • Other Output Voltages 220
    • Crest Factor Unlimited
    • Topology Double Conversion Online
    • Waveform Type Sine wave
    • Output Connections
    • (1) Hard Wire 5-wire (3PH + N + G)
    • (1) Screw Terminals
    • Bypass
    • Built-in Maintenance Bypass, Built-in Static Bypass
