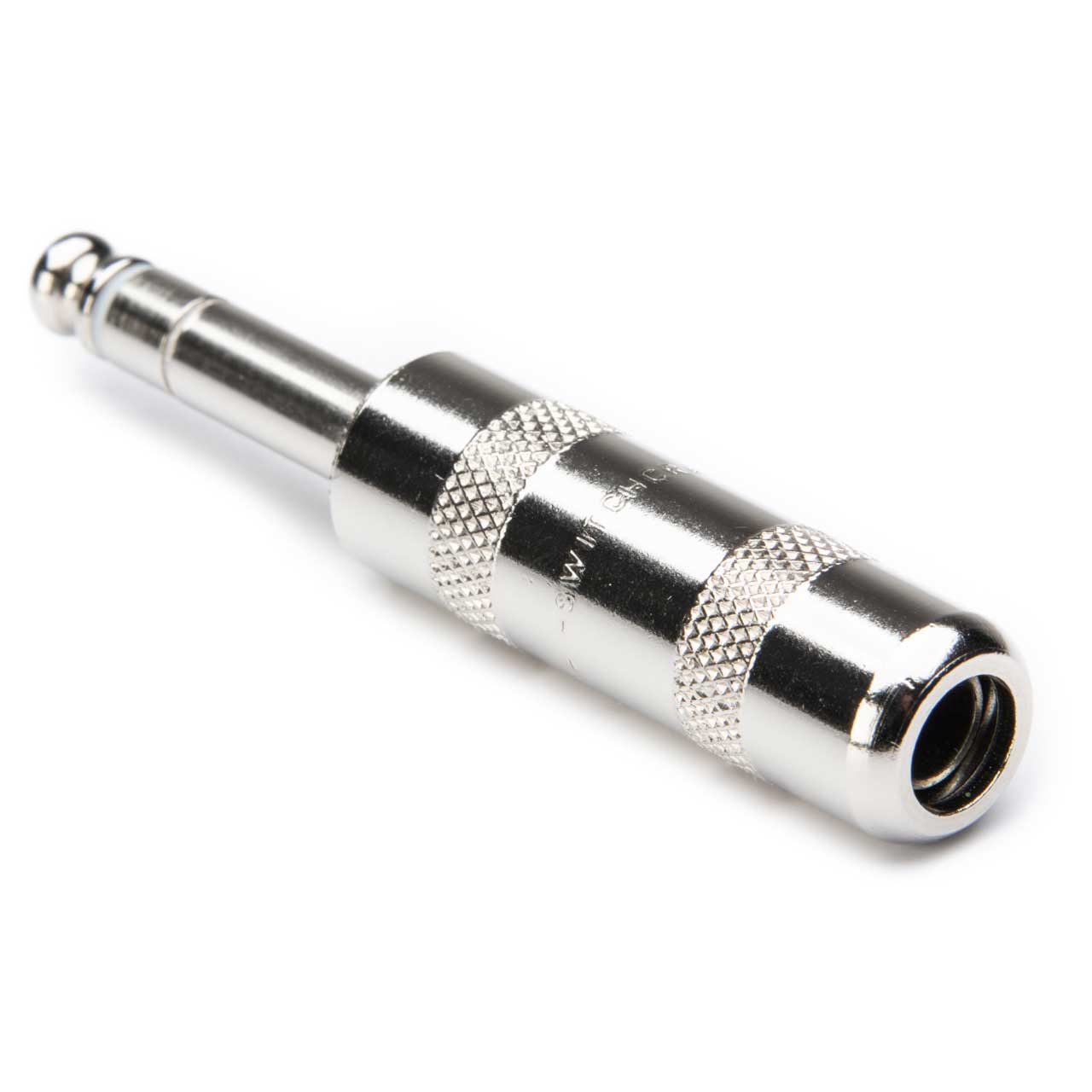

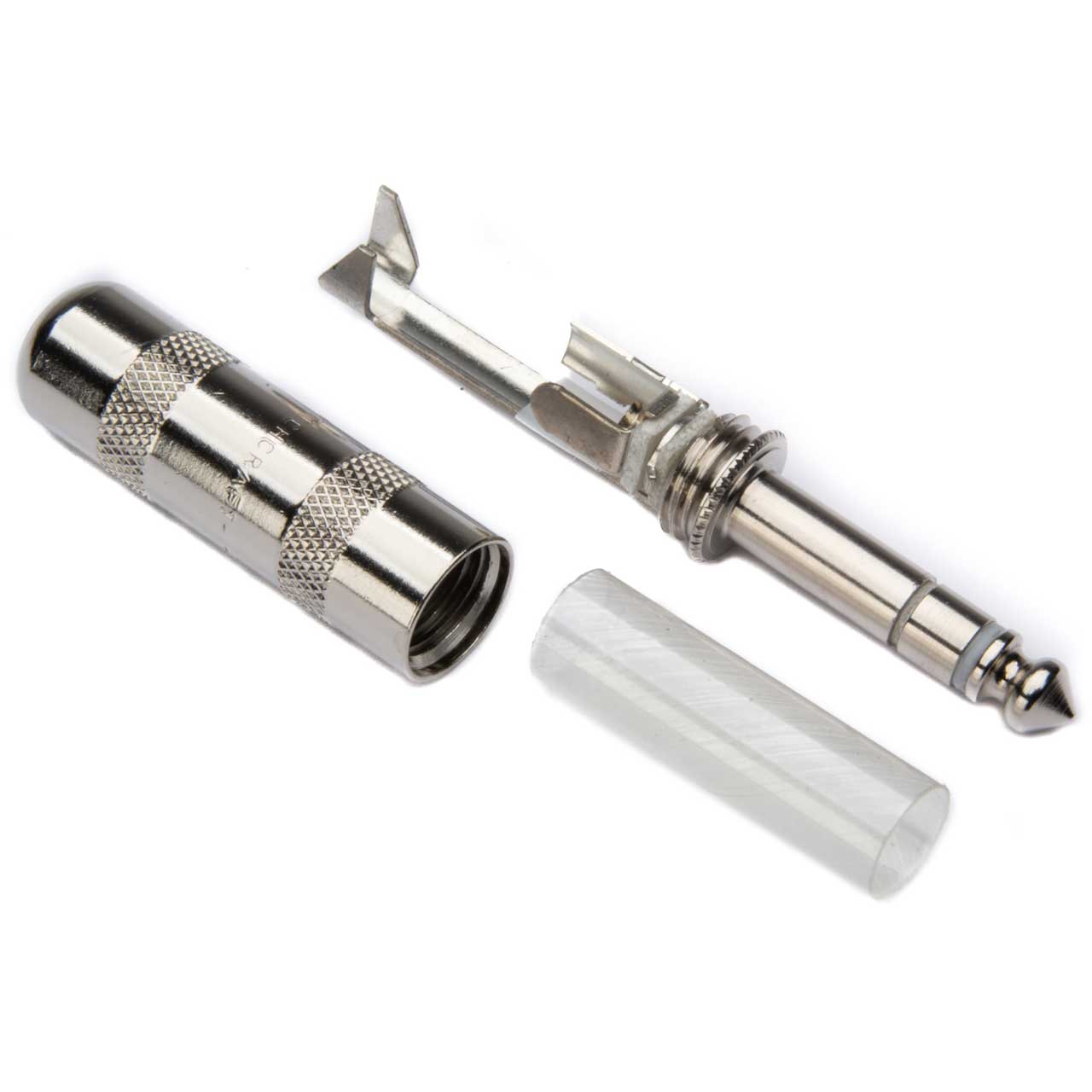

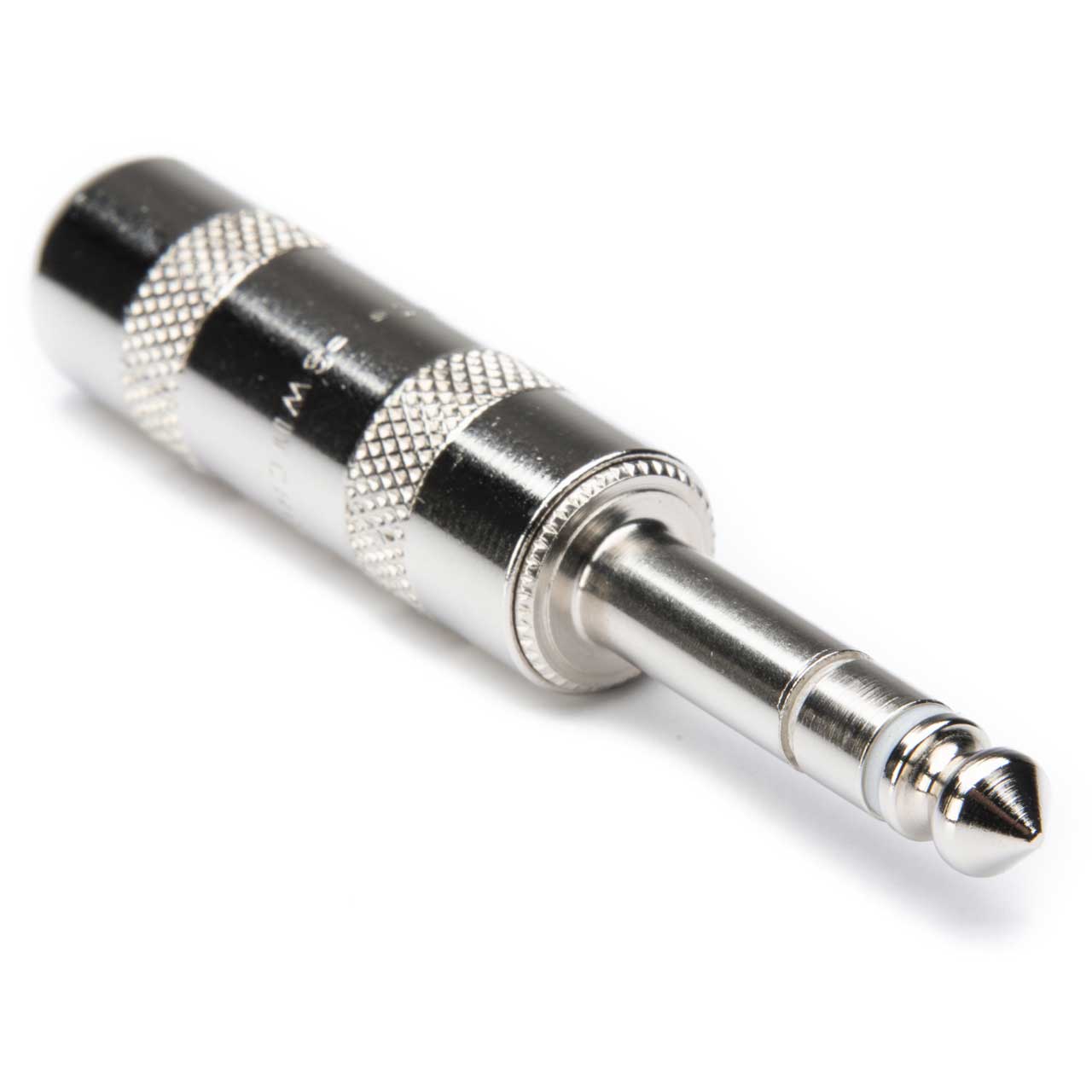

Switchcraft 299 3 Conductor 1/4 Inch Phone Plug Large

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Switchcraft 299 3 Conductor 1/4 Inch Phone Plug Large

    Manufacturer: Switchcraft

    Item #: SW299   •   MFG #: SW299








    Types:





    Share!





    Switchcraft 188 and 299 Plugs


    • Features

      • Switchcraft's 188 is more heavy-duty than our competitor's biggest 1/4" commercial phone plugs.
      • Large curved tip solder terminal makes it easier to solder to heavy gauge wires.
      • Longer sleeve terminal allows more room to make sleeve solder connections.
      • Extra-large cable clamp securely grips cable of up to .450" in diameter.
      • Will easily accommodate some varieties of four conductor 14 gauge wire and parallel two conductor 12 gauge wire.
      • Bendable tab on sleeve terminal makes termination easier by holding down cable while soldering. In addition, such mechanical retention makes for a superior solder connection.
      • Will handle up to 15 A. rms (maximum).
      • Current Carry @ Working Voltage For 188 Plug (typical *D.O.M.J.) : 15.0 AMPS.
      • Current Carry @ Working Voltage For 299 Plug (typical *D.O.M.J.) : 6.0 AMPS.
      • Maximum Cable Size For 188 Plug: 12 AWG stranded, up to .450" diameter.
      • Maximum Cable Size For 299 Plug: .290" diameter.
      • Insulators For 188 Plug: Thermojet plastic, thermoplastic, thermoplastic film, P.P.O.
      • Insulators For 299 Plug: Thermoplastic, thermoplastic film, glass epoxy.
        *D.O.M.J. - Dependent On Mating Jack
