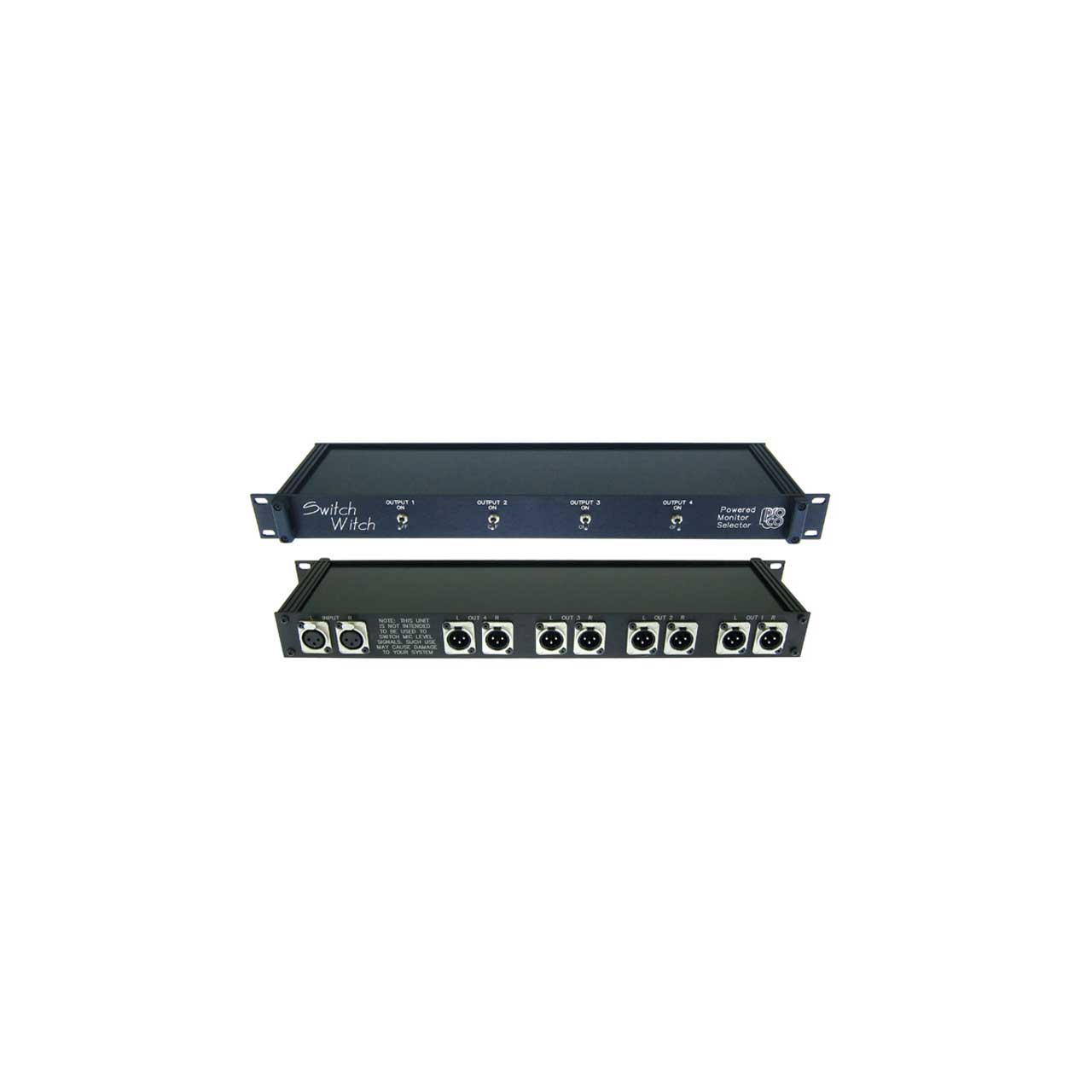

The Switch Witch is a simple, effective line level speaker switcher that allows the user to select up to four pairs of speakers from a single balanced stereo line level source. All ins and outs are balanced on XLR connectors.The Switch Witch is a must have in any studio enviroment! With the Switch Witch, you are able to choose up to four pairs of monitors from one balanced stereo line level source. You can compare between your selected speakers being able to accurately compare each source. The Witch takes up a single 19" rack space with controls on the front, and all your connections in the back, all being XLR connectors.
The Pro Co TradeTools Switch Witch is designed to allow the user to select up to four pairs of speakers from a single balanced stereo line-level source. The Switch Witch is particularly useful in studio remix applications where two or more pairs of self-powered nearfield monitor speakers are being used for comparison purposes. Switch Witch can also function as a speaker zone box, controlling signal in up to four separate areas of a facility
Two female XLR connectors located on the rear panel are labelled INPUT L and R. These provide left and right input connections for the balanced stereo line-level source. Four pairs of male XLR connectors labelled L and R OUT 1 through 4 are also located on the rear panel. They provide output connections for up to four powered monitor speaker pairs. Speaker selection is accomplished through the use of four (4) 4PDT miniature toggle switches located on the front panel of the unit. The toggle switches can be used to allow any individual output or combination of outputs to be fed from the stereo input.
The rugged 16-gauge steel and aluminum "Uni-box" rack-mount enclosure is finished in a durable black texture powder coat finish with black anodized aluminum side channels. The front and rear panels feature easy-to-read laser-etched control graphics. The Switch Witch can be mounted in any standard 19" (482.6mm) rack. Top-quality connectors and switches provide trouble-free service even in abusive situations such as remote broadcast and recording operations.
