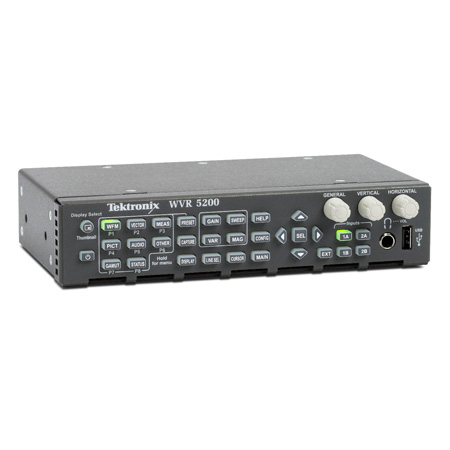

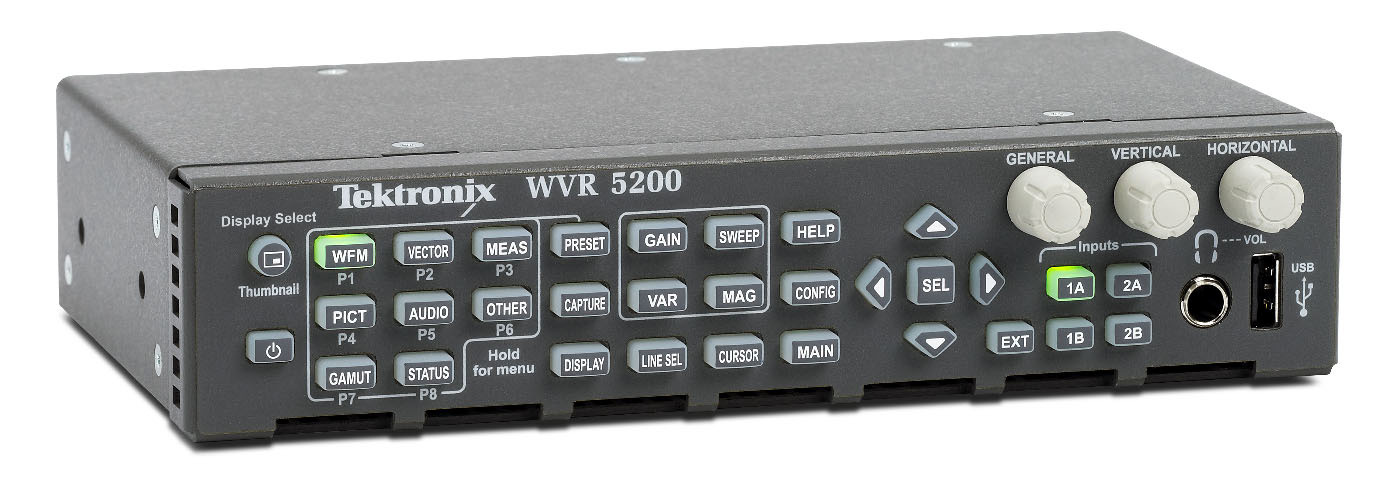

Tektronix WVR5200 Waveform Rasterizer
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Tektronix WVR5200 Waveform Rasterizer

    Manufacturer: Tektronix

    Item #: TEK-WVR5200   •   MFG #: WVR5200


    Our Price:$6,180.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    Multi-format, multi-standard and compact.

    The WVR5200 waveform rasterizer offers uncompromised monitoring quality with sharp CRT-like traces, SD/HD monitoring, a range of software options, and an upgrade path to 3G-SDI.

    This portable video waveform rasterizer weighs less than 3 kg. and provides an ideal solution for basic video and audio monitoring needs in a convenient 1RU half-rack short depth form factor, suitable for space-constrained environments. The WVR5200 supports options to accept power from a 12 VDC source or a 100-240 VAC converter.

    • Features

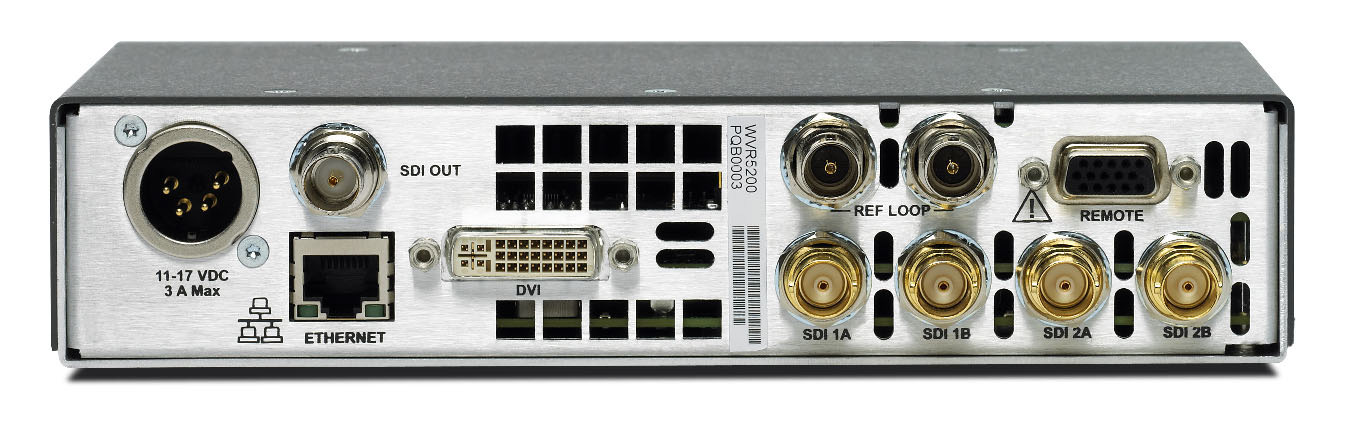

      • 1RU height, Half-rack Width, Short-depth (5.5 in. or 14 cm) Instrument, Ideal for Space-constrained Environments
      • 4-pin XLR DC Power Input with AC Power Adapter for both AC/DC Operation
      • Four SDI Inputs with Multiformat, Multistandard Support
      • WVR5200 comes standard with auto-detection of HD/SD-SDI and multiple Dual Link video formats
      • Multiple Input Mode allows monitoring of up to four SDI inputs simultaneously for multiple camera monitoring applications (Option CAM)
      • Two-channel Simultaneous Monitoring (Option CAM)
      • Upgradeable to include 3G-SDI (Level A and Level B) format support with the purchase of an upgrade key (Option 3G)
      • 16-channel embedded AES/EBU audio simultaneous monitoring support with Multichannel Surround Sound display and flexible Lissajous display (Option AUD)
      • Audio Loudness monitoring to ITU-R BS.1770-2/1771, EBU R 128, and ATSC A/85 recommendations (Option LOUD, requires Option AUD to be installed)
      • Tektronix-patented Diamond and Arrowhead Displays for Color Gamut Compliance Monitoring
      • New Tektronix-patented Spearhead Display and Luma Qualified Vector (LQV) Display Facilitate Precise Color Adjustment for Post Production Applications (Option PROD)
      • Comprehensive Data Monitoring (Option DATA) helps to Quickly Resolve Difficult Content Quality and Reliability Issues
      • Simultaneous CEA708/608 Closed Caption monitoring; Teletext and OP47 subtitle monitoring
      • Detect and decode ANC data including AFD, WSS, Video Index, TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC, and ANC TC
      • ARIB STD-B35/B37/B39, TR-B22, and TR-B23 support
      • ANC Data Inspector and SDI Data Analysis display helps troubleshoot ANC data and SDI data problems
      • Simple 3G/HD/SD Color Bar and Pathological Signal Generator (Option GEN) for Troubleshooting Signal Paths and Equipment (Note: Option 3G is required for 3G-SDI test signal generation)
      • Variety of Monitoring Displays
      • Tektronix-patented Timing and Lightning displays makes facility and interchannel timing easy
      • Waveform display of external reference (Black Burst or Tri-Level Sync)
      • Black Picture and Tektronix-patented Frozen Picture Detection
      • Extensive alarms, status reporting, and error logging for 10,000 events simplifies error correction tasks
      • Voltage and Timing Cursor for precise measurement
      • User-definable Safe Area Graticules and AFD Graticule facilitate editing and format conversion tasks
      • Unmatched Display Versatility
      • Flexible Quad Tile Display tailored to various applications needs to increase productivity
      • TandemVu Display for efficient camera adjustments of luma and chroma
      • Full Screen mode that maximizes display size for precise adjustments
      • Unmatched Usability
      • 32 instrument presets for quick recall of commonly used configurations tailored to colorists, editors, or operators
      • Front-panel USB port enables easy transfer of presets, screenshots, and error log
      • Front-panel headphone port for easy monitoring of audio channels
      • Intuitive menu structure and context-sensitive help
      • SNMP and Ethernet remote interface capabilities and GPI control facilitate centralized monitoring and control
      • DVI-I external display output for easy connection to digital or analog XGA display
      • Super lightweight and low power consumption design for mobile truck (OB van) applications
