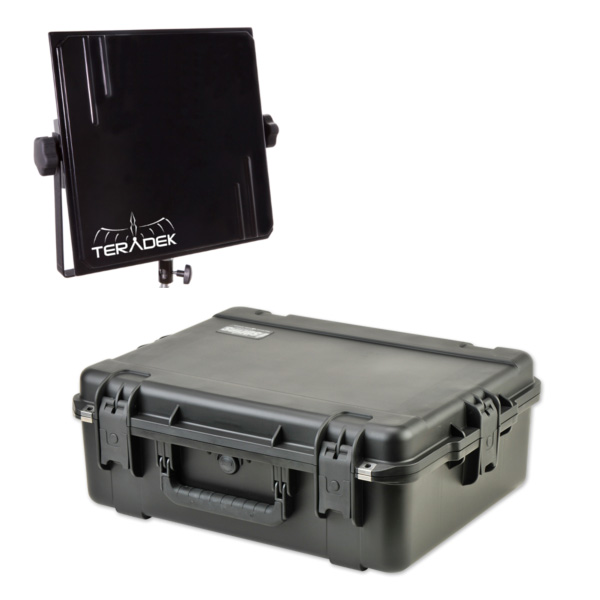

Teradek BIT-028 Antenna Array For Bolt RX - Includes Mounting Bracket and Protective Case

ITEM #: TER-BIT-028 MFG #: 11-0028

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TER-BIT-028

11-0028 - Overview

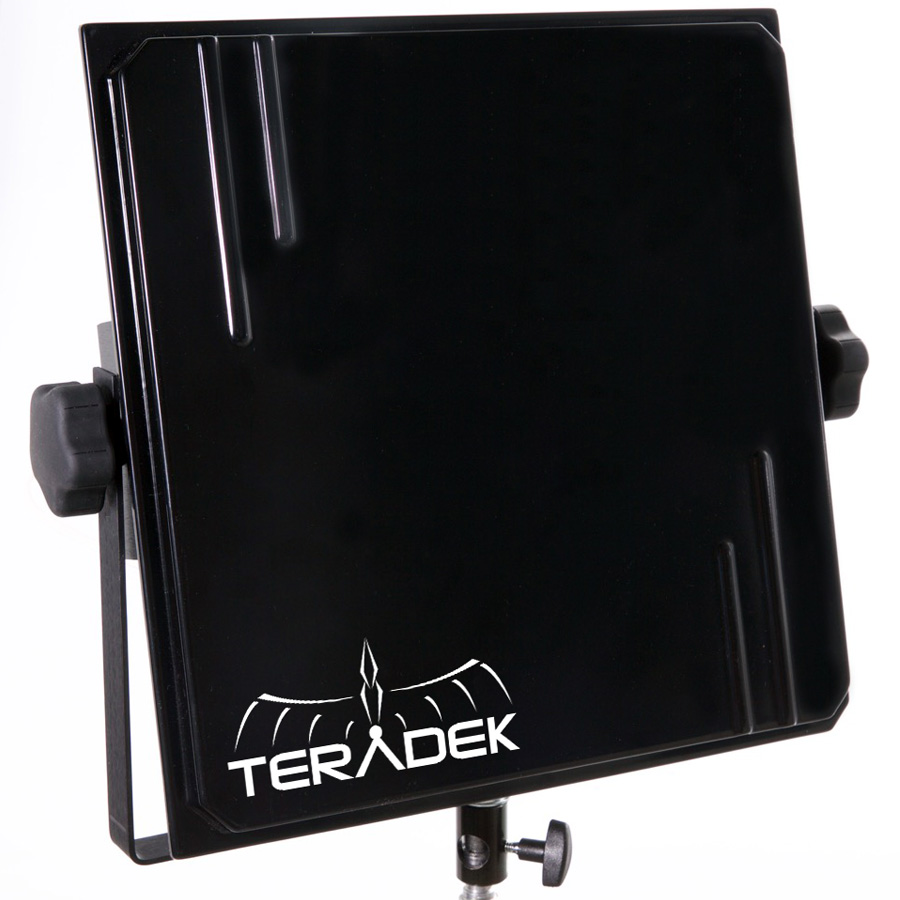

Panel Antenna Array 5GHz 3x16dBi 2x14 dBi Black with with a receiver mounting bracket

The Teradek Array is a 5GHz MIMO panel antenna designed for use with Beam, Bolt 600 and Bolt 2000 receivers. The Array offers a more resilient wireless transmission, especially in challenging RF conditions, but it will not increase range.

SKB iSeries Injection Molded Mil-Standard Waterproof Cases are molded of ultra high-strength polypropylene copolymer resin, featuring a gasketed, water and dust tight, submersible design that is resistant to corrosion and impact damage. Features a molded-in hinge, patented trigger release latch system, comfortable, snap-down rubber over-molded cushion grip handle, automatic ambient pressure equalization valve, resistance to UV, solvents, corrosion, fungus and impact damage.

  • Features:

    • Waterproof and dust tight design
    • Molded-in hinge for added protection
    • Trigger release latch system
    • Snap-down rubber over-molded cushion grip handle
    • Ambient pressure equalization valve
    • Resistant to UV, solvents, corrosion, fungus
    • Resistant to impact damage

  • Specifications:

    • SKB Case Specs:
    • Lid Depth: 2.00 in 5.08 cm
    • Base Depth: 6.00 in 15.24 cm
    • Interior Length: 22.00 in 55.88 cm
    • Interior Width: 17.00 in 43.18 cm
    • Interior Depth: 8.00 in 20.32 cm
    • Interior Cu. Volume: 1.73 cu ft 0.05 cu m
    • Exterior Length: 24.32 in 61.77 cm
    • Exterior Width: 19.50 in 49.53 cm
    • Exterior Depth 8.86 in 22.50 cm
    • Exterior Cu. Volume: 2.43 cu ft 0.07 cu m
    • Max. Temperature 180.00° F 82.22° C
    • Min. Temperature -69.00° F -56.11° C
    • Max. Buoyancy 109.00 lb 50.00 kg
    • Carton Length: 23.75 in 60.33 cm
    • Carton Width: 19.63 in 49.85 cm
    • Carton Depth: 9.00 in 22.86 cm
    • Carton Cu. Volume: 2.43 cu ft 0.07 cu m
    • Product Weight: 10.95 lb 4.97 kg
    • Shipping Weight: 13.00 lb 5.90 kg

  • Item Includes:

    • 1 Panel Antenna Array
    • 1 SKB Waterproof Utility Case ( 22 x 17 x 8 inches)

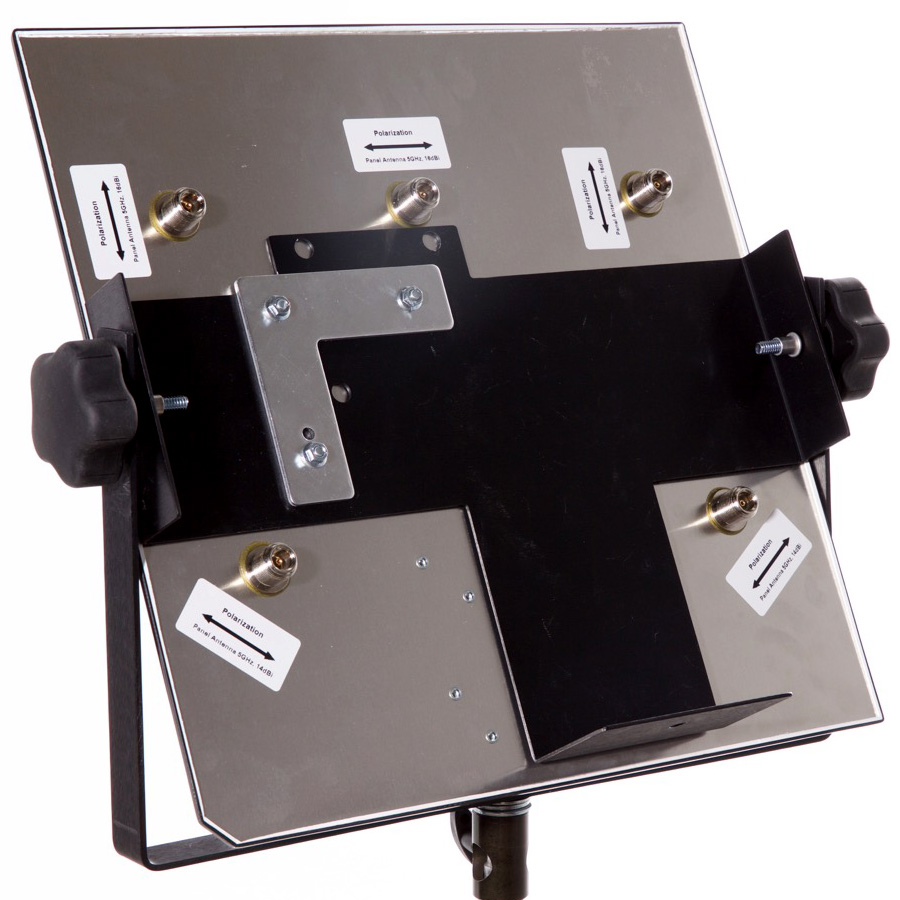

    • 1 Mounting Bracket for use with a Teradek Bolt Receiver

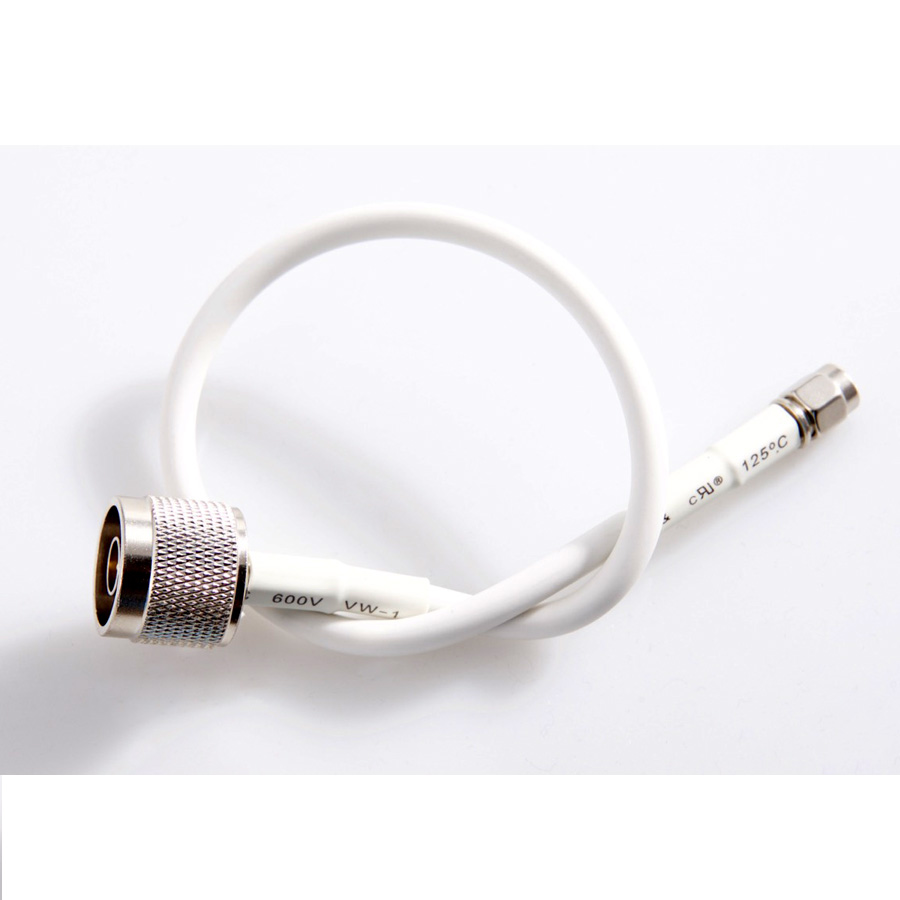

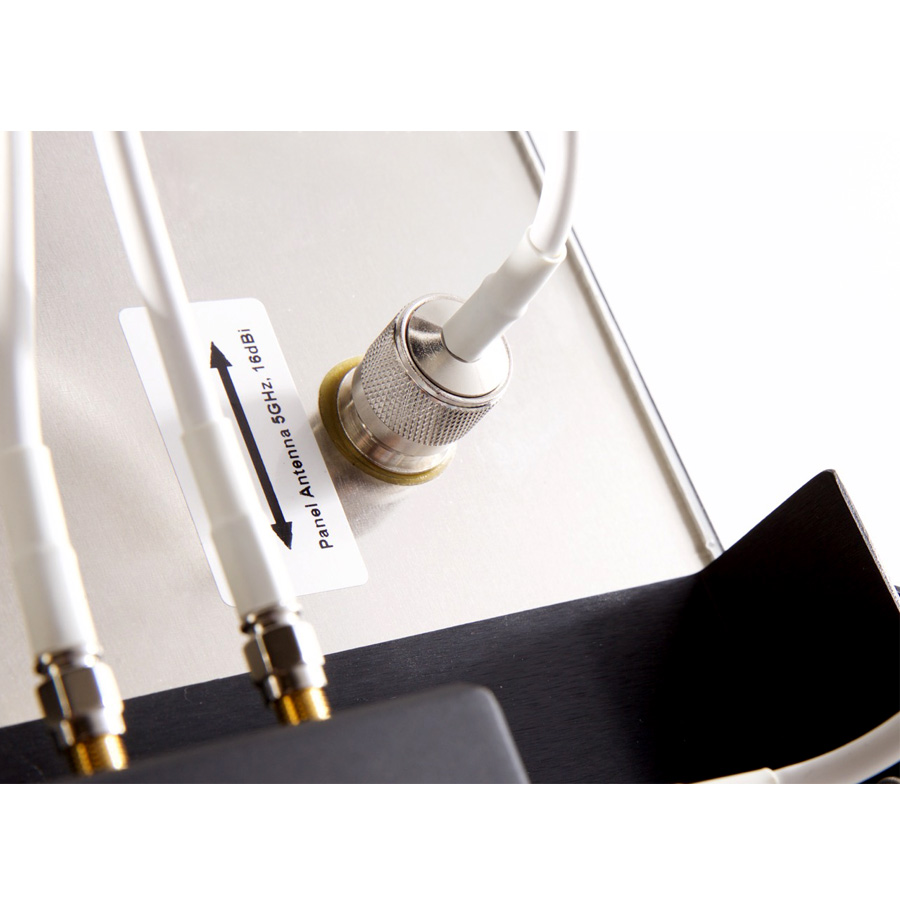

    • 5 N-Male to RP-SMA 12 inch cables (for use with Bolt Rx Only)
    • 1 lightstand adapter 3/8 inch

  • GTIN:

    0854980006039
