Thor Fiber H-4ADHD-QAM-IPLL 4-Channel HDMI/YpPbr/Composite to QAM Encoder Modulator w/Low Latency & IPTV Streamer
  • Thor Fiber H-4ADHD-QAM-IPLL 4-Channel HDMI/YpPbr/Composite to QAM Encoder Modulator w/Low Latency & IPTV Streamer
  • Thor Fiber H-4ADHD-QAM-IPLL 4-Channel HDMI/YpPbr/Composite to QAM Encoder Modulator w/Low Latency & IPTV Streamer

Questions? Ask a Markertek Expert:
800-522-2025 Email

Thor Fiber H-4ADHD-QAM-IPLL 4-Channel HDMI/YpPbr/Composite to QAM Encoder Modulator w/Low Latency & IPTV Streamer

Manufacturer: Thor Fiber

Item #: THR-4ADHD-QAM-IP   •   MFG #: H-4ADHD-QAM-IPLL



List Price:$4,500.00
Our Price:$3,495.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!

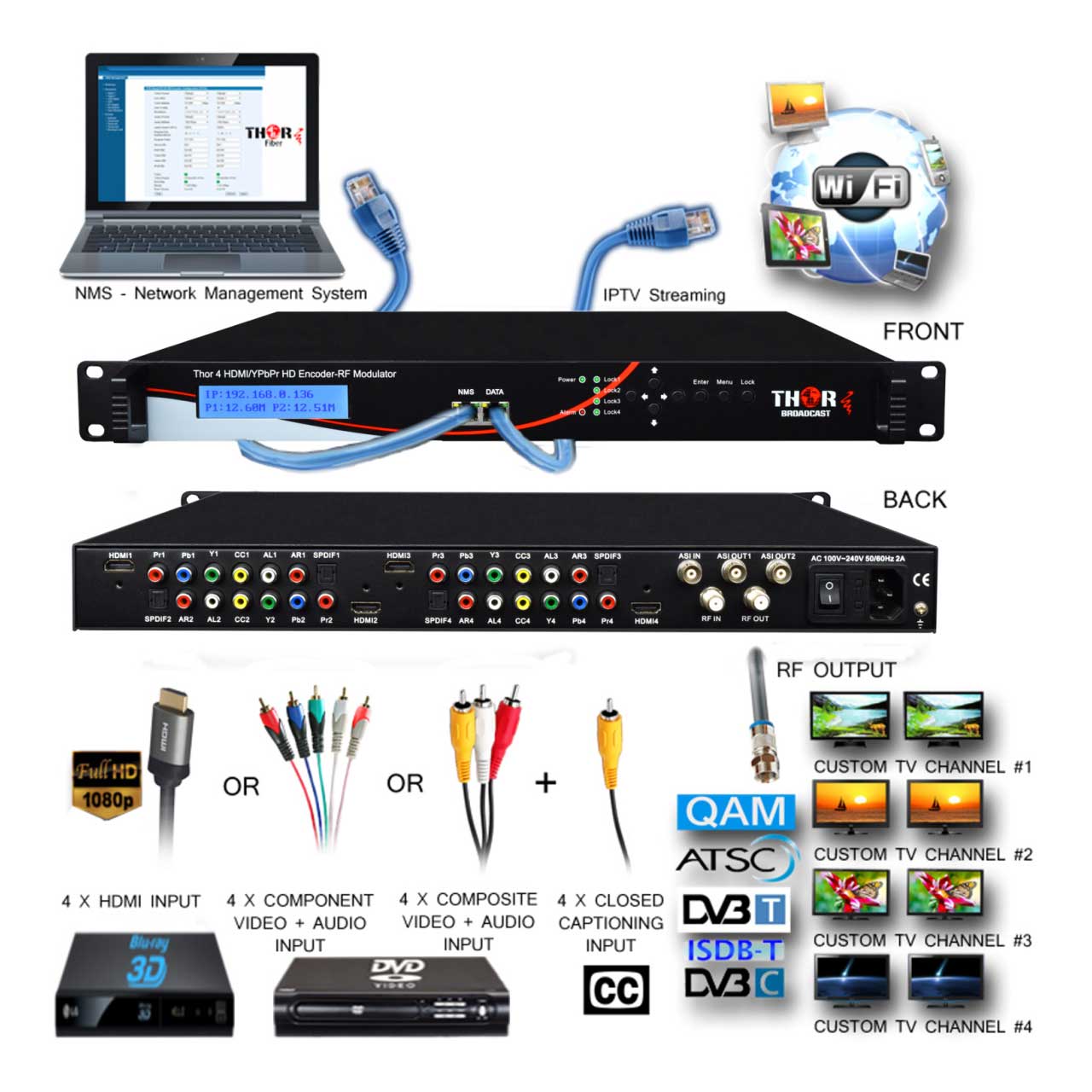

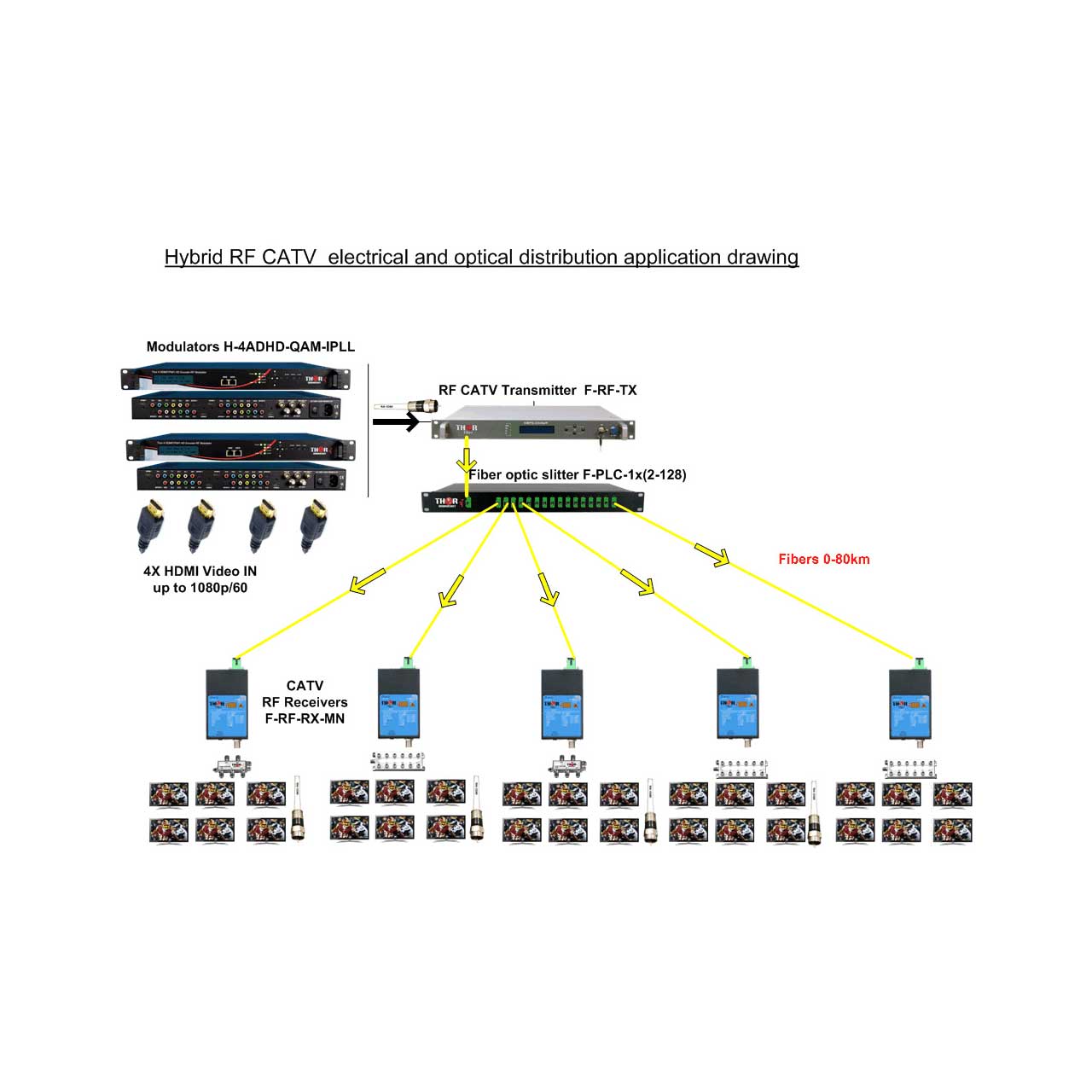

    The Thor QAM Analog and Digital HD(ADHD) encoder modulator is a multi-dynamic tool used to distribute any live HDMI/YpPbr/Composite/Component video source such as a cable TV STB, DVD player, Digital Signage Device etc, and broadcast that video on your own RF channel over your existing coax infrastructure. This easy to use encoder modulator is useful for any type of video encoding & distribution. Separate input for Closed Caption 608 is available through its own analog input. This unit can be just an encoder, a modulator, IPTV server, or all 3 at once. The 4ADHD is compatible with any HDMI/YpPbr source that will output an RF channel with perfect HD quality video up to 1080p60 that encodes in either MPEG-2 or H.264. Creating your headend with dozens of channels can be easily accomplished by stacking several units and daisy chaining the RF in’s & out’s, or by using an external RF combiner.

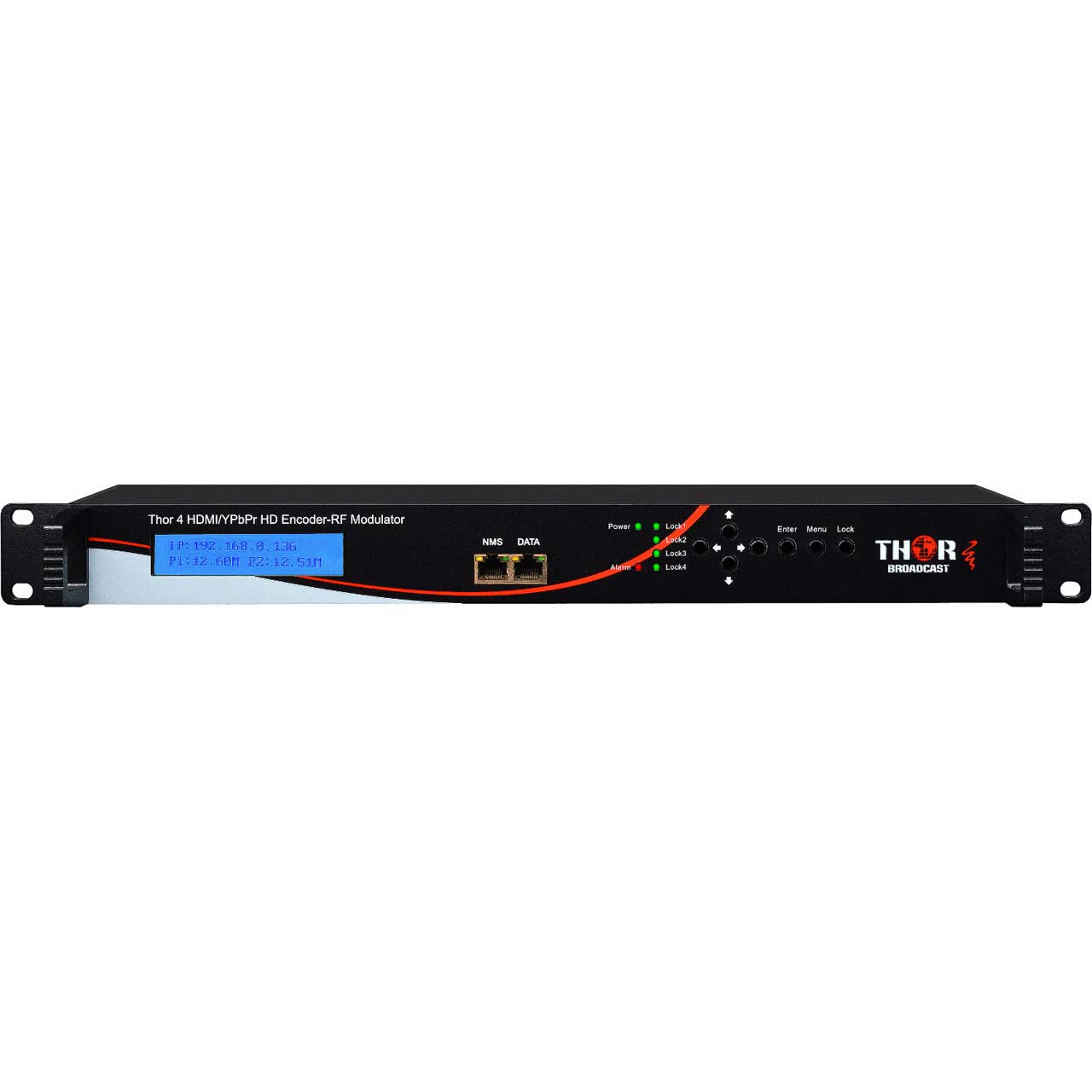

    All settings are configurable through either the front panel LCD or through a web browser on a dedicated network port. The NMS (network management software) built into every Thor unit is a proprietary firmware that will allow you to adjust any settings on the encoder from any web browser, from any device located on the same network. A second network port is provided for IPTV streaming output that can directly feed any standard IPTV system. This unit also provides a DVB-ASI input and output for added flexibility and integration with other broadcasting components. This modulator will output RF QAM, ASI, and IP simultaneously creating easy distribution over coax and IP. Automated internal chipset will automatically adjust most settings. RF Power levels can be adjusted from 5-35dBmV. All Thor products come with a 5 year warranty and free tech support. Ask your rep how Thor can preconfigure your unit for you, creating a seamless plug and play apparatus to power your own CATV channels.


    • Features

      • 70 ms Low Latency encoding feature for low delay display

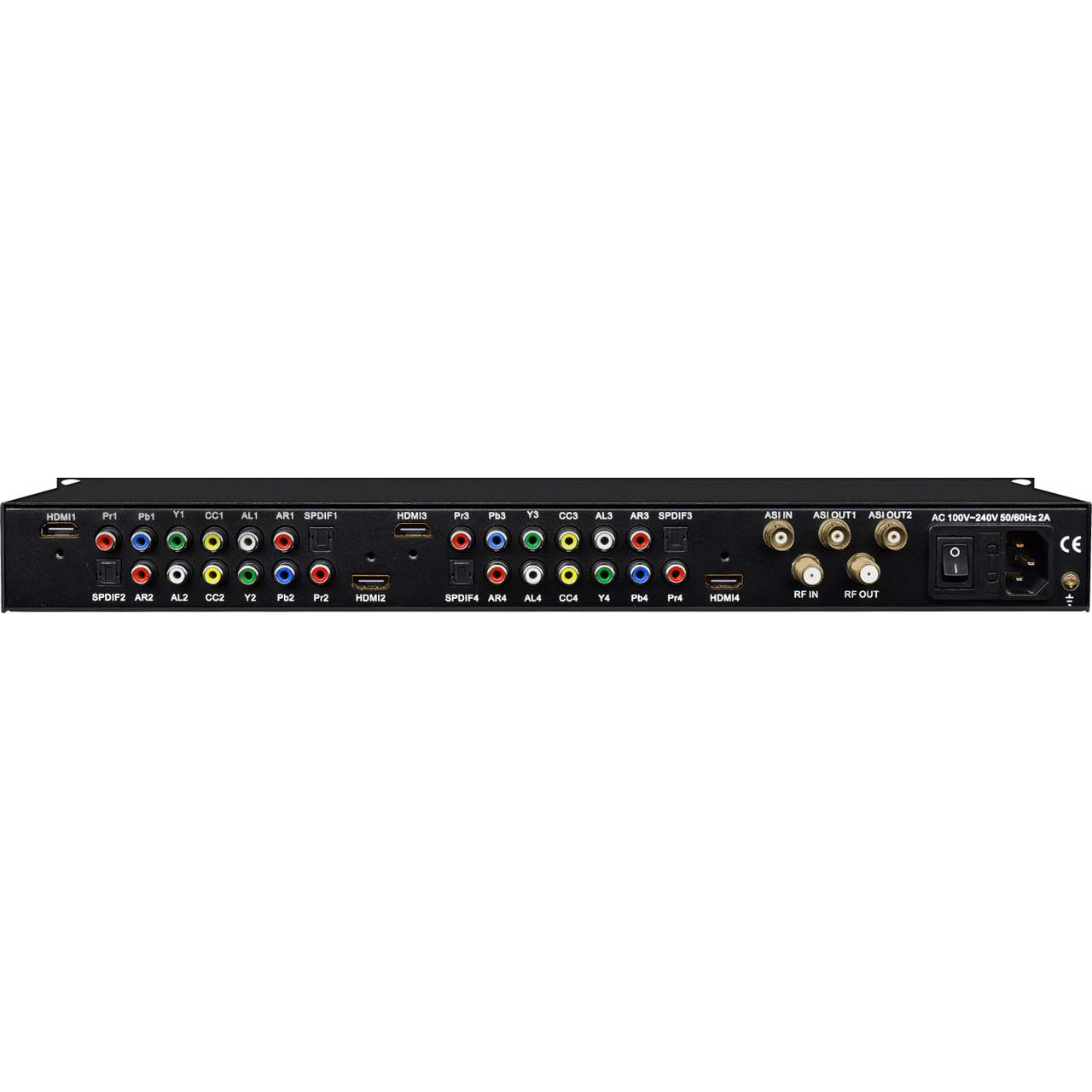

      • 4x HDMI/YpPbr Input and 1x ASI Input / QAM, IPTV, & ASI Output
      • Distribute or Broadcast any live HDMI digital video source
      • Combination Encoder, Modulator, IPTV Server, & ASI Mux - Closed Caption 608 via Analog Input
      • Controlled through web server on separate network port
      • Encodes in MPEG-2 or H.264 video codecs at 0.5 - 19 Mbps

    • Specifications

      • Input HDMI & YPbPr up to 1080P60
      • Supported Resolutions 1280x720P 60 / 59.94 / 50 Hz
      • 1920x1080I 60 / 59.94 / 50 Hz
      • Video Codecs MPEG-2 HD 1.5-19.5 Mbps
      • H.264 HD 0.8-19.5 Mbps
      • Audio Codecs MPEG-1 Layer II
      • MPEG-2 AAC, Dolby AC3
      • MPEG-4 AAC AC3 Dolby Audio & Dolby Passthrough
      • Audio Sample Rate 48 kHz
      • Audio Bit Rates 64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
      • Modulation Standard Equipped is DVB-C/QAM
      • RF Frequency Range 30-960 MHz 1 KHz Step
      • RF Power Level 5-35 dBmV Adjustable
      • DVB-ASI Output BNC Connector: 1-60 Mbps
      • DVB-ASI Input BNC Connector: 1-120 Mbps
      • Programs Selected by PID
      • Programs Muxed to all Outputs
      • IPTV Streaming: RTP, RTSP, UDP; Unicast & IGMP Multicast
      • Power Input 100-240 VAC Auto Switching ~ 20 W
