Thor F-LB41-CWDM-TxRx CWDM Optical Transmitter & Receiver Kit for 4 L-Band RF Channels Over Single Fiber for MDU

ITEM #: THR-LB41CWDMTXRX MFG #: F-LB41-CWDM-TXRX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$5,994.00

Our Price:

$4,995.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    F-LB41-CWDM-TXRX - Overview

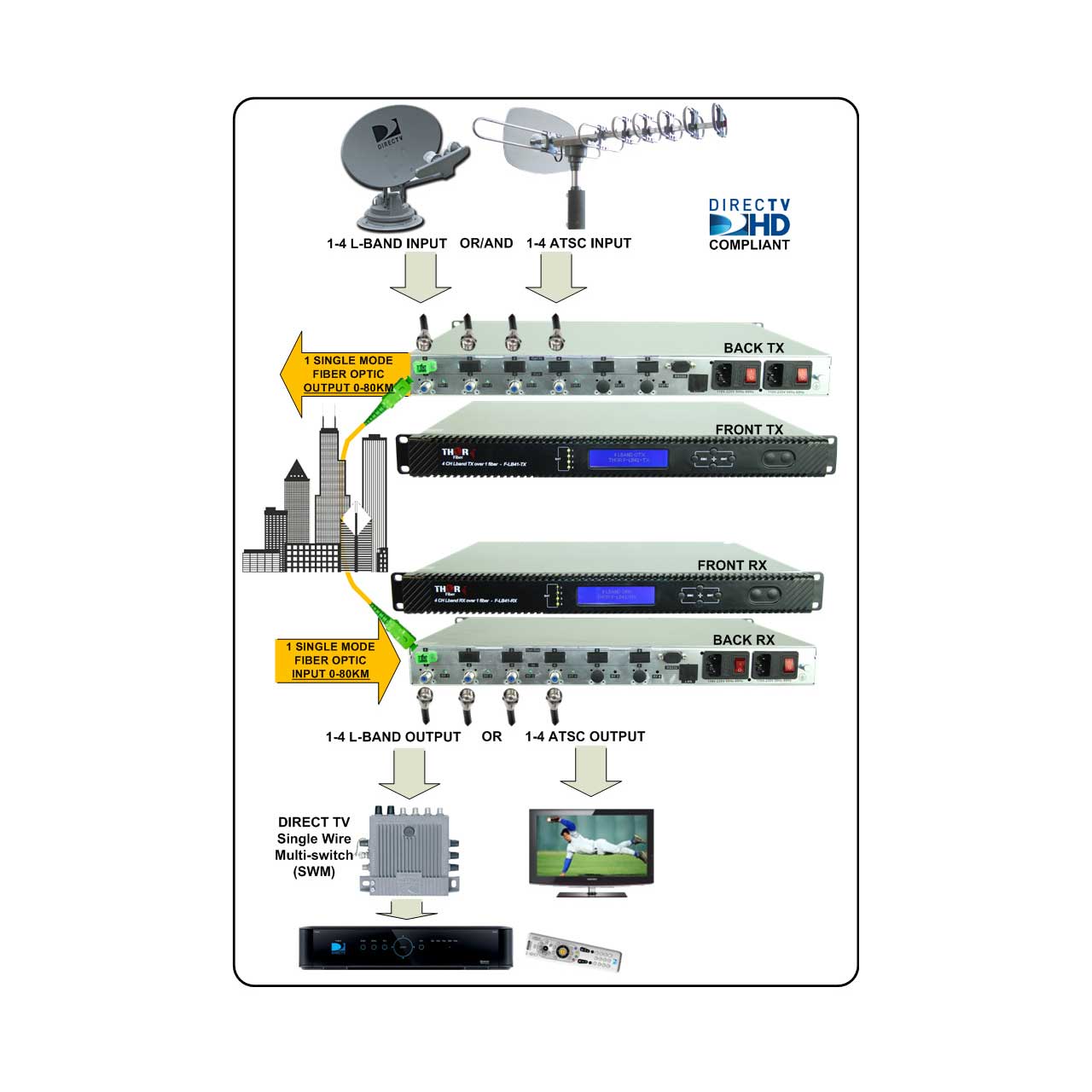

    These units, both Tx & Rx, come in a standard 19" rack mount chassis that will help keep your area or head end free of clutter and excess wiring. What makes these units so dynamic is their simplicity in use, plug & play, and their very advanced chip sets with automatic features that will help minimize any troubleshooting. This multichannel L-Band set is the easiest way to setup a point to point connection for a Satellite Dish over any distance up to 40km over one strand of single mode fiber using SC/APC connectors. If you're looking for a way to hide that satellite dish in a discrete location on your property but are worried about signal loss to the STB from your dish provider, Thor has the simplest and most frustration free design that our integrators and installation experts have ever used. The standard CWDM implementation features automatic internal tuners that will adjust to your Dish and transport the cleanest HD quality picture.

    • Features:

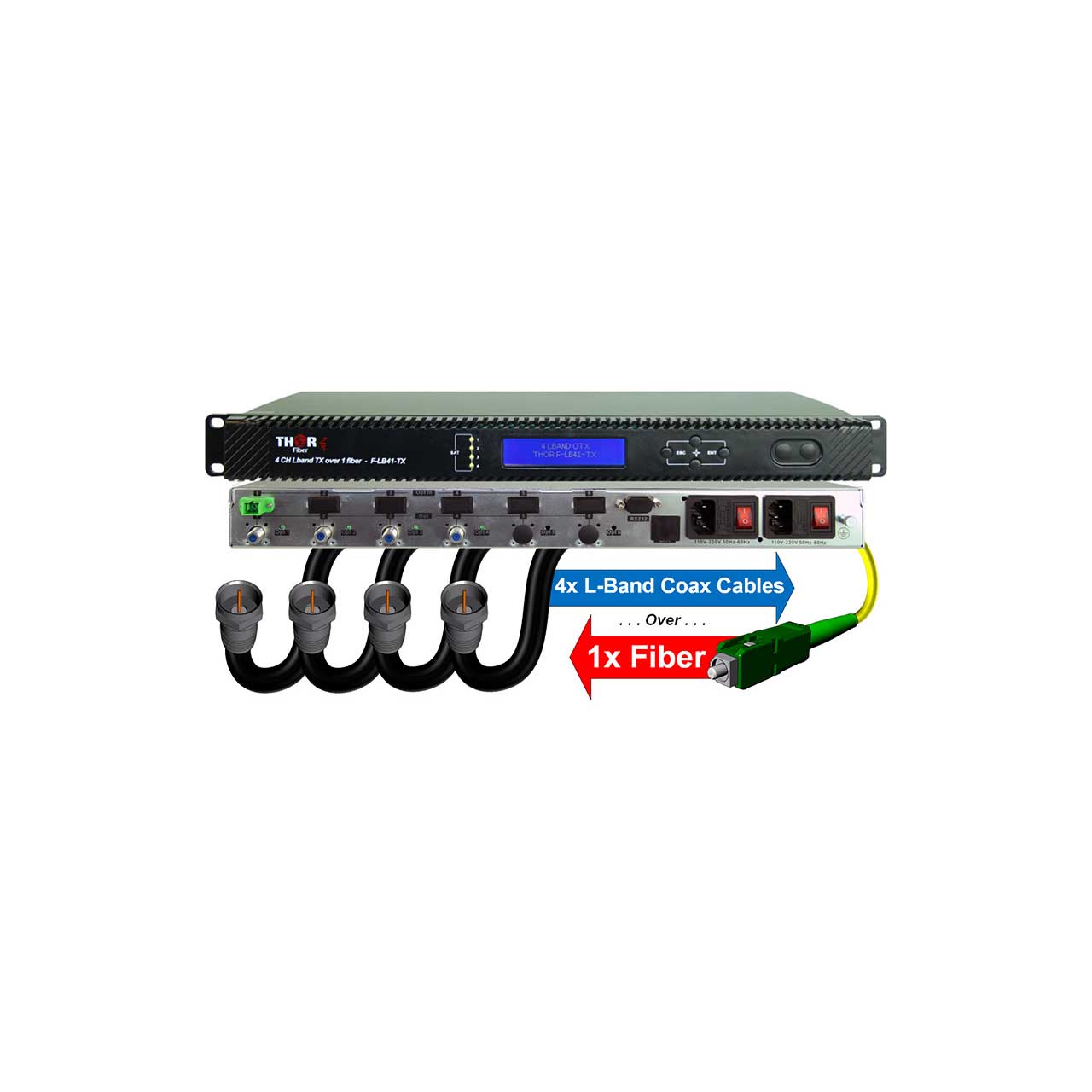

      • Up to 4 RF feeds from satellite 4 LNB's over 1 strand singlemode fiber
      • Wide frequency response 850-2400 MHz or 54-2400Mhz (optional)
      • Compatible with multiple providers such as DirecTV, Dish Network, Free-to-air
      • Designed for use with Single Wire Multiswitch Systems (SWiM)

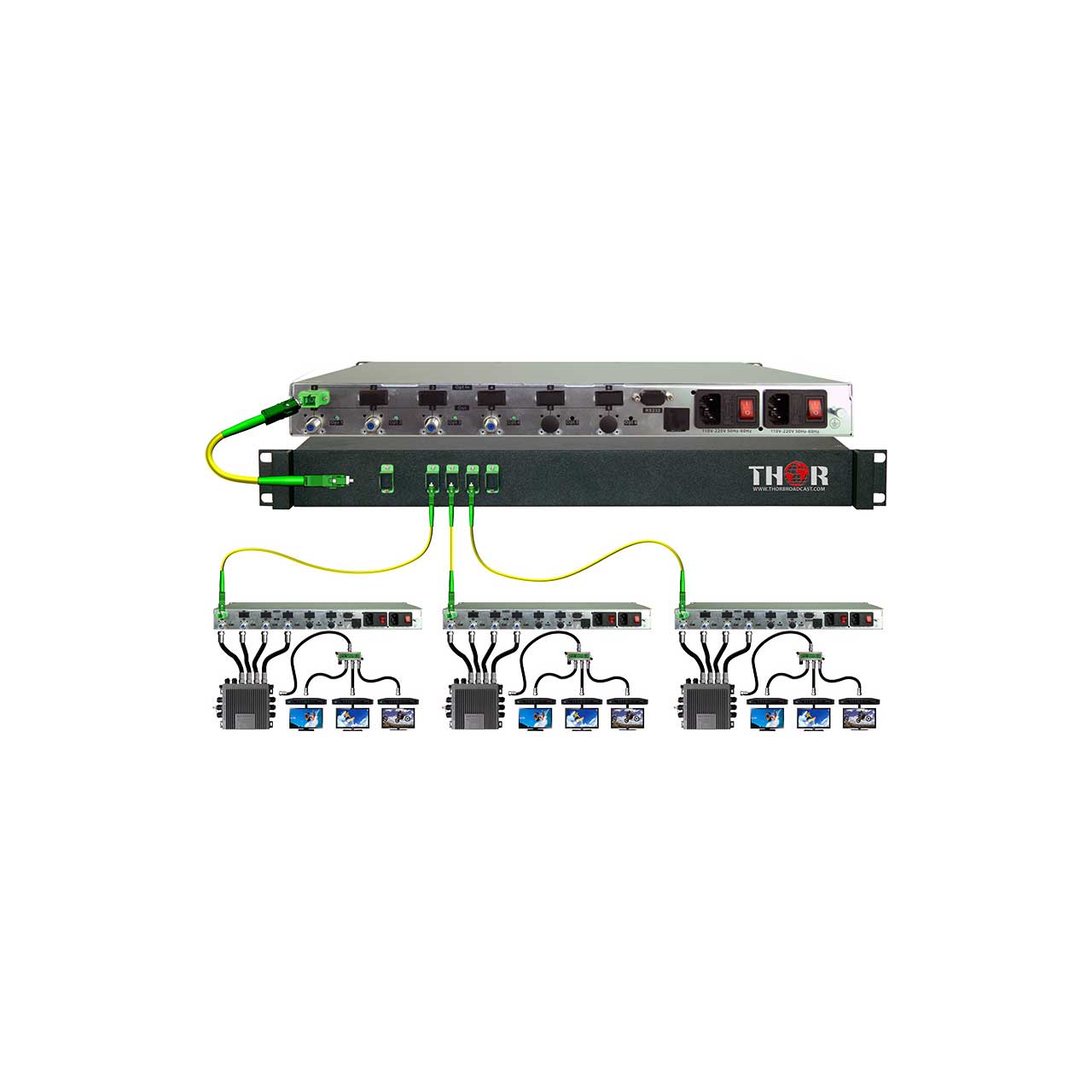

      • Up to 32 end points from one single transmitter
      • Plug and Play
      • Does not saturate
      • RF Signal Input to the Transmitter = RF Signal Output from the receiver (100% Transparent)
      • Transmitter RF Input can power LNB- 13V or 18V
      • Easily add ATSC RF from local antenna through our wide frequency band that supports 54-2700Mhz
      • Sends 22Khz control tone

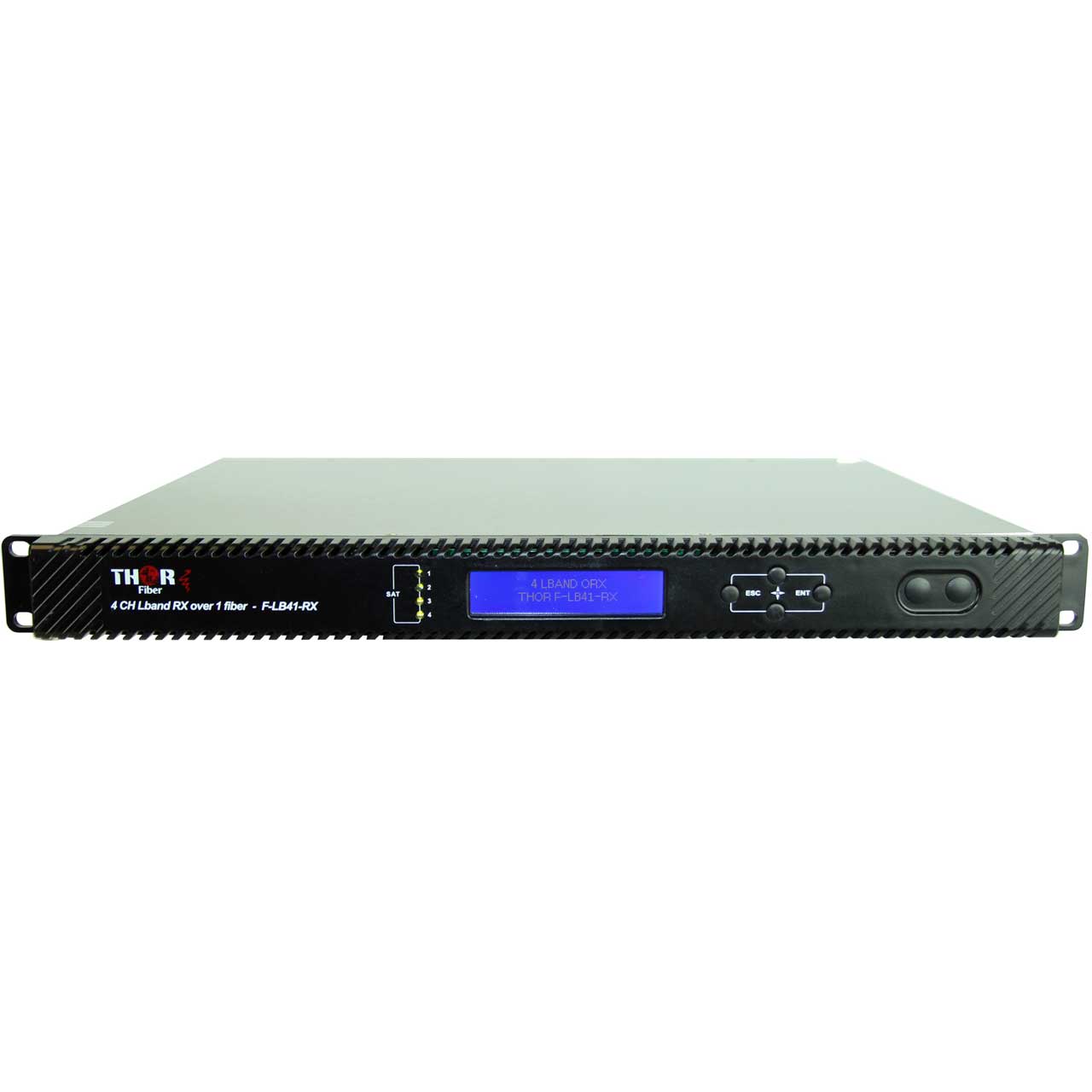

      • LCD display and Front panel interface for easy device management
      • Transmitter displays RF Input Power for individual RF feeds and Optical Output power for each individual CWDM laser (4 lasers total)
      • Receiver displays Optical input power from each of the 4 lasers, and RF output Power as well
      • Internal Power Source: AC power supply 110V-220V
      • Redundant power supply
      • Direct TV/Dish Network Compliant

    • Specifications:

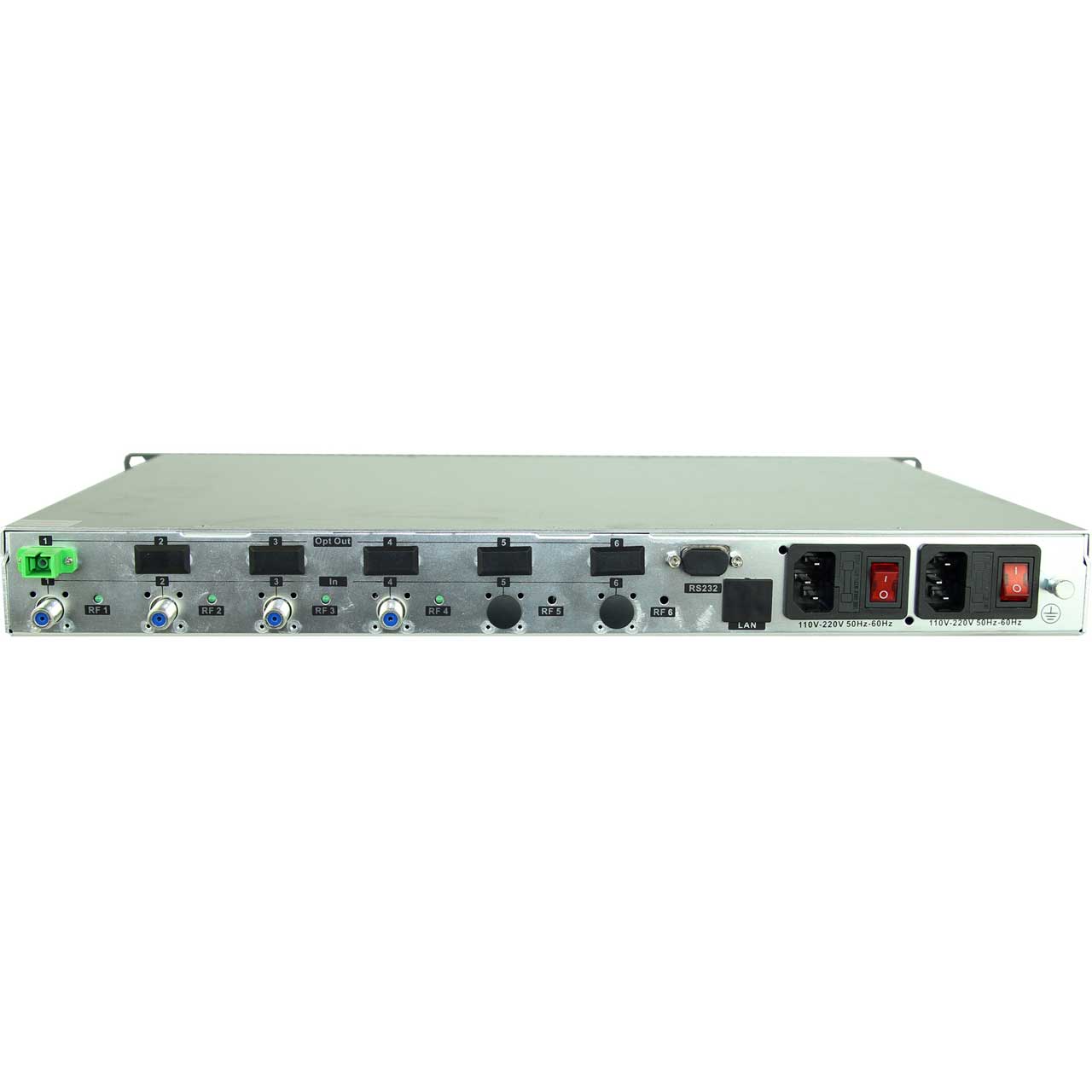

      • RF Inputs - 4x Type-F 75 Ohm
      • Frequency Range 850-2400 MHz or (54-2400 MHz - Optional)
      • RF Input Power Level (-25) - (-14) dBmV
      • Optical Wavelength 4x Independent Optics CWDM 1510nm 1530nm 1550nm 1570nm
      • Optical Output Power
      • 3.0 dBm (2mW) - Standard
      • 6.0 dBm (4mW) Optional
      • 8.0 dBm (6mW) Optional
      • 10. dBm (10mW) Optional
      • Optical Output Ports 1 x SC/APC
      • Laser Type 4x Feedback Controlled DFB type 1550 CWDM
      • RF Return Loss 12 dB
      • RF Link Gain 25 dB
      • Control Interface RS-232 Serial
      • SNMP Network Front Panel
      • Power Supply 110 / 220 VAC Auto Switching
      • Power Consumption >50 W
      • Dimensions 482 x 268 x 44 mm
      • Weight 3.5 kg
      • Operating Temperature 0 - 65 C
