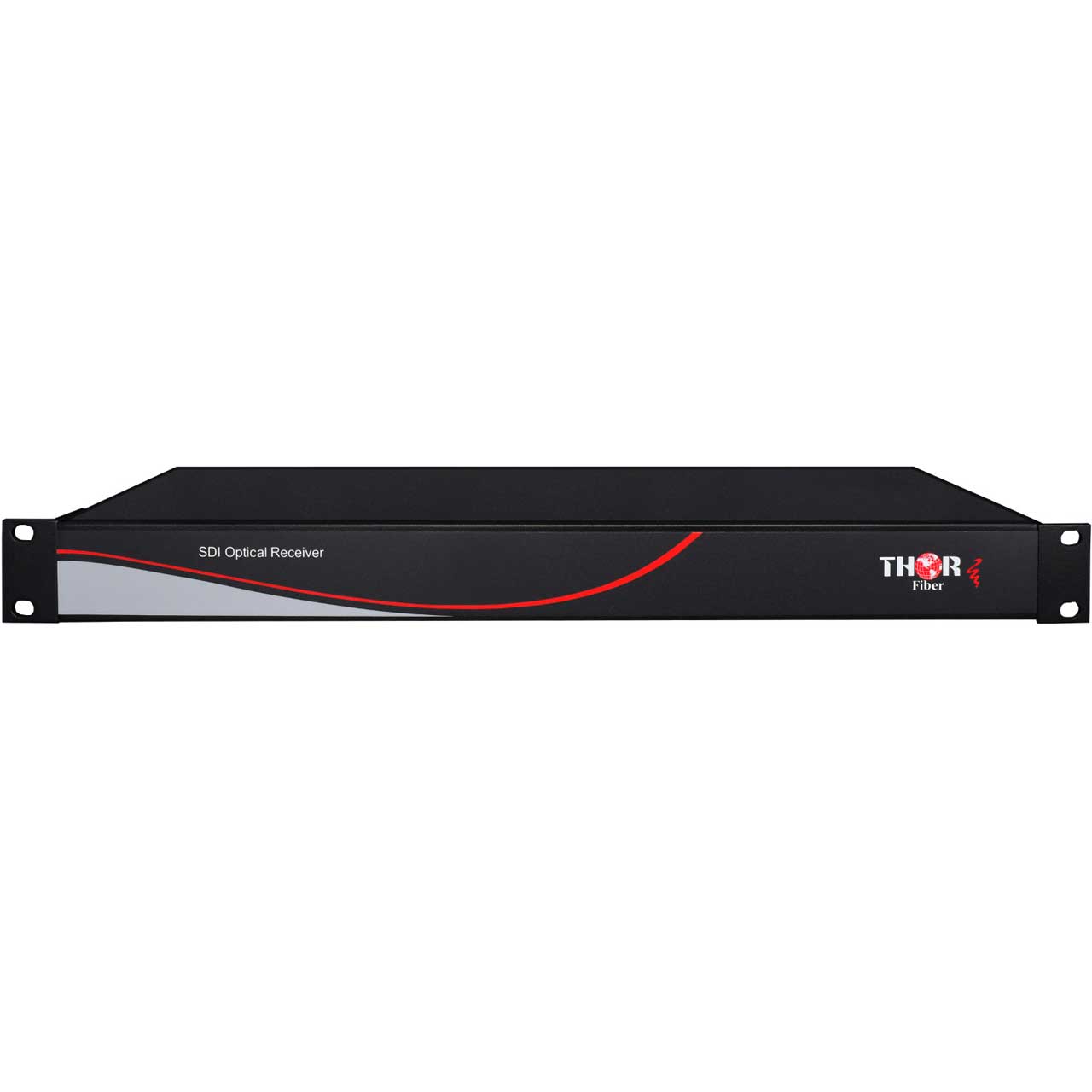

Thor Fiber F-M8SDI-Tx-Rx 8 Ch HD-SDI Fiber Kit with Dual Aux for Analog Audio RD Data or Contact Closure
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Thor Fiber F-M8SDI-Tx-Rx 8 Ch HD-SDI Fiber Kit with Dual Aux for Analog Audio RD Data or Contact Closure

    Manufacturer: Thor Fiber

    Item #: THR-M8SDI-TX-RX   •   MFG #: F-M8SDI-TX-RX


    List Price:$6,243.75
    Our Price:$4,995.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.

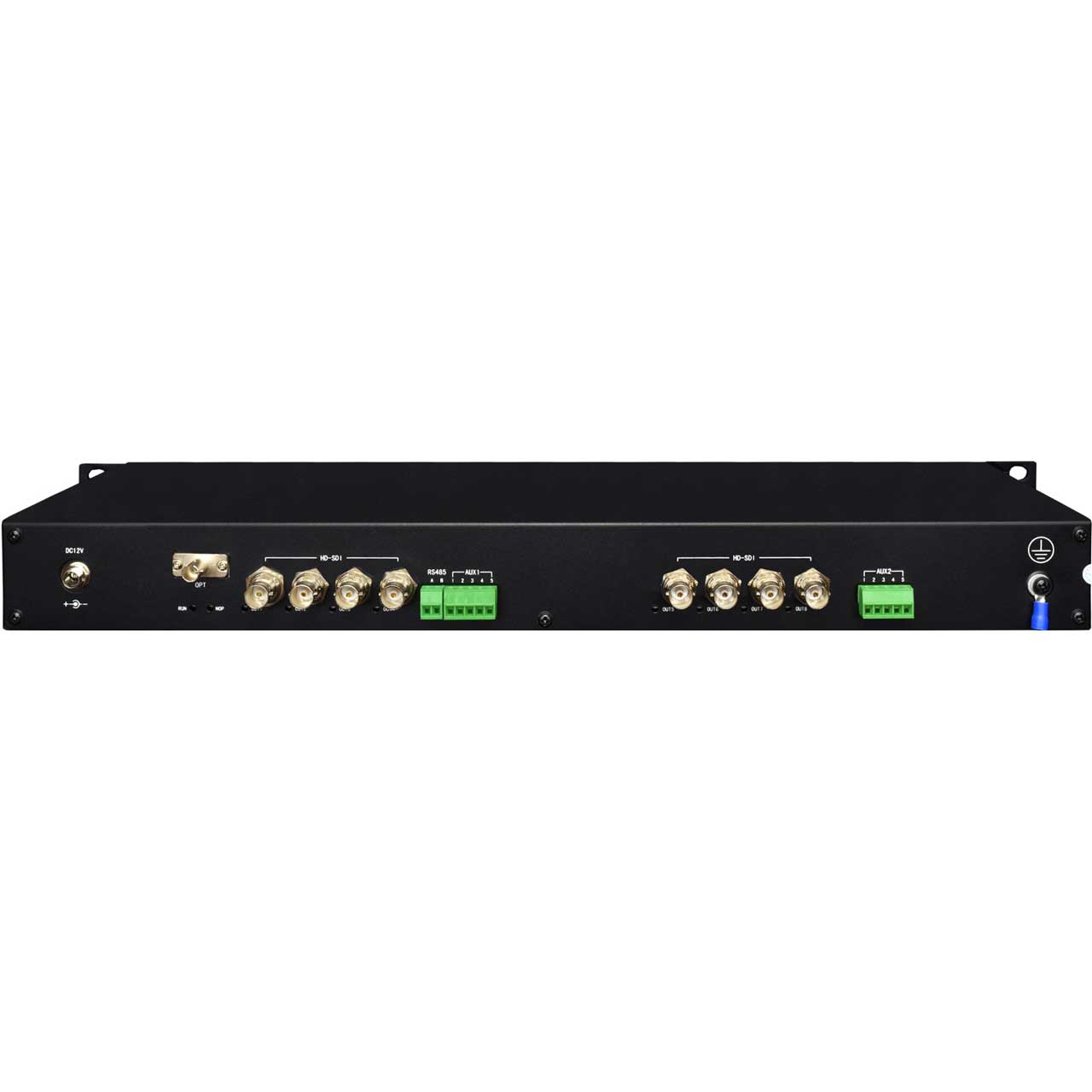

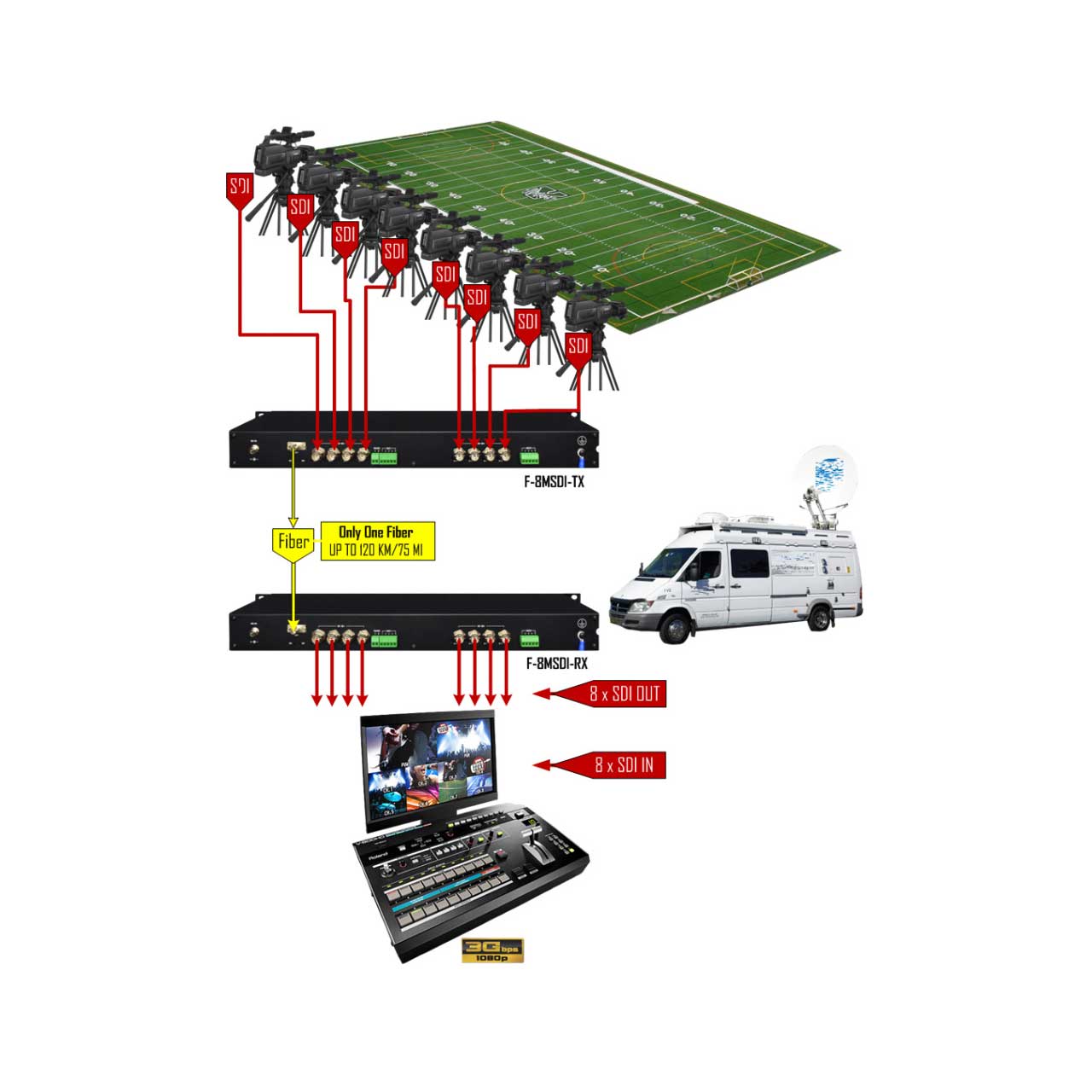

      Transport up to eight full rate HD-SDI digital video signals at 1.5Gbps each over a single strand of fiber cable up to 80km long. In addition dual Aux ports provide additional capacity by adding up to 4 analog bi-directional audio, 2 full duplex RS-232/422 links, or 4 contact closure lines per Aux interface. The transmitter inputs support any serial digital signal up to HD-SDI, including SD-SDI or DVB-ASI digital video signals. The F-M8SDI platform delivers more functionality and performance over a single fiber than has ever been available in off the shelf equipment. Each of the 8 HD-SDI signals are fully isolated from each other and operate at a full 1.5 Gbps data rate. Each channel carries its own embedded audio and ancillary data and operates as if it were the only signal on the fiber. This is accomplished with CWDM technology. The 8 channel platform offers the same 5 pin Aux port custom signal options as the two and four channel units. However functionality is doubled by providing 2 independent Aux links that can be customized for 4 channel bi-directional or unidirectional audio, 1 or 2 duplex RS-232/422 links, or 4 line contact closure.

      • Features

        • Supports 8 full rate HD-SDI @ 1.5Gbps or lower SDI or ASI digital video
        • Transports embedded audio channels as well as SDI ancillary data
        • Return path serial RS-485 channel for controlling equipment on Tx end
        • Link alarm indicators on both Tx & Rx indicate a problem with the fiber
      • Specifications

        • HD-SDI Input : HD-SDI, SD-SDI, or DVB-ASI; 0 - 1.5 Gbps Serial Digital Signal
        • Input Signal Standard : SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305(SDTI), DVB-ASI(EN50083-9)
        • Number of Inputs : 8 SDI, 1 RS-485, 2 Auxiliary
        • Signal Level : > 380mVp-p
        • Impedance : 75?
        • Connector : BNC
        • Distance : 20km (Up to 100km on special order)
        • Mini box : 25x116x110cm
        • Power Supply : 130 - 260 VAC @ 50-60 Hz
        • Power Consumption : <10W
        • Temperature : 0 to +70 Degree
        • Humidity : 0 to 95%
        • Connector : SC/APC
        • Optical Channels : CWDM
        • RH: Non Condensing
