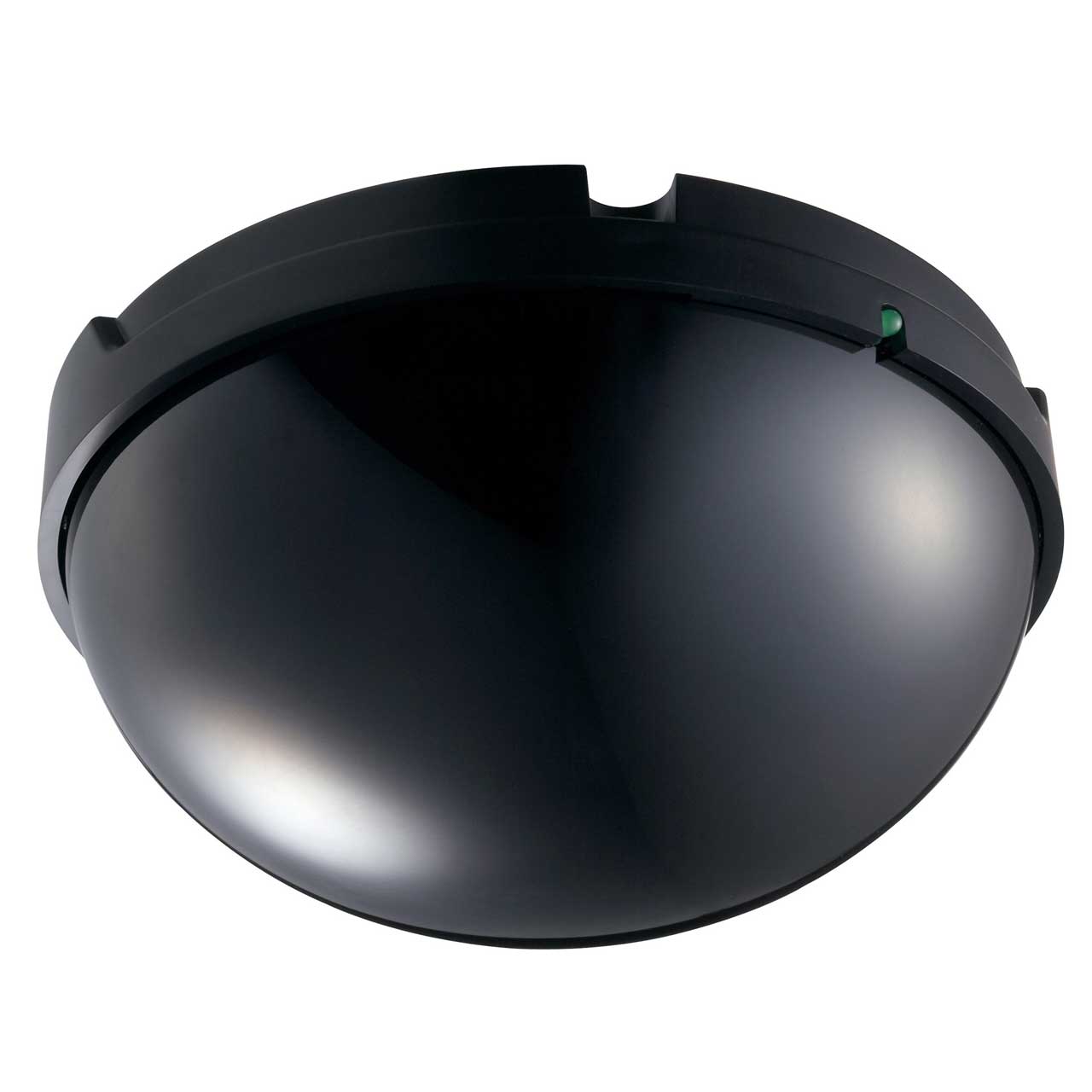

TOA Electronics IR-510R Y Infrared Wireless Receiver for IR-702T - Ceiling Mount

ITEM #: TOA-IR-510RY MFG #: IR-510R Y

Primary Image
TOA Electronics, Inc.
Free Shipping with $49 Minimum Order

List Price:

$433.10

Our Price:

$350.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    IR-510R Y - Overview

    The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.

    • Features:

      • Ceiling-Mount brackets included
      • Equipped with power indicator LED
      • Covers a practical radius of approximately 26'


    • Specifications:

      • Power Source: 24 V DC - supplied from the IR-702T
      • Current Consumption: Max. 60 mA
      • Wavelength: 870 nm
      • Carrier Frequency:
      • - Channel A 3.100 MHz
      • - Channel B 3.350 MHz
      • Communication Area: Approx 7m (22.97 ft) in radius from a point underneath the unit
      • Connection Terminal: 75 Ohm, BNC jack
      • Operating Temperature: 32F to 104F
      • Operating Humidity: 30% to 85% RH (no condensation)
      • Finish:
      • Filter Section - Polycarbonate, optical cut filter
      • Base - ABS resin, black
      • Dimensions: 4.72" x 2.81"
      • Weight: 205 g (0.45lb)
