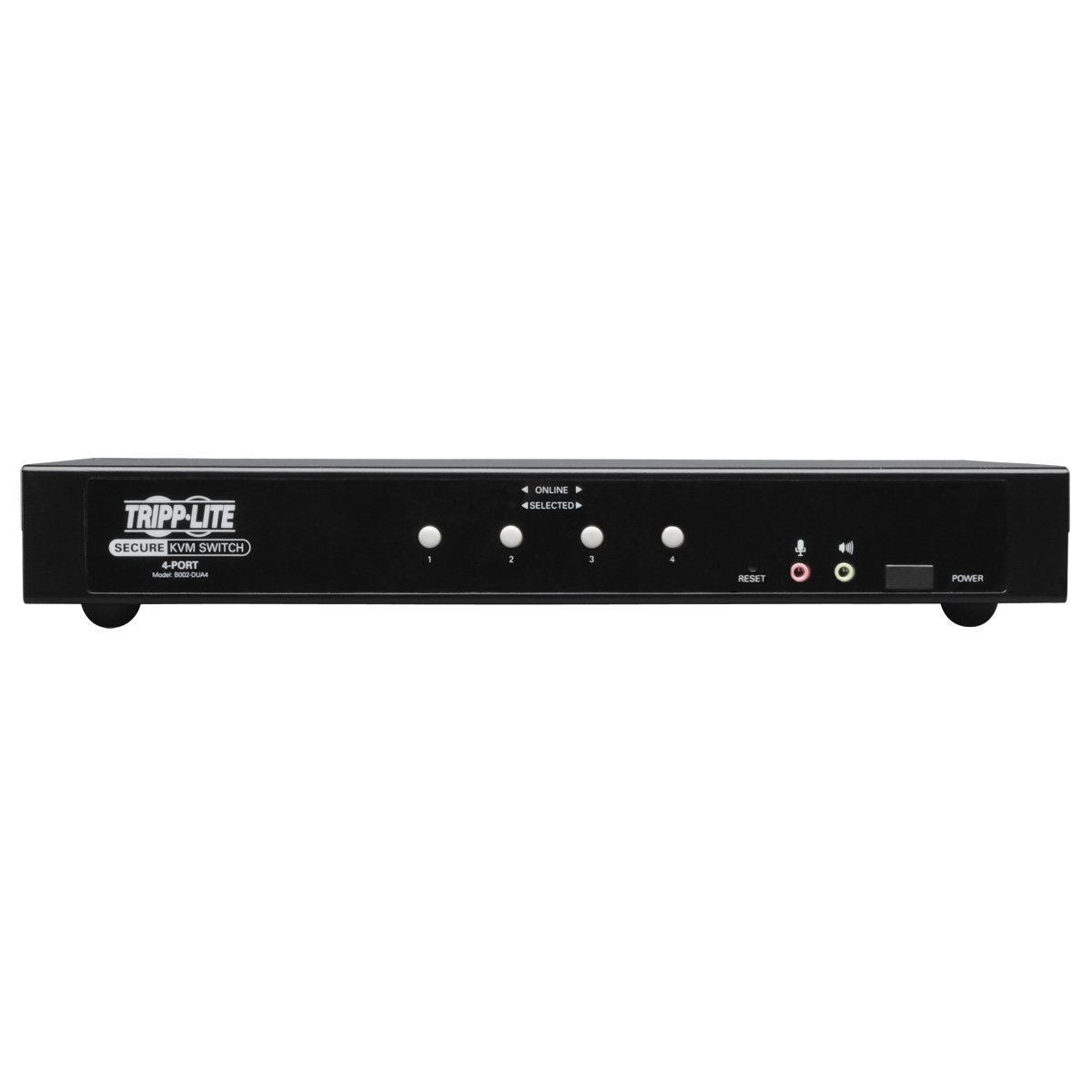

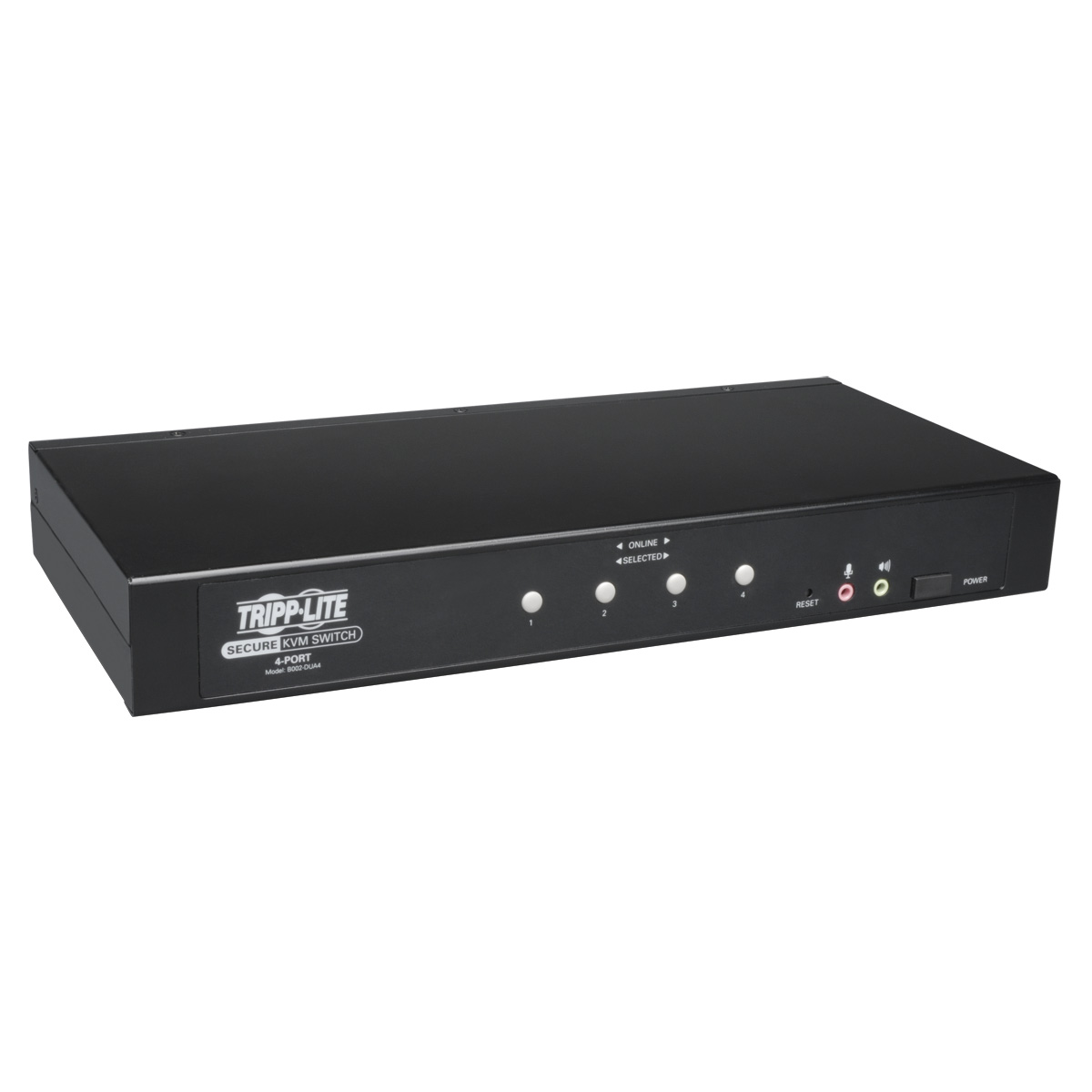

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-B002-DUA4

B002-DUA4 - Overview

The Tripp Lite B002-DUA4 4 Port DVI / USB Secure KVM Switch with Audio offers secure and reliable access for any government/military desktop environment where security is required, by providing safe switching between computers operating on different networks. NIAP-certified to comply with Common Criteria EAL2+ security requirements.Hardware security includes: tamper-evident tape, chassis intrusion detection, and tamper-proof hardware, while software security includes restricted USB connectivity - non HIDs (Human Interface Devices) are ignored when switching - an isolated channel per port that makes it impossible for data to be transferred between secure and unsecured computers, and automatic clearing of the keyboard buffer. CAC ( Common Access Card ) support.

*By combining physical security with controlled USB connectivity, the B002-DUA2 gives you the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor and mouse (KVM) console.
*CAC support not validated by NIAP

  • Features:

    • National Information Assurance Partnership (NIAP) certified to comply with Common Criteria EAL2+ security requirements.
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
    • Safely switch between computers with varying security levels.
    • Isolated Channels – Each port is its own channel, making it impossible for data to be transferred between connected computers.
    • Tamper-Warning Labels – Tamper-Warning labels will be placed on each side of the KVM, providing visual evidence if the unit has been tampered with or compromised.
    • Housing Intrusion Protection Technology – Housing Intrusion Protection technology disables the KVM if the housing is opened, causing it to become inoperable. When disabled, the front panel LEDs will flash repeatedly.
    • Tamper-Proof Components – All internal circuitry is soldered directly to the board, preventing the components from being tampered with.
    • Fixed Firmware – Firmware is non-reprogrammable, securing against attempts to alter the logic of the KVM.
    • Automatic Keyboard Buffer Clearing – The keyboard buffer is automatically cleared after data transmission, leaving no information stored in the switch.
    • No Memory Buffer – The only way to access connected computers is via push button. Port switching methods such as On-Screen Display (OSD) and Hot key Commands, which require memory, have been excluded to further ensure data integrity.
    • Compatible with all major operating systems: Windows, Linux, MAC, and SUN
    • DVI-I Dual-Link signal supports digital video resolutions up to 2560 x 1600, and analog video resolutions up to 2048 x 1536.
    • Supports transfer of EDID information, allowing for optimal display performance.
    • Audio support for both speaker and microphone.
    • CAC Support ( CAC support not validated by NIAP )

  • Specifications:

    • Product Group: KVM SWITCHES
    • TAA Compliant: No
    • Users: 1
    • Port Control: Push Buttons
    • Max CPU: 4
    • PC/Server Connections: DVI; USB
    • IP Remote Access: No
    • Style: Desktop
    • KVM Switch Type: Desktop; Secure (NIAP-Certified)
    • Nominal Input Voltage Description: 100-240V, 50/60Hz, 0.5A
    • Unit Dimensions (hwd / in.): 1.75 x 13.25 x 6
    • Unit Dimensions (hwd / cm): 4.45 x 33.66 x 15.24
    • Unit Weight (lbs.): 3.7
    • Unit Weight (kg): 1.68
    • Color: Black
    • Storage Temperature Range: -20 to 60 C ( -4 to 140F )
    • Relative Humidity: 0 to 80% RH, Non-Condensing
    • Operating Temperature: 0 to 40C ( 32 to 104F )
    • Power Consumption (Watts): 5.1W (120V ), 5.1W (230V)
    • Ports: 4
    • Computer/Server Ports: 4 x DVI-I, 4 x USB "B", 8 x 3.5mm ( Speaker/Microphone )
    • Local Console Ports - Port 1: DVI-I Video
    • Local Console Ports - Port 2: USB - Mouse
    • Local Console Ports - Port 3: USB - Keyboard
    • Local Console Ports - Port 4: 2 x 3.5mm ( Speaker / Microphone )
    • Certifications: UL, cUL, FCC, CE, RoHS Compliant, NIAP EAL2+, TAA
    • NIAP-Certified Secure: Yes
    • Product Warranty Period (Worldwide): 1-year limited warranty
    • Selector Type: KVM SWITCHES

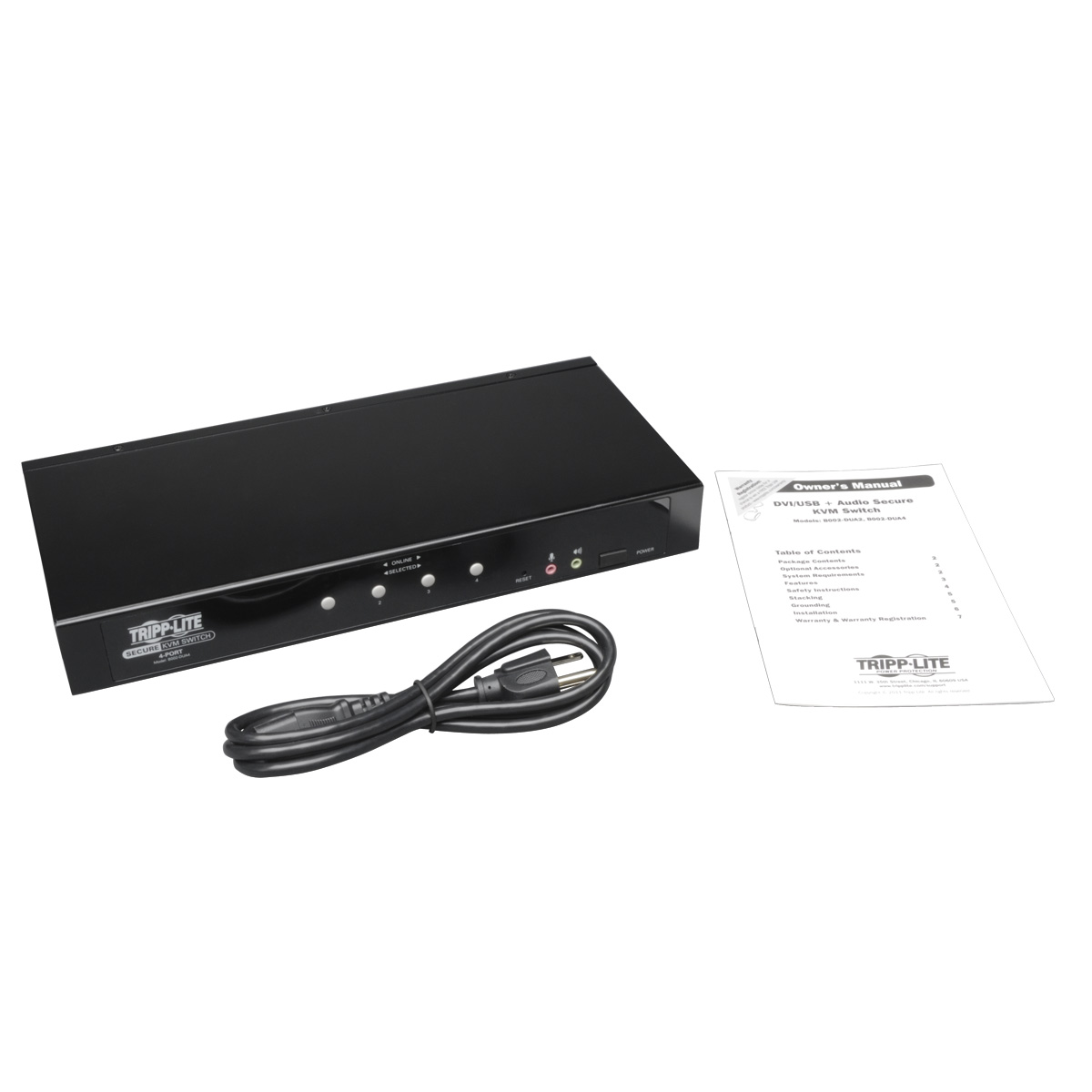

  • Item Includes:

    • B002-DUA4 4-Port Secure KVM Switch
    • C13 - 5-15P Power Cord
    • (4) Foot Pads
    • Owner's Manual

  • GTIN:

    0037332167682
