Tripp Lite B043-DUA8-SL 8-Port Rackmount DVI USB KVM Switch w/ Audio 2-Port USB Hub

ITEM #: TRL-B043-DUA8-SL MFG #: B043-DUA8-SL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,164.80

Our Price:

$720.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B043-DUA8-SL - Overview

    Tripp Lite's B043-DUA8-SL, NetController 8-Port, 1U rackmount DVI / USB / Audio KVM Switch is an affordable, highly-flexible enterprise class KVM Switch. Control up to 8 directly connected computers, or expand the number of connected computers to up to 64, by cascading up to 8 additional B043-DUA8-SL KVM switches. Switch between connected computers via pushbuttons or keyboard hot-key commands. Other features include: Audio Support, 2-Port USB Hub for peripheral sharing among switched computers, and DVI Single Link resolution at 1920x1200. Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing. Order P759 Series cables separately, in 6ft, 10ft, and 15ft lengths.

    • Features:

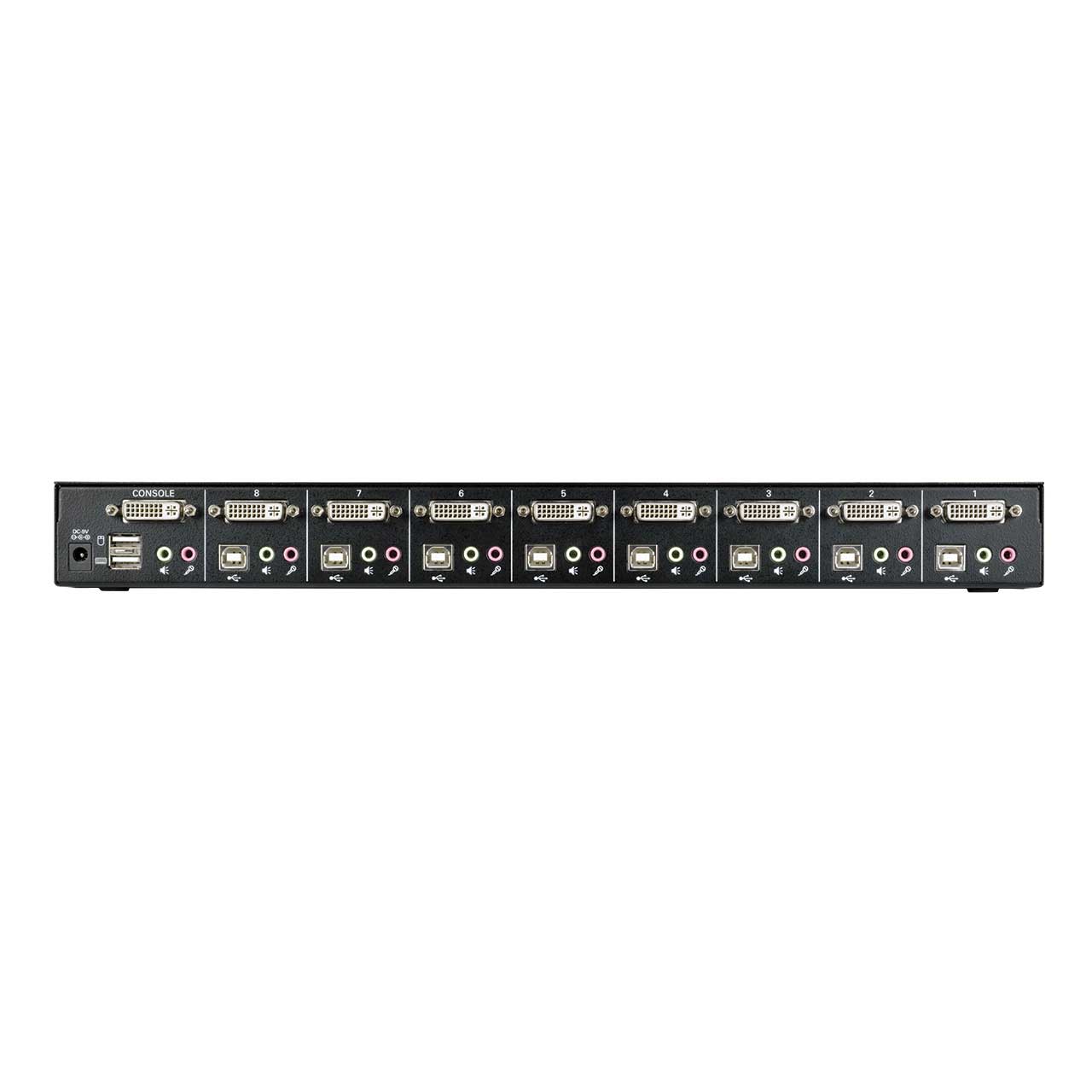

      • Directly connect up to 8 computers with DVI, USB, and audio.
      • Expand the number of connected computers by cascading an additional level of KVM switches.
      • Supports 2.1 Channel Stereo Audio and microphone.
      • (x2) USB 2.0 ports for sharing peripherals among connected computers.
      • USB hub functionality can be unbinded from the KVM, allowing users to access one computer while the USB hub focus remains on another computer.
      • Switch between connected computers via pushbuttons or hotkey commands.
      • DVI-I Single-Link supports digital video resolutions up to 1920 x 1200, and analog video resolutions up to 2048 x 1536.
      • Auto Scan mode lets users scan connected computers without having to manually switch between them.
      • Multi-platform support – compatible with all major operating systems.
      • Plug and play setup – no software installation required.
      • Supports EDID (Extended Display Identification Data) transmission to connected computers for optimal display performance.
      • Supports HDMI and VGA monitors with appropriate adapters
      • Includes mounting hardware for 19” rackmount installations.

    • Specifications:

      • Product Group: KVM SWITCHES
      • TAA Compliant: No
      • Users: 1
      • AC Adapter: DC 9V
      • Port Control: Push Buttons, Hotkeys
      • Max CPU: 64
      • PC/Server Connections: DVI; USB; VGA
      • IP Remote Access: Yes
      • Style: 1U Rackmount
      • KVM Switch Type: Rack-Mount
      • Unit Weight (lbs.): 5.3
      • Unit Weight (kg): 2.4
      • Color: Black
      • Storage Temperature Range: -20 to +60C
      • Operating Temperature: 0 - 40C
      • Ports: 8
      • Product Warranty Period (Worldwide): 1-year limited warranty

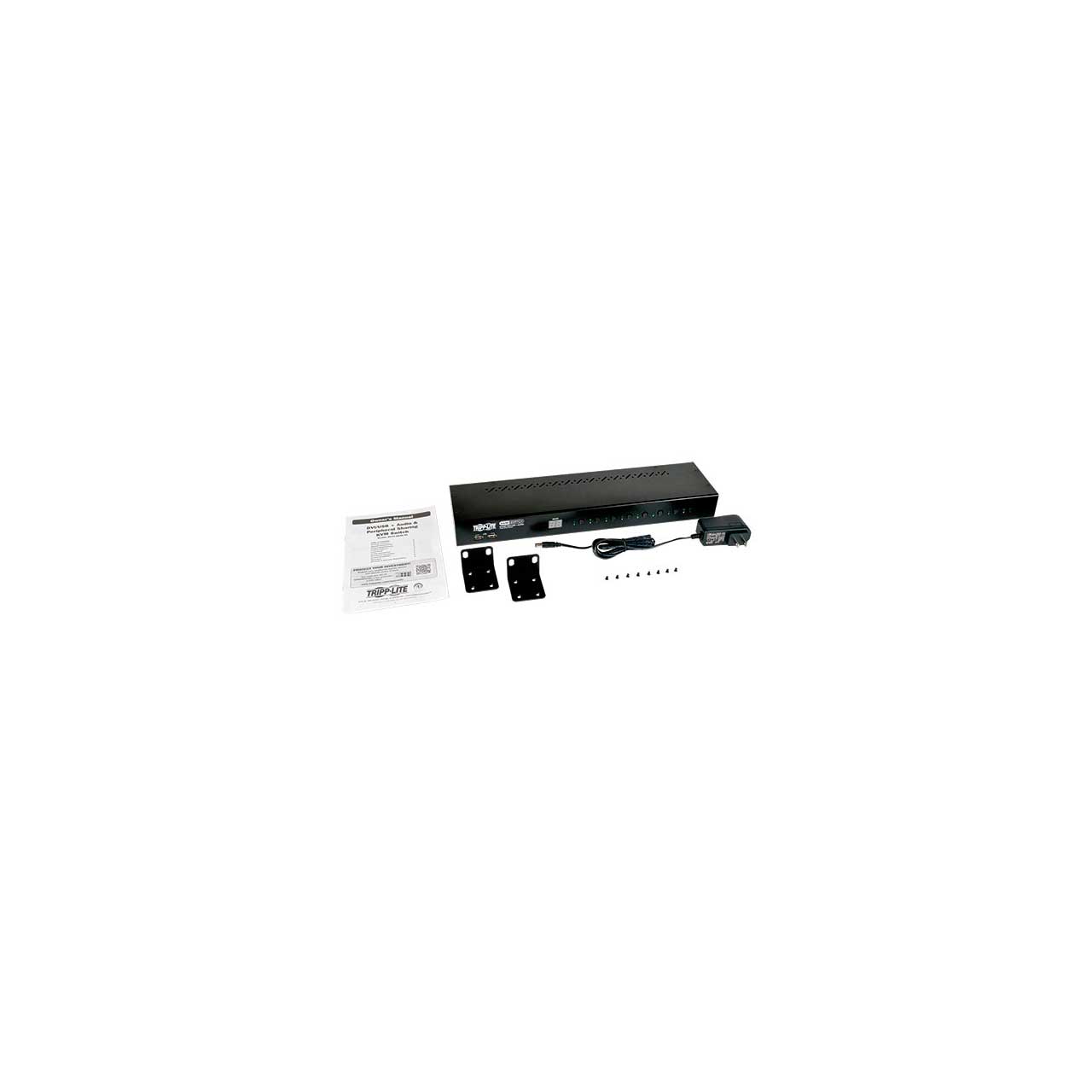

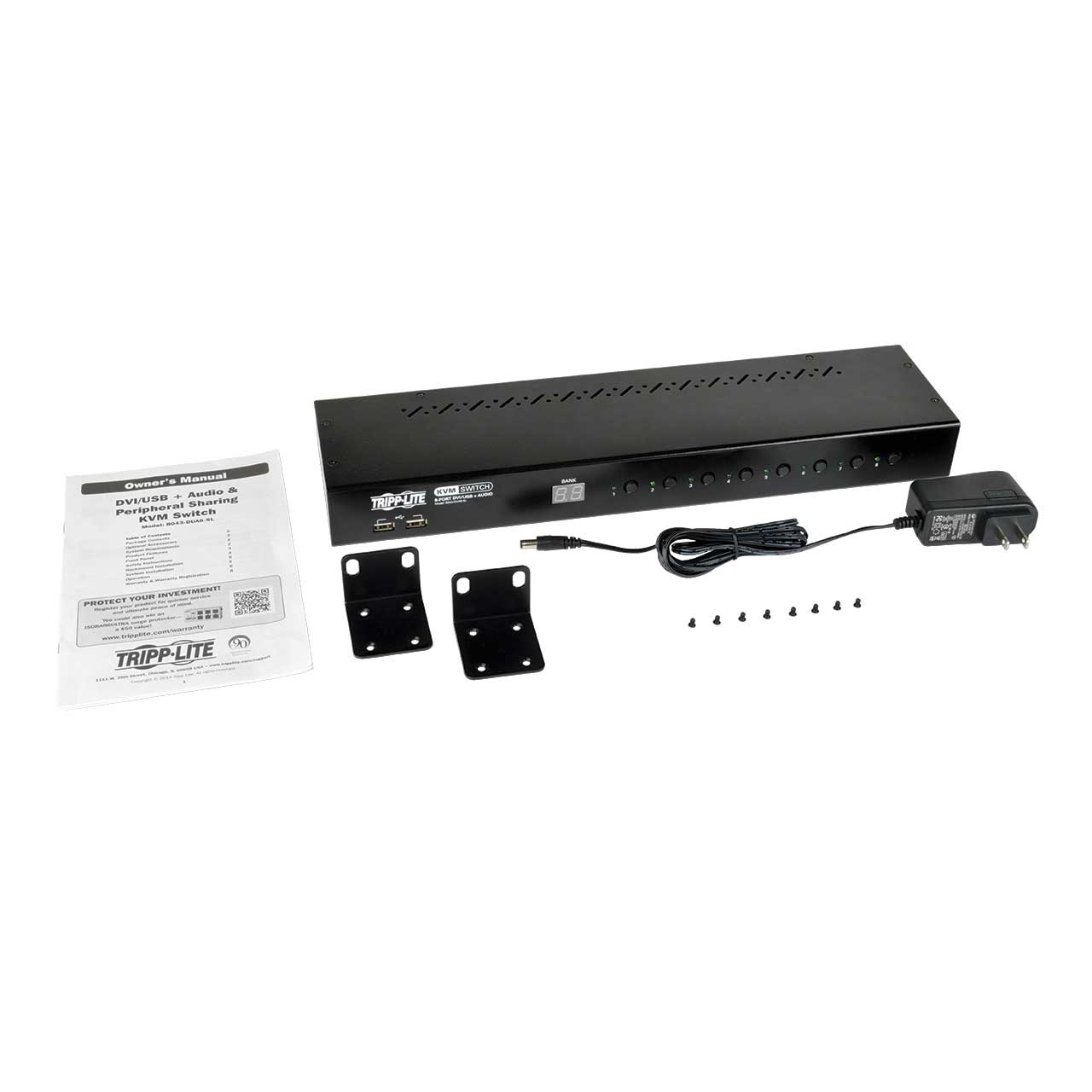

    • Item Includes:

      • B043-DUA8-SL KVM Switch
      • External Power Supply (Input: 100-240V, 50/60Hz; Output: 9V, 2A)
      • Rackmount Hardware
      • Owner’s Manual

    • GTIN:

      0037332182395
