Tripp Lite B136-004 4-Port Component Video/Stereo Audio over Cat5/Cat6 Extender Splitter Box-Style Transmitter - 700 Ft

B136-004 - Overview

• Features:

  • Splits a single Component Video and Stereo Audio signal into five (1 local, 4 remote)
  • Features an extra set of Component Video and Stereo Audio connectors for an optional local display
  • Works in conjunction with a B136-100 remote unit
  • A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 300 ft. when using 24 AWG, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 400 ft. when using Zero-Skew UTP cable (Tripp Lite P524-01K)
  • A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 500 ft. when using 24 AWG, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 700 ft. when using Zero-Skew UTP cable (Tripp Lite P524-01K)
  • Connect up to 13 displays (1 local, 12 remote) by cascading 3 B136-004 units together
  • Includes a 1 ft. Component Video + Stereo Audio daisychain cable
  • Up to 3 B136-004 units can be mounted in 1U of rack space when using a B132-004-RB Extender/Splitter 19 in. rackmount bracket
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• Specifications:

  • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
  • Optional Mounting Accessory Notes: Up to 3 B136-004 units can be mounted in 1U of rack space when using a B132-004-RB Extender/Splitter 19 in. rackmount bracket
  • Unit Dimensions (hwd / in.): 1.1 x 5 x 4
  • Unit Dimensions (hwd / cm): 2.79 x 12.7 x 10.16
  • Unit Weight (lbs.): 1.1
  • Unit Weight (kg): 0.5
  • Included Mounting Accessories: Yes
  • Color: Black
  • Max 1024 x 768 Range (ft): 700
  • Max 480P Range (ft): 700
  • Max 1440 x 900 Range (ft): 400
  • Max 1080i Range (ft): 400
  • Max 480i Range (ft): 700
  • Max 640 x 480 Range (ft): 700
  • Max 800 x 600 Range (ft): 700
  • Max 1600 x 1200 Range (ft): 400
  • Max 720P Range (ft): 400
  • Ports: 4

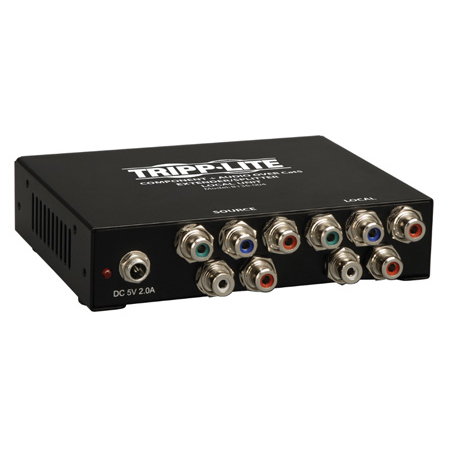

  • Side A - Connector 1: (5) RCA (FEMALE)
  • Side A - Connector 2: (5) RCA (FEMALE)

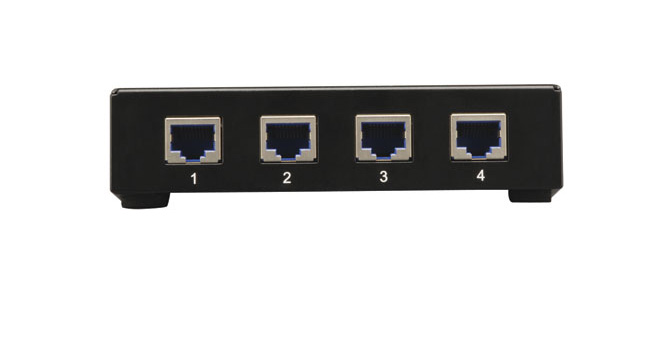

  • Side B - Connector 1: (4) RJ45 (FEMALE)
  • Product Warranty Period (Worldwide): 1-year limited warranty


• Item Includes:

  • B136-004 4-Port Component Video + Stereo Audio Extender/Splitter
  • External Power Supply with NEMA 1-15P Plug ( Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft. )
  • 1 ft. Component Video + Stereo Audio Source / Daisychain cable
  • Owner's Manual


• Warranty:

  • 1 Year


• GTIN:

  0037332155559
