HCRK - Overview

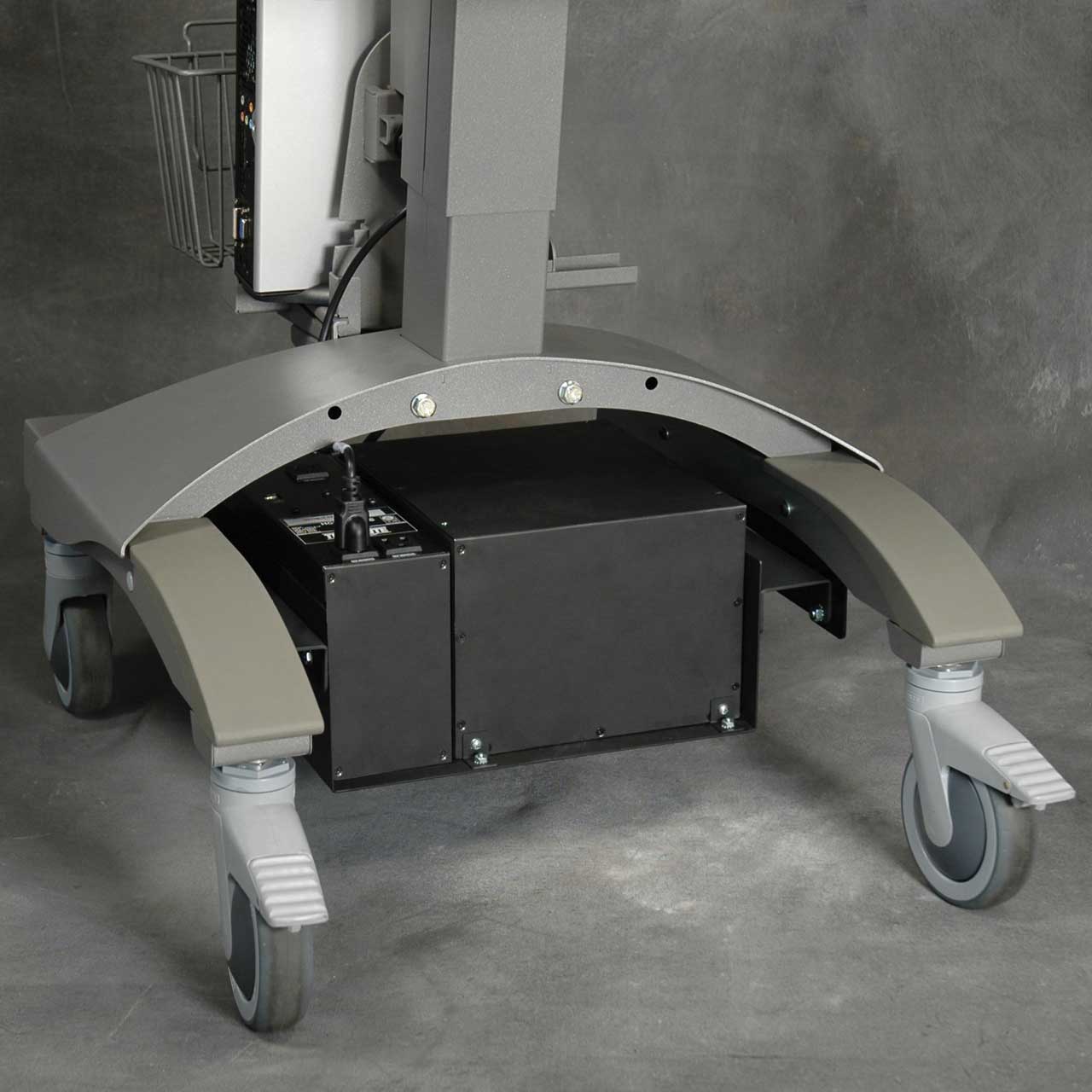

Tripp Lite's HCRK Medical-Grade Mobile Power Retrofit Kit provides UL 60601-1 compliance (a required patient shock-prevention measure) for all connected mobile electronic devices. The Mobile Power Retrofit Kit includes everything needed to add AC power to medical carts. The kit's power supply features an isolation transformer that reduces the cumulative shock potential of connected equipment, helping to ensure UL 60601-1 compliance. The included 90 amp-hour battery module provides long-lasting mobile power. Included The Mobile Power Retrofit Kit also includes a remote user interface (RUI), mounting hardware and standard cabling.Tripp Lite's Medical-Grade Mobile Power Retrofit Kit is fully compatible with most popular carts by AFC, Anthro, Datalux, GCX, Hergo, Humanscale, Jaco, Knurr, Stinger and more.

  • Features:

    • Provides UL 60601-1 compliance for connected mobile equipment (used in every sector of healthcare facilities, both inside and outside of patient-care areas)
    • Adds reliable mobile AC power source to medical carts
    • Saves money by upgrading new or existing non-powered carts for a fraction of the cost of buying new powered models
    • Simultaneously powers connected equipment while recharging batteries

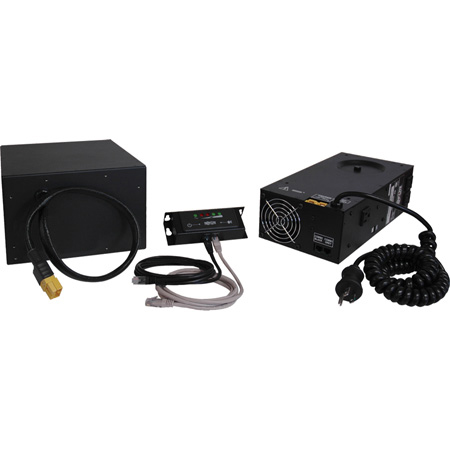

    • Includes everything needed to retrofit a cart: mobile power supply, 90 amp-hour user-replaceable battery module, PowerAlert data-saving software, remote user interface (RUI) and mounting hardware kit

  • Specifications:

    • Output
    • Nominal Output Voltage(s) Supported: 120V
    • Frequency Compatibility: 60 Hz
    • Output Receptacles: (3) 5-15R
    • Pure Sine Wave Output: No
    • Output (Watts): 300
    • Continuous Output Capacity (Watts): 300
    • Peak Output Capacity (Watts): 750

      Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 15A 120V
    • Input Connection Type: NEMA 5-15P-HG Hospital-Grade
    • Input Cord Length (ft.): 10
    • Voltage Compatibility (VAC): 120
    • Voltage Compatibility (VDC): 12

      Battery
    • Full Load Runtime (min.): Up to 12 hours typical runtime in standard configuration. Runtime varies depending on battery condition and load
    • DC System Voltage (VDC): 12
    • Battery Charge: Equal to discharge time. Includes advanced 3-stage (10A) battery charger

      User Interface, Alerts & Controls
    • Front Panel LEDs: On Remote User Interface (RUI): Output AC Power, Battery Charge Level and Battery Charging Status
    • Switches: On Remote User Interface (RUI): On/Off Switch and Alarm-Mute Switch
    • Audible Alarm: Low Battery Alarm

      Physical
    • Shipping Dimensions (hwd / in.): 22.80 x 20.60 x 23.10
    • Shipping Weight (lbs.): 96.50
    • Cooling Method: Fan
    • Material of Construction: Power Supply and Battery Module: metal
    • Form Factors Supported: Retrofits most standard medical cart configurations

      Communications
    • Network Monitoring Port: USB

      Certifications
    • Certifications: Tested, certified and compliant to UL 60601-1, CAN/CSA-C22.2 No. 601.1-M90 and UL 1778 by TUV

  • Item Includes:

    • Medical-Grade Mobile Power Supply
    • 90 amp-hour User-Replaceable Battery Module and cabling
    • PowerAlert Software CD and USB cable
    • Remote User Interface (RUI) and cabling
    • Mounting Hardware Kit and owner's manual with warranty information

  • Warranty:

    • 2-year

  • GTIN:

    0037332136527
