Tripp Lite HTSWIVEL6 Home Theater Surge Wallmount Direct Plug Swivel RJ11 Coax

ITEM #: TRL-HTSWIVEL6 MFG #: HTSWIVEL6

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-HTSWIVEL6

HTSWIVEL6 - Overview

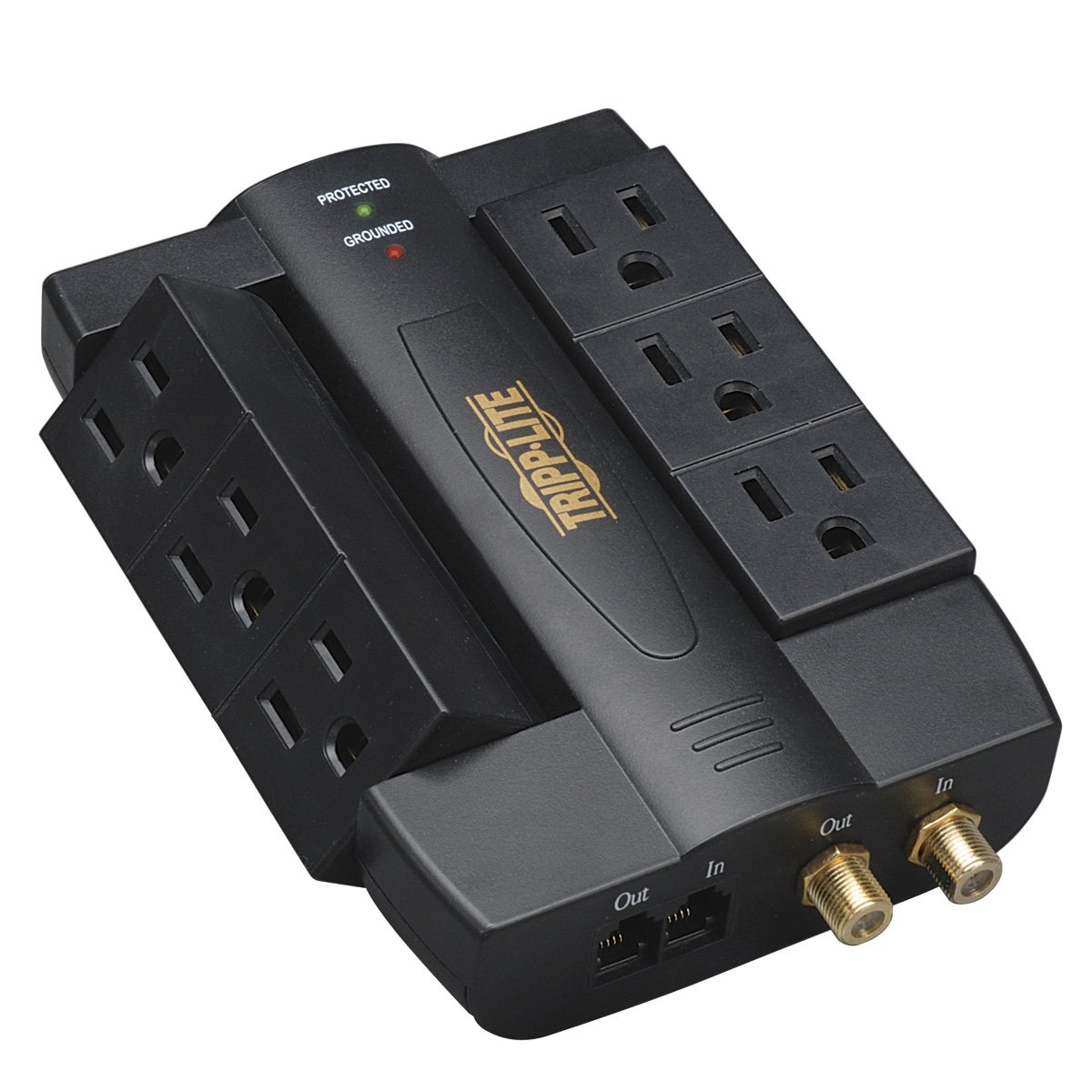

Tripp Lite's HTSWIVEL6 Home/Business Theater Surge Suppressor provides high-performance protection--1200 joules--stopping damaging surges and filtering disruptive line noise so components perform at their peak! You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans. Perfect for small home/business theater installations: high-definition TVs, satellite and A/V receivers, DVD/CD players and more. 6 outlets, 1-line coaxial protection and 1-line tel/modem protection safeguard an entire home/business theater system. $50,000 Ultimate Lifetime Insurance coverage (USA and Canada only). Includes two diagnostic LEDs, 6 ft. gold coaxial cable and 6 ft. phone cord.


What is the main culprit of electrical surges?
Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.
When should you use a surge protector?
All the time. The real question is really which devices you should connect to a surge protector. You don’t need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It’s better to be safe than sorry.

  • Features:

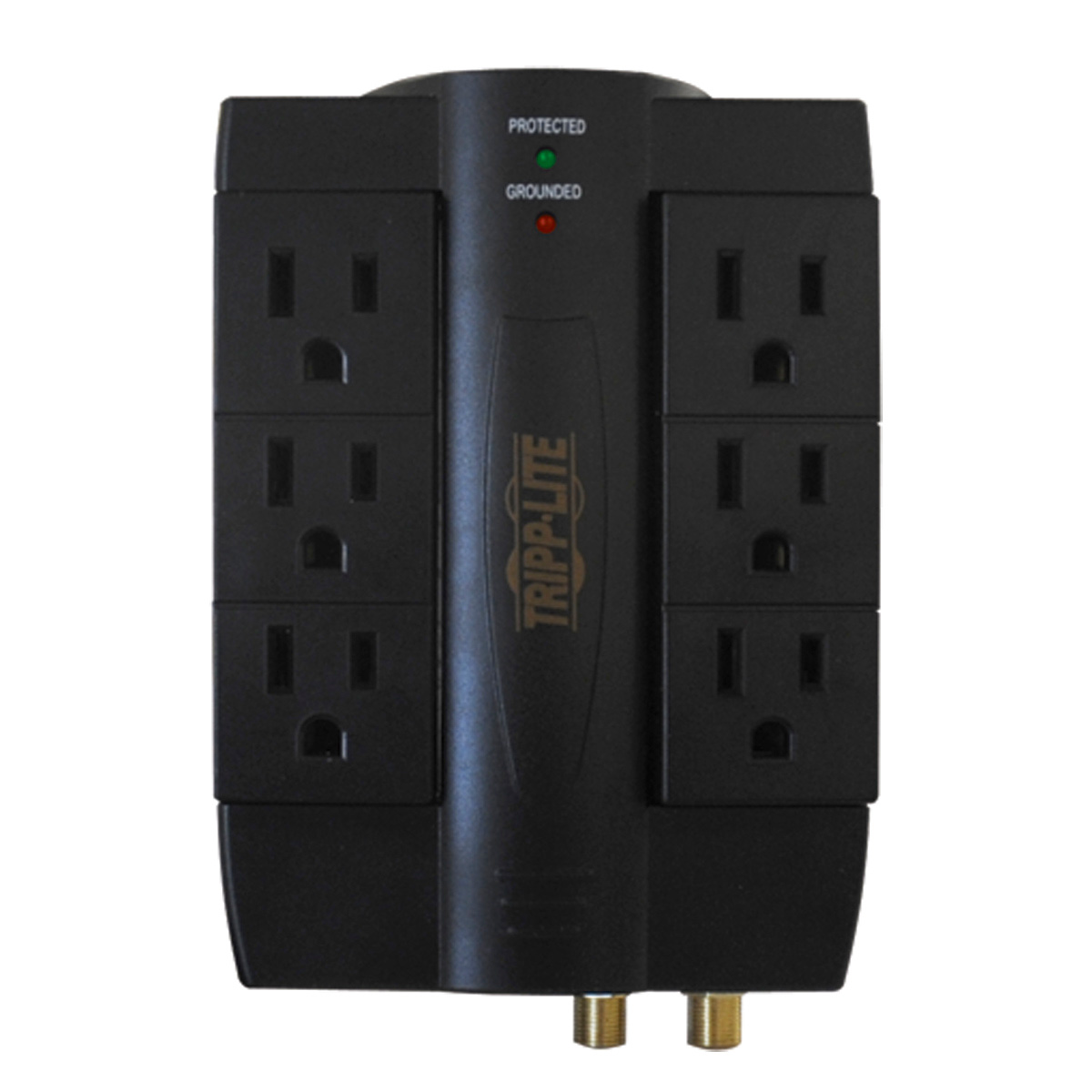

    • 6 rotatable outlets allow for easier plug connection and removal
    • 1200 joules surge suppression rating with EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans)

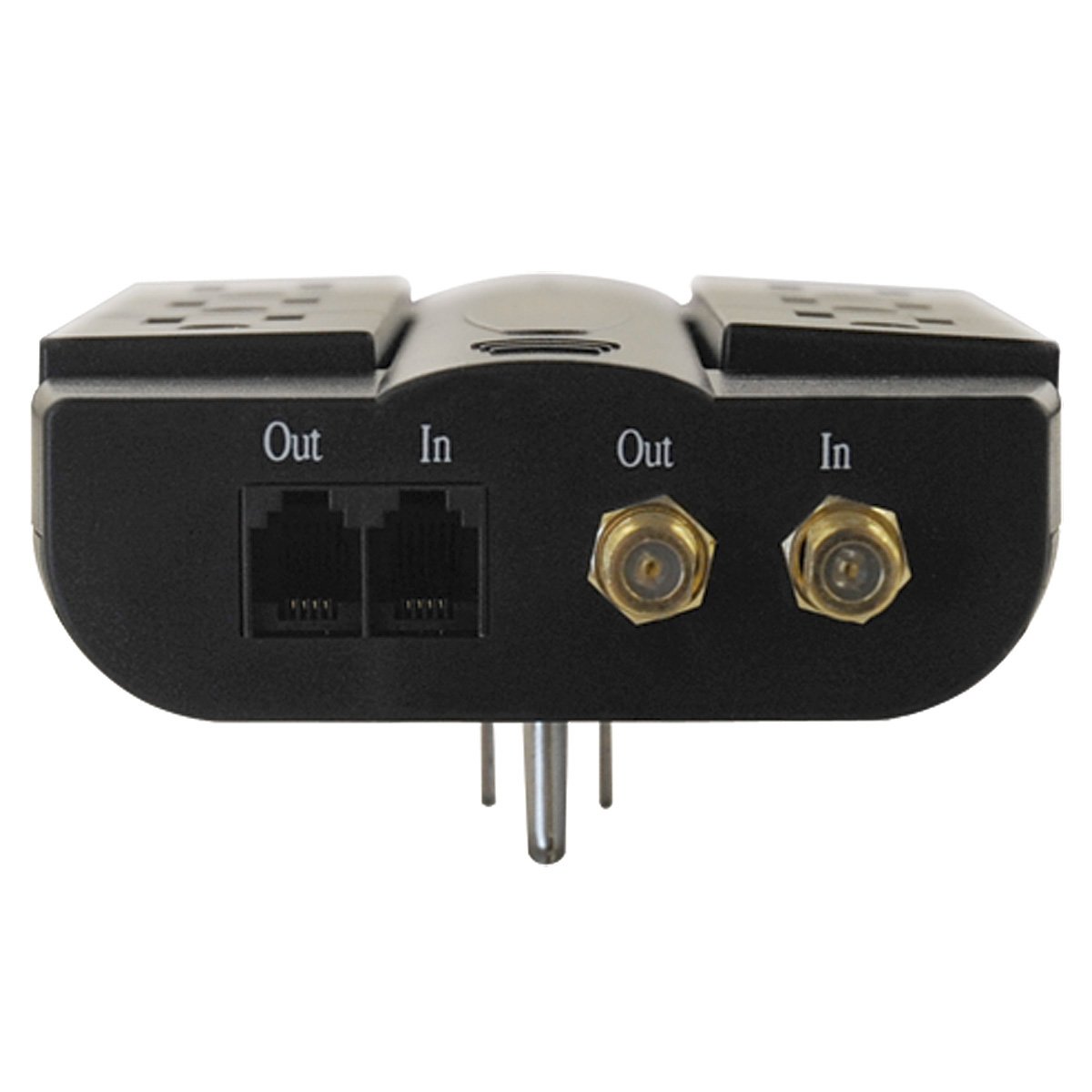

    • 1 set of surge-protected Type F gold coaxial connectors (with included 6 ft. coaxial cable) safeguard components on cable, satellite or antenna line (2.2GHz bandwidth)
    • 1 set of surge-protected tel/modem connectors (with included 6 ft. phone cord) safeguard personal video recorders (PVRs) on a single dial-up line
    • 2 diagnostic LEDs alert user to protection and grounding status
    • High-impact plastic housing (black) stands up to the most demanding environments

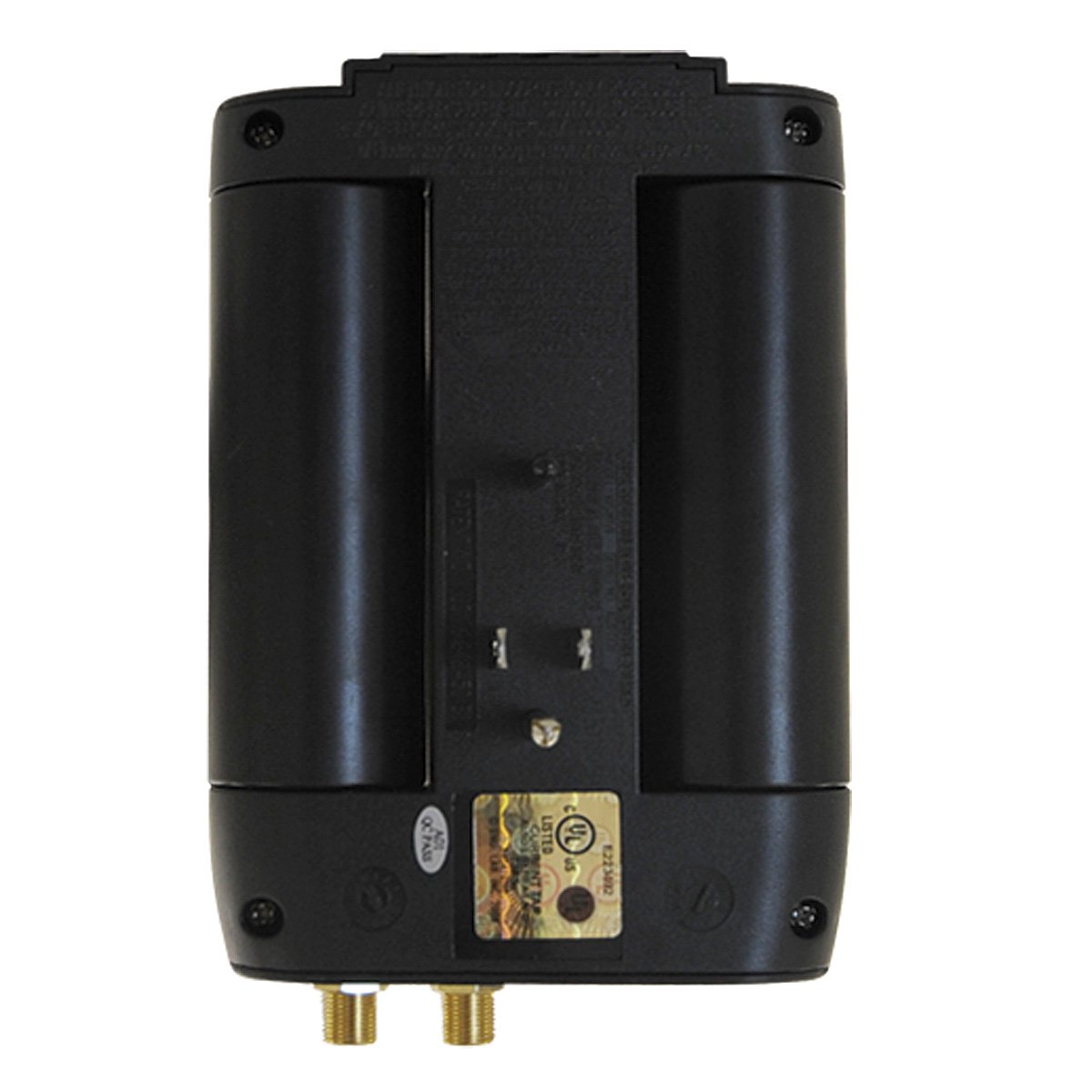

    • Direct plug-in design converts two outlets into six by pluggin into any wall outlet
    • $50,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

  • Specifications:

    • Product Group: SURGE PROTECTORS
    • TAA Compliant: No
    • Intended Application: Audio/Video
    • Style: Direct Plug-In
    • Surge Style: DIRECT PLUG-IN
    • Surge Type: Audio/Video
    • Frequency Compatibility: 60 Hz
    • Output Receptacles: (6) 5-15R
    • Circuit Breaker (amps): 15
    • Outlet Quantity / Type: 6 NEMA 5-15R
    • Number of Outlets: 6
    • Outlet Orientation: Rotatable
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 120V (110-125V)
    • Input Connection Type: NEMA 5-15P
    • Input Cord Length (ft.): 0
    • Input Cord Length (m): Direct plug-in
    • Input Cord Length Details: Direct Plug-In
    • Voltage Compatibility (VAC): 120
    • Maximum Surge Amps: 60000
    • Diagnostic LEDs: Built-in LEDs confirm suppressor "protected" (green) and "grounded" (red) status
    • AC Suppression Joule Rating: 1200
    • AC Suppression Response Time: < 1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
    • Clamping Voltage (RMS): 400
    • UL1449 Let Through Rating: 400, 500, 500
    • EMI / RFI Filtering: Up to 20 dB
    • Telephone/DSL Protection: Yes
    • Telephone/DSL Protection Details: 1 line
    • Cable (Coax) Protection: Yes
    • Cable (Coax) Protection Details: 1 line
    • Network (Ethernet) Protection: No
    • Shipping Dimensions (hwd / in.): 8.6 x 5.8 x 2.38
    • Shipping Dimensions (hwd / cm): 21.84 x 14.73 x 6.05
    • Shipping Weight (lbs.): 1
    • Shipping Weight (kg): 0.45
    • Unit Dimensions (hwd / in.): 6.25 x 4 x 2.25
    • Unit Dimensions (hwd / cm): 15.88 x 10.16 x 5.72
    • Unit Weight (lbs.): 0.6
    • Unit Weight (kg): 0.27
    • Material of Construction: Plastic
    • Receptacle Color: Black
    • Outlets Measurement (Center to Center): 29mm
    • UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
    • cUL / CSA (Canada): cUL
    • Approvals: RoHS
    • Product Warranty Period (Worldwide): Lifetime limited warranty
    • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $50,000 Ultimate Lifetime Insurance
    • Selector Type: SURGE SUPPRESSORS

  • Item Includes:

    • HTSWIVEL6 Surge Suppressor
    • Instruction manual with warranty information
    • 6 ft. gold coaxial cable
    • 6 ft. phone cord

  • GTIN:

    0037332138279
