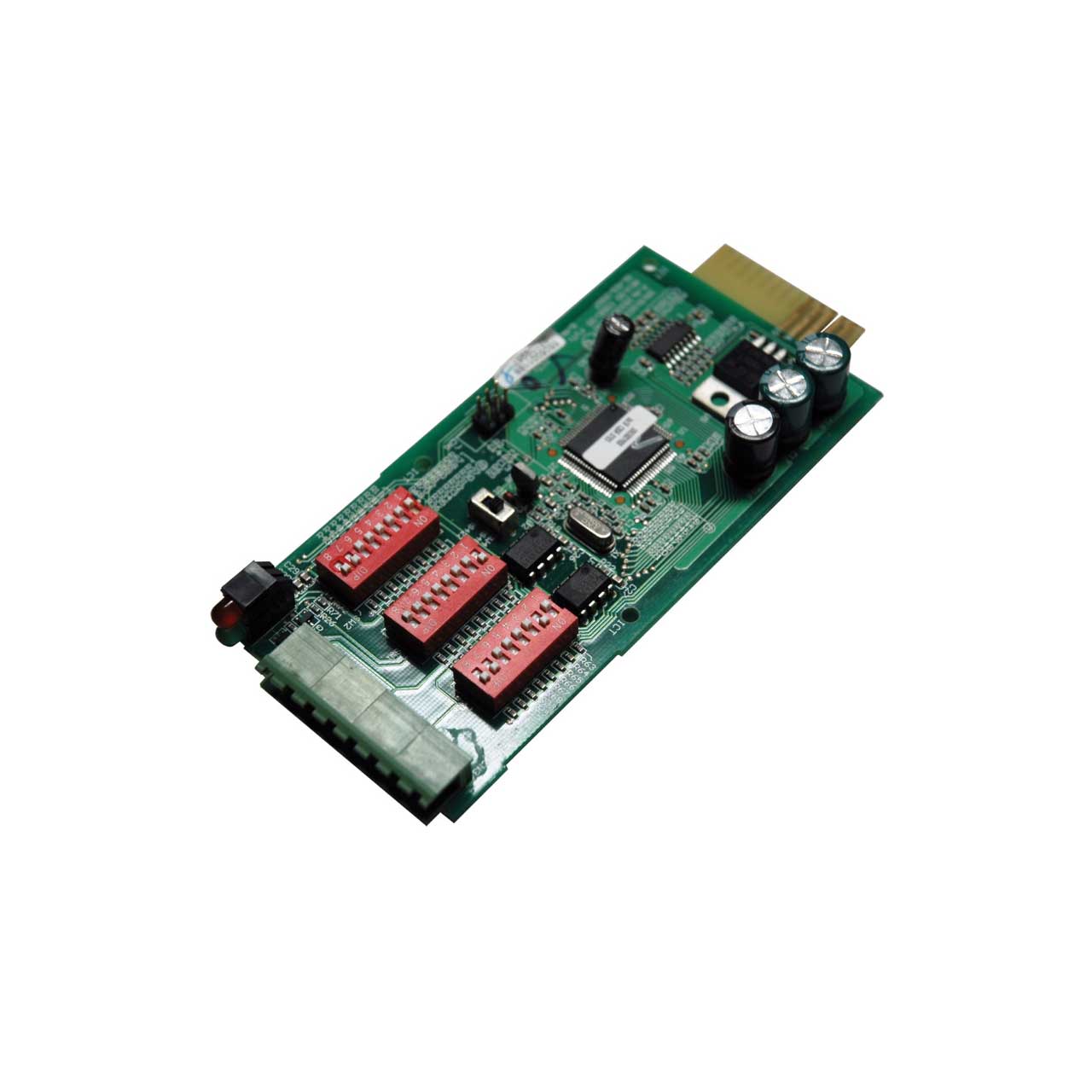

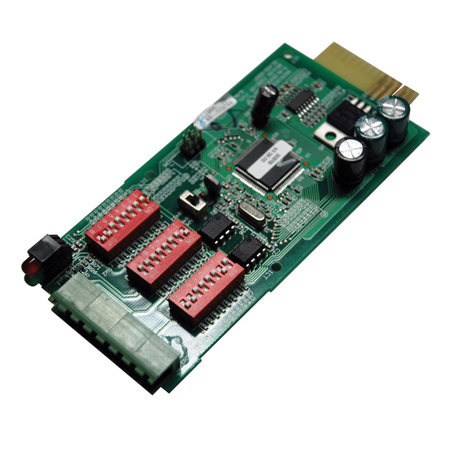

Tripp Lite MODBUSCARD MODBUS Management Accessory Card for UPS Remote Monitoring and Control

ITEM #: TRL-MODBUSCARD MFG #: MODBUSCARD

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$526.24

Our Price:

$368.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MODBUSCARD - Overview

    Tripp Lite's MODBUSCARD provides UPS systems with the functionality of communication with PCs via MODBUS. Implements MODBUS RTU protocol. Provides MODBUS functions including Read Coils, Discrete Inputs, Holding Registers, Input Registers, Write Single Coil and Single Register. Provides RS-422/485 and RS-232 interfaces (PC communicates with UPS via RS-422/485 or RS-232 or both at the same time).

    Three sets of 8 dipswitches support Card ID, RS-232 and RS-422/485 configurations. Includes RS-422/485 and RS-232 communications ports. See manual for detailed setup instructions and full set of functions and configuration options. Compatible with select SmartOnline UPS models only (See UPS product accessory section for compatibility).

    • Features:

      • Internal MODBUS management accessory card
      • Simple installation and setup
      • Implements MODBUS RTU protocol
      • Provides RS-422/485 and RS-232 interfaces

    • Specifications:

      • Power Management Type: Network Interfaces
      • Shipping Dimensions (hwd / in.): 1.6 x 6 x 6
      • Shipping Dimensions (hwd / cm): 4.1 x 15.2 x 15.2
      • Shipping Weight (lbs.): 0.55
      • Shipping Weight (kg): 0.25
      • Unit Dimensions (hwd / in.): .6 x 2.4 x 5.3
      • Unit Dimensions (hwd / cm): 1.5 x 6.1 x 13.5
      • Unit Weight (lbs.): 0.11
      • Unit Weight (kg): 0.05
      • Product Warranty Period (Worldwide): 2-year limited warranty

    • Item Includes:

      • MODBUSCARD
      • Installation Guide

    • Warranty:

      • 2 Year

    • GTIN:

      0037332157065
