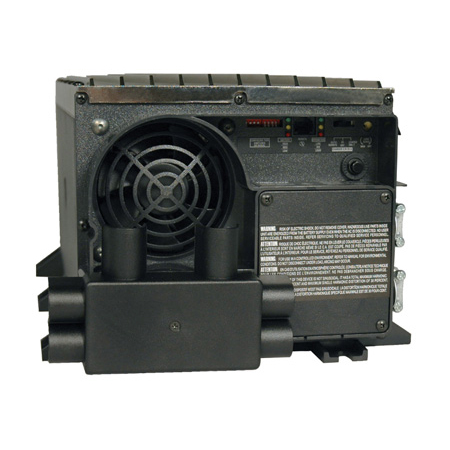

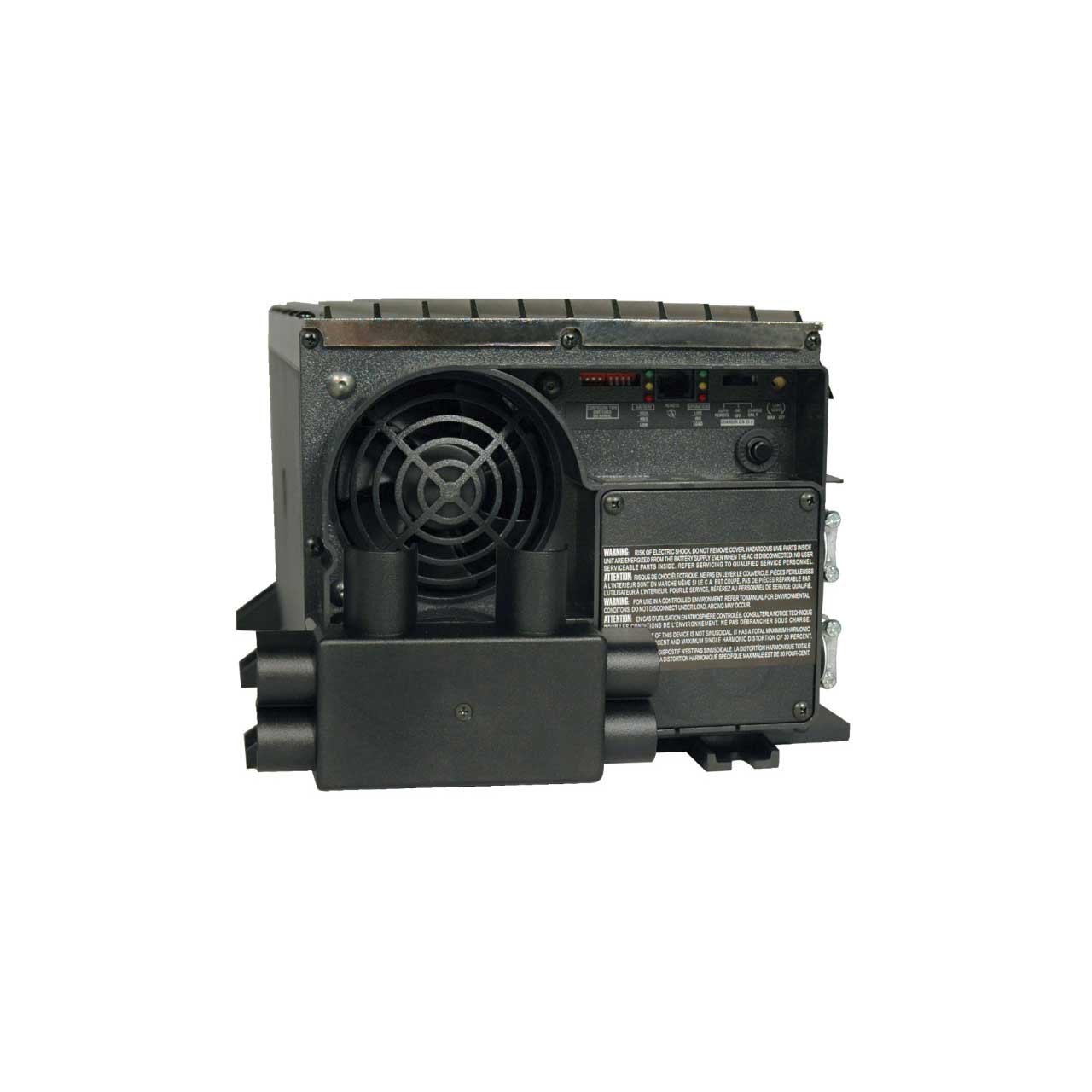

Tripp Lite MRV2012UL PowerVerter 2000W 120V 12VDC RV Inverter/Charger with Auto-Transfer Switching Hardwired UL458

MRV2012UL - Overview

• Features:

  • MRV2012UL serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery charger
  • Supplies a 120V AC output from a 120V AC line power source or 12V DC battery source
  • 2000 watts continuous AC output in inverter mode, 3600 watts continuous AC output in AC line power mode Automatic Transfer
  • 16.6 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time
  • 3-stage battery charger with user-selectable 25/100 amp operation and adjustable settings for wet/gel battery types with charger on/off capability; offers fast, reliable battery recharging
  • Protected hardwire DC terminal posts safely accept heavy-gauge input wiring from attached battery bank
  • Protected hardwire output passes 120V line power or inverter output through to connected equipment
  • Extremely reliable large-transformer design tested to UL (USA & Canada) standards Overload / Overtemperature Protection
  • DoubleBoost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds
  • OverPower inverter output supports longer duration overloads to 150% for up to 60 minutes under ideal battery and temperature conditions.
  • Resettable 25A charger AC input breaker and variable-speed cooling fan protect the inverter from load- and temperature-related failures
  • Grounding lug properly connects the inverter/charger system to earth ground or vehicle grounding system
  • Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop Operating Modes / Display LEDs
  • 3-position operating mode switch supports "AUTO" mode
  • Six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status
  • 4 configuration dip-switches support wet/gel battery charging profiles, charger enable/disable capability, selectable 75/85/95/105V AC low voltage auto transfer points during brownout conditions
  • Load-sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load conditions change
  • Battery temperature sensor with 20 foot cable to prolong battery life by adjusting the charge level based on battery temperature
  • Automatic Generator Starter jack enables user configuration of automatic generator startup as inverter batteries drop to 11.5V DC and generator shutoff as inverter batteries are recharged to 14.1V DC Construction
  • Moisture-resistant construction enables vehicular operation in high-humidity environments


• Specifications:

  • Nominal Output Voltage(s) Supported: 120V
  • Frequency Compatibility: 60 Hz
  • Output Receptacles: Hardwire
  • Output (Watts): 2000
  • Peak Output Capacity (Watts): 4000
  • Output Voltage Regulation: LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120V AC (+/-5%)
  • Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)
  • Overload Protection: Includes 25A input breaker dedicated to the charging system
  • Nominal Input Voltage(s) Supported: 120V AC
  • Maximum Input Amps / Watts: DC INPUT: Full continuous load - 190A at 12V DC. AC INPUT: 38 amps at 120V AC with full inverter and charger load
  • Input Connection Type: DC INPUT: Set of 2 DC terminal posts. AC INPUT: hardwire. User supplies cabling. 0 gauge or larger (see manual). AC INPUT: hardwire
  • Voltage Compatibility (VAC): 120
  • Voltage Compatibility (VDC): 12
  • DC System Voltage (VDC): 12
  • Battery Charge: 25A /100A (user-selectable)
  • LVC (Low Voltage Cut-Off): 10V DC +/-3%
  • Expandable Runtime: Yes
  • Front Panel LEDs: 6 LEDs offer continuous status information on load and battery charge level
  • Switches: 3-position on/off/remote switch
  • Shipping Dimensions (hwd / in.): 13.5 x 15 x 21.5
  • Shipping Weight (lbs.): 46.6
  • Unit Dimensions (hwd / in.): 8 x 10.5 x 17.5
  • Unit Weight (lbs.): 43.2
  • Cooling Method: Multi-speed fan
  • Material of Construction: Polycarbonate/aluminum
  • Included Accessories: Battery temperature sensor cable; conduit hanger
  • Form Factors Supported: Mounting slots enable secure placement of inverter on any horizontal surface
  • Relative Humidity: 0-95% non-condensing
  • Transfer Time (Line Power to Battery Mode): 16.6 ms
  • Low Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V
  • High Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 145V
  • Load Sensing: Optional load-sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load-sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
  • Remote Control Capability: Yes
  • Product Warranty Period (Worldwide): 30-month limited warranty


• Item Includes:

  • MRV2012UL Inverter/Charger
  • Instruction manual with warranty information
  • Battery Temperature Sensor cable
  • Conduit hanger


• Warranty:

  • 2.5 year


• GTIN:

  0037332149121
