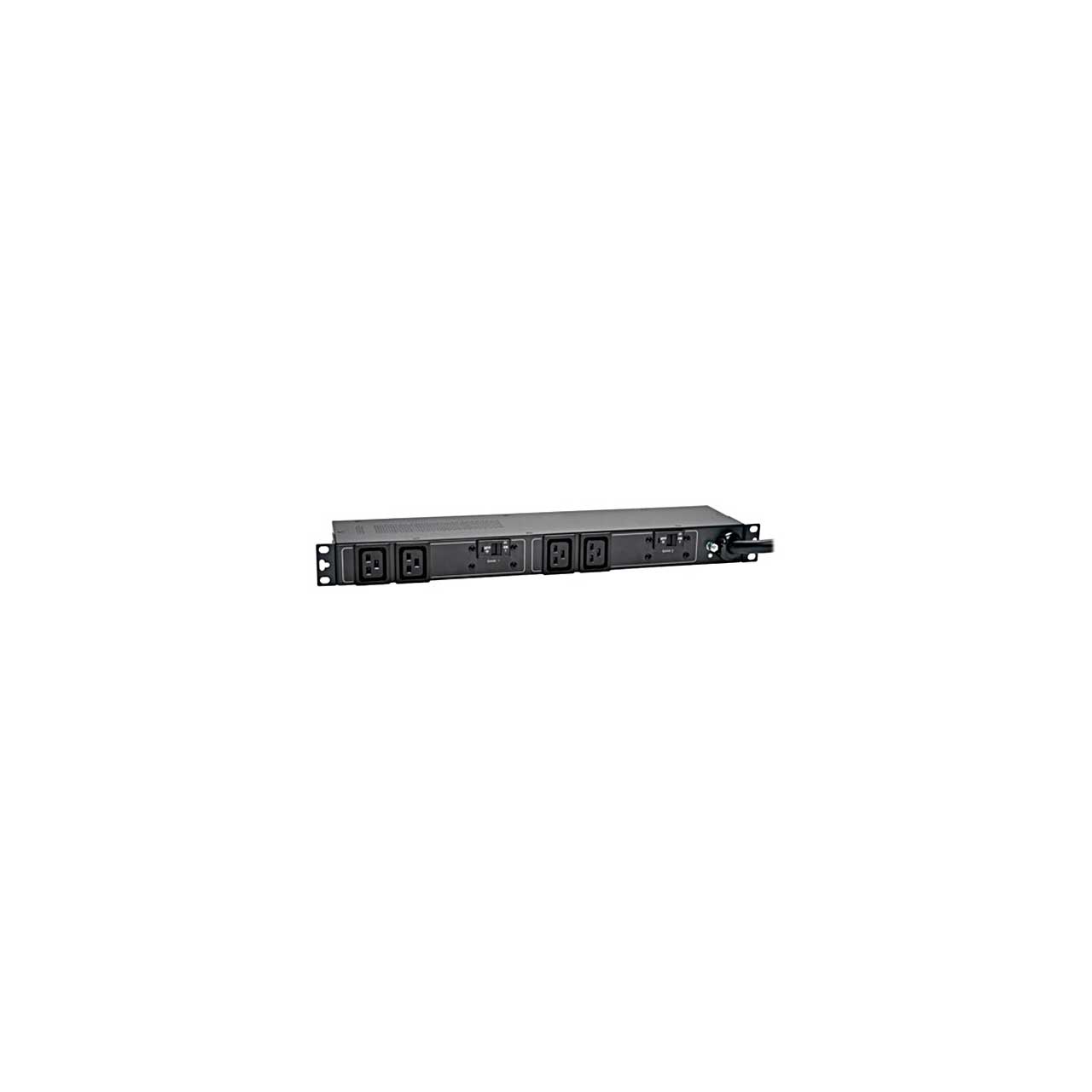

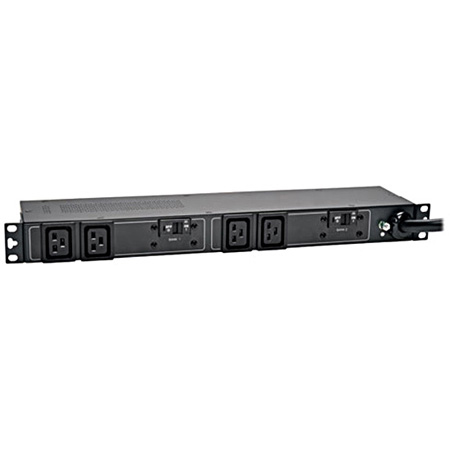

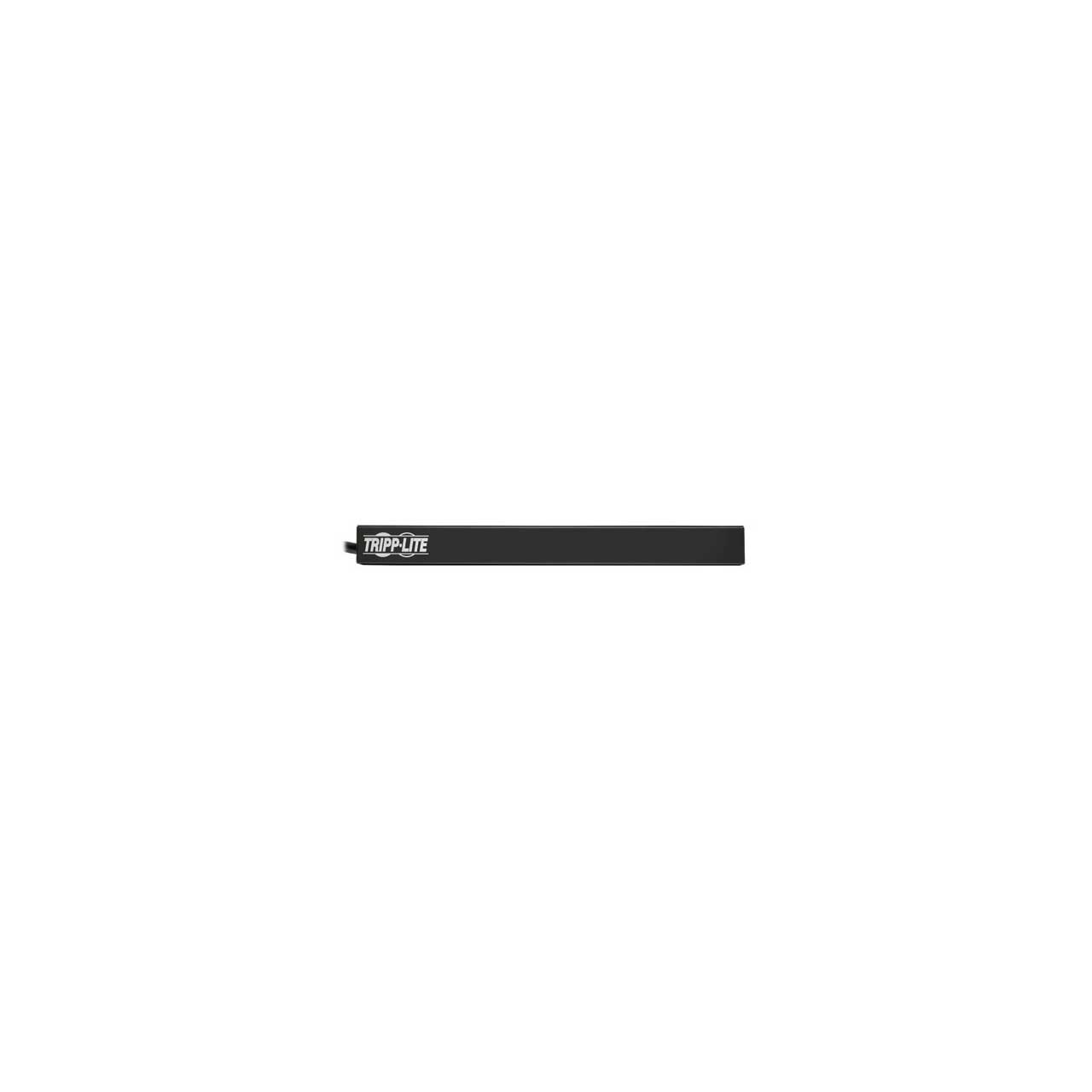

Tripp Lite PDUH32HV19 7.4kW Single-Phase Basic PDU 230V Outlets (4-C19) IEC309 32A Blue 12 Foot Cord 1U Rackmount

ITEM #: TRL-PDUH32HV19 MFG #: PDUH32HV19

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$432.43

Our Price:

$303.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    PDUH32HV19 - Overview

    Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

    • Features:

      • Reversible housing; 3.75 in. / 9.5 cm depth
      • 32A single phase 230V Basic Power Distribution Unit / PDU

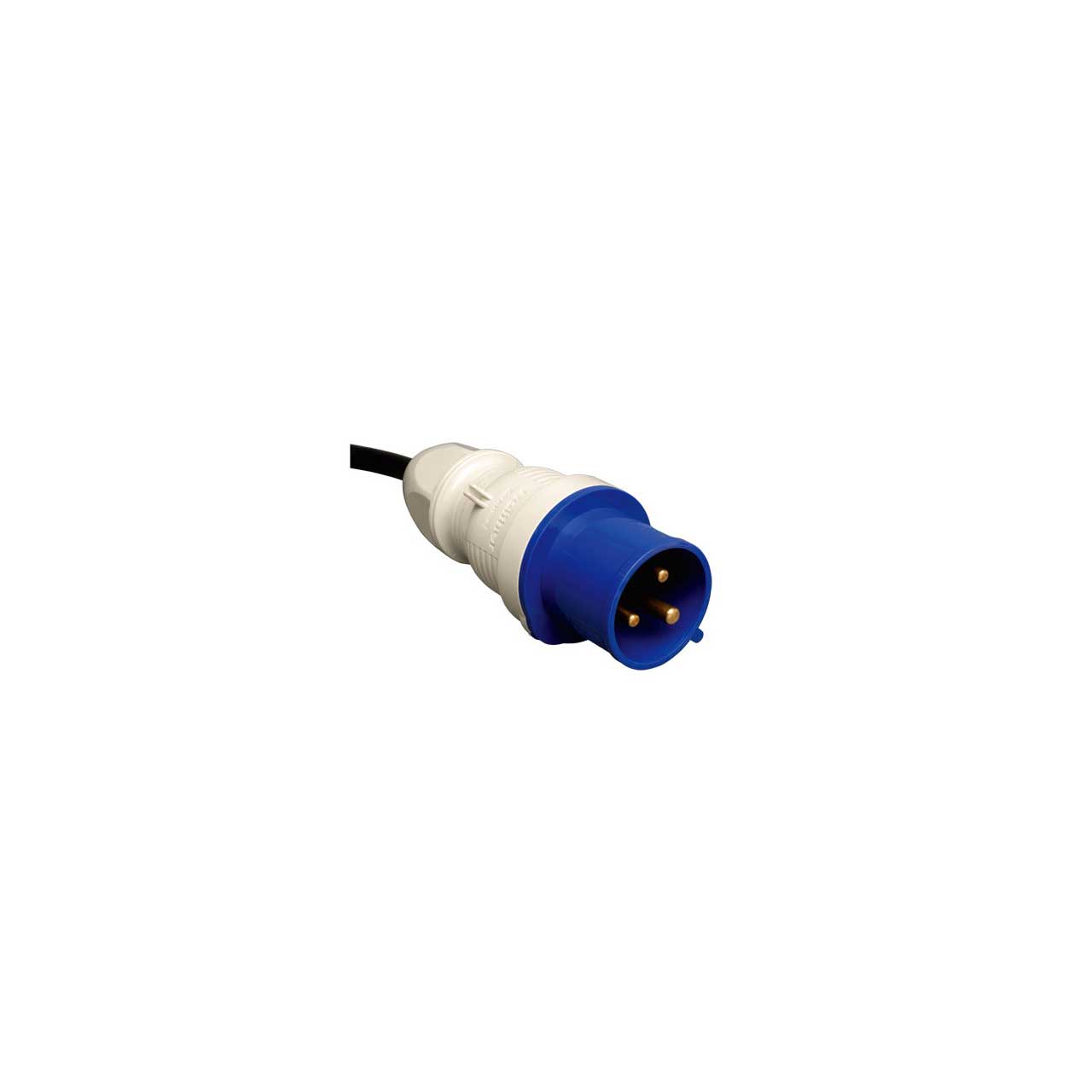

      • Attached Blue IEC-309 32A (2P+E) 230V input plug with 12 ft. / 3.6m line cord
      • 1U horizontal rackmount format installs in one rack space
      • 4 C19 outlets

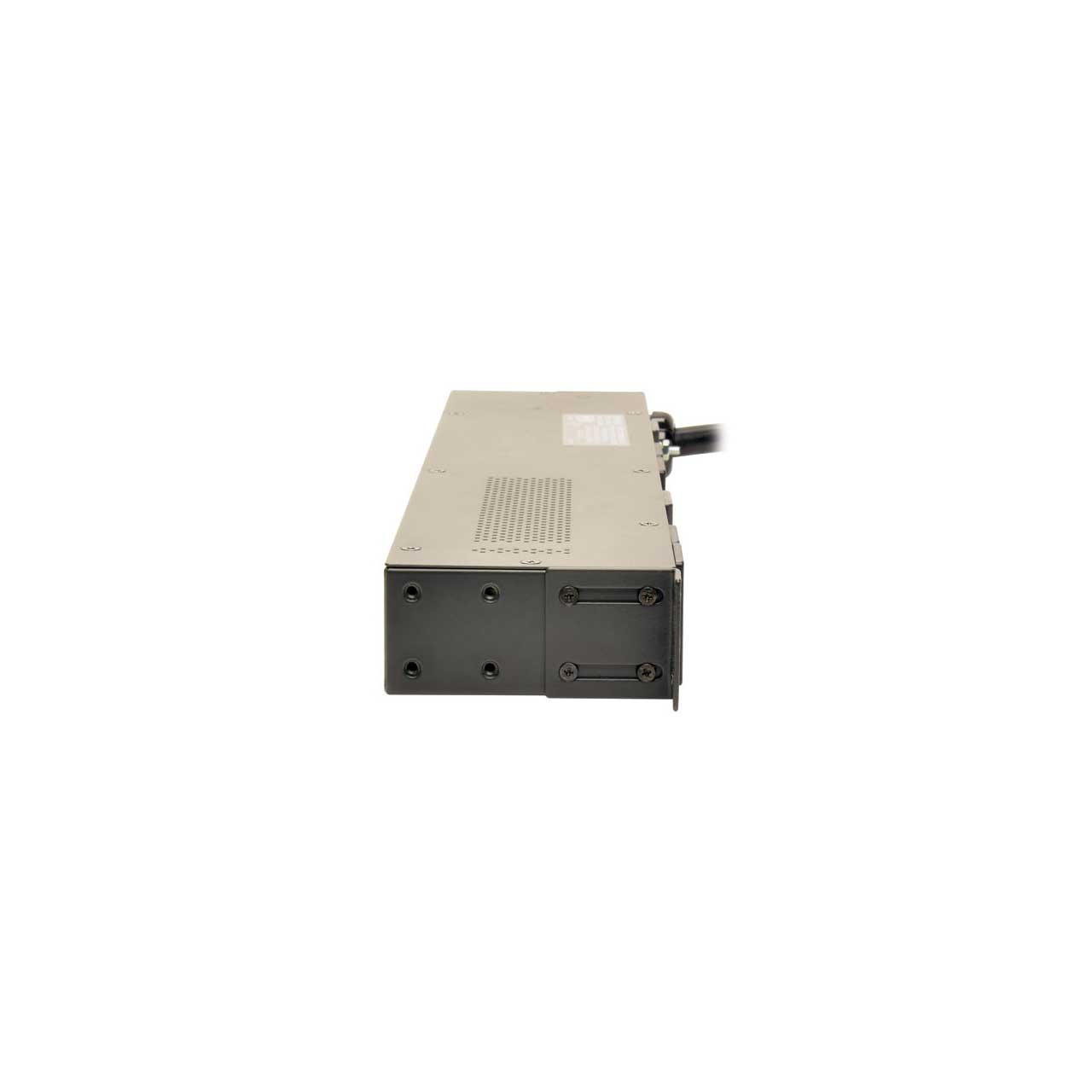

      • Mounting flanges are reversible front or rear facing installation
      • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats


    • Specifications:

      • PDU Type: Basic
      • Output Capacity Details: 7.7kW (240V), 7.4kW (230V), 7kW (220V), 6.7kW (208V), 6.4kW (200V) / 32A total capacity; 16A max per breakered outlet bank; 16A max per C19 outlet
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (4) C19
      • Output Nominal Voltage: 200; 208; 220; 230; 240
      • Overload Protection: Two 20A circuit breakers protect 2 outlets each
      • PDU Input Voltage: 200; 208; 220; 230; 240
      • Recommended Electrical Service: 32A 230V
      • Maximum Input Amps: 32
      • PDU Plug Type: IEC-309 32A BLUE (2P+E)
      • Input Cord Length (ft.): 12
      • Input Cord Length (m): 3.66
      • Input Phase: Single-Phase
      • Minimum Device Depth (in.): 6.8
      • Shipping Dimensions (hwd / in.): 3 x 20.25 x 11.25
      • Shipping Weight (lbs.): 7.07
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 3.75
      • Unit Weight (lbs.): 6.32
      • Material of Construction: Metal
      • Form Factors Supported: 1U rackmount, 0U vertical mount, wallmount and under-counter
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Minimum Device Depth (mm): 173
      • Storage Temperature Range: 5 to 122°F
      • Relative Humidity: 5 to 95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • TVSS Grounding: Rear grounding lug
      • Certifications: Tested to CE (EN 60950-1), CE Class A, RoHS
      • Product Warranty Period (Worldwide): 2-year limited warranty


    • Item Includes:

      • PDUH32HV19 Power Strip
      • Warranty information
      • Instruction manual


    • Warranty:

      • 2 Year


    • GTIN:

      0037332183200
