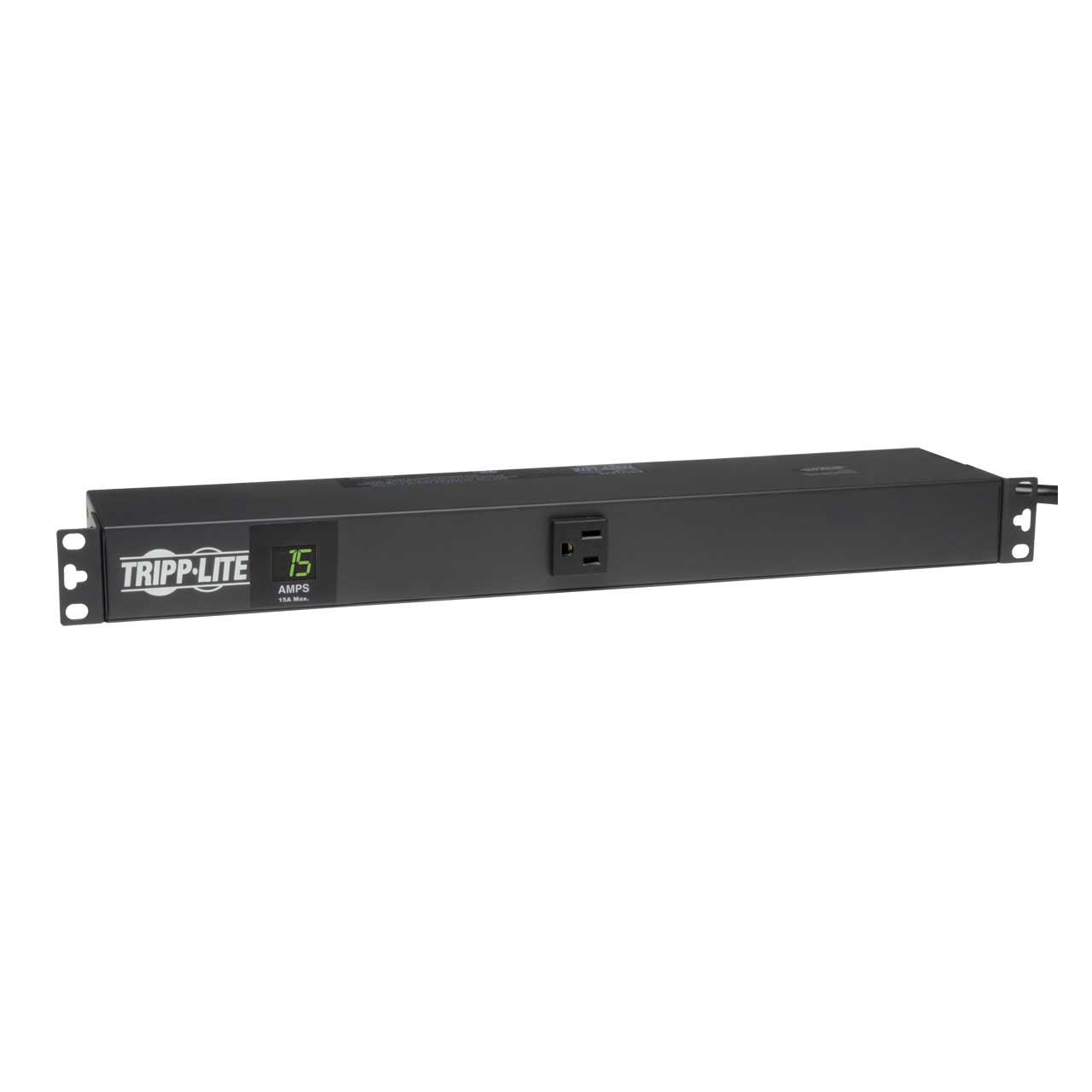

Tripp Lite PDUMH15 PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM
  • Tripp Lite PDUMH15 PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM
  • Tripp Lite PDUMH15 PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM
  • Tripp Lite PDUMH15 PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUMH15 PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM

Manufacturer: Tripp Lite

Item #: TRL-PDUMH15   •   MFG #: PDUMH15



List Price:$142.20
Our Price:$94.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

    >Power distribution units, or PDUs, are essential devices for computers and networking equipment. Through these units, power supply is effectively shared among all pieces of computer equipment within the network, ensuring that the network is always up and running. PDUs are either floor-mounted or rack-based. Also called power strips, rack-based PDUs are more commonly used for office computer networks today. These devices are equipped with a range of functionalities; some PDUs are simply equipped with multiple outlets, while other units provide additional functionalities of switching and metering. Switched-and-metered PDUs have outlets that can be individually switched on and off as well as a display for current loads.


    • Features

      • 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
      • Built-in 2 digit visual meter continuously reports PDU load level in amps

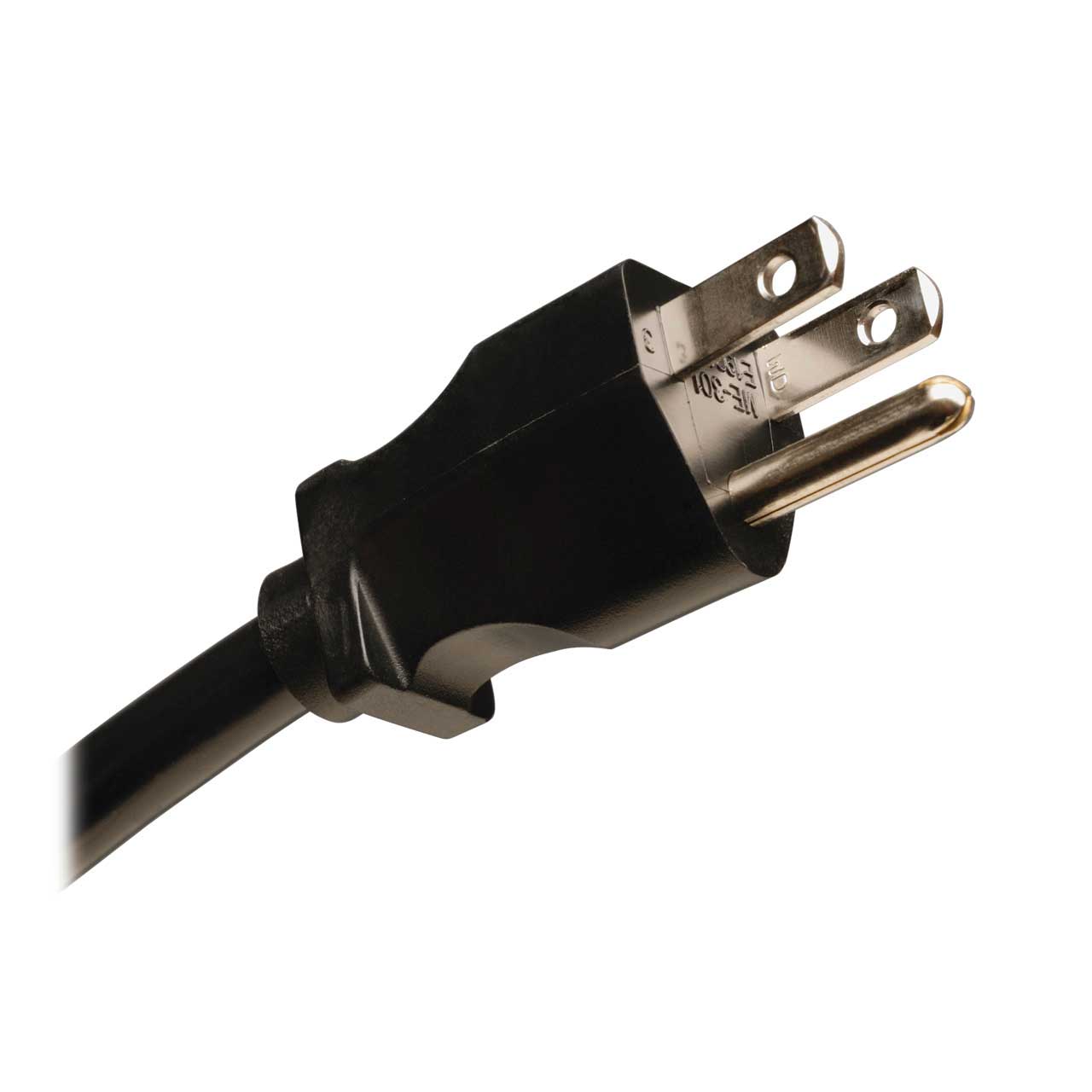

      • Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
      • 1U horizontal rackmount format installs in one rack space

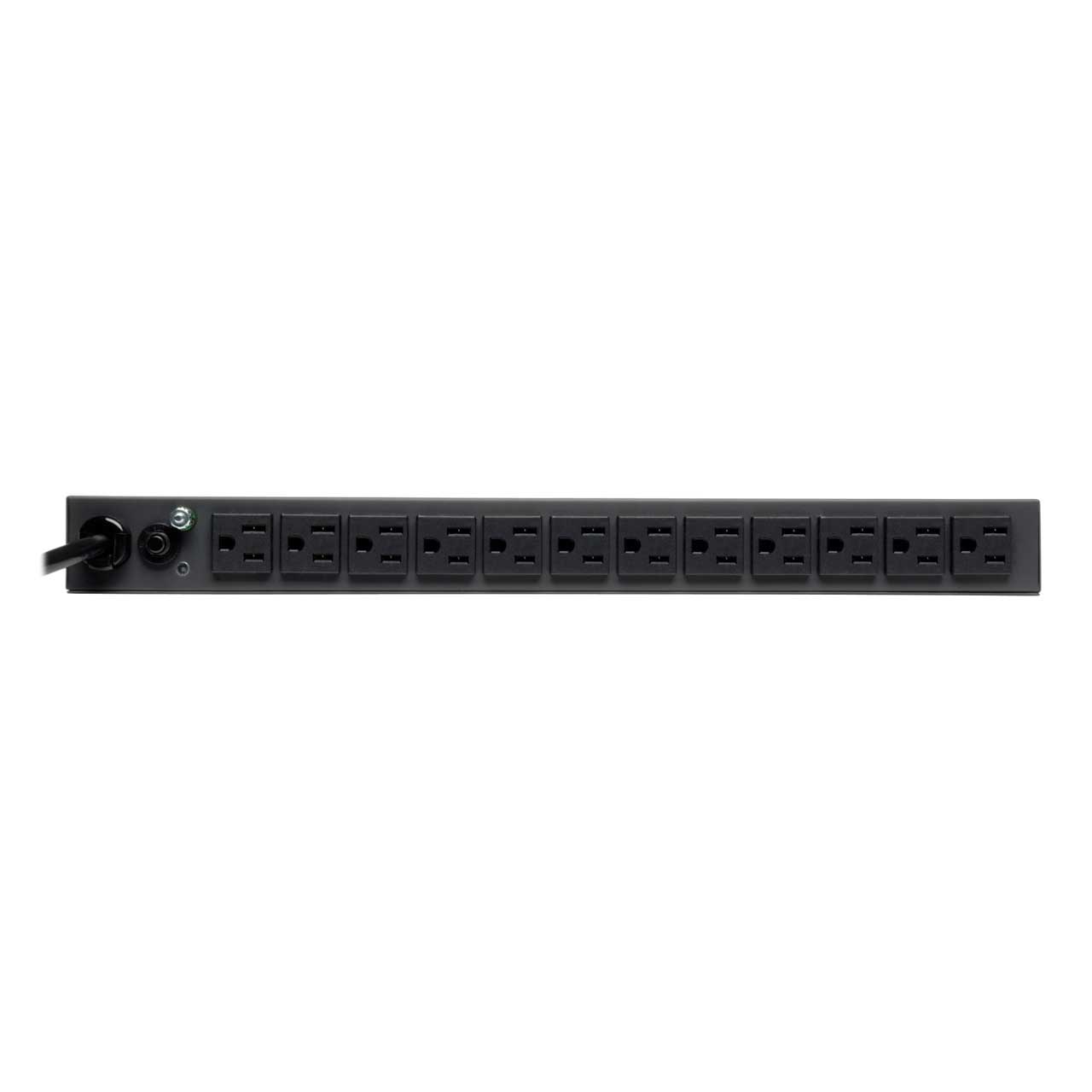

      • 13 NEMA 5-15R outlets (1 front facing / 12 rear)
      • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
      • Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
      • Back panel grounding lug

    • Specifications

      • Product Group: PDUS
      • Digital Load Meter: Yes
      • Redundant Power Cords: No
      • SNMP Compatible: No
      • TAA Compliant: No
      • Style: Rackmount, Vertical Rackmount, Wallmount/Under-Counter
      • PDU Type: Metered
      • Output Capacity Details: 1.4kW (120V input), 1.5kW (127V input), 1.2kW (100V input); 15A maximum (Agency de-rated to 12A continuous)
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (13) 5-15R
      • Output Nominal Voltage: 100-127V nominal, single phase
      • Overload Protection: 15
      • Outlet Quantity / Type: 13 NEMA 5-15R
      • Number of Outlets: 13
      • Outlet Type: NEMA 5-15R
      • PDU Input Voltage: 100; 120; 127
      • Maximum Input Amps: 15
      • Maximum Input Amps Details: Agency de-rated to 12A continuous
      • PDU Plug Type: NEMA 5-15P
      • Input Cord Length (ft.): 15
      • Input Cord Length (m): 4.57
      • Input Phase: Single-Phase
      • Front Panel LEDs: Digital LED current monitor display
      • Shipping Dimensions (hwd / in.): 2.25 x 20.5 x 10
      • Shipping Dimensions (hwd / cm): 5.72 x 52.07 x 25.4
      • Shipping Weight (lbs.): 5.2
      • Shipping Weight (kg): 2.36
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.5
      • Unit Dimensions (hwd / cm): 4.45 x 44.45 x 11.43
      • Unit Weight (lbs.): 4.5
      • Unit Weight (kg): 2.04
      • Material of Construction: Sheet Metal
      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Outlets Measurement (Center to Center): Rear Side = 30.20mm
      • TVSS Grounding: Rear grounding lug
      • Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant
      • Product Warranty Period (Worldwide): 2-year limited warranty
      • Selector Type: PDU'S

    • Item Includes

      • PDUMH15 Metered rackmount PDU
      • Owner's manual with warranty information
