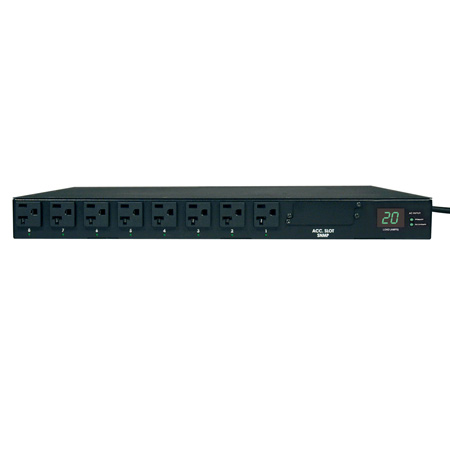

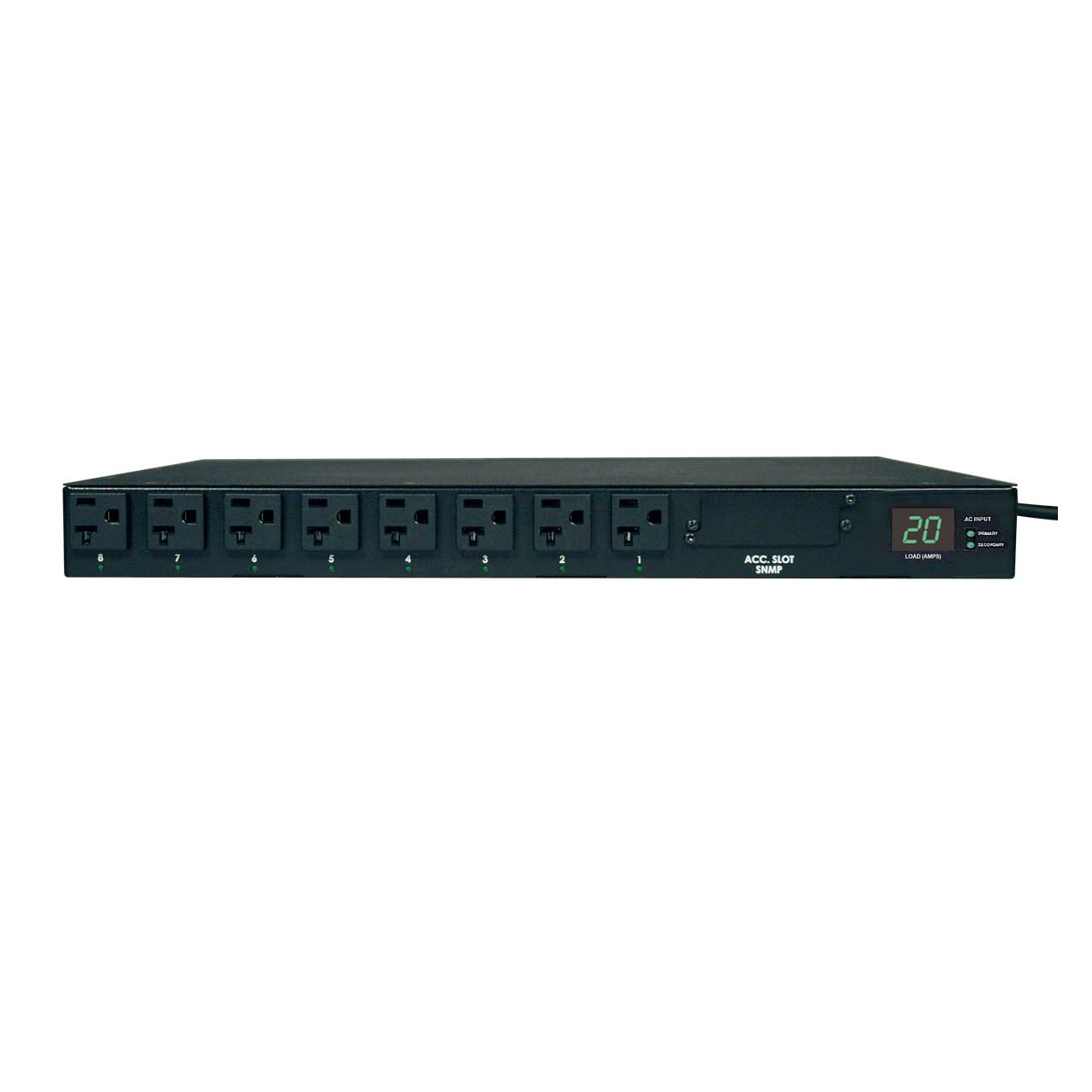

Tripp Lite PDUMH20AT PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U
  • Tripp Lite PDUMH20AT PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U
  • Tripp Lite PDUMH20AT PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUMH20AT PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U

Manufacturer: Tripp Lite

Item #: TRL-PDUMH20AT   •   MFG #: PDUMH20AT



List Price:$599.40
Our Price:$399.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.

    >Power distribution units, or PDUs, are essential devices for computers and networking equipment. Through these units, power supply is effectively shared among all pieces of computer equipment within the network, ensuring that the network is always up and running. PDUs are either floor-mounted or rack-based. Also called power strips, rack-based PDUs are more commonly used for office computer networks today. These devices are equipped with a range of functionalities; some PDUs are simply equipped with multiple outlets, while other units provide additional functionalities of switching and metering. Switched-and-metered PDUs have outlets that can be individually switched on and off as well as a display for current loads.


    • Features

      • 120V 20A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 16A continuous)
      • Provides a redundant power option for critical networking equipment with a single input power cord
      • 2 digit display reports output power consumption in amps
      • 1U horizontal rackmount form factor; 14.5 in. / 36.8 cm depth

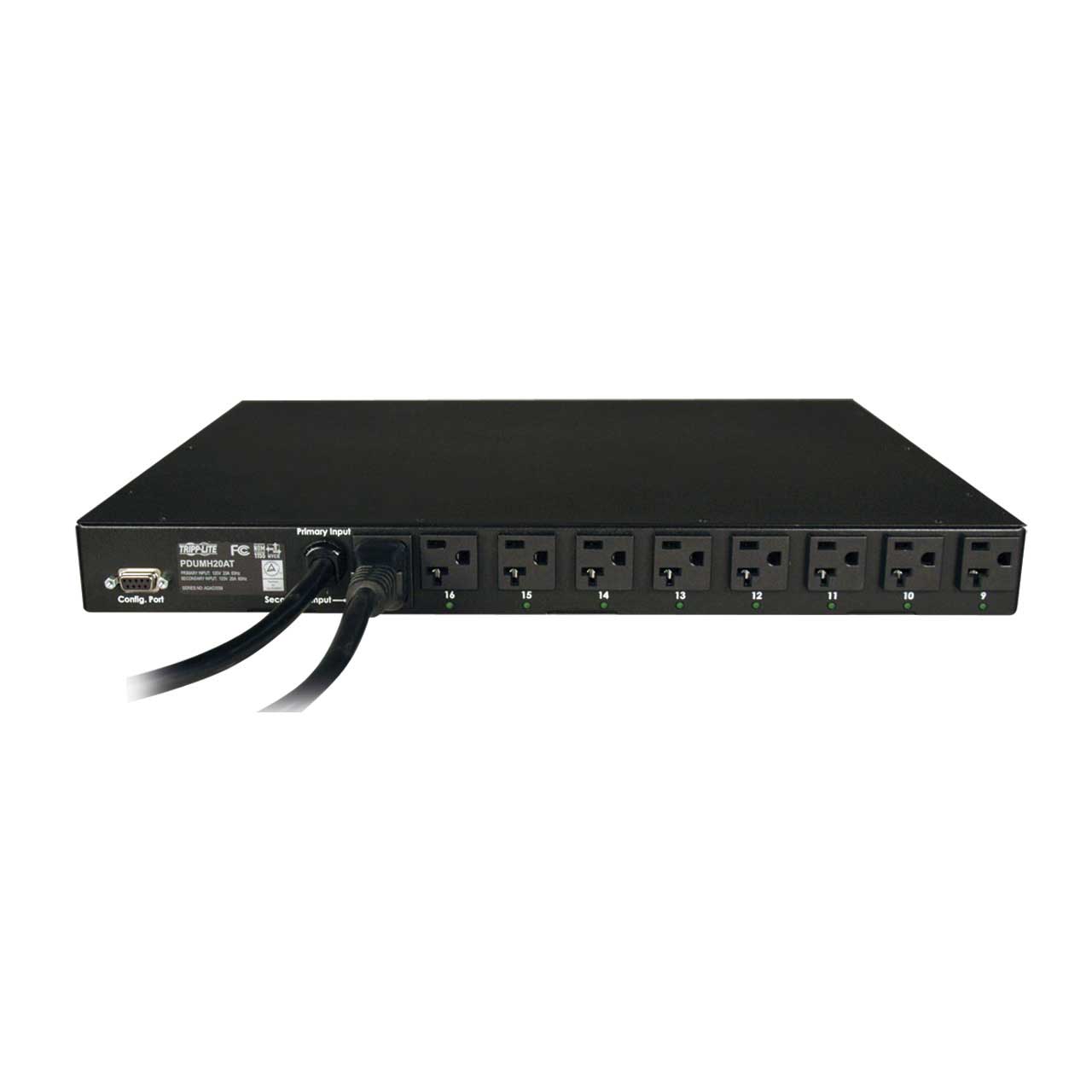

      • 16 built-in NEMA 5-15/20R outlets (8 front / 8 rear)
      • Set of two 12 ft. / 3.6m NEMA L5-20P input cables with set of two 5-20P adapters support connection to separate PRIMARY and SECONDARY inputs
      • ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
      • ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
      • Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
      • On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
      • Super-fast switchover between primary and secondary power sources occurs in 2-7 milliseconds
      • Built-in card slot supports optional SNMPWEBCARD for permanent upgrade to a switched & monitored PDU system
      • Outlets are factory programmed for sequential turn-on at 250 milliscond intervals when the PDU is first energized to prevent inrush-related equipment interaction on startup
      • Front panel LEDs confirm power availability on both input lines
      • TAA Compliant Version Available - Order Tripp Lite PDUMH20ATAA

    • Specifications

      • Product Group: PDUS
      • Digital Load Meter: Yes
      • Redundant Power Cords: Yes
      • SNMP Compatible: No
      • TAA Compliant: No
      • Style: Rackmount
      • PDU Type: Auto-Transfer Switch; Metered
      • Output Capacity Details: 1.9kW (120V input), 2.0kW (127V input), 1.6kW (100V input); 20A maximum (Agency de-rated to 16A continuous)
      • Frequency Compatibility: 60 Hz
      • Output Receptacles: (16) 5-15/20R
      • Output (VA): 2400
      • Output Nominal Voltage: 100-127V nominal, single phase
      • Outlet Quantity / Type: 16 NEMA 5-15/20R
      • Number of Outlets: 16
      • Outlet Type: NEMA 5-15R, NEMA 5-20R
      • PDU Input Voltage: 100; 120; 127
      • Maximum Input Amps: 20
      • Maximum Input Amps Details: Agency de-rated to 16A maximum
      • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
      • Input Cord Length Details: Both input cables are 12 ft / 3.6m - the cables each terminate to a L5-20P locking plug on the input side. Two included 6 inch plug adapters convert the locking plugs to NEMA 5-20P plugs
      • Input Phase: Single-Phase
      • Front Panel LEDs: 16 front panel LEDs display power on - off status for each outlet, plus 2 LEDs for power status on each input line cord. Digital Current Meter Display shows total load consumption of connected equipment in amps
      • Shipping Dimensions (hwd / in.): 6.25 x 22.5 x 23.5
      • Shipping Dimensions (hwd / cm): 15.9 x 57.2 x 59.7
      • Shipping Weight (lbs.): 16.4
      • Shipping Weight (kg): 7.4
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 14.5
      • Unit Dimensions (hwd / cm): 4.44 x 44.4 x 36.8
      • Unit Weight (lbs.): 12.2
      • Unit Weight (kg): 5.5
      • Material of Construction: Steel
      • Form Factors Supported: 1U rackmount
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Relative Humidity: Up to 95% (non-condensing)
      • SNMP Compatibility: Includes slot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP
      • TAA Compliant Option: TAA Compliant Version Available - Order Tripp Lite PDUMH20ATAA
      • Certifications: Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint
      • Product Warranty Period (Worldwide): 2-year limited warranty

    • Item Includes

      • PDU with attached L5-20P primary input cord
      • Detachable C19 to NEMA L5-20P secondary input cord
      • Set of two L5-20R to 5-20P plug adapters
      • 1U mounting brackets
      • User manual with warranty information
