Tripp Lite PDUMH20HV PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM
  • Tripp Lite PDUMH20HV PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM
  • Tripp Lite PDUMH20HV PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM
  • Tripp Lite PDUMH20HV PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM
  • Tripp Lite PDUMH20HV PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM
  • Tripp Lite PDUMH20HV PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUMH20HV PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM

Manufacturer: Tripp Lite

Item #: TRL-PDUMH20HV   •   MFG #: PDUMH20HV



List Price:$228.60
Our Price:$152.49

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

    >Power distribution units, or PDUs, are essential devices for computers and networking equipment. Through these units, power supply is effectively shared among all pieces of computer equipment within the network, ensuring that the network is always up and running. PDUs are either floor-mounted or rack-based. Also called power strips, rack-based PDUs are more commonly used for office computer networks today. These devices are equipped with a range of functionalities; some PDUs are simply equipped with multiple outlets, while other units provide additional functionalities of switching and metering. Switched-and-metered PDUs have outlets that can be individually switched on and off as well as a display for current loads.


    • Features

      • 16/20A single phase 200-240V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
      • Built-in 2 digit visual meter continuously reports PDU load level in amps
      • C20 inlet with C20 input cable and L6-20P adapter; 12 ft. / 3.7m line cord
      • 1U horizontal rackmount format installs in one rack space
      • 10 total outlets (8 C13 / 2 C19)
      • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats

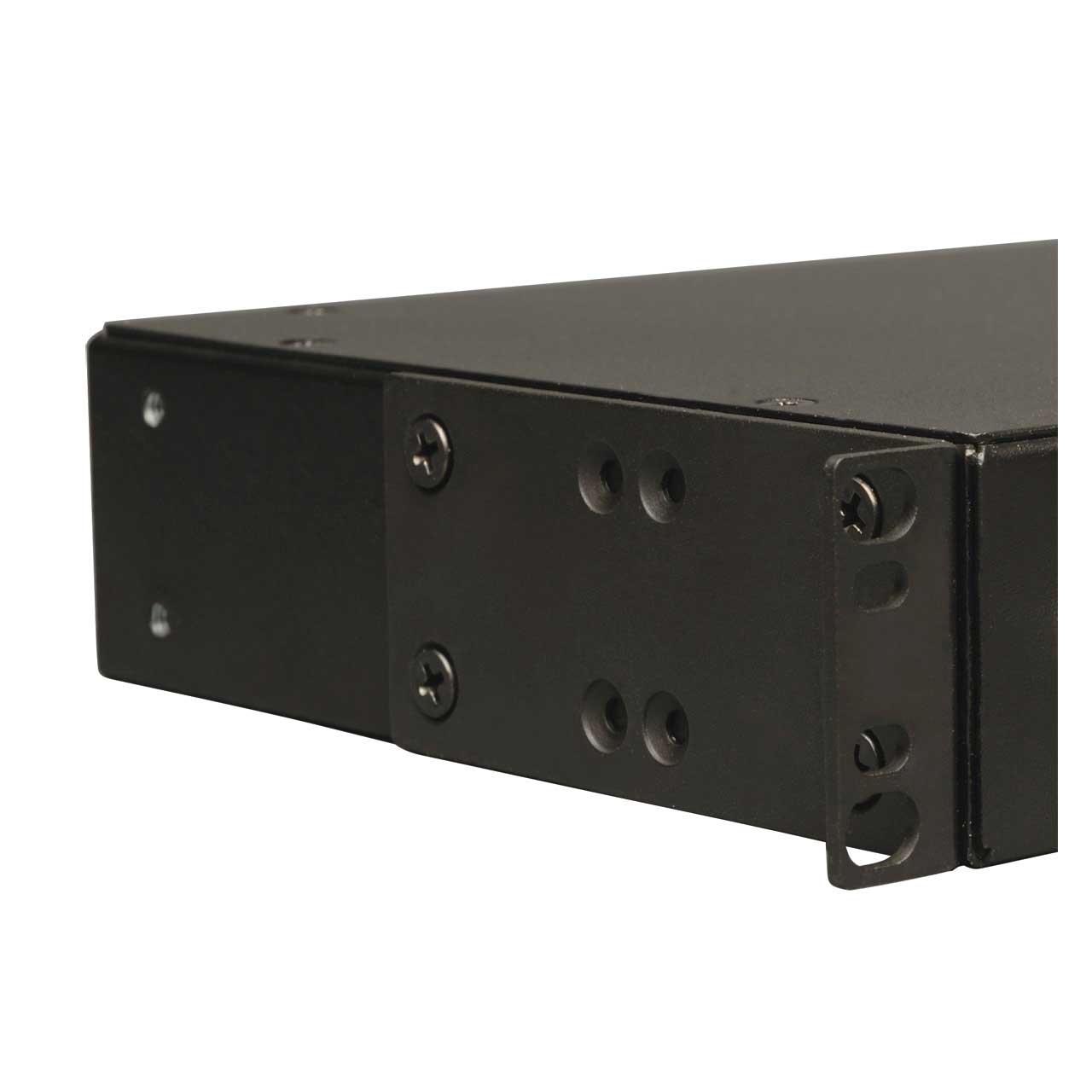

      • Mounting ears are reversible for front or rear facing rackmount installation
      • Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
      • Back panel grounding lug
      • TAA Compliant Version Available - Order Tripp Lite PDUMH20HVTAA

    • Specifications

      • Product Group: PDUS
      • Digital Load Meter: Yes
      • Redundant Power Cords: No
      • SNMP Compatible: No
      • TAA Compliant: No
      • Style: Rackmount
      • PDU Type: Metered
      • Output Capacity Details: 3.3kW (208V input), 3.5kW (220V input), 3.7kW (230V input), 3.8kW (240V input), 3.2kW (200V input); 20A maximum (Agency de-rated to 16A continuous)
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (8) C13; (2) C19
      • Output Nominal Voltage: 200-240V nominal, single phase
      • Overload Protection: Outlets are arranged in a single unbreakered load bank
      • Outlet Quantity / Type: 8 C13 and 2 C19 outlets
      • Number of Outlets: 10
      • Outlet Type: IEC-C13, IEC-C19
      • Customized Load Management Receptacles: Each outlet is individually controllable via remote interface
      • PDU Input Voltage: 200; 208; 220; 230; 240
      • Maximum Input Amps: 20
      • Maximum Input Amps Details: Agency de-rated to 16A continuous
      • PDU Plug Type: NEMA L6-20P; IEC-320 C20
      • Input Cord Length (ft.): 12
      • Input Cord Length (m): 3.7
      • Input Phase: Single-Phase
      • Switches: n/a
      • Shipping Dimensions (hwd / in.): 2.25 x 20.5 x 10.5
      • Shipping Dimensions (hwd / cm): 5.7 x 52.1 x 26.7
      • Shipping Weight (lbs.): 7.2
      • Shipping Weight (kg): 3.3
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 6.5
      • Unit Dimensions (hwd / cm): 2.87 x 44.4 x 16.5
      • Unit Weight (lbs.): 6.8
      • Unit Weight (kg): 3.1
      • Material of Construction: Steel
      • Form Factors Supported: 1U rackmount. Includes mounting accessories for 2-4 post racks
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Relative Humidity: 0-95% non-condensing
      • TAA Compliant Option: TAA Compliant Version Available - Order Tripp Lite PDUMH20HVTAA
      • Certifications: Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), ), CE (IEC 60950), (RoHS compliant)
      • Product Warranty Period (Worldwide): 2-year limited warranty

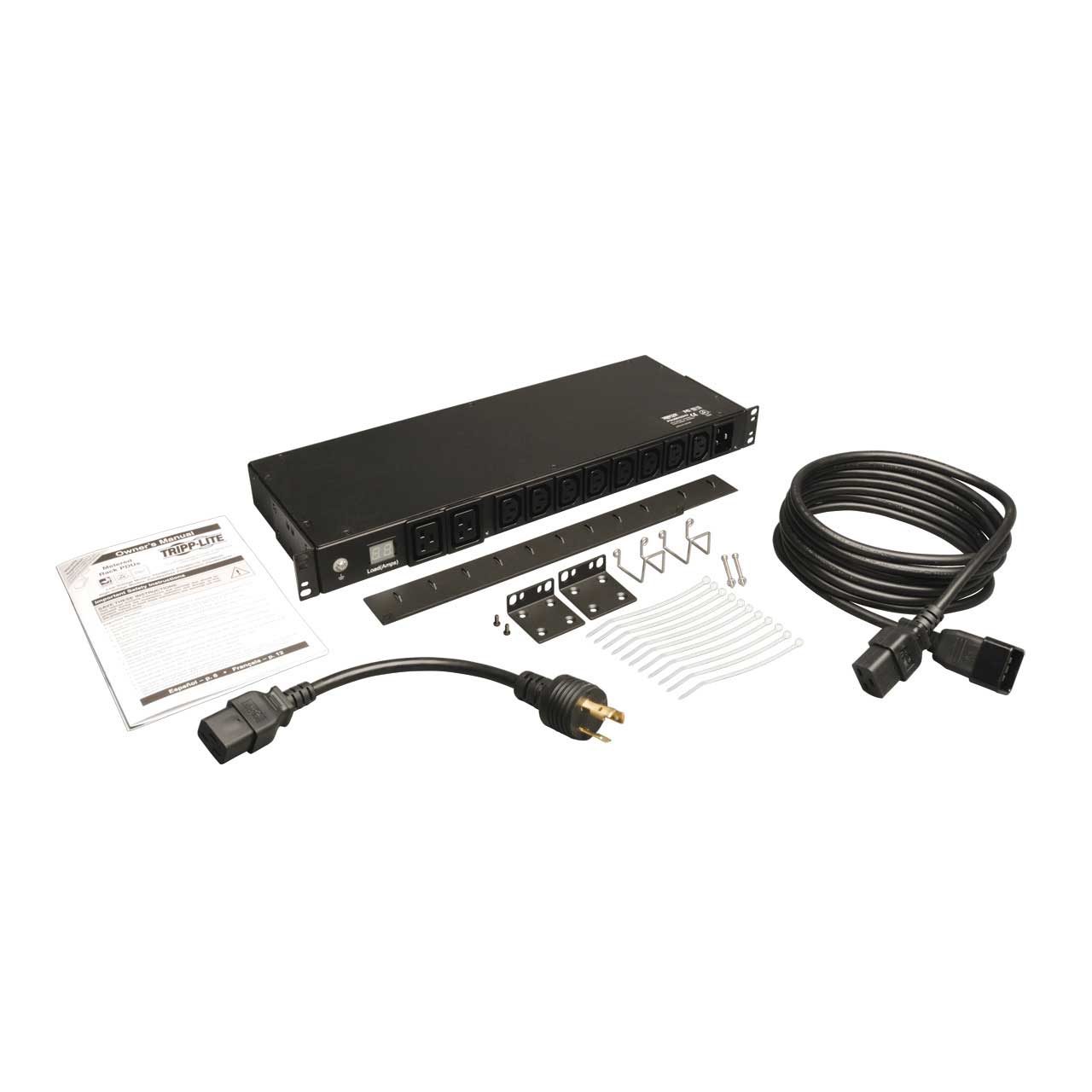

    • Item Includes

      • Rackmount PDU
      • C19 to L6-20P plug adapter
      • Rack mounting brackets
