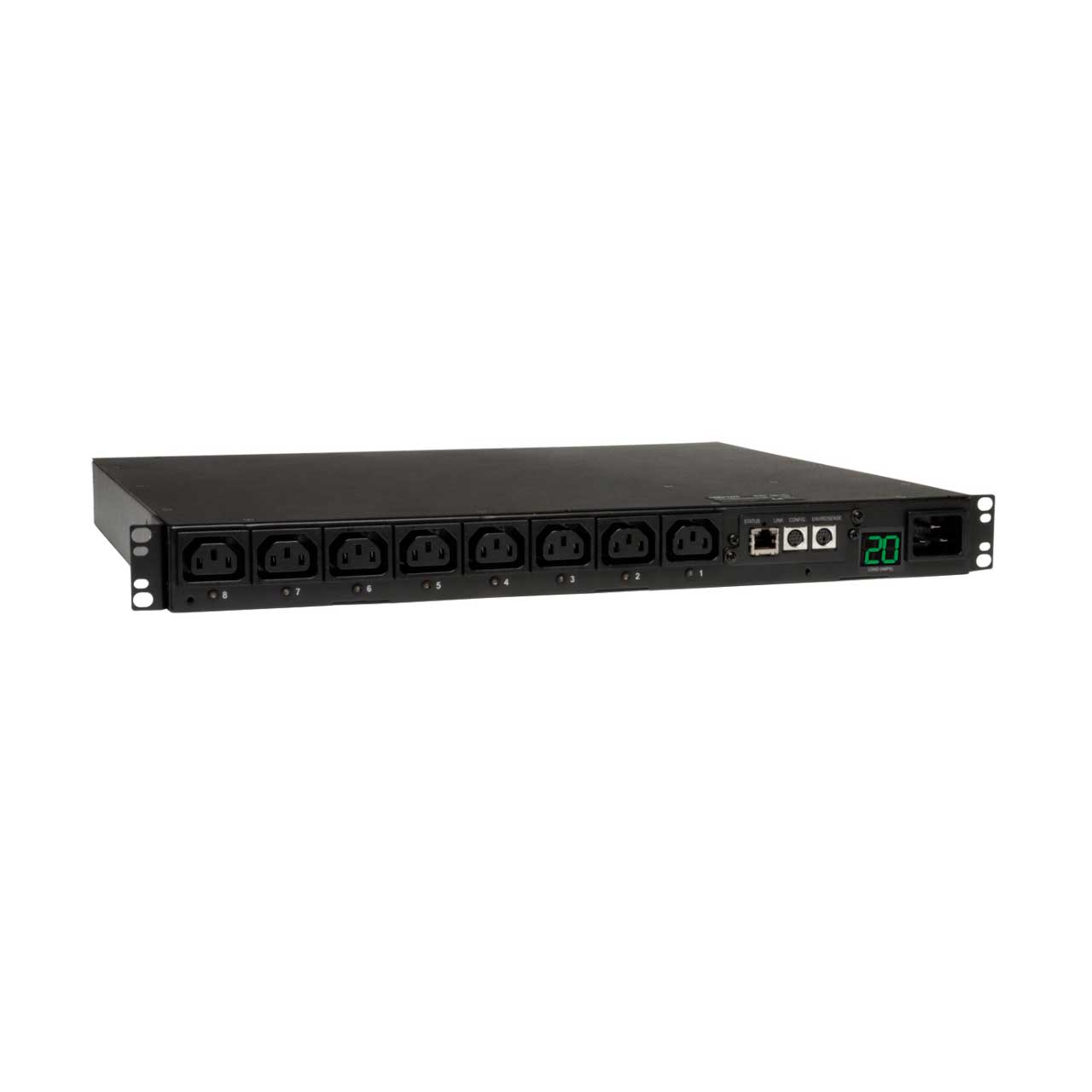

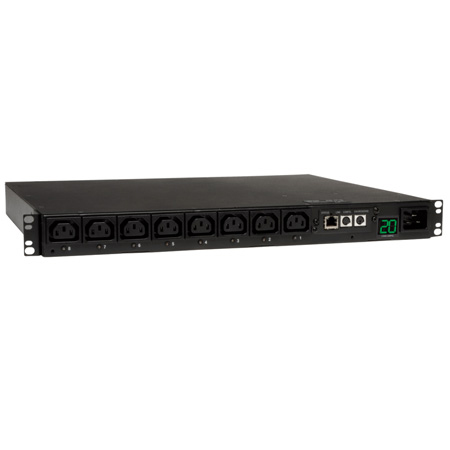

Tripp Lite PDUMH20HVNET PDU Switched 200V - 240V 20A C13 8 Outlet L6-20P Horizontal 1URM

ITEM #: TRL-PDUMH20HVNET MFG #: PDUMH20HVNET

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$999.64

Our Price:

$702.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PDUMH20HVNET - Overview

    Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

    • Features:

      • 200-240V 16/20A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 16A continuous
      • Provides a redundant power option for critical networking equipment with a single input power cord
      • 2 digit display reports output power consumption in amps
      • 1U horizontal rackmount form factor; 14.8 in. / 37.6 cm depth
      • 10 outlets (8 C13, 2 C19)

    • Specifications:

      • Style Rackmount
      • PDU Type Switched
      • Output Capacity Details 3.33kW (208V), 3.52kW (220V), 3.68kW (230V), 3.84kW (240V), 3.2kW (200V); 20A maximum (Agency de-rated to 16A continuous)
      • Frequency Compatibility 50 / 60 Hz
      • Output Receptacles (8) C13
      • Output Nominal Voltage 200, 208, 220, 230, 240V nominal, single phase
      • Overload Protection n/a
      • Outlet Type IEC-C13
      • Customized Load Management Receptacles 8 individually switched output receptacles
      • PDU Input Voltage 200; 208; 220; 230; 240
      • Recommended Electrical Service 20A 208/240V; 16A 230V
      • Maximum Input Amps 20
      • Maximum Input Amps Details Agency de-rated to 16A continuous
      • PDU Plug Type NEMA L6-20P; IEC-320 C20
      • Input Cord Length (ft.) 8.5
      • Input Cord Length (m) 2.6
      • Input Phase Single-Phase
      • Front Panel LCD Display Digital display reports total PDU output current in amps
      • Front Panel LEDs 8 LEDs display power on-off status for each output receptacle
      • Switches n/a
      • Shipping Dimensions (hwd / in.) 5.3 x 20.7 x 23.2
      • Shipping Dimensions (hwd / cm) 13.5 x 52.6 x 37.6
      • Shipping Weight (lbs.) 14.2
      • Shipping Weight (kg) 6.4
      • Unit Dimensions (hwd / in.) 1.75 x 17.3 x 14.8
      • Unit Dimensions (hwd / cm) 2.87 x 43.9 x 37.6
      • Unit Weight (lbs.) 9
      • Unit Weight (kg) 4.1
      • Material of Construction Metal
      • Form Factors Supported 1U rackmount. Includes mounting accessories for 2-4 post racks
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5-95% non-condensing
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually
      • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMH20HVNETAA
      • Certifications Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), ), CE (IEC 60950), (RoHS compliant)
      • Product Warranty Period (Worldwide) 2-year limited warranty

    • GTIN:

      0037332139283
