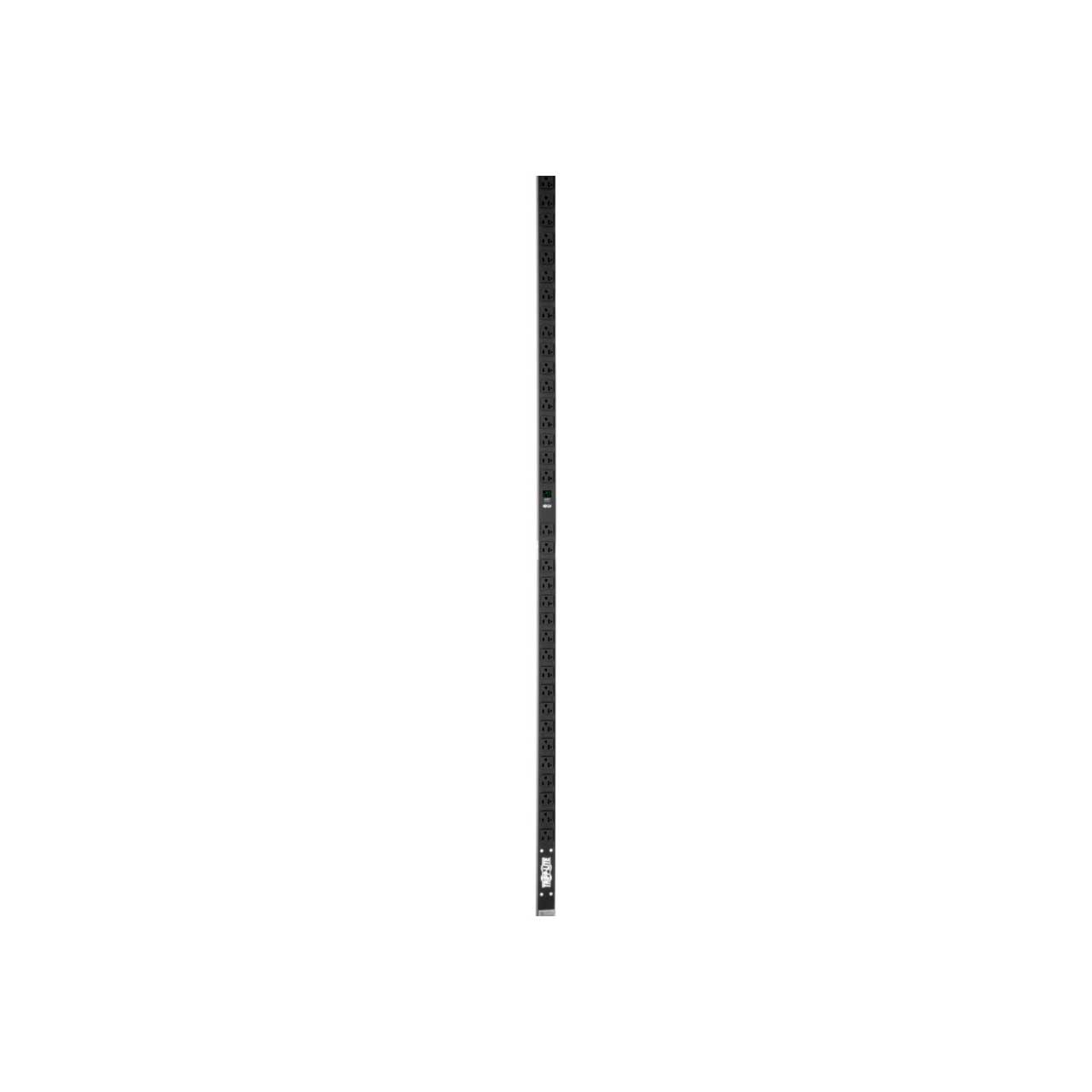

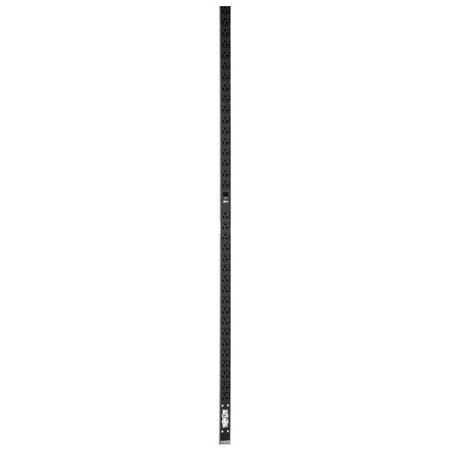

Tripp Lite PDUMV20-72 1.9kW Single-Phase Metered PDU 120V Outlets (36 5-15/20R) L5-20P/5-20P adapter 0U Vertical 72-Inch

ITEM #: TRL-PDUMV20-72 MFG #: PDUMV20-72

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$350.06

Our Price:

$230.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
Report Lower PriceLarge Quantity Quote

PDUMV20-72 - Overview

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

  • Features:

    • 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

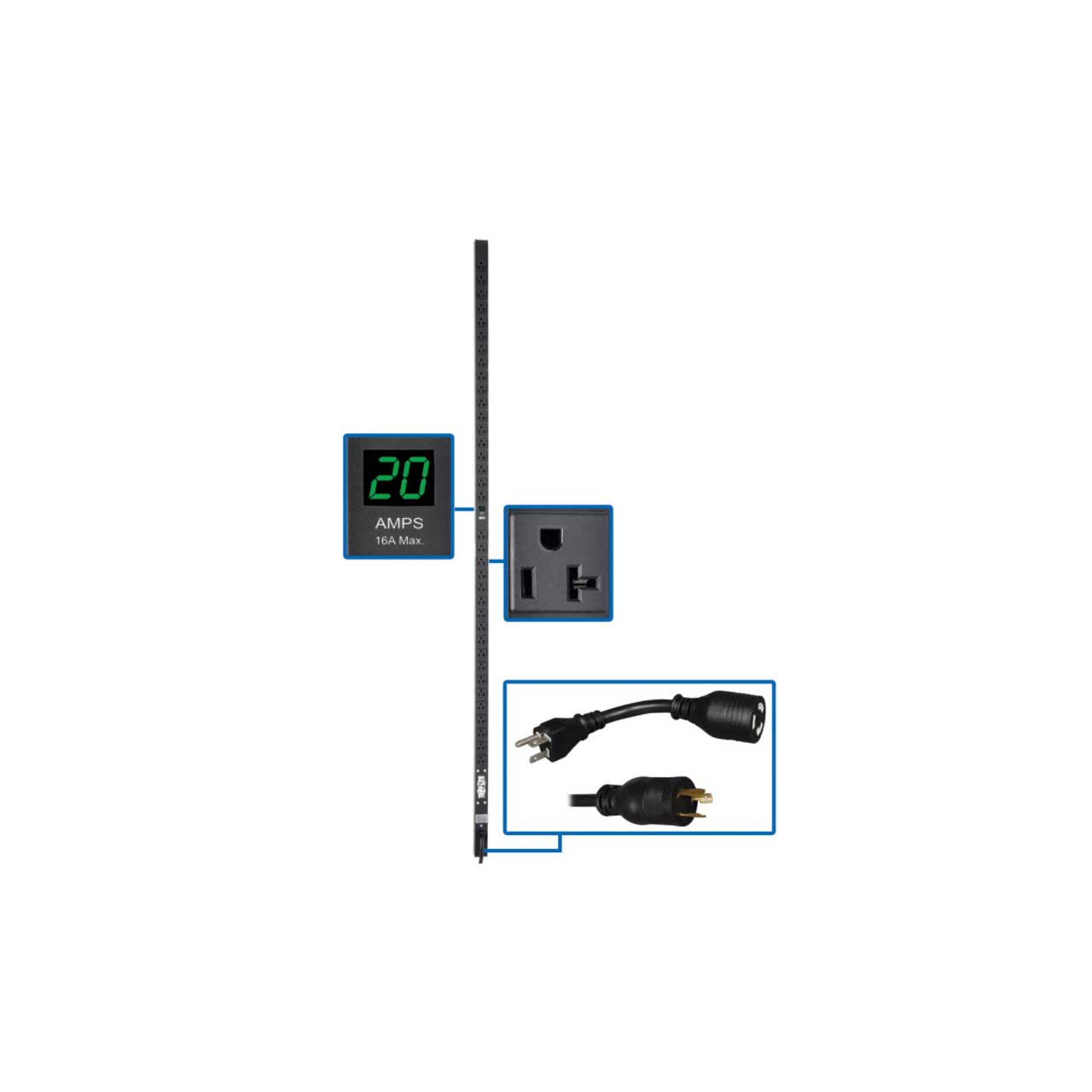

    • Two-digit lighted meter reports combined total output current in amps
    • Attached NEMA L5-20P input plug with 15ft / 4.6m line cord and 5-20P adapter
    • 0U 72-in. / 183cm vertical rackmount format installs using no rack spaces
    • 36 NEMA 5-15/20R outlets

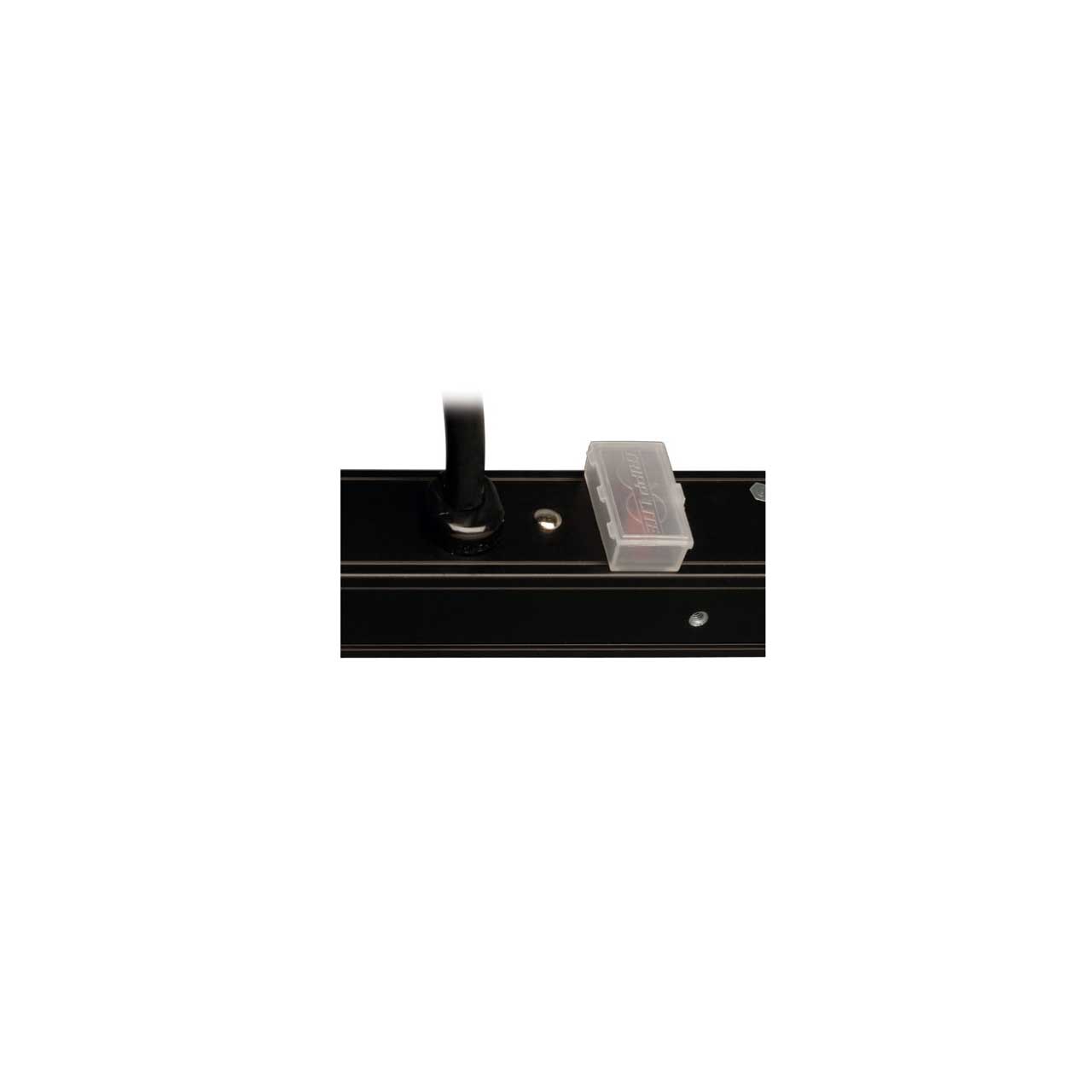

    • Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
    • Toolless installation supported in button-mount compatible equipment racks
    • Bolt-down installation brackets support installation in other racks and additional surfaces


  • Specifications:

    • PDU Type: Metered
    • Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (36) 5-15/20R
    • Output Nominal Voltage: 100; 120; 127
    • Overload Protection: 20A circuit breaker
    • PDU Input Voltage: 100; 120; 127
    • Recommended Electrical Service: 20A 120V
    • Maximum Input Amps: 20
    • Maximum Input Amps Details: Agency de-rated to 16A continuous
    • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
    • Input Cord Length (ft.): 15
    • Input Cord Length (m): 4.6
    • Input Phase: Single-Phase
    • Front Panel LCD Display: Digital meter reports PDU output current in amps
    • Switches: Lighted on/off switch with integrated transparent saftey cover
    • Shipping Dimensions (hwd / in.): 2.6 x 74.94 x 6.78
    • Shipping Weight (lbs.): 6.84
    • Unit Dimensions (hwd / in.): 72 x 1.75 x 1.25
    • Unit Weight (lbs.): 5.51
    • Material of Construction: Aluminum
    • Form Factors Supported: Vertical
    • PDU Form Factor: Vertical (0U)
    • Certifications: Tested to UL60950-1 (USA), UL/CSA60950-1 (Canada), NOM (Mexico), FCC Class A (Emissions), RoHS Compliant
    • Product Warranty Period (Worldwide): 2-year limited warranty


  • Item Includes:

    • PDUMV20-72 Metered Vertical PDU
    • (1) L5-20P to 5-20P plug adapter
    • Mounting hardware and spare mounting buttons
    • Instruction manual with warranty information


  • Warranty:

    • 2 Year


  • GTIN:

    0037332182838
