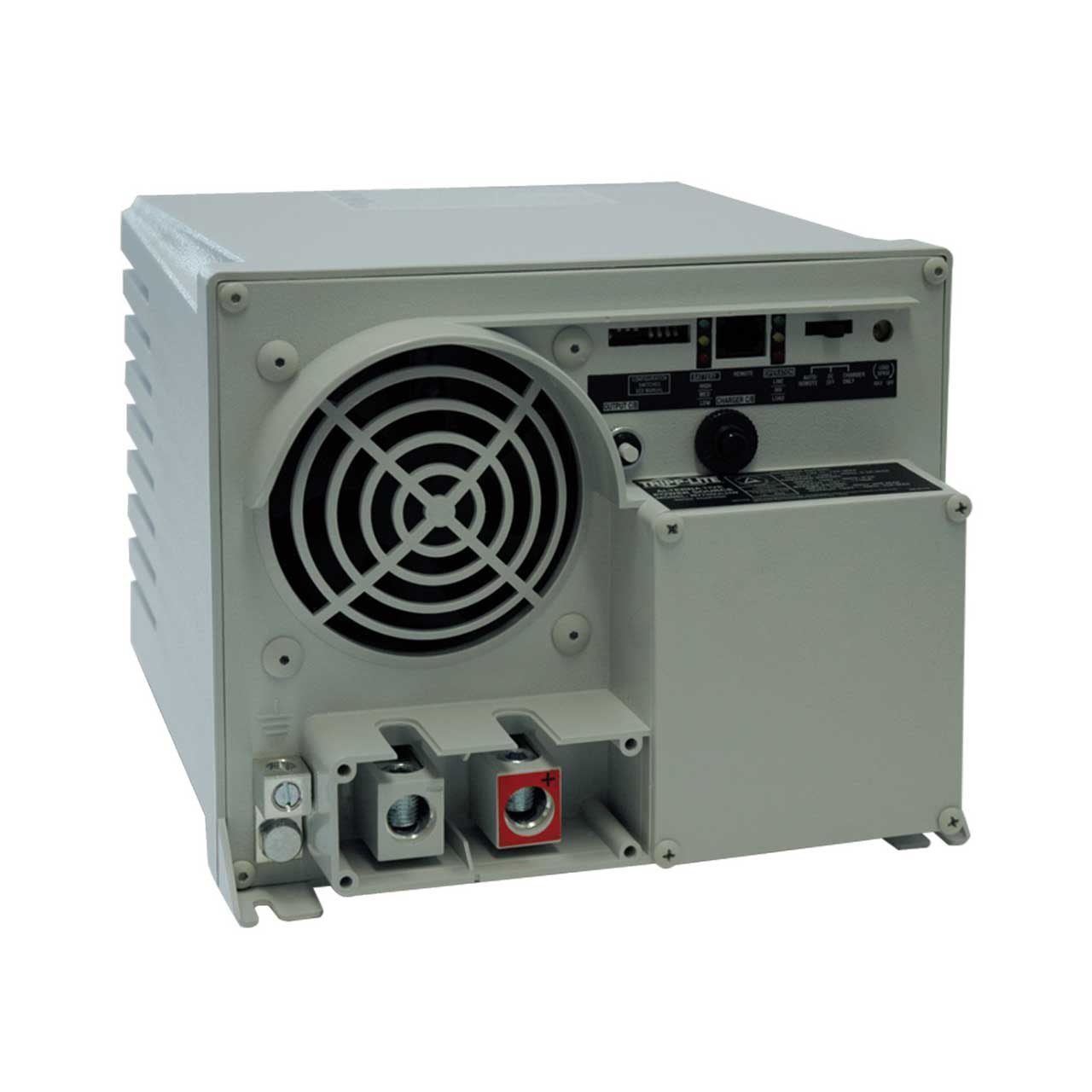

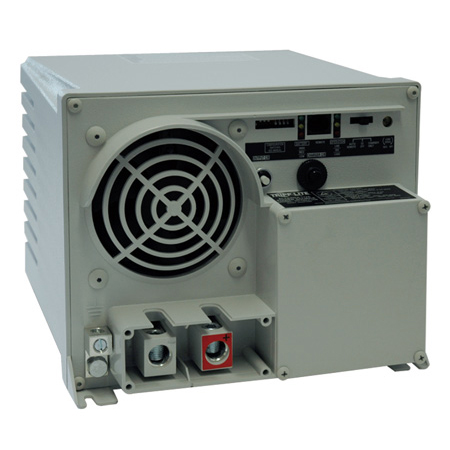

Tripp Lite RV1250ULHW RV 1200W 12V DC to AC Inverter with Isobar Surge UL Tested Hardwired

ITEM #: TRL-RV1250ULHW MFG #: RV1250ULHW

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,067.04

Our Price:

$713.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RV1250ULHW - Overview

    Tripp Lite RV1250ULHW Inverter/Charger is the quiet alternative to gas generators with no fumes, fuel or noise to deal with! It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter suitable for rugged RV applications. Supplies up to 1250 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, selectable 14/55 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separately). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages. NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 200a should be positioned no more than 18" from the RV1250ULHW's battery in the positive line.

    • Features:

      • RV1512UL serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery charger
      • Supports 120V AC output from a 120V AC line power source or 12V DC battery source
      • 16.6 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time
      • 1500 watts continuous AC output in inverter mode, 1500 watts continuous AC output in AC mode

    • Specifications:

      • Style Heavy-duty with built-in battery charger
      • Frequency Compatibility 60 Hz
      • Output Receptacles Hardwire
      • Output (Watts) 1250
      • Continuous Output Capacity (Watts) 1250
      • Peak Output Capacity (Watts) 2500
      • Output Nominal Voltage 120V
      • Output Voltage Regulation LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
      • Output Frequency Regulation 60 Hz (+/- 0.3 Hz)
      • Overload Protection Includes 12A input breaker dedicated to the charging system and 20A output breaker for AC output loads
      • Nominal Input Voltage(s) Supported 120V AC
      • Recommended Electrical Service DC INPUT: Requires 12V DC input source capable of delivering 95A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). For automotive applications, professional hardwire
      • Maximum Input Amps / Watts DC INPUT: Full continuous load - 95A at 12V DC. AC INPUT: 20 amps at 120V AC with full inverter and charger load (12A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output lo
      • Input Connection Type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: hardwire
      • Input Cord Length Details DC INPUT: User supplies cabling. 4 gauge or larger (see manual). AC INPUT: hardwire
      • Voltage Compatibility (VAC) 120
      • Voltage Compatibility (VDC) 12
      • Expandable Battery Runtime Runtime is expandable with any number of user supplied wet or gel type batteries
      • DC System Voltage (VDC) 12
      • Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)
      • Battery Charge 14A / 55A (selectable)
      • LVC (Low Voltage Cut-Off) 10V DC +/-3%
      • Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
      • Switches 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode.
      • AC Suppression Joule Rating 600
      • Shipping Dimensions (hwd / in.) 12.5 x 11 x 10.75
      • Shipping Dimensions (hwd / cm) 31.75 x 27.94 x 27.31
      • Shipping Weight (lbs.) 24.9
      • Shipping Weight (kg) 11.3
      • Unit Dimensions (hwd / in.) 7 x 8.75 x 9
      • Unit Dimensions (hwd / cm) 17.78 x 22.23 x 22.86
      • Unit Weight (lbs.) 23.3
      • Unit Weight (kg) 10.57
      • Cooling Method Multi-speed fan
      • Material of Construction Polycarbonate
      • Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
      • Relative Humidity 0-95% non-condensing
      • Remote Control Capability Yes
      • Certifications Tested to UL458 (USA) and CSA (Canada)
      • Product Warranty Period (U.S. & Canada) 30-month limited warranty
      • Product Warranty Period (International) 1-year limited warranty
      • Product Warranty Period (Mexico) 30-month limited warranty
      • Product Warranty Period (Puerto Rico) 30-month limited warranty

    • GTIN:

      0037332121691
