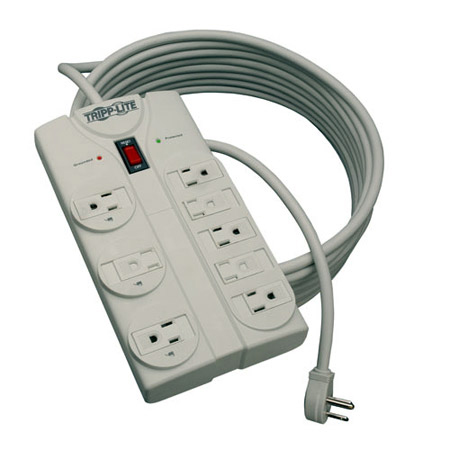

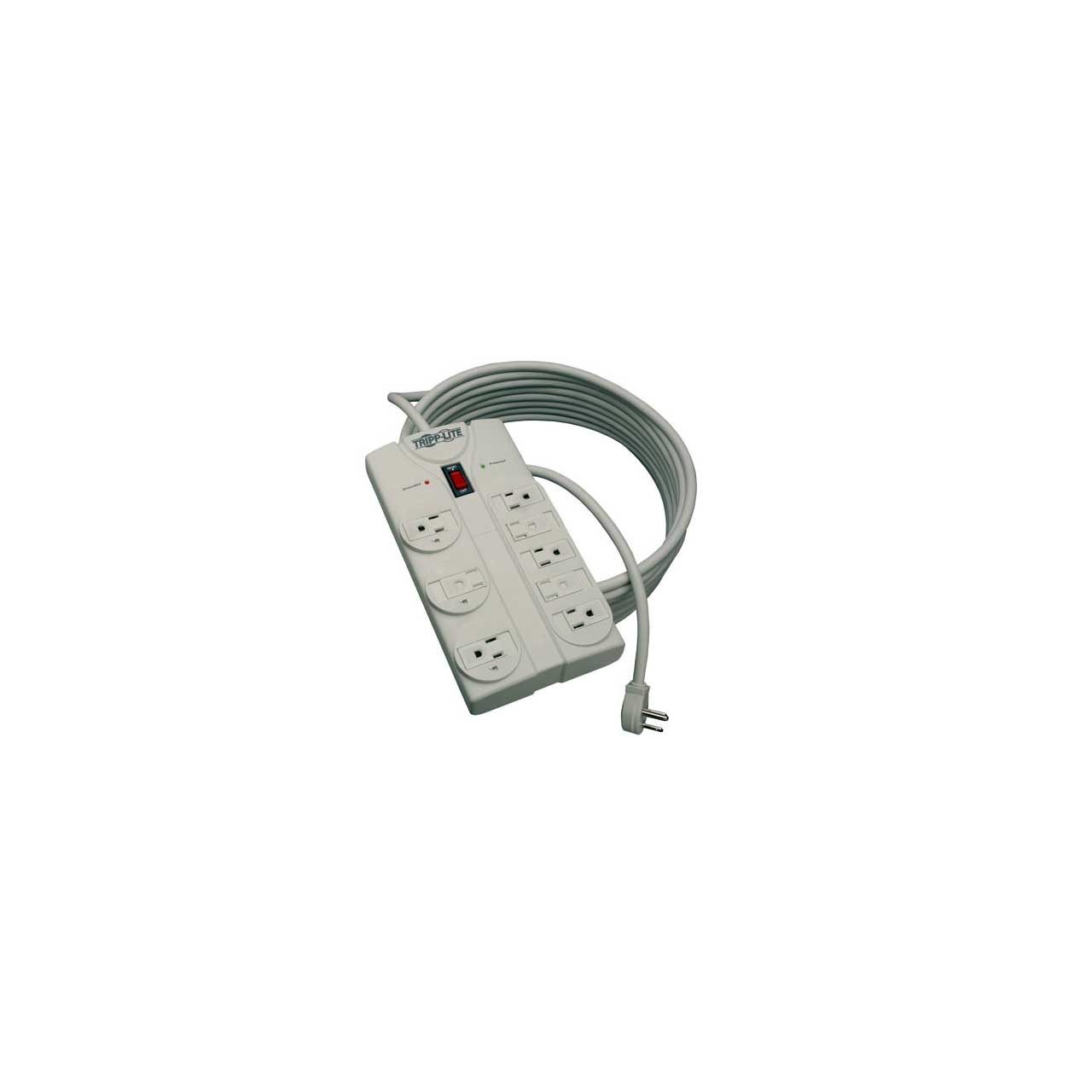

Tripp Lite TLP825 Surge Protector 120V 5-15R 8 Outlet 25ft Cord 1440 Joule

ITEM #: TRL-TLP825 MFG #: TLP825

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$84.80

Our Price:

$59.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TLP825 - Overview

    Tripp Lite's TLP825 offers complete AC surge suppression for comprehensive system protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Heavy grade AC surge suppression shields connected equipment from damage and performance problems due to the heaviest transient surges. TLP825 offers 8 total outlets, 25 foot cord with space-saving angled plug and diagnostic LEDs to warn of wiring problems and suppressor damage. Network grade AC suppression rated at 1440 joules shields equipment from surges and line noise. Integrated child-safety outlet covers safely seal off unused outlets. Attractive white housing with keyhole mounting slots and 3 designated transformer plug outlets offers convenient protection of desktop computer equipment and accessories. $75,000 connected equipment insurance (U.S., Canada, and Puerto Rico only).PLUG/OUTLETS: Input: NEMA5-15P/Output: 8 NEMA5-15R/25 ft. AC line cordELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA5-15R wall receptacle)FORMAT: Corded multi-outlet strip with transformer spaced outletsSUPPRESSION AC: 150V RMS Clamping/1440 joules.

    What is the main culprit of electrical surges?
    Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.
    When should you use a surge protector?
    All the time. The real question is really which devices you should connect to a surge protector. You don’t need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It’s better to be safe than sorry.

    • Features:

      • 1440 joules AC surge suppression shields equipment from the strongest surges and line noise
      • 8 AC outlets with 3 transformer plug outlet that doesn't block remaining outlets
      • 25 foot AC line cable conveniently reaches distant outlets
      • Built-in power switch with integrated 15 amp circuit breaker offers power control and overload protection over all outlets

    • Specifications:

      • Style Strip
      • Frequency Compatibility 50 / 60 Hz
      • Output Receptacles (8) 5-15R
      • Output (Watts) 1800
      • Circuit Breaker (amps) 15
      • Transformer Accommodation Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 6 transformers total
      • Outlet Safety Covers Includes built-in sliding outlet safety covers
      • Outlet Orientation Single row of 5, plus a second row of 3 for transformer accommodation
      • USB Charging No
      • Nominal Input Voltage(s) Supported 120V AC
      • Recommended Electrical Service 120V (110-125V)
      • Input Connection Type NEMA 5-15P
      • Input Plug Features Space-saving right angle input plug
      • Input Cord Length (ft.) 25
      • Input Cord Length (m) 7.62
      • Input Cord Gauge Type 14 gauge, SJT
      • Voltage Compatibility (VAC) 120
      • Maximum Surge Amps 84000
      • Switches Combination AC circuit breaker and 2 position red illuminated on/off power switch
      • Diagnostic LEDs Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
      • AC Suppression Joule Rating 1440
      • AC Suppression Response Time < 1 ns
      • Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
      • Clamping Voltage (RMS) 150
      • UL1449 Let Through Rating 330/400/400
      • EMI / RFI Filtering Up to 40 dB
      • Telephone/DSL Protection No
      • Cable (Coax) Protection No
      • Network (Ethernet) Protection No
      • Shipping Dimensions (hwd / in.) 12.40 x 5.11 x 4.03
      • Shipping Dimensions (hwd / cm) 31.50 x 12.98 x 10.24
      • Shipping Weight (lbs.) 3.66
      • Shipping Weight (kg) 1.66
      • Unit Dimensions (hwd / in.) 4.86 x 9.55 x 1.51
      • Unit Dimensions (hwd / cm) 12.34 x 24.26 x 3.84
      • Unit Weight (lbs.) 3.46
      • Unit Weight (kg) 1.57
      • Material of Construction Plastic
      • Integrated Keyhole Mounting Tabs Keyhole mounting slots enable wall mounting
      • Housing Color Light Gray
      • Receptacle Color Light Gray
      • Color (AC Line Cord) Light Gray
      • Outlets Measurement (Center to Center) Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm
      • Keyhole Slot Mounting Measurement (Center to Center) Distance between horizontal slots = 75mm; Distance between vertical slots = 41.6mm
      • Right-Angle Plug Yes
      • Additional International Approvals RoHS
      • UL1449 3rd Edition (AC Suppression) UL1449 3RD EDITION
      • UL1363 (Power Tap) UL1363
      • cUL / CSA (Canada) cUL
      • Approvals Exceeds IEEE 587 category A&B specifications
      • Product Warranty Period (Worldwide) Lifetime limited warranty
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $75,000 Ultimate Lifetime Insurance

    • GTIN:

      0037332138248
