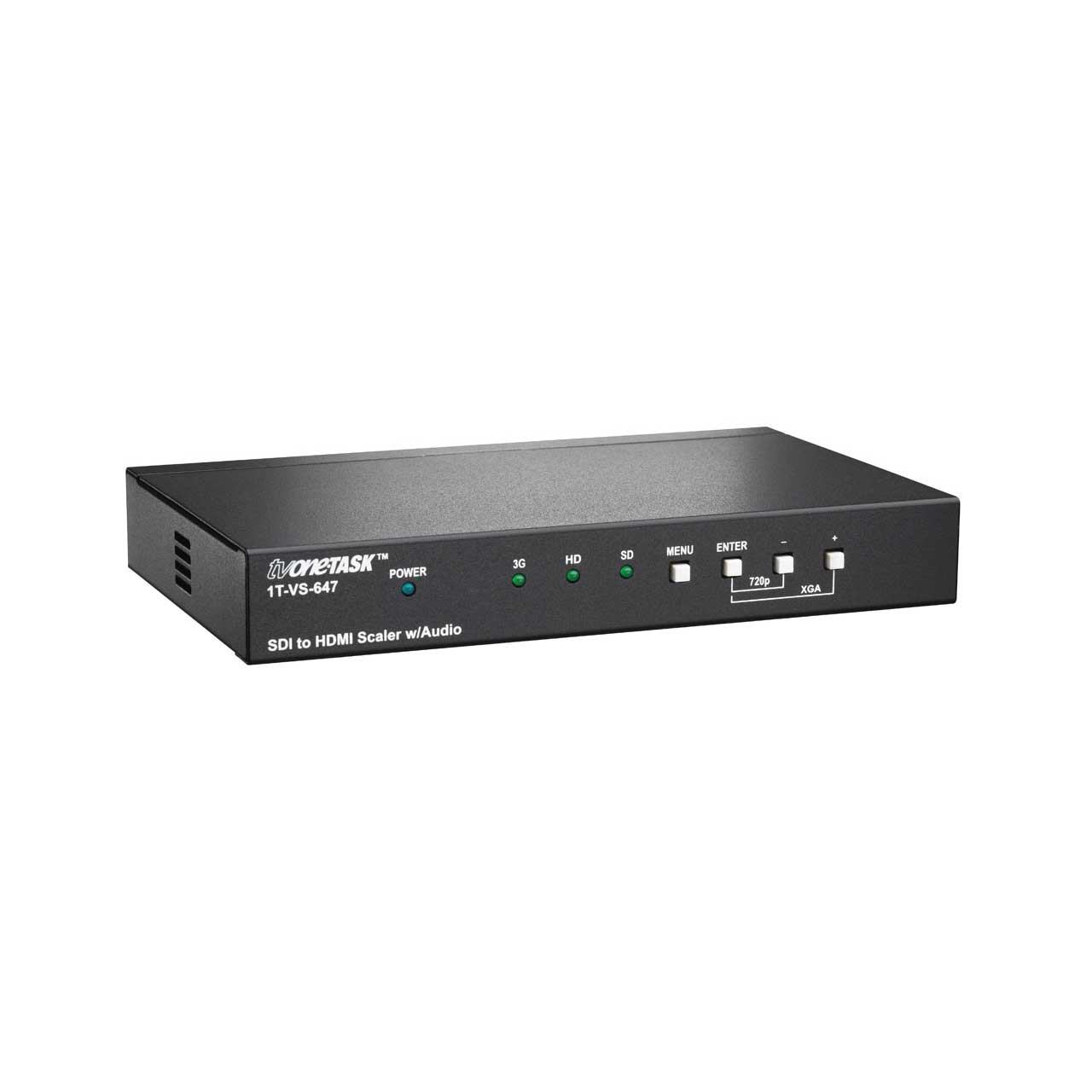

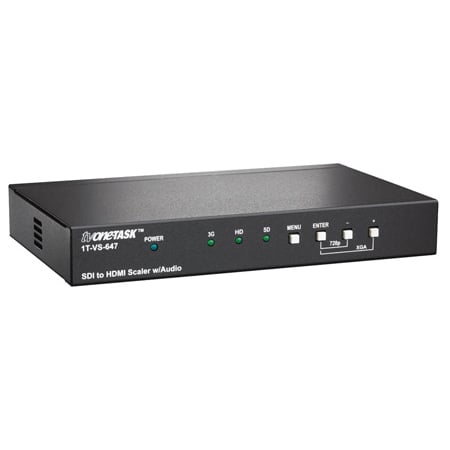

tvONE 1T-VS-647 SDI to HDMI Scaler w/Audio

ITEM #: TV1-1T-VS-647 MFG #: 1T-VS-647

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$825.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    1T-VS-647 - Overview

    The 1T-VS-647 SDI to HDMI Scaler with Audio converts a variety of SDI transmission rates and video resolutions into an HDMI signal. It also provides audio flexibility by outputting the audio embedded in the SDI signal to external connectors (both analog and digital formats) for distribution separate from the HDMI data stream. Bit rates to 2.970Gb/s allow processing of resolutions up to and including 1080p. SMPTE standards 425 A&B, 424M, 292M & 259M-C are supported and SMPTE 425M level B to level A Conversion is also standard. Automatic Input Video Format Detection and an On Screen Menu display make operation easy and intuitive. Additional capabilities include SDI loop-thru with equalization and reclocking which means the 1T-VS-647 SDI to HDMI Scaler doubles as an SDI repeater. Finally, as part of the SDI to HDMI scaling process, SDI timing is automatically converted to PC timing parameters.

    • Features:

      • Bitrates to 2.970Gb/s
      • Resolutions up to and including 1080p
      • De-embedded Audio – Analog and Digital Outputs
      • SDI Equalized and Re-Clocked loop-thru
      • Automatic Detection of Input Format
      • SMPTE 425 A&B, 424M, 292M & 259M-C

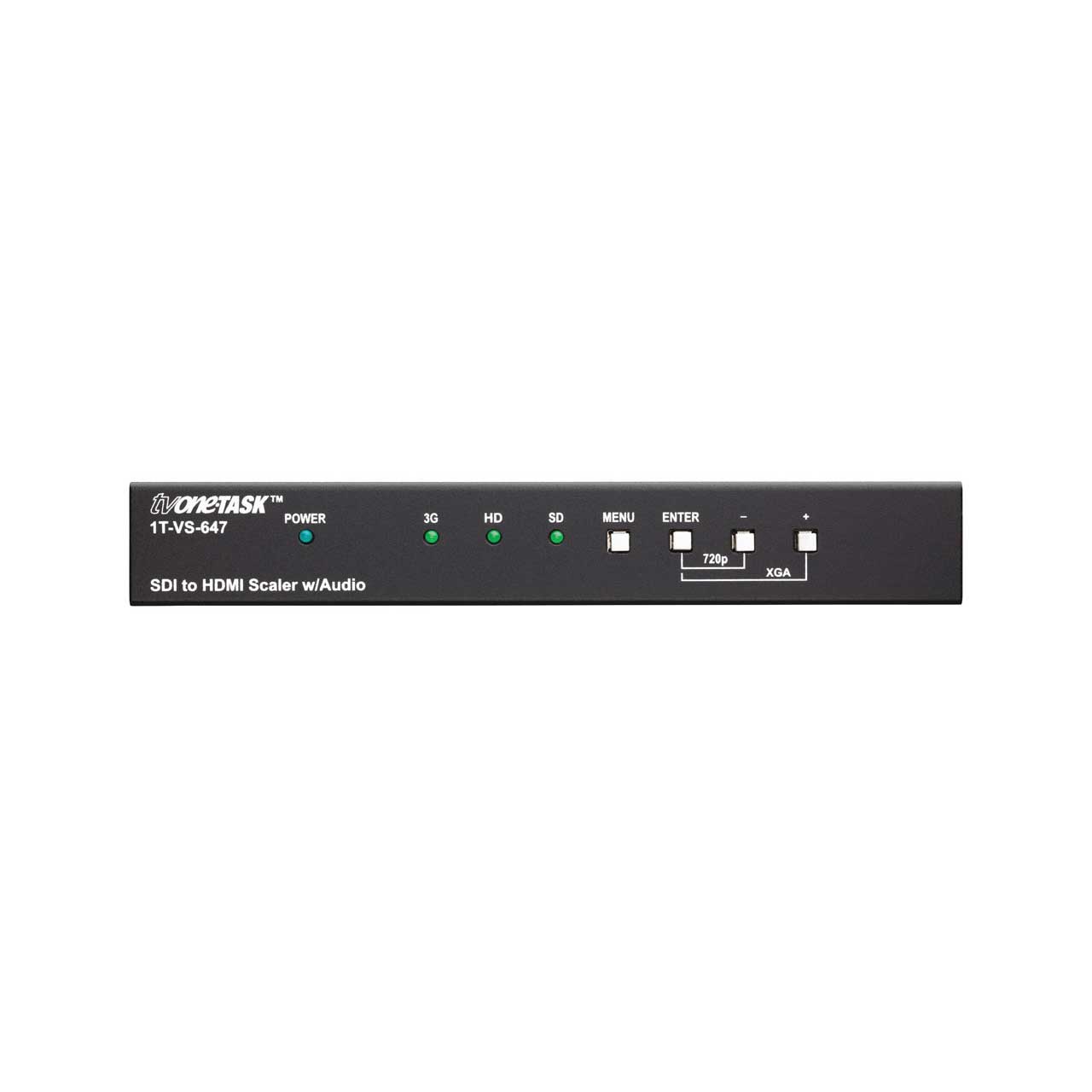

      • OSD (On Screen Display)
      • Converts SDI HD Timing to PC Timing

    • Specifications:

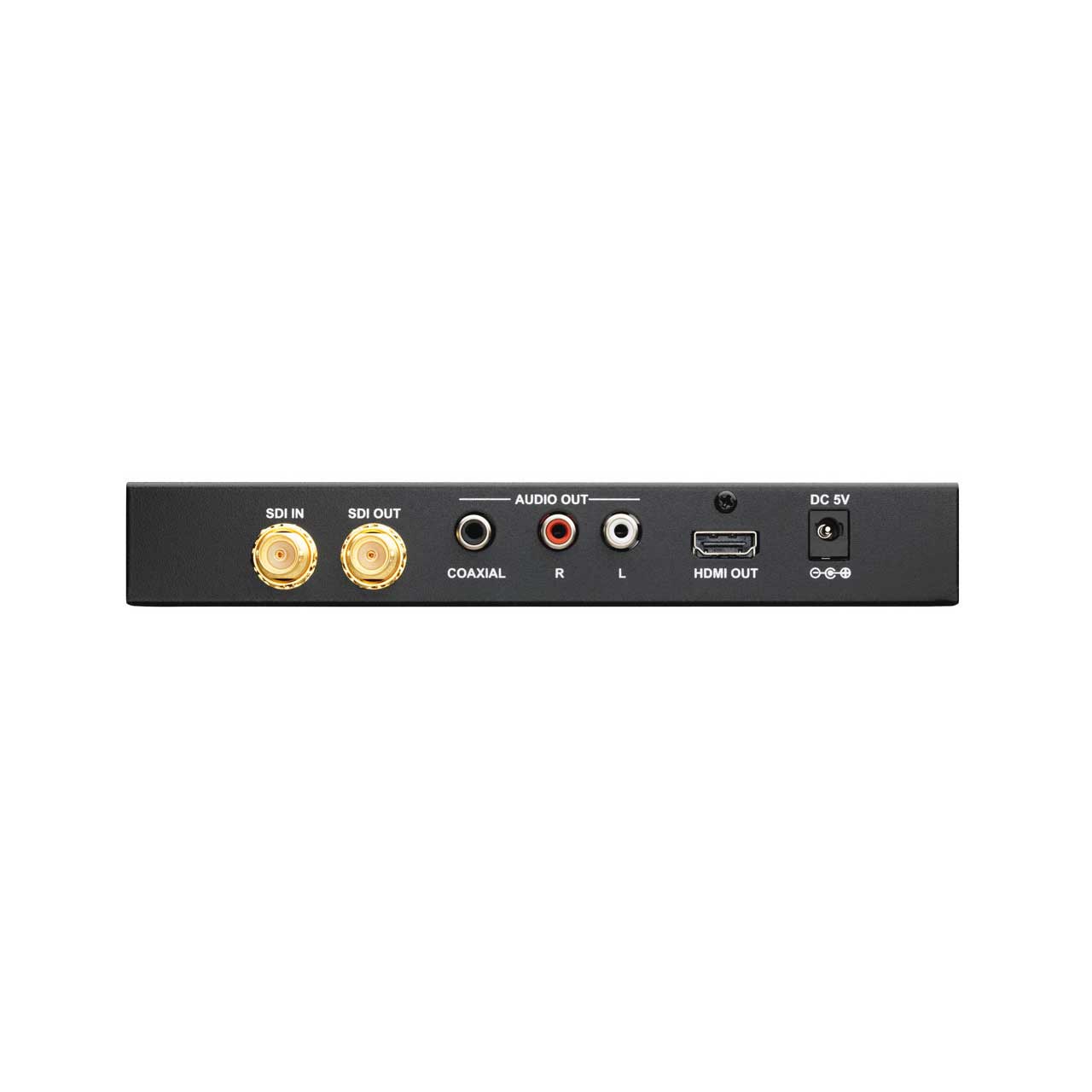

      • Video/Audio Input: SDI SD, HD, 3G-SDI Via 2x BNC (Input w/Loop-Thru)
      • Video Output: HDMI v1.3 Via 1x HDMI Connector
      • Audio Outputs: Digital Audio Via 1x RCA, 48KHz / Analog Audio Via 2x RCA, 48KHz
      • Transmission Bitrates: SDI Inputs 2.970Gbit/s & 2.970/1.001 Gbit/s
      • Frequency Bandwidth: MHz/Link 165MHz
      • SDI Loop Thru: Signal Processing Equalization & Re-Clocking
      • Cable Distance SD=300M, HD=200M, 3G=100M
      • SDI Format Support
      • SD 480i, 576i
      • HD 720p, 1080i, 1080p 24/25/30
      • 3G-SDI 1080p 50/60
      • Signal Conversion: SMPTE Standard 425M Level B to Level A
      • Max Output Resolution 1080p 60, WUXGA
      • De-Embedded Audio: Output Signal Types Digital Coaxial, Analog R&L
      • Channel Compliment 4 Groups, 2 per Group
