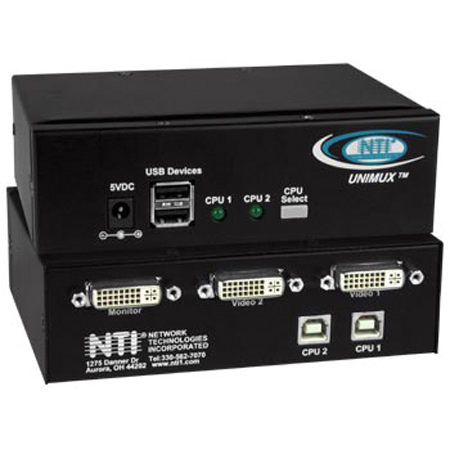

NTI UNIMUX-DVI-2 2-Port DVI USB KVM Switch

ITEM #: UNIMUX-DVI-2 MFG #: UNIMUX-DVI-2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the UNIMUX-DVI-2

UNIMUX-DVI-2 - Overview

The UNIMUX DVI USB KVM Switch allows you to control two single link DVI USB computers with one DVI monitor, USB keyboard and USB mouse.

Control up to two single link DVI USB computers from one USB keyboard, USB mouse and DVI monitor.

Also known as: USB DVI KVM switch, DVI USB KVM Switch, 2 port USB Switch for DVI Flat Panel Display Monitors, keyboard DVI monitor mouse switch

  • Features:

    • Incorporates NTI's patented true autoboot USB switching - all attached USB PCs, SUNs and MACs can be booted simultaneously.
    • Supports computer resolutions to 1920x1200 and HDTV resolutions to 1080p.
    • Fully compliant with USB (1.0, 1.1) standards.
    • USB SUN start-up keys are supported.
    • Supports MAC soft (keyboard) power-on.
    • SUN extra keys are emulated on USB keyboards with Windows keyboard layouts.
    • Supports DVI interface for crisp and clear video quality on Flat Panel Display.
    • Front-panel push button and hotkeys for channel selection.
    • LED indicators on switch show which port is active.
    • Auto Scan computers to catch system failures early.
    • Rugged metal enclosure.


  • Specifications:

    • Hosts
    • Female DVI-I single link connectors.
    • Signal type: single link digital DVI.
    • Female USB Type B connectors.
    • Supports USB computers (PC, SUN, and MAC) with DVI video.
    • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD and MAC OS 9/10.

      Monitor
    • Supports computer resolutions to 1920x1200 and HDTV resolutions to 1080p.
    • Female DVI-I single link connector.
    • Single link DVI-D signal.

      Mouse
    • Female USB Type A connector.
    • Compatible with most USB mice, including USB IntelliMouser.
    • Mouse is hot-pluggable.

      Power
    • 110 or 220 VAC at 50 or 60 Hz via AC adapter (supplied).

      Keyboard
    • Female USB Type A connector.
    • Compatible with most USB keyboards.
    • Keyboard is hot-pluggable.
    • Supports SUN and MAC extra keys.

      Cables
    • Interface cables between your computers and the switch are required for proper operation. Use DVI-IS-xx-MM and USB-AB-xM to connect computers to the switch.

      Dimensions
    • WxDxH: 5.5x4.3x1.6 in (140x109x41 mm)
    • Weight: 1.2 lbs. (0.54 kg)

      Environmental
    • Operating temperature: 32 to 100°F (0 to 38°C).
    • Storage temperature: -20 to 140°F (-30 to 60°C).
    • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

      Regulatory Approval
    • CE
    • TAA compliant
