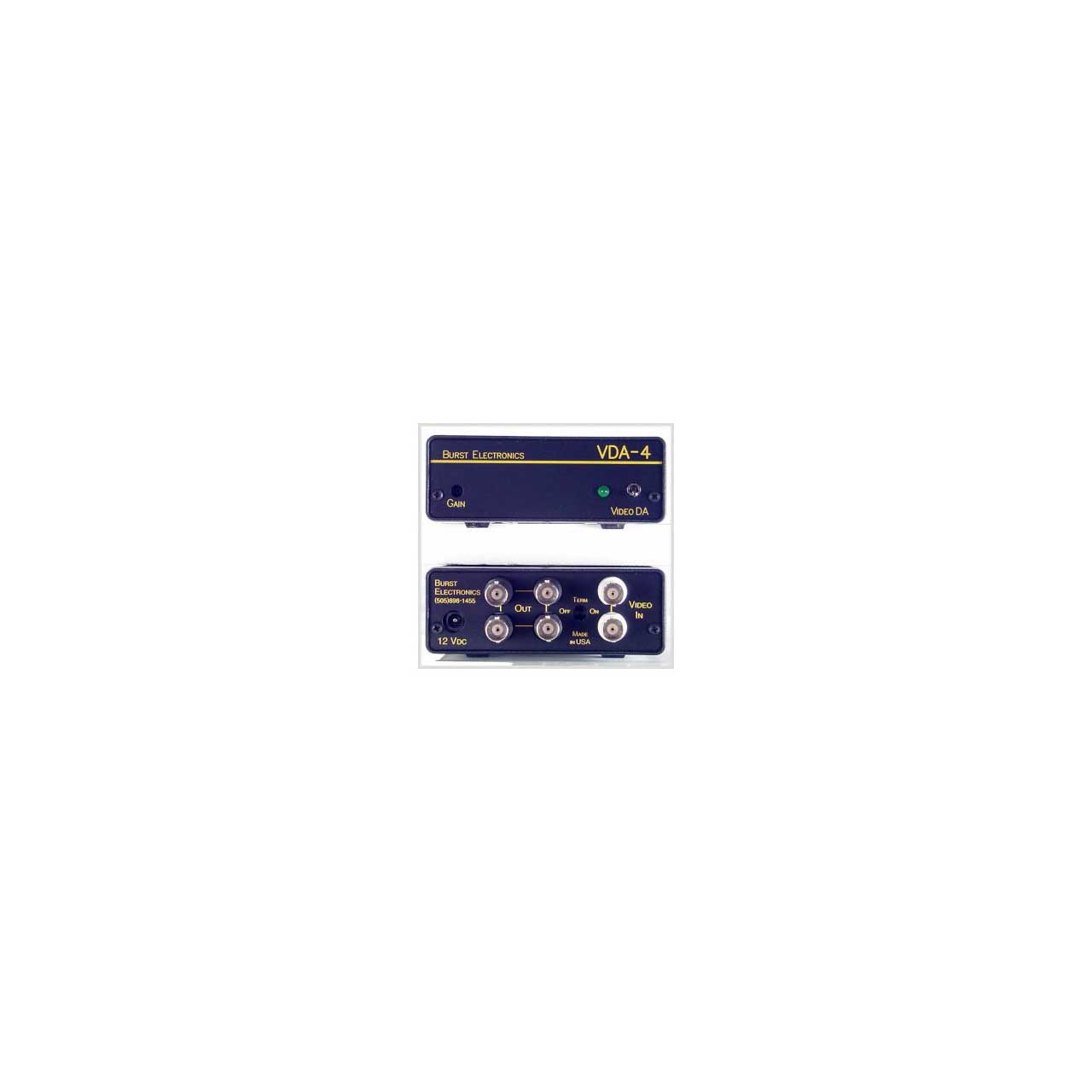

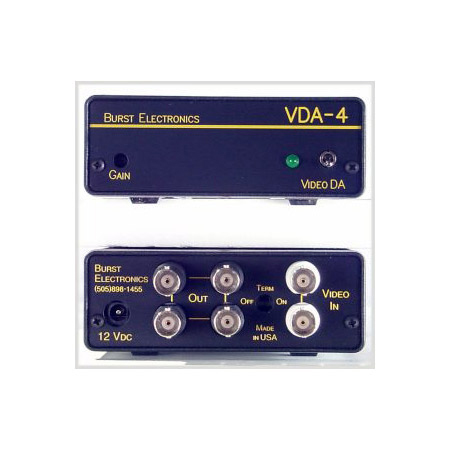

Burst VDA-4YC S-Video 1x4 Distribution Amplifier

ITEM #: VDA-4YC MFG #: VDA-4YC

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$528.00

Our Price:

$461.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    VDA-4YC - Overview

    The four output VDA-4YC is a compact unit featuring a looping input. A wide bandwidth of 33 MHz assures clean video, Small enough to fit most anywhere but with no sacrifice in performance. Gain is adjustable plus or minus 3 dB. There is an internal jumper to select 75 Ohm termination, no need for an external terminator. Enclosure that can be for either table top use or rack mounted using the optional RM-4.

    • Specifications:

      • Input: 1 volt standard video
      • Input Impedance: Hi-Z or 751/2, looping (jumper selected)
      • Coupling: DC throughout
      • Internal Power: Plus & Minus 5 Vdc derived from ext.12 Volt
      • Outputs: Four, 751/2
      • Output Voltage: 4 Vpp max
      • Delay Input to Output: 10 nS
      • Output Impedance: 751/2 1%
      • Frequency Response: DC - 33MHz 0.2dB
      • Gain: Unity, adjustable plus/minus 3dB
      • Diff.Gain: 0.1%
      • Diff.Phase: 0.1 degrees
      • Video Connector: 4-pin mini DIN
      • Output Protection: Open or Short, infinite duration
      • Power: 120VAC 60Hz, 3 Watts, UL Listed Wall Module (incl.)
      • DC Powered: 10-16 Vdc (polarity insensitive), 150 mAdc
      • Size (Micro DA): 4.4W x 2.4H x 1.3D inches
      • Size (VDA-4): 4.2W x 1.5H x 5.5D inches
      • Rack Mount: Optional, Model RM-4
      • Warranty: One Year Parts and Labor
