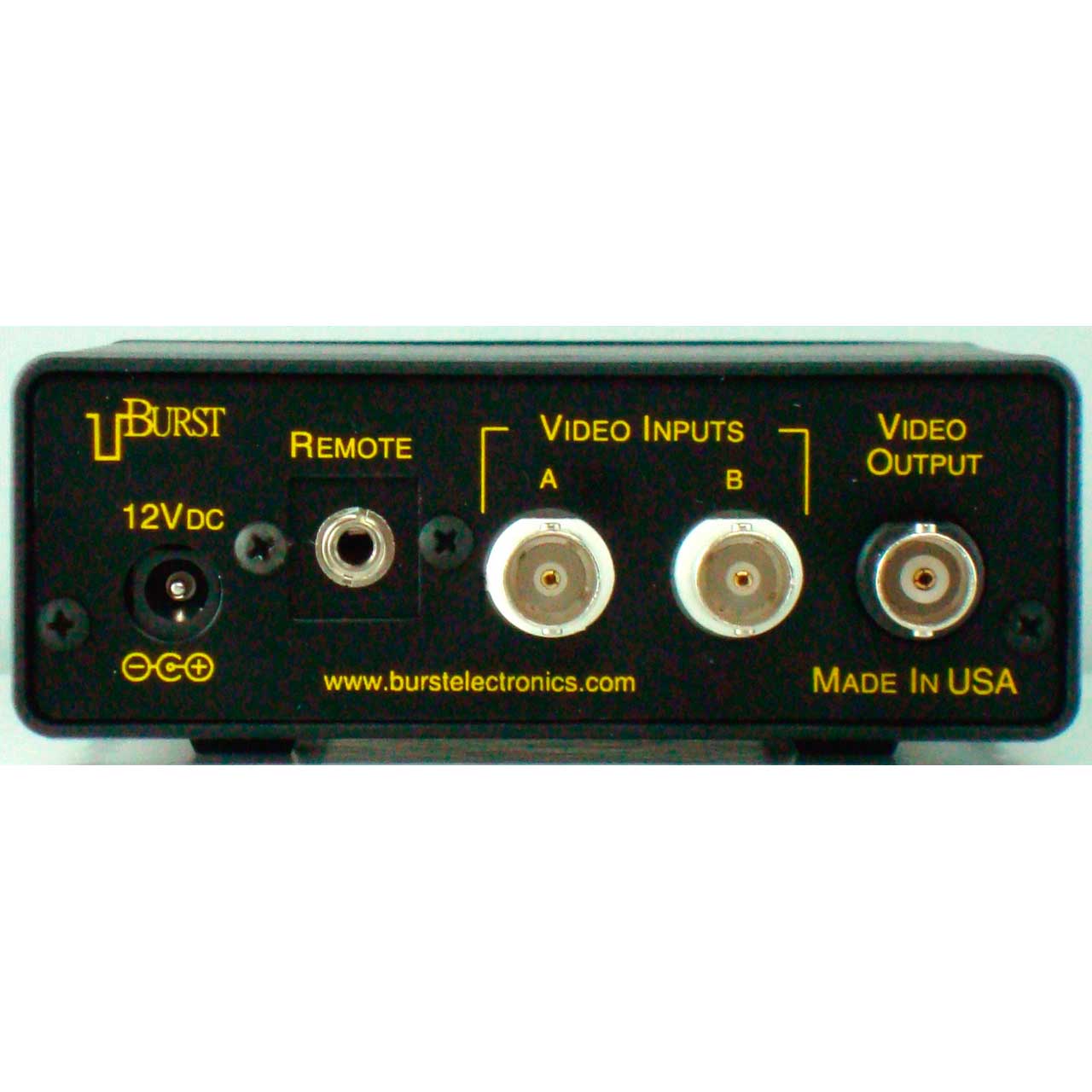

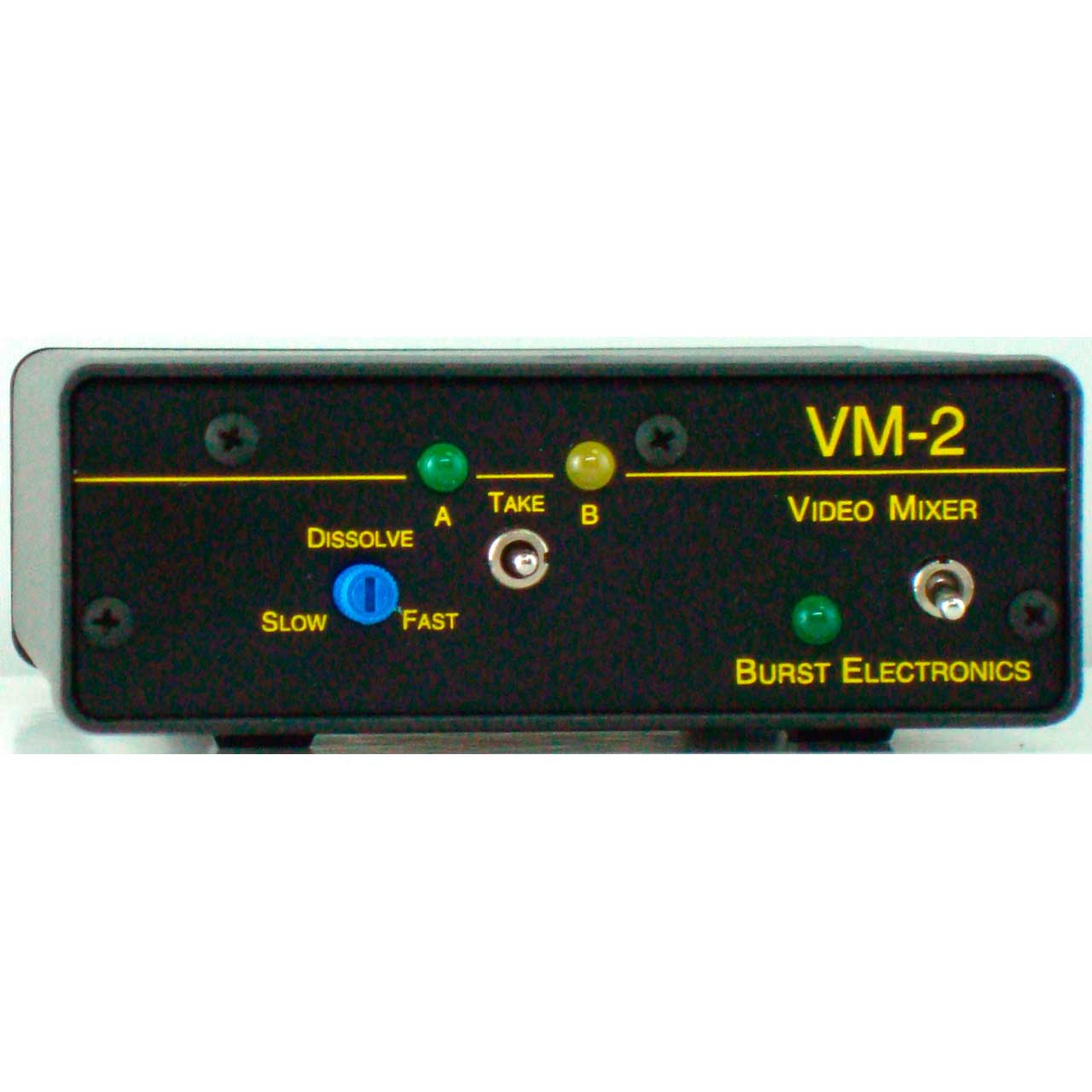

Burst VM-2 2x1 Video Mixer (PAL)

ITEM #: VM2-PAL MFG #: VM-2 PAL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$610.50

Our Price:

$460.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VM-2 PAL - Overview

The VM-2 is a two channel video mixer. The unit allows fade between two genlocked video signals. The fade "take" is both local and GPI remote controlled. Fade rate is adjustable from approximately 5 frames to 5 seconds. The VM-2 is similar to the VMF-2, but without the Remote Control Unit (RCU). The VM2 will Fade from A to B and B to A, and features a GPI trigger. If fade to black is required, then Model VMF-2 is the solution.

  • Specifications:

    • Input/Output: 1 Volt standard video Input Impedance: HiZ or 75 Ohms 1%, looping (jumper/switch selected) Output Impedance: 75 Ohms 1% Video Connector: BNC GPI Trigger: Contact closure initiates action Output Protection: Open or Short, infinite duration Preset Fade Speeds: 1/2 sec, 1 sec, 2 sec User Adjustable Speeds: 5 frame to 5 seconds Bandwidth: 10 MHz @ 0.5 dB Diff Gain: 0.1% Diff Phase: 0.1 deg S/N: 60 dB Crosstalk: 60 dB Size: 4.1 W x 5.5 D x 1.5 H inches DC Powered: 11-14 Vdc Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed Warranty: One Year Parts and Labor
