Burst VM-2 2x1 Video Mixer
  • Burst VM-2 2x1 Video Mixer
  • Burst VM-2 2x1 Video Mixer
Questions? Ask a Markertek Expert:
800-522-2025 Email

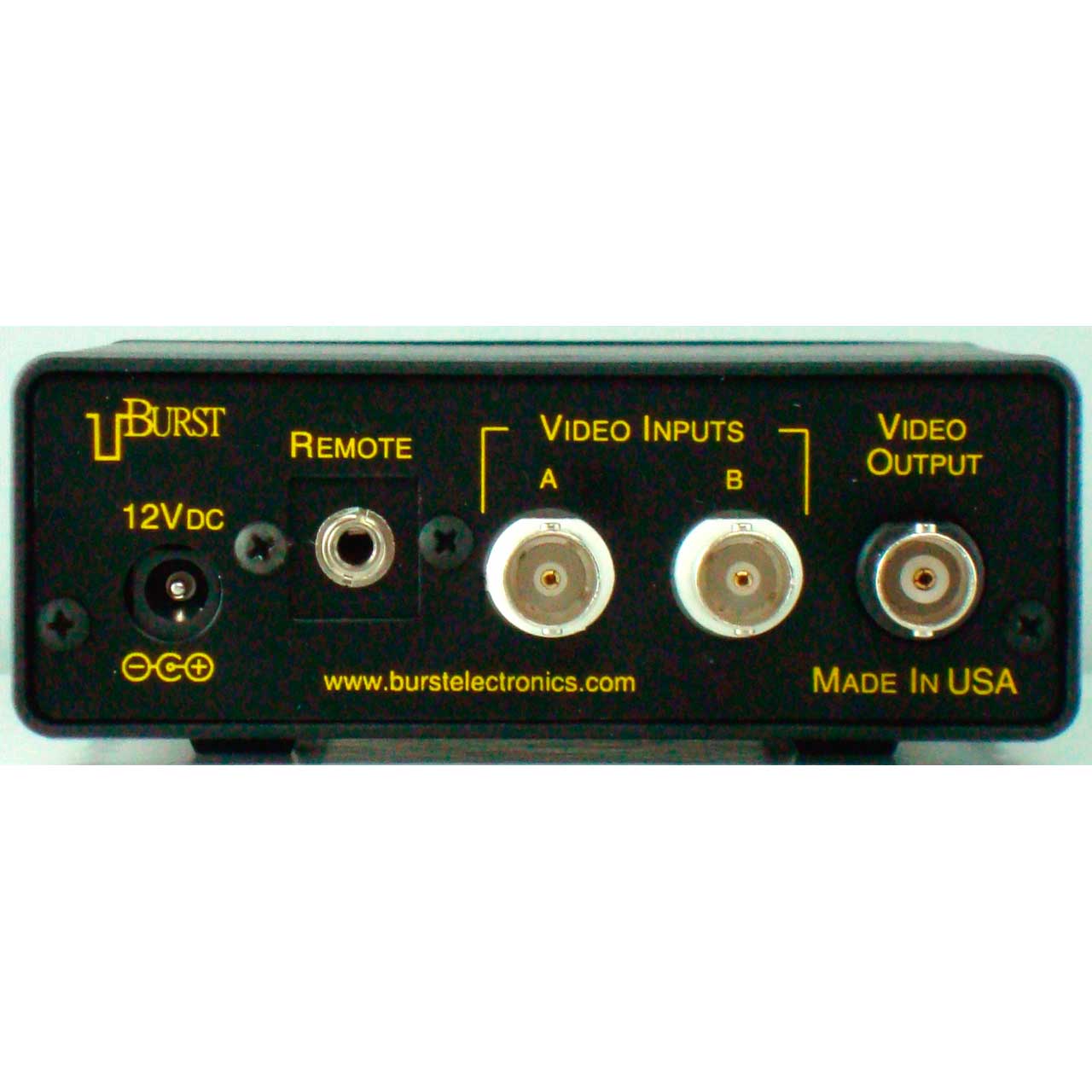

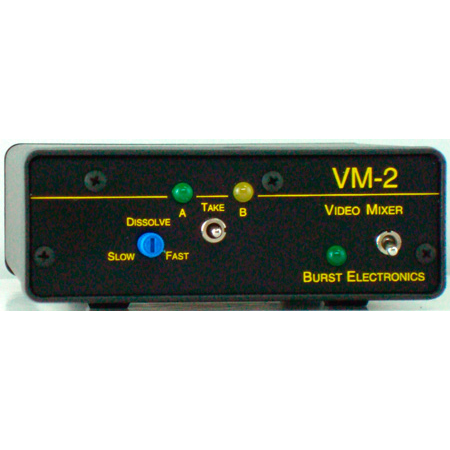

Burst VM-2 2x1 Video Mixer

Manufacturer: Burst Electronics Inc

Item #: VM2   •   MFG #: VM2







The VM-2 is a two channel video mixer. The unit allows fade between two genlocked video signals. The fade "take" is both local and GPI remote controlled. Fade rate is adjustable from approximately 5 frames to 5 seconds. The VM-2 is similar to the VMF-2, but without the Remote Control Unit (RCU). The VM2 will Fade from A to B and B to A, and features a GPI trigger. If fade to black is required, then Model VMF-2 is the solution.

  • Specifications

    • Input/Output: 1 Volt standard video
    • Input Impedance: HiZ or 75 Ohms 1%, looping (jumper/switch selected)
    • Output Impedance: 75 Ohms 1%
    • Video Connector: BNC
    • GPI Trigger: Contact closure initiates action
    • Output Protection: Open or Short, infinite duration
    • Preset Fade Speeds: 1/2 sec, 1 sec, 2 sec
    • User Adjustable Speeds: 5 frame to 5 seconds
    • Bandwidth: 10 MHz @ 0.5 dB
    • Diff Gain: 0.1%
    • Diff Phase: 0.1 deg
    • S/N: 60 dB
    • Crosstalk: 60 dB
    • Size: 4.1 W x 5.5 D x 1.5 H inches
    • DC Powered: 11-14 Vdc
    • Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed
    • Warranty: One Year Parts and Labor
