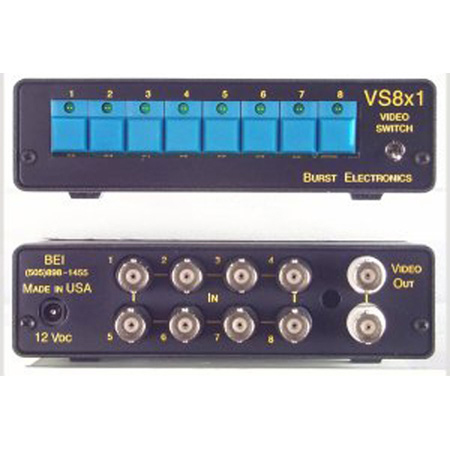

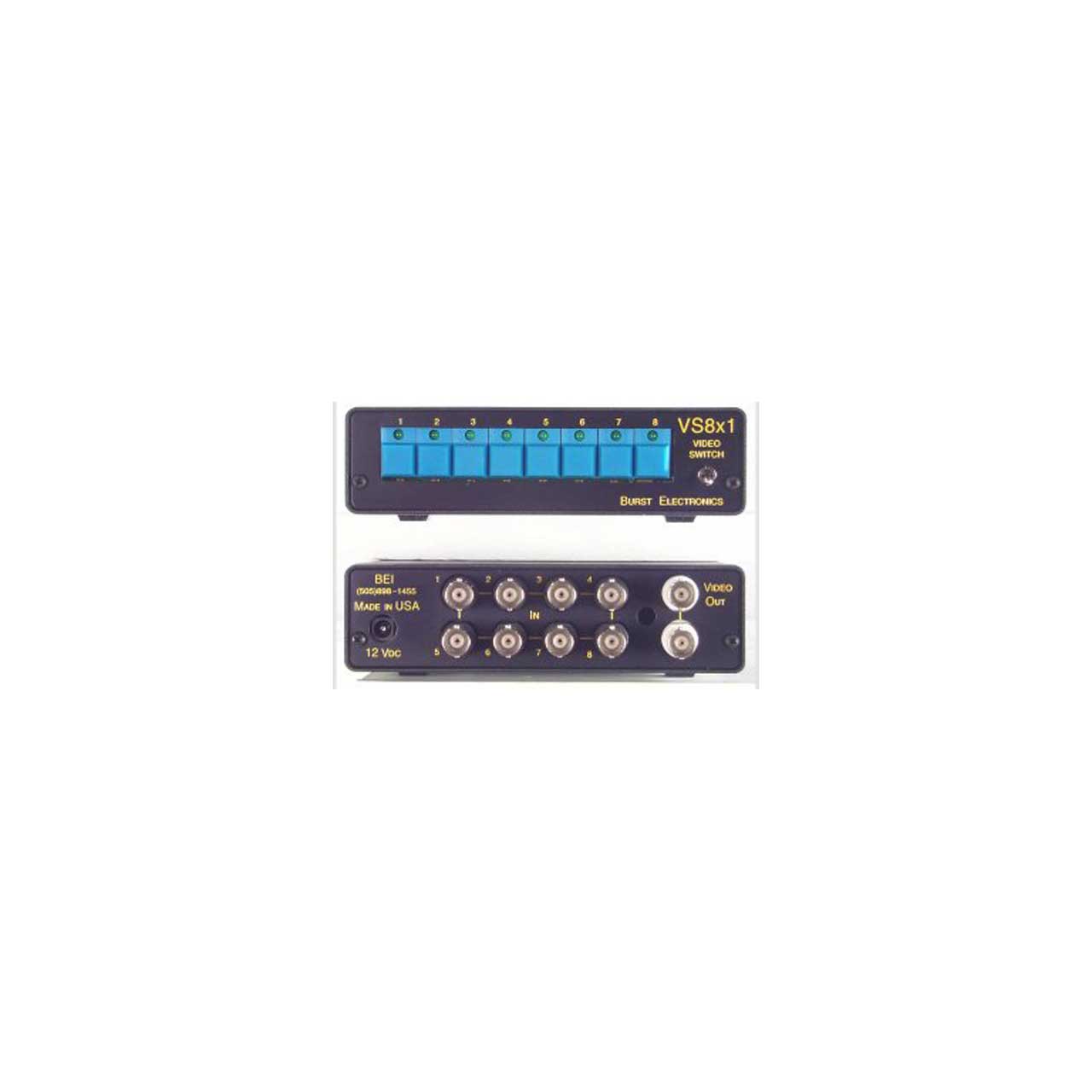

    Burst VS-8X1R Vertical Interval 8x1 Active Switcher with RS232 on 3.5mm Conn

    Manufacturer: Burst Electronics Inc

    Item #: VS-8X1R   •   MFG #: VS-8X1R








    Types:





    Share!





    The VS4x1 is a four input, one output vertical interval video switcher. A special feature of the VS4x1 is digital logic that inhibits selection of an unused input, i.e. one where no video is present. The output is dc clamped to zero Volts. This allows for jump free switching between genlocked sources. The VS4x1 can be slaved with the AS4x1 audio switcher to allow audio follow video and breakaway switching. The VS4x1 is 12 Vdc powered, wall module included.


    • Specifications

      • Input/Output: 1 Volt standard video
      • Input Impedance: HiZ or 75 Ohms 1%, looping (jumper/switch selected)
      • Output Impedance: 75 Ohms 1%
      • Video Connector: BNC, 4 pin MiniDIN for Y/C option
      • Output Protection: Open or Short, infinite duration
      • Video Standard: Both NTSC and PAL
      • Gain: Unity
      • Bandwidth: 25 MHz @ 1 dB
      • Diff Gain: 0.1%
      • Diff Phase: 0.1 deg
      • S/N: 60 dB
      • Crosstalk: 60 dB
      • Switching: Vertical Interval
      • Size: 4.1 W x 5.5 D x 1.5 H inches
      • DC Powered: 11-14 Vdc
      • Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed
      • Warranty: Two Years Parts and Labor
