Burst VSA Video Detect / Loss of Video Switch with Audio Follow

ITEM #: VSA MFG #: VSA

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$486.75

Our Price:

$413.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    VSA - Overview

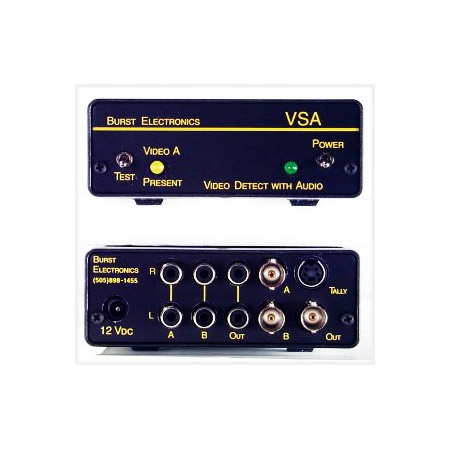

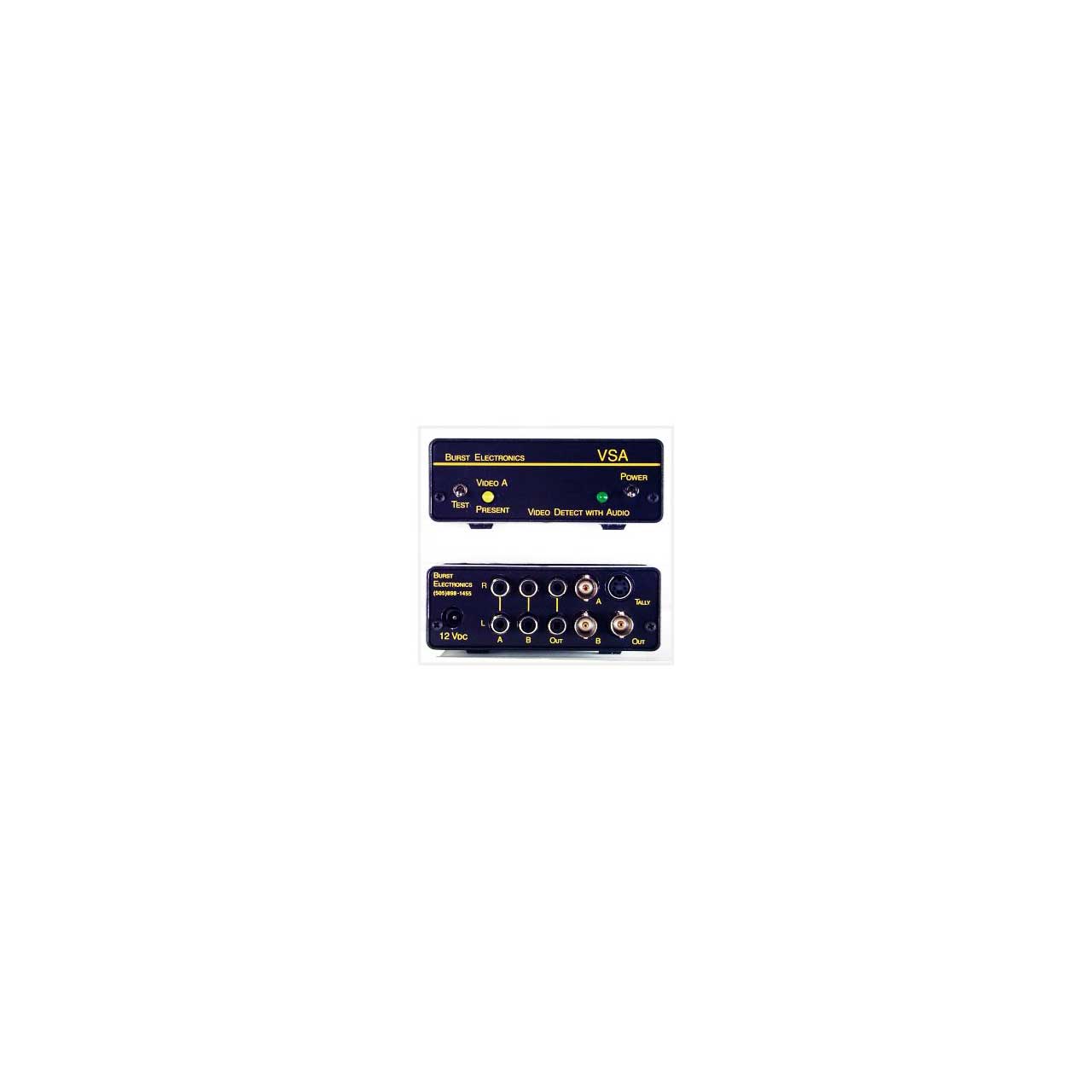

    The Burst Electronics Model VSA detects the presence of composite video at its A input and outputs this video. If loss of video on the A input is detected, then the unit switches to the B input, lights a Red LED, and energizes an internal "tally" relay. This relay may be used to control external devices. The tally relay has both normally closed and normally open contacts (Form C relay). This Model includes stereo audio switching, audio follow video.

    The video detection process utilizes a sophisticated sync separator circuit and a micro controller IC to analyze the A input. The composite sync tip amplitude, vertical sync, horizontal sync, and frame pulse are all analyzed by the micro controller to determine the quality of the incoming video on the A input.

    • Specifications:

      • Video detect: Sync tip, vertical sync, and frame pulse (selectable) of A input
      • Sync Detect Level: -5 to -30 IRE, adjustable
      • Delay: 0.1 seconds
      • Indicator: LED for A input
      • Input/Output: 1 Volt standard video
      • Input Impedance: HiZ or 75 Ohms 1%, looping (jumper/switch selected)
      • Output Impedance: 75 Ohms 1%
      • Video Connector: BNC
      • Tally Connector: 4 pin MiniDIN
      • Dimensions: 4.4 W x 1.2 H x 2.4 D (inches)
      • DC Powered: 11-14 Vdc (see chart for current requirements)
      • Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed
      • Warranty: Two Years Parts and Labor
