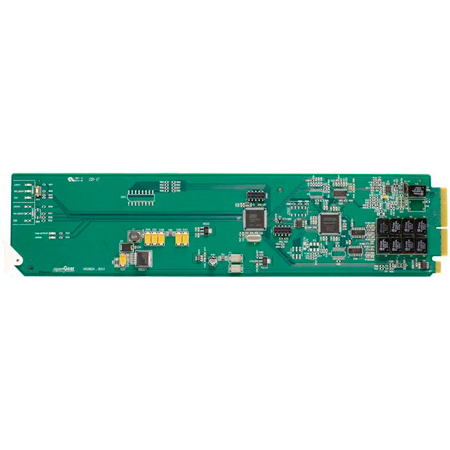

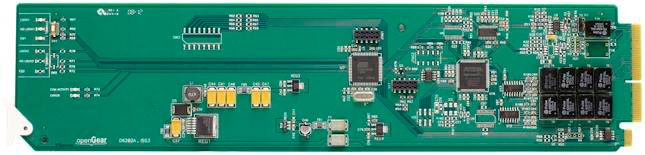

Ward-Beck D6202B openGear Dual 1x4 AES/EBU Reclocking DA w/SRC - 110 Ohm

ITEM #: WARD-D6202B MFG #: D6202B

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WARD-D6202B

D6202B - Overview

The Ward-Beck D6202B is a dual 1 x 4 AES distribution amplifier designed for use in 110 Ohm, balanced installations. It can provide four copies of each incoming signal when used with a T6303A rear assembly. It may also be used as a 1 x 8 AES distribution amplifier with SRC to provide up to eight outputs that are sample rate converted. For high density applications when used with the T6403A up to twenty 1 x 4 AES DA's with SRC can be provided in a single two rack unit frame. The D6202B supports audio sampling frequencies from 30kHz to 192 kHz. Cable equalization and reclocking techniques enable the D6202B to recover the incoming digital audio signal reliably. The D6202B is housed in the openGear OG3-FR-C series frames and can be configured and monitored through DashBoard.

Rear Module and Frame sold separately.

  • Features:

    • Cable equalization and data reclocking on the incoming AES/EBU signal.
    • Supports audio sampling frequencies from 30kHz to 192kHz.
    • EQ insert switch automatically activates the cable equalization
    • designed for use in 110 Ohm, balanced installations
    • Dual 1 x 4 or 1 x 8 with SRC when the T6303A rear module installed
    • Status Tallies - Lock, No Lock and EQ on front edge of the card
    • works with dashboard remote control and monitoring software
    • Higher density (1 x 4 DA with SRC) possible with up to 20 cards in a DFR-8321 frame when used with T6403A.


  • Specifications:

    • Digital Input:
    • Input Voltage: 0.2 to7V p-p.
    • Input Impedance: 110 Ohm.

    • Digital Output:
    • Output Level: 2.5V p-p nominal.
    • Output Impedance: 110 Ohm balanced.

    • Performance:
    • Equalization: 200M (650ft) over 110 Ohm twisted-pair cable.
    • Resolution: 24 Bit.
    • Jitter: Less than 5 ns.
    • Sampling Frequency Rate: 30 kHz to 192 kHz.

    • General:
    • Power Requirements: +12 V @ 330mA.
    • Weight: 0.115 kg (0.252 lbs).
    • Dimensions: 3.025 in. high x 12.800 in. deep.
