Ward-Beck IMP-8M8F Impedance Converter Panel - 8 Male/8 Female XLR to BNC

Manufacturer: Ward-Beck Systems Ltd.

Item #: WARD-IMP-8M8F   •   MFG #: IMP-8M8F



List Price:$600.00
Our Price:$599.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    IMP-8M8F is part of Ward-Beck's IMP-16 series of high density Rack Mount impedance converter panels. It allows 75 Ohm coaxial transmission of AES/EBU digital audio signals. Eight conversion transformers change a balanced 110 Ohm signal on XLR to an unbalanced 75 Ohm signal on a BNC type connector, and eight change an unbalanced 75 Ohm signal on a BNC type connector into a balanced 110 Ohm signal on an XLR type connector.

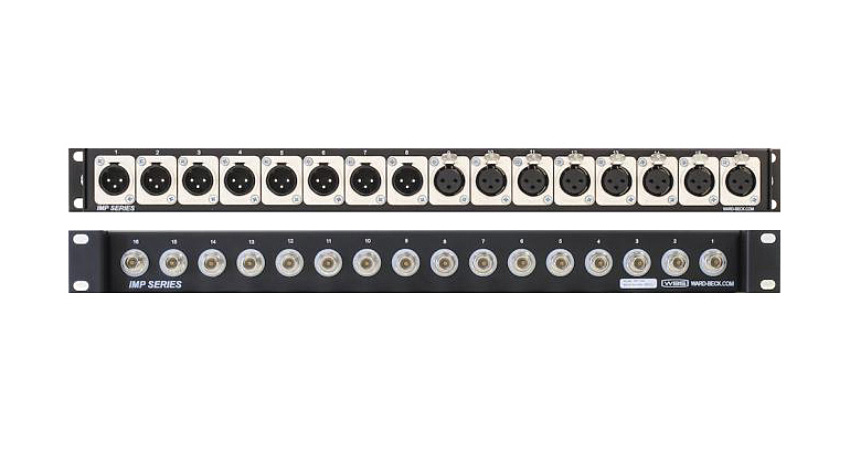

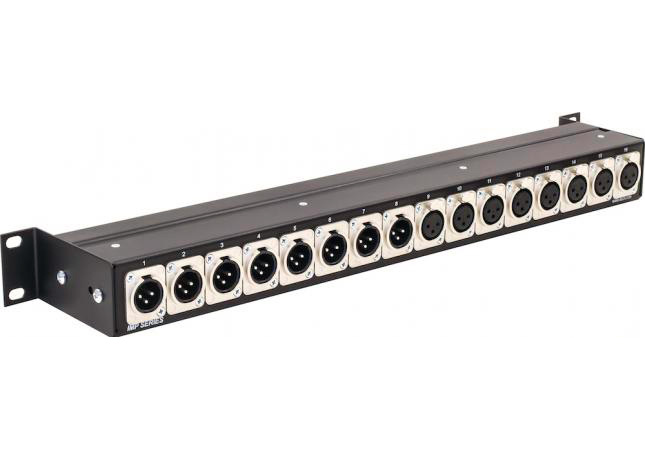

    The IMP-8M8F is a conveniently packaged 1 Rack Unit high panel that features eight3 pin male, and eight 3 pin female XLR connectors on one side, and sixteen BNC coaxial type connectors on the opposite side. At an additional cost, customers have the option to have the 8 female XLR to BNC baluns configured to include a 10 dB loss pad (Order information for this option: IMP-8M8F/10).


    • Features

      • Eight 110 to 75 Ohm converters
      • Eight 75 to 110 Ohm converters
      • occupies 1 RU
      • ideal for use where multiple XLR-3 type AES connectors are required

    • Specifications

      • 110 TO 75:
      • Input Level: 0.2-7.0 Vp-p
      • Input Impedance: 110 Ohm, Transformer balanced
      • Output Level: 0.1-4.3 Vp-p
      • Output Impedance: 75 Ohm AES/EBU unbalanced

      • 75 TO 110:
      • Input Level: 0.32-1.2 Vp-p
      • Input Impedance: 75 Ohm unbalanced
      • Output Level: 0.37-1.4 Vp-p
      • Output Impedance: 110 Ohm transformer balanced
      • Sampling Frequency: 32, 44.1, 48, 96 or 192kHz
      • Jitter: Less than 5 ns
