Ward Beck POD31 HD/SD-SDI/AES Demuxer

Manufacturer: Ward-Beck Systems Ltd.

Item #: WARD-POD31   •   MFG #: POD31



List Price:$1,075.00
Our Price:$1,074.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!

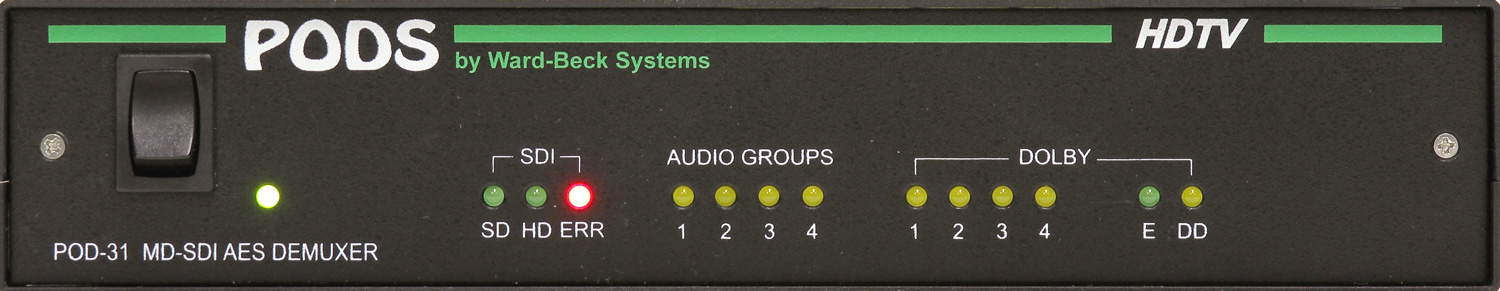

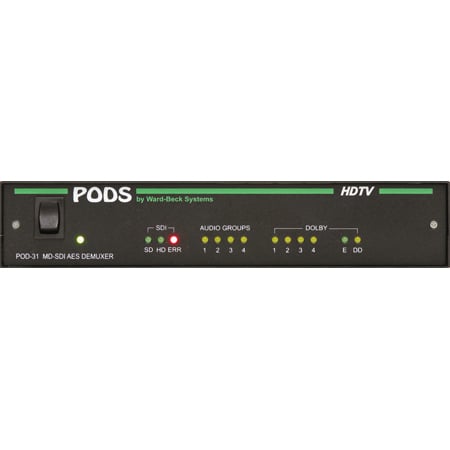

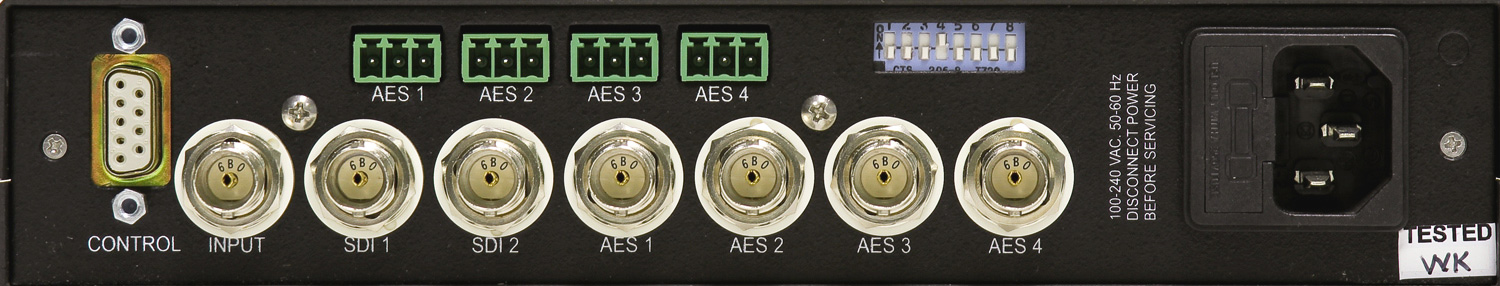

    POD31 is an audio demultiplexer designed to extract two groups of AES digital audio (four AES signals) simultaneously from an HD-SDI signal. A front panel switch selects either groups 1 and 2 or groups 3 and 4 for demuxing. POD31 has one HD-SDI input and two re-clocked HD-SDI outputs on rear panel BNC connectors. The demuxed AES outputs of the two selected groups also appear on BNC connectors located on the rear panel. Front panel status LED tallies indicate LOCK when a valid signal is applied at the input and whether audio is present in either of the two selected groups (AUD1 and AUD2). If a valid signal is not detected at the input, the ERROR LED will illuminate. The Group 3/4 LED illuminates if the select button is depressed.


    • Features

      • audio demultiplexer
      • extracts two groups of AES digital audio (four AES signals) simultaneously
      • front panel switch selects either groups 1 and 2 or groups 3 and 4 for demuxing
      • 1 HD-SDI input and 2 re-clocked HD-SDI outputs
      • BNC connectors for HD-SDI outputs and Demuxed AES outputs
      • status LED tallies indicate LOCK or ERROR

    • Specifications

      • HD-SDI Input/Output
      • Input Level 0.8 Vp-p
      • Output Level 0.8 Vp-p
      • Input Impedance 75 Ohm
      • Return Loss 18 dB
      • Output Impedance 75 Ohm
      • Data Rate 1.485 Gb/s

      • AES Output
      • Jitter less than 5ns
      • Sampling Frequency 48 kHz
      • Output Standard AES/EBU 75 Ohm unbalanced
      • Resolution 20 or 24 bit
      • Level 1 Vp-p terminated

    • Item Includes

      • All PODS are supplied in a stand alone desktop POD-PACKAGE, manual and AC power cord. PODS in rack mount assemblies may be ordered as a factory option.
