Weller WR2000X Digital Rework Station w/ DXV80 Desoldering Pencil

ITEM #: WEL-WR2000X MFG #: WR2000X

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WEL-WR2000X

WR2000X - Overview

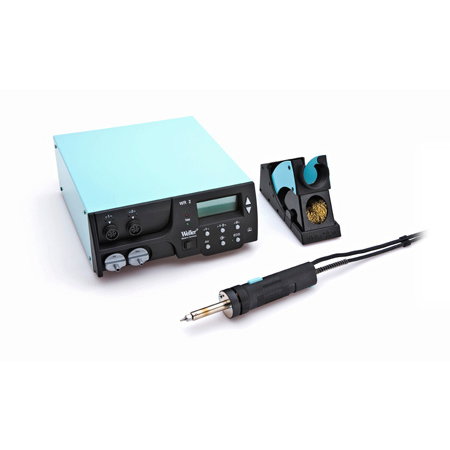

The Weller WR2000X Dual Channel Digital Self-Contained Rework Station is equipped with the 80-watt DXV80 Desoldering Iron, making it the ideal station for demanding work on heavy ground planes and multi-layer boards. The extremely capable WR2 Station has the power to efficiently repair state-of-the-art electronic sub-assemblies and the versatility to serve as the foundation for several other Weller rework and repair products. Digital microprocessor control and an internal air and vacuum source give this 300-watt dual channel rework station amazing performance and versatility. Two tools can be simultaneously used on two independent channels, which each are equipped with automatic tool recognition. Programmable temperature presets allow for immediate temperature selection, while the ESD-safe housing prevents damage to components.

The included DXV80 Desoldering Iron is ideal for electronics rework and features a both electronic temperature control and a micro-finger switch for quick starts. In addition, it is equipped with disposable solder trap for quick and easy clean out. Its vacuum delay feature prevents clogging by allowing solder to reach collection chamber before vacuum is shut off.

  • Features:

    • Self-contained air and vacuum
    • Two independent tool channels with automatic tool recognition
    • Programmable temperature presets for immediate temperature selection
    • Simultaneous use of two tools (up to maximum 300W power rating of the unit)
    • Temperature stability of ± 4°F for superior reliability
    • Large, intuitive LCD display shows critical functions
    • ESD safe to prevent damage to sensitive components
    • Ideal for electronic rework, including through hole work
    • Equipped with disposable solder trap for quick and easy clean out
    • Uses threadless DX Series desoldering tiplets
    • Vacuum delay prevents clogging by allowing solder to reach collection chamber before vacuum is shut off
    • Temperature Range: 150°F - 850°F (50°C - 450°C)
    • 80W, 24V

  • Specifications:

    • Number of Channels: 2
    • Power Consumption: 300W
    • Power Supply Voltage: 120V (input); 24V (output)
    • Temperature Range: 200°F to 850°F (93°C to 454°C)
    • Temperature Accuracy: ±17°F (±9°C)
    • Temperature Stability: ±4°F (±2°C)
    • Maximum Vacuum: 20.7 inHg (0.7 bar)
    • Maximum Delivery Rate: 18 l/min.
    • Maximum Hot Air: 15 l/min.
    • Dimensions: 10.75 x 9.25 x 4.02 in. (273 x 235 x 102 mm)
    • Weight: 13.9 lbs. (6.3 kg)

  • GTIN:

    4003019422777
