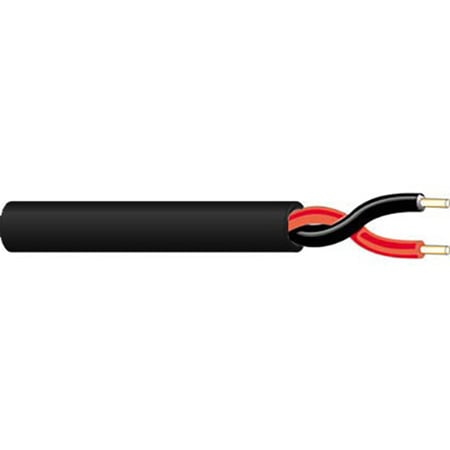

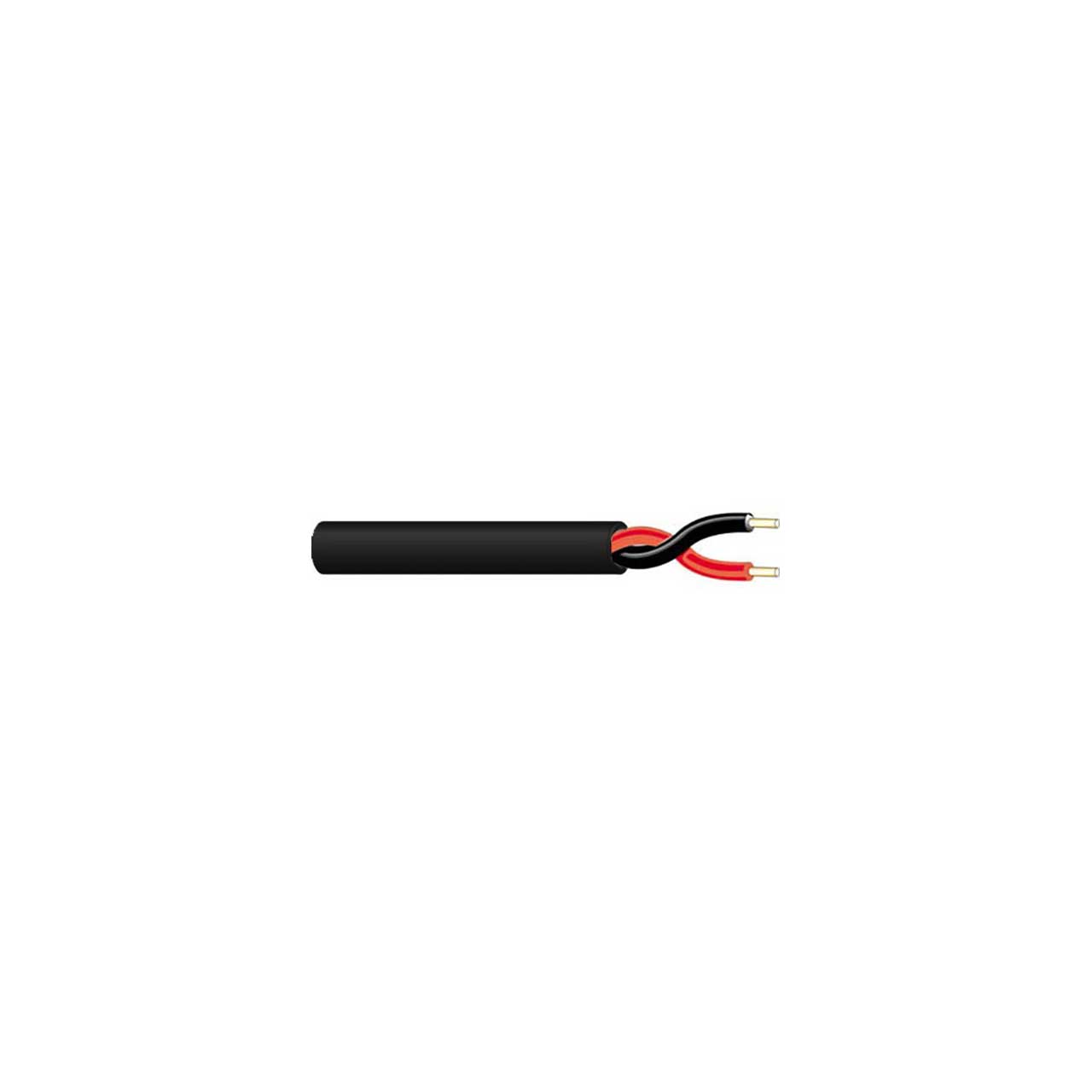

West Penn Wire 224 2 Conductor 18GA Control Cable 1000 Feet- Black

Manufacturer: West Penn Wire Corp

Item #: WP-224-1000BK   •   MFG #: 224BK1000



List Price:$133.70
Our Price:$118.72

no free ship


Length:




Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





DESCRIPTION: 18/2 STRANDED BARE COPPER CONDUCTORS, UNSHIELDED WITH AN OVERALL JACKET

NEC RATING: CMR, NEC Article 800

APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed

APPLICATION: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits


  • Specifications

    • Conductor: 18 AWG Bare Copper
      Stranding: 7x26
      Insulation Material: PVC
      Insulation Thickness: 0.010'' Nom.
      Number of Conductors: 2
      Shield: None
      Drain: None
      Jacket Material: PVC
      Jacket Thickness: 0.015'' Nom.
      Overall Cable Diameter: 0.155'' Nom.
      Approximate Cable Weight: 16.1 Lbs/1M' Nom.
      Flame Rating: UL 1666 Riser Flame Test
